KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408- )DCB,THDCB

Click highlighted areas on diagram

FRONT (*PAS = FOR ONE PERSON TYPE)

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 7321475010 73219 73220 73230 73240 90105T0064 90105T0064 90105T0068 90105T0068 90109T0013 90109T0013 90178T0017 90178T0017
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73200-02090B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73200-02090B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0K330B0

KUN15,25,TGN15,16,26..DCB..5F..GCC

GRAY,TRIM1#,3#

 1
73210-0K090B0

TGN16..DCB..SR;KUN15,25,TGN26..DCB..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#,3#

 1
73210-0K320B0

KUN15,25,TGN15,16,26..DCB..5F..GCC

SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73210-0K100B0

TGN16..DCB..SR;KUN15,25,TGN26..DCB..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

GRAY

 1
73219-33010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BLACK

 1
73219-33030

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0K100B0

KUN15,25,TGN15,16,26..DCB..GCC

SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73220-0K090B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
73220-0K100B0

TGN16..DCB..SR;KUN15,25,TGN26..DCB..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0K080B0

KUN10,15,25,TGN1#,26..5F..GCC

GRAY,TRIM1#,3#

 1
73230-0K350B0

KUN10,15,25,TGN1#,26..5F..GCC

SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73230-0K030B0

TGN16..DCB..SR;KUN15..DCB..GCC;KUN25,TGN11,26..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,3#

 1
73230-0K010B0

TGN16..DCB..SR;KUN15..DCB..GCC;KUN25,TGN11,26..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#,3#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0K220B0

LAN15,25..LHD..DCB

POWER DOOR LOCK-WITH,GRAY,TRIM1#

 1
73230-0K020B0

KUN10,15,25,TGN1#,26..GCC

GRAY,TRIM1#,3#

 1
Common parts
73214-75010
90105-T0064
90105-T0068
90109-T0013
90178-T0017

ILLUST NO. 2 OF 2(0408- )DCB,THDCB

Click highlighted areas on diagram

REAR

diagram 73219 73360C 73370C 73380C 73390C 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90109T0014 90109T0014 90950T1002 90950T1002
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

GRAY

 1
73219-33010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BLACK

 1
73219-33030

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BEIGE

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-0K030B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73360-0K030B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-0K020B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73390-0K020B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
Common parts
90105-T0063
90109-T0014
90950-T1002

ILLUST NO. 1 OF 2(1107- )DCB,SADCB,THDCB,XTR

Click highlighted areas on diagram

PASSENGER SEAT(ONE PERSON TYPE)

diagram 73135 73135 73178A 73178A 73200A 73200A 73210 73210 732140K010 73219 73220 73220 73230 73240 9010511058 90105T0063 90105T0064 90105T0064 90105T0068 90105T0068 90105T0068 9010911055 9010911056 9010911056 90109T0013 90109T0013 90109T0036 90178T0017 90178T0017
Part # Description Qty Price
Common parts
73214-0K010
90105-11058
90105-T0063
90105-T0064
90105-T0068
90109-11055
90109-11056
90109-T0013
90109-T0036
90178-T0017

ILLUST NO. 2 OF 2(1107- )DCB,SADCB,THDCB,XTR

Click highlighted areas on diagram

REAR SEAT

diagram 73219 73360C 73360C 73370C 73370C 73380C 73380C 73390C 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0068 90105T0068 9010911044 9010911044 90109T0014 90109T0014 90109T0026 90109T0026 90950T1002
Part # Description Qty Price
Common parts
90105-11058
90105-T0063
90105-T0068
90109-11044
90109-T0014
90109-T0026
90950-T1002

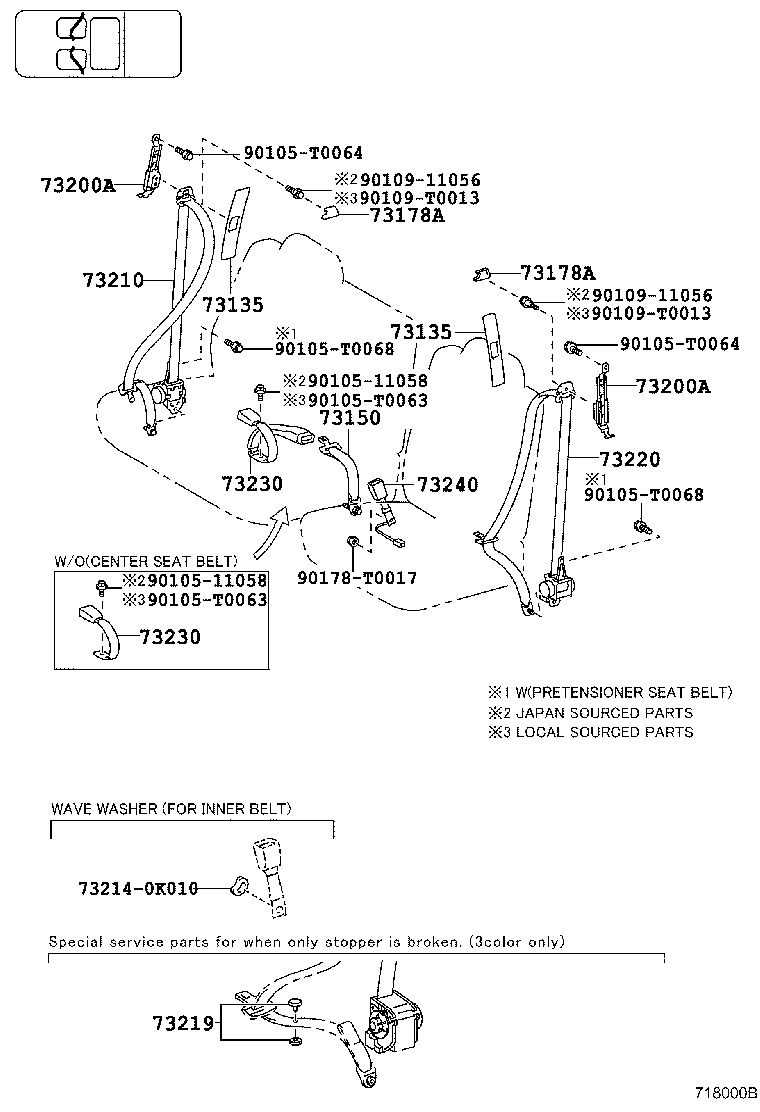

ILLUST NO. 1 OF 2(1107- )LHD..DCB

Click highlighted areas on diagram

PASSENGER SEAT(TWO PERSONS TYPE)

diagram 73135 73135 73150 73178A 73178A 73200A 73200A 73210 732140K010 73219 73220 73230 73230 73240 9010511058 9010511058 90105T0063 90105T0063 90105T0064 90105T0064 90105T0068 90105T0068 9010911056 9010911056 90109T0013 90109T0013 90178T0017
Part # Description Qty Price
Common parts
73214-0K010
90105-11058
90105-T0063
90105-T0064
90105-T0068
90109-11056
90109-T0013
90178-T0017
