KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

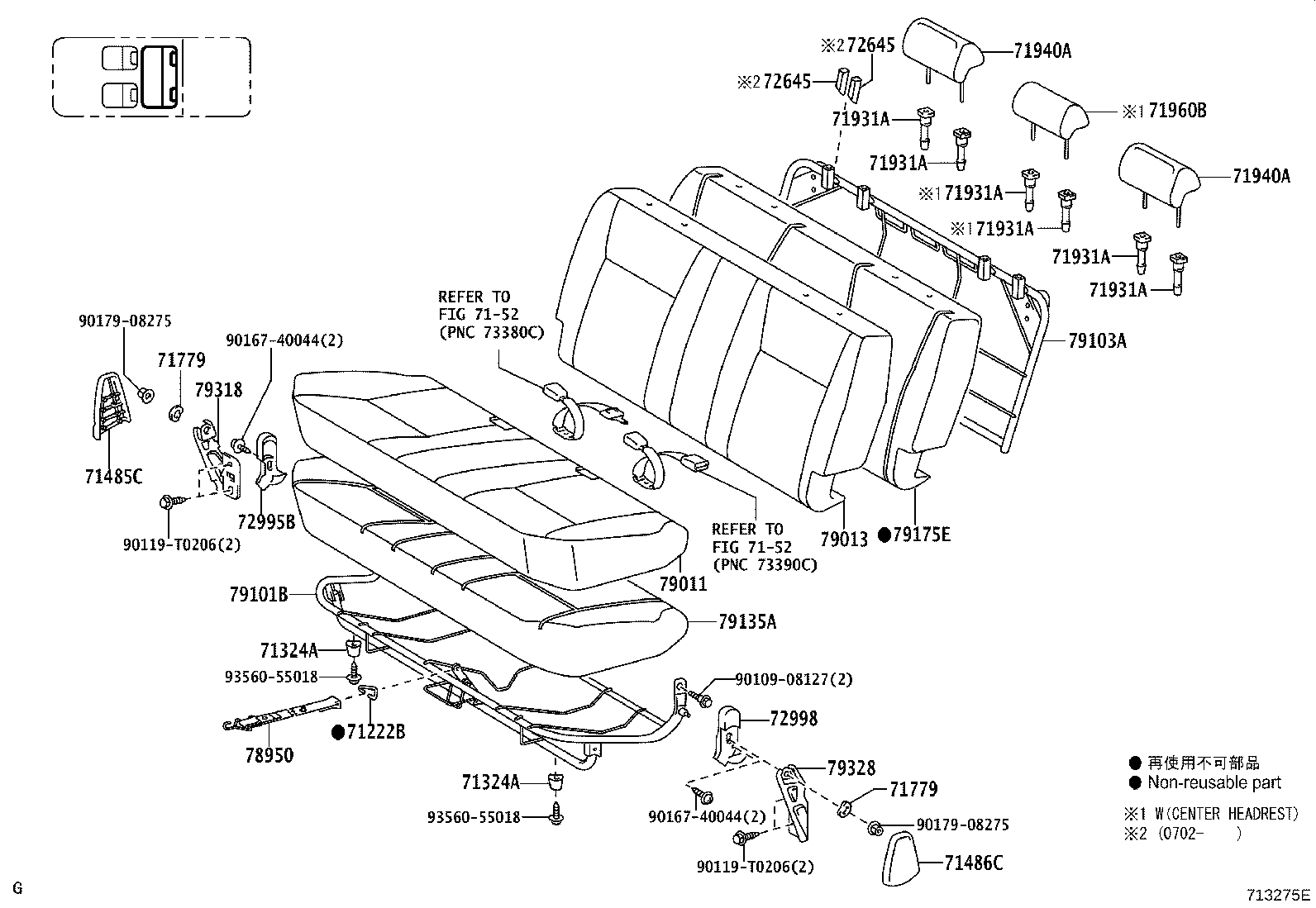

ILLUST NO. 3 OF 3(0408- )DCB,THDCB

Click highlighted areas on diagram

REAR SEAT

diagram 71222B 71324A 71324A 71485C 71486C 7152 7152 71779 71779 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72645 72645 72995B 72998 78950 79011 79013 79101B 79103A 79135A 79175E 79318 79328 9010908127 90119T0206 90119T0206 9016740044 9016740044 9017908275 9017908275 9356055018 9356055018
Part # Description Qty Price
71222B - WIRE, RR SEAT CUSHION CONNECTING
71222-0K020

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
71324A - CUSHION, REAR SEAT
71324-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 2
71324A - CUSHION, REAR SEAT
71324-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 2
71485C - COVER, REAR SEAT HINGE, RH
71485-0K010B0

GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

GRAY,TRIM1#

 1
71485-0K010D0

KUN15,25,TGN15,16,26..DCB..GCC

RED,TRIM3#

 1
71486C - COVER, REAR SEAT HINGE, LH
71486-0K010D0

KUN15,25,TGN15,16,26..DCB..GCC

RED,TRIM3#

 1
71486-0K010B0

GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

GRAY,TRIM1#

 1
71779 - COVER, REAR SEAT SIDE HINGE MALE, LH
71779-0K020

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 2
71779 - COVER, REAR SEAT SIDE HINGE MALE, LH
71779-0K020

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030D0

KUN15,25,TGN15,16,26..DCB..GCC

W/O(LOCK),RED,TRIM3#

 2
71930-02050B3

TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH)

W(LOCK),GRAY,TRIM1#

 2
71930-02050D0

KUN15,25,TGN15,16,26..DCB..GCC

W(LOCK),RED,TRIM3#

 2
71931-02030B3

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA)

W/O(LOCK),GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0K010D1

KUN15,25,TGN15,16,26..DCB..DLX..GCC

RED,TRIM3#

 2
71940-0K010B3

KUN25,TGN26..THDCB..DLX;KUN15,25,TGN15,16,26..DCB..DLX..(GCC,PHL,TH);GGN15,25,KUN16,26,35..(DCB,THDCB)..DLX..(ARL,GEN)

GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0K010D1

KUN15,25,TGN15,16,26..DCB..DLX..GCC

RED,TRIM3#

 2
71940-0K010B3

KUN25,TGN26..THDCB..DLX;KUN15,25,TGN15,16,26..DCB..DLX..(GCC,PHL,TH);GGN15,25,KUN16,26,35..(DCB,THDCB)..DLX..(ARL,GEN)

GRAY,TRIM1#

 2
72645 - CUSHION, REAR SEAT BACK LOCK
72645-0K010

KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,PHL,TH)

 2
72645 - CUSHION, REAR SEAT BACK LOCK
72645-0K010

KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,PHL,TH)

 2
72995B - COVER, NO.1 SEAT CUSHION, RH
72995-0K010B0

KUN15..DCB..DLX..(GCC,GEN,PHL,TH);GGN15,25,KUN16,2#,35,TGN15,16,26..(DCB,THDCB)..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
72995-0K010D0

KUN15,25,TGN15,16,26..DCB..GCC

RED,TRIM3#

 1
72998 - COVER, REAR SEAT CUSHION, LH
72998-0K010D0

KUN15,25,TGN15,16,26..DCB..GCC

RED,TRIM3#

 1
72998-0K010B0

KUN15..DCB..DLX..(GCC,GEN,PHL,TH);GGN15,25,KUN16,2#,35,TGN15,16,26..(DCB,THDCB)..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-0K020D1

KUN15,25,TGN15,16,26..DCB..DLX..GCC

RED,TRIM3#

 1
79011-0K020B0

KUN25,TGN26..THDCB..DLX;KUN15,25,TGN15,16,26..DCB..DLX..(GCC,PHL,TH);GGN15,25,KUN16,26,35..(DCB,THDCB)..DLX..(ARL,GEN)

GRAY,TRIM1#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-0K020B0

KUN2#,35,TGN26..THDCB..DLX;KUN15,25,TGN15,16,26..DCB..DLX..(GCC,PHL,TH)

GRAY,TRIM1#

 1
79013-0K020D0

KUN15,25,TGN15,16,26..DCB..DLX..GCC

RED,TRIM3#

 1
79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79101-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79103-0K010

KUN25..DCB..SR;TGN26..DCB..DLX..LA;KUN26..4FC..(GEN,LA,PHL,TH);KUN26,36,TGN16..(DCB,THDCB)..5F..(GCC,GEN,LA,PHL,SA,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH)

 1
79135A - PAD, NO.1 SEAT CUSHION, RH
79135-0K010

KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN35,TGN36..(DCB,THDCB)..5F..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN15,16,25,LAN15,25,35,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH)

 1
79175E - PAD, NO.1 SEAT BACK, RH
79175-0K010

KUN25..DCB..SR;KUN25..LHD..DCB..SA;TGN26..DCB..DLX..LA;KUN35..(DCB,THDCB)..DLX;KUN26..4FC..(GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA);KUN26,36,TGN16..(DCB,THDCB)..5F..(GCC,GEN,LA,PHL,SA,TH);GGN25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH)

 1
79318 - BRACKET, NO.3 SEAT LEG
79318-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
79328 - BRACKET, REAR SEAT LEG, FRONT RH
79328-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
Common parts
90109-08127
90119-T0206
90167-40044
90179-08275
93560-55018
Linked diagrams
7152

ILLUST NO. 3 OF 3(1107- )DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

REAR SEAT

diagram 71222B 71324A 71324A 71485C 71486C 71779 71779 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72645 72645 72995B 72998 78950 79011 79013 79101B 79103A 79135A 79175E 79318 79328 79977A 9009905179 9010908127 90119T0206 90119T0206 9016740044 9016740044 9017908275 9017908275 9356055018 9356055018
Part # Description Qty Price
Common parts
90099-05179
90109-08127
90119-T0206
90167-40044
90179-08275
93560-55018

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

DRIVER SEAT W/O(VERTICAL ADJUSTER)

diagram 71012S 71072S 71074S 71512S 7152 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72503A 72504A 72526A 72637G 72992 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

DRIVER SEAT W(VERTICAL ADJUSTER)

diagram 443440K010 71012S 71072S 71074S 71512S 7152 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72140A 72158B 72201B 72409 72422A 72448A 72457D 72503A 72504A 72526A 72637G 727020K100 727020K100 72992 791690K080 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 9052001006 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018 9616000600 9616000600
Part # Description Qty Price
Common parts
44344-0K010
72702-0K100
79169-0K080
90119-T0001
90167-40044
90167-T0019
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

DRIVER SEAT W(POWER SEAT)

diagram 71072S 71074S 71512S 7152 7152 71552S 71620S 71640S 71812D 71862 71868A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72138B 72158B 72992 791690K100 8202 8202 8401 8401 8401 8401 85822 85822A 85822C 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 2 OF 3(1107- )LHD..DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

*PAS (FOR TWO PEOPLE TYPE)

diagram 71011S 71071S 71073S 71511S 71551S 71630S 71811D 71861 71910A 71931 71931 72137B 72525A 90119T0001 90119T0001 9016740044 90167T0019 9151581025 9151581025 9324056025
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91515-81025
93240-56025

ILLUST NO. 2 OF 3(1107- )LHD..DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

*PAS (FOR ONE PERSON TYPE)

diagram 71011S 71071S 71073S 71511S 7152 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72504 72525A 72637F 72991 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152
