KUN25L-PRMDHV (2005)
Toyota Hilux
(0408- )DCB,THDCB

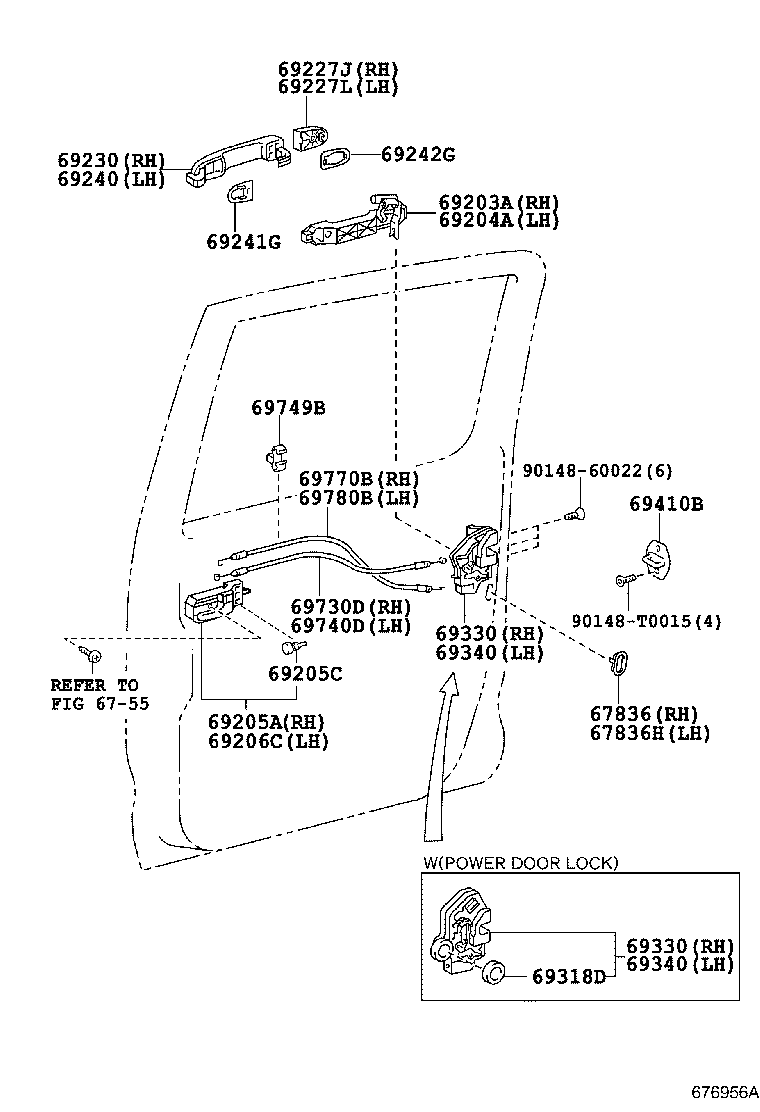

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-0K010 |
KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN);GGN15,25,KUN15,16,26,36,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,TH) |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-0K010 |
KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN);GGN15,25,KUN15,16,26,36,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,TH) |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-0D070B3 |
KUN15,25,TGN15,16,26..DCB..GCC GRAY,TRIM1#,3# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-0D070B3 |
KUN15,25,TGN15,16,26..DCB..GCC GRAY,TRIM1#,3# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-06030 |
TGN26..DCB..(GCC,TH);TGN26..SR..(ANCOM,GEN);KUN15,25,TGN15,16..DCB..5F..GCC;GGN15,25,KUN15,16,2#,36,TGN36..(DCB,THDCB)..SR..(ANCOM,ARL,GEN,MA,PHL,TH) *CR |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-06030 |
TGN26..DCB..(GCC,TH);TGN26..SR..(ANCOM,GEN);KUN15,25,TGN15,16..DCB..5F..GCC;GGN15,25,KUN15,16,2#,36,TGN36..(DCB,THDCB)..SR..(ANCOM,ARL,GEN,MA,PHL,TH) *CR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-06040 |
TGN26..DCB..(GCC,TH);TGN26..SR..(ANCOM,GEN);KUN15,25,TGN15,16..DCB..5F..GCC;GGN15,25,KUN15,16,2#,36,TGN36..(DCB,THDCB)..SR..(ANCOM,ARL,GEN,MA,PHL,TH) PLATED |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-06040 |
TGN26..DCB..(GCC,TH);TGN26..SR..(ANCOM,GEN);KUN15,25,TGN15,16..DCB..5F..GCC;GGN15,25,KUN15,16,2#,36,TGN36..(DCB,THDCB)..SR..(ANCOM,ARL,GEN,MA,PHL,TH) PLATED |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-06030 |
KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN);GGN15,25,KUN15,16,26,36,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,TH) |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-06020 |
KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN);GGN15,25,KUN15,16,26,36,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,TH) |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-0K010 |
TGN16..DCB..DLX..(ARL,GCC,GEN);KUN15,2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,PHL,TH) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-0K010 |
TGN16..DCB..DLX..(ARL,GCC,GEN);KUN15,2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,PHL,TH) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-0K010 |
TGN16..DCB..DLX..(ARL,GCC,GEN);KUN15,2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,PHL,TH) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-0K010 |
TGN16..DCB..DLX..(ARL,GCC,GEN);KUN15,2#,35,TGN15,26..(DCB,THDCB)..DLX..(GCC,GEN,PHL,TH) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-0K010 |
TGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH) |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN35,TGN36..(DCB,THDCB)..5F..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN15,16,25,LAN15,25,35,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH) |
2 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0010 | ||||
| 90148-T0015 | ||||
| 90541-04027 | ||||
| Linked diagrams | ||||
| 6755 | ||||
(1107- )DCB,SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0015 | ||||
| Linked diagrams | ||||
| 6755 | ||||
