KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

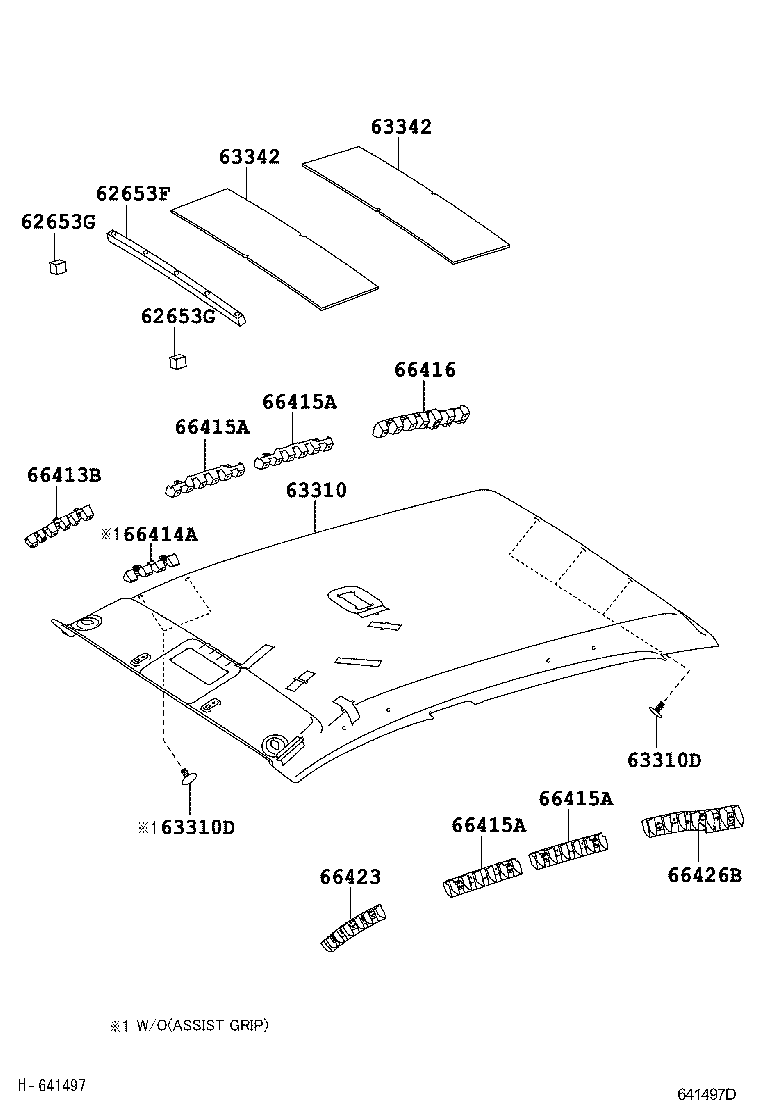

(0408- )DCB,THDCB

Click highlighted areas on diagram

diagram 62653F 62653G 62653G 63310 63310D 63310D 63342 63342 66413B 66414A 66415A 66415A 66415A 66415A 66416 66423 66426B
Part # Description Qty Price
62653F - PACKING (FOR ROOF HEADLINING)
62653-0K080

TGN16..TH;KUN16..DCB..ARL;TGN16..(DCB,XTR)..5F..(ARL,GCC,GEN);KUN26..(DCB,THDCB,XTR)..(ARL,GEN,PHL,TH);KUN15,16,TGN36..(DCB,XTR)..(GCC,GEN,PHL,TH);GGN15,25,KUN25,3#,TGN15,26..(DCB,THDCB,XTR)..(ARL,GCC,GEN,MA,TH)

 1
63310 - HEADLINING ASSY, ROOF
63310-0K190B1

KUN15,25,TGN15,16,26..DCB..GCC

LT. GRAY,TRIM1#,3#

 1
63310-0K191B1

KUN15,25,TGN15,16,26..DCB..GCC

LT. GRAY,TRIM1#,3#

 1
63310D - CLIP, ROOF HEADLINING
90467-T0004B0

KUN10,15,25,TGN1#,26..GCC

LT.GRAY,TRIM1#,3#

 5
63310D - CLIP, ROOF HEADLINING
90467-T0004B0

KUN10,15,25,TGN1#,26..GCC

LT.GRAY,TRIM1#,3#

 5
63342 - PAD, ROOF SILENCER, NO.2
63342-0K010

TGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-0K010

TGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-0K010

KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0K010

KUN26..XTR..IV3;TGN16..(SCB,XTR)..SR;KUN25,TGN16..DCB..5F..GCC;GGN15,KUN15,TGN36..DCB..SR..(ARL,PHL);TGN16..(SCB,XTR)..5F..DLX..(ARL,GCC,GEN);GGN25,KUN16,26..(SCB,THDCB)..(ARL,GEN,TH);KUN15,TGN15,26..(DCB,SCB,XTR)..(GCC,PKN,TH);GGN15,KUN15,TGN15,26..(SCB,THDCB,XTR)..(ARL,GEN);GGN25,KUN16,2#,36..(DCB,XTR)..SR..(ARL,MA,PHL,TH);KUN10,25,35,LAN15,TGN10,11..(SCB,THDCB,THSCB)..(GCC,GEN,IDN,MA,PKN)..CBU

 1
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 4
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 4
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 4
66415A - SPACER, SIDE RAIL, REAR NO.2 RH
66415-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 4
66416 - SPACER, SIDE RAIL, REAR NO.3 RH
66416-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-0K010

KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU

 1
66426B - SPACER, SIDE RAIL, REAR NO.3 LH
66426-0K010

GGN15,25,KUN15,16,2#,36,TGN15,16,26,36..DCB..(ARL,GCC,GEN,MA,PHL,TH)

 1

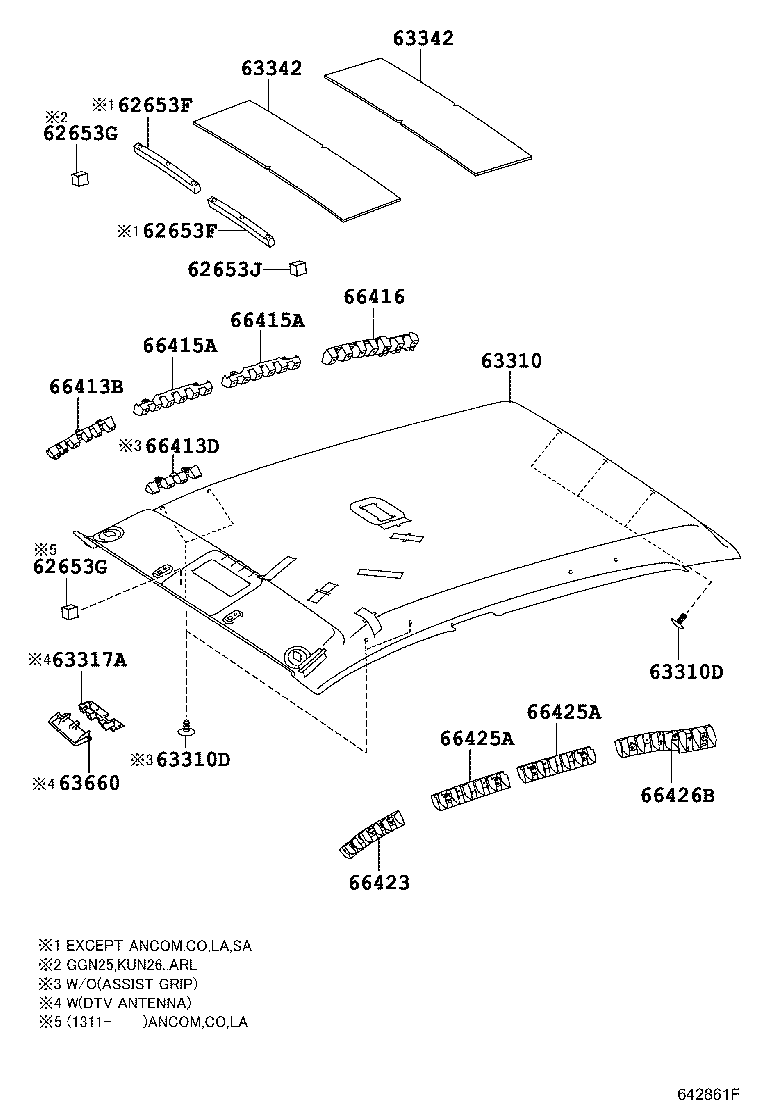

(1107- )DCB,SADCB,THDCB

Click highlighted areas on diagram

diagram 62653F 62653F 62653G 62653G 62653J 63310 63310D 63310D 63317A 63342 63342 63660 66413B 66413D 66415A 66415A 66416 66423 66425A 66425A 66426B
Part # Description Qty Price
