KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )DCB,THDCB

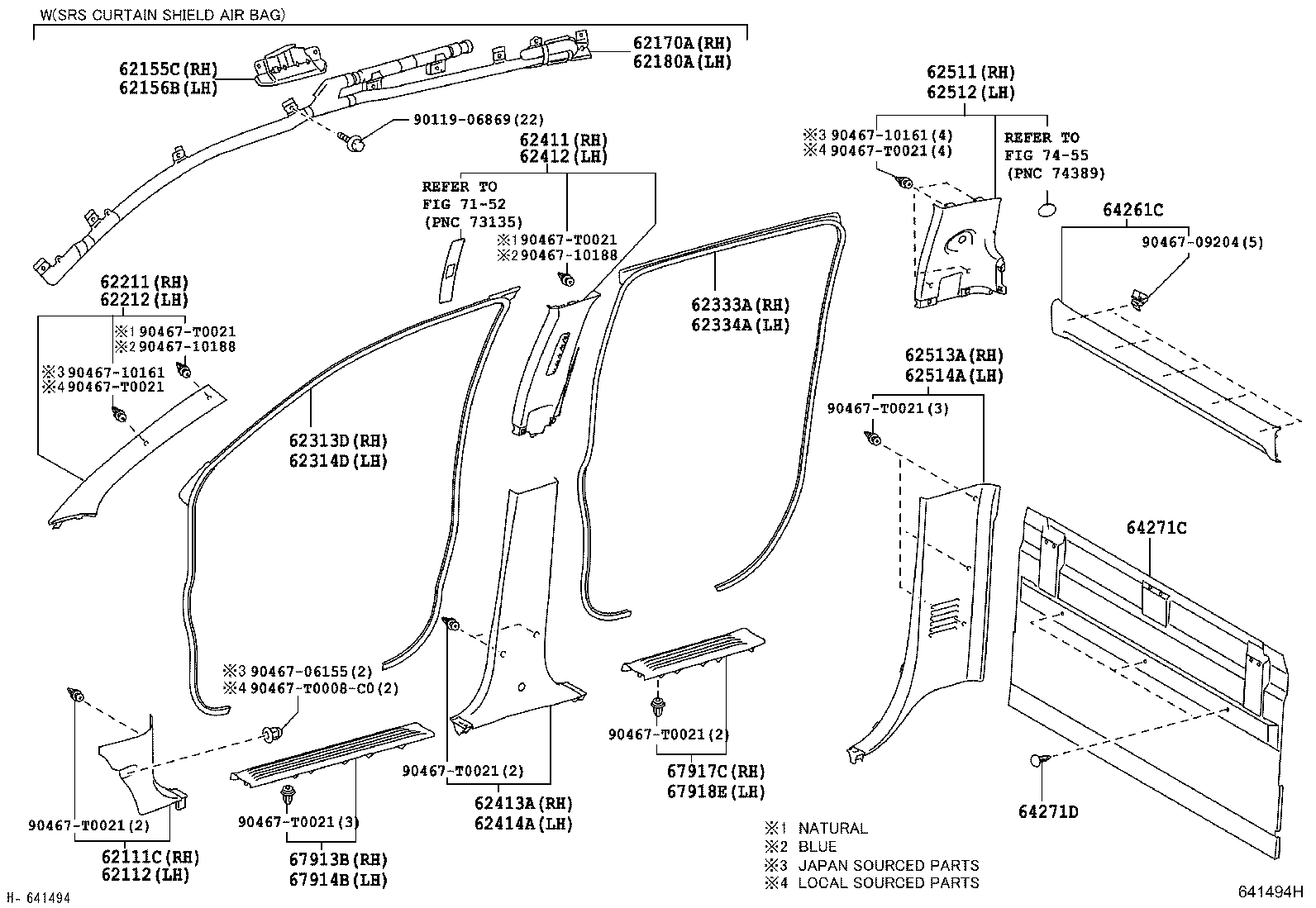

Click highlighted areas on diagram

diagram 62111C 62112 62155C 62156B 62170A 62180A 62211 62212 62313D 62314D 62333A 62334A 62411 62412 62413A 62414A 62511 62512 62513A 62514A 64261C 64271C 64271D 67913B 67914B 67917C 67918E 7152 7455 9011906869 9046706155 9046709204 9046710161 9046710161 9046710188 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0K010B0

KUN10,15,25,TGN1#,26..GCC

GRAY,TRIM1#,3#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0K010B0

KUN10,15,25,TGN1#,26..GCC

GRAY,TRIM1#,3#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0K020B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-0K020B0

KUN25,TGN26..GCC

LT.GRAY,TRIM1#,3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-0K010

KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ARL,GCC,GEN,SA);GGN15,25,KUN15,16,26,36,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,SA,TH)

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62312-0K010

KUN25..DCB..SR;KUN25,35,TGN16..(DCB,THDCB)..5F..(ARL,GCC,GEN,SA);GGN15,25,KUN15,16,26,36,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,SA,TH)

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-0K020

KUN1#,2#..DCB

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-0K020

KUN1#,2#..DCB

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0K011B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
62413-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
62414-0K011B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62511-0K011B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62512-0K011B0

KUN15,25,TGN15,16,26..DCB..GCC

LT.GRAY,TRIM1#,3#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-0K010B1

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-0K010B1

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
64261C - GARNISH, BACK PANEL, UPPER
64261-0K010B1

KUN10,15,25,TGN1#,26..GCC

LT.GRAY,TRIM1#,3#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
67918E - PLATE, REAR DOOR SCUFF, LH
67918-0K010B0

KUN15,25,TGN15,16,26..DCB..GCC

GRAY,TRIM1#,3#

 1
Common parts
90119-06869
90467-06155
90467-09204
90467-10161
90467-10188
90467-T0008C0
90467-T0021
Linked diagrams
7152
7455
