KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )DCB,THDCB

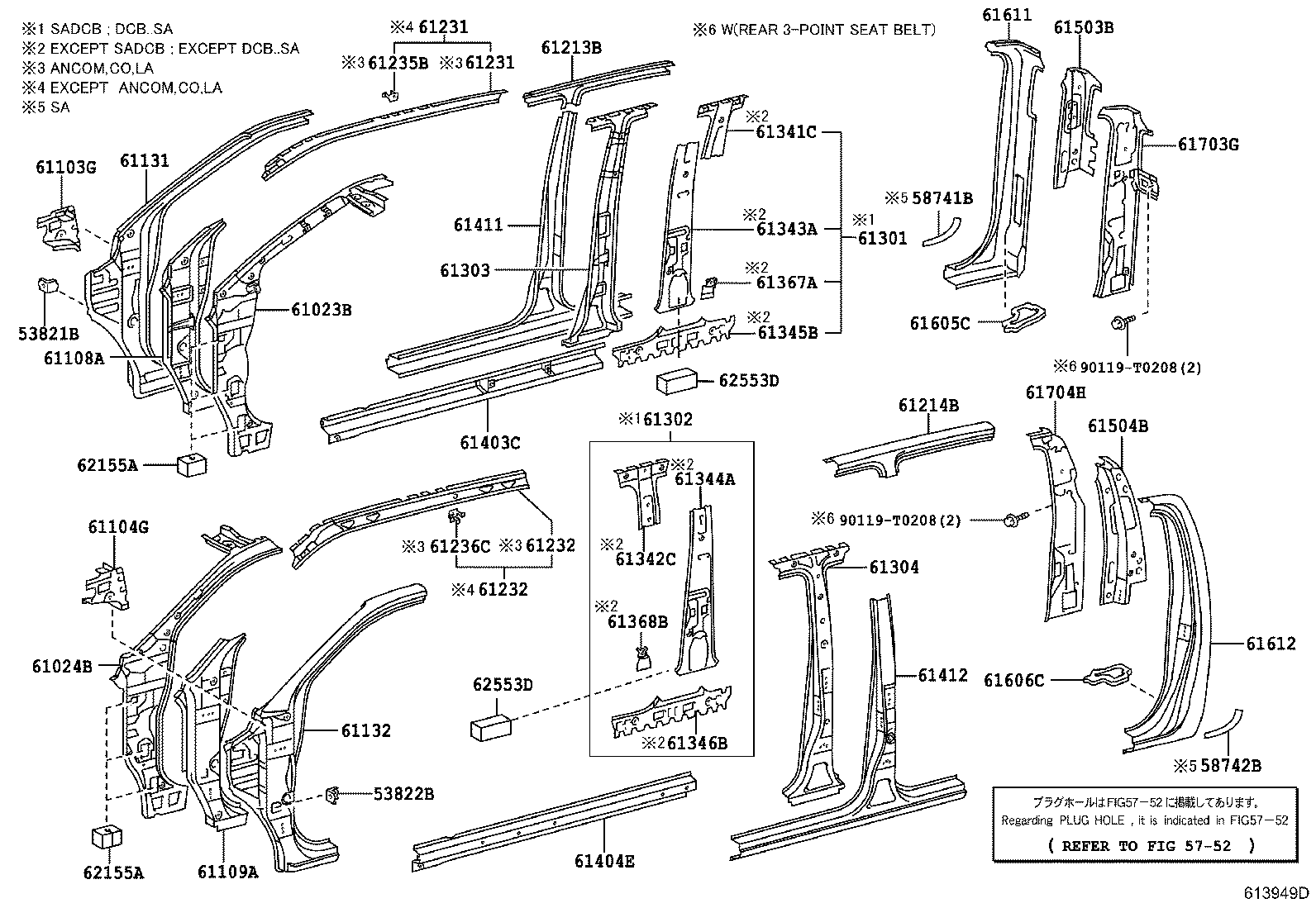

Click highlighted areas on diagram

diagram 53821B 53822B 5752 58741B 58742B 61023B 61024B 61103G 61104G 61108A 61109A 61131 61132 61213B 61214B 61231 61231 61232 61232 61235B 61236C 61301 61302 61303 61304 61341C 61342C 61343A 61344A 61345B 61346B 61367A 61368B 61403C 61404E 61411 61412 61503B 61504B 61605C 61606C 61611 61612 61703G 61704H 62155A 62155A 62553D 62553D
Part # Description Qty Price
53821B - BRACKET, FRONT FENDER, REAR RH
53821-16010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
53822B - BRACKET, FRONT FENDER, REAR LH
53821-16010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0K020

GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0K020

GGN25,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,GCC,GEN,MA,PHL,SA,TH

 1
61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61103-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61104-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-0K901

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-0K901

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-0K901

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-0K901

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)

 1
61235B - BRACKET, ASSIST GRIP
61235-0K010

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,SA,TH)

 4
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-0K010

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB

 1
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-0K010

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB

 1
61341C - PILLAR, CENTER BODY, INNER UPPER RH
61341-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61342C - PILLAR, CENTER BODY, INNER UPPER LH
61342-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61343-0K040

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61344-0K040

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-0K010

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,TH)

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-0K010

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,TH)

 1
61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61367-0K010

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,TH)

 1
61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61368-0K010

KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN25,35,TGN16..(DCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,LA);GGN15,25,KUN15,16,26,36,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,TH)

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61411 - PANEL, ROCKER, OUTER RH
61411-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61412 - PANEL, ROCKER, OUTER LH
61412-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
61605C - PANEL SUB-ASSY, QUATER, REAR INNER RH
61567-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
61606C - PANEL SUB-ASSY, QUATER, REAR INNER LH
61568-0K010

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
61611 - PANEL, QUARTER, RH
61611-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61612 - PANEL, QUARTER, LH
61612-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 1
61703G - PANEL SUB-ASSY, QUARTER, INNER RH
61703-0K010

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB

 1
61703-0K110

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-0K150

GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH)

 1
61704-0K010

GGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB,THDCB

 1
62155A - PAD, COWL SIDE LOWER SILENCER
62155-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 6
62155A - PAD, COWL SIDE LOWER SILENCER
62155-0K010

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)

 6
62553D - PAD, PILLAR, NO.3
62557-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
62553D - PAD, PILLAR, NO.3
62557-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 2
