KUN25L-PRMDHV (2005)

Toyota Hilux

Production Jul 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )DCB,THDCB

Click highlighted areas on diagram

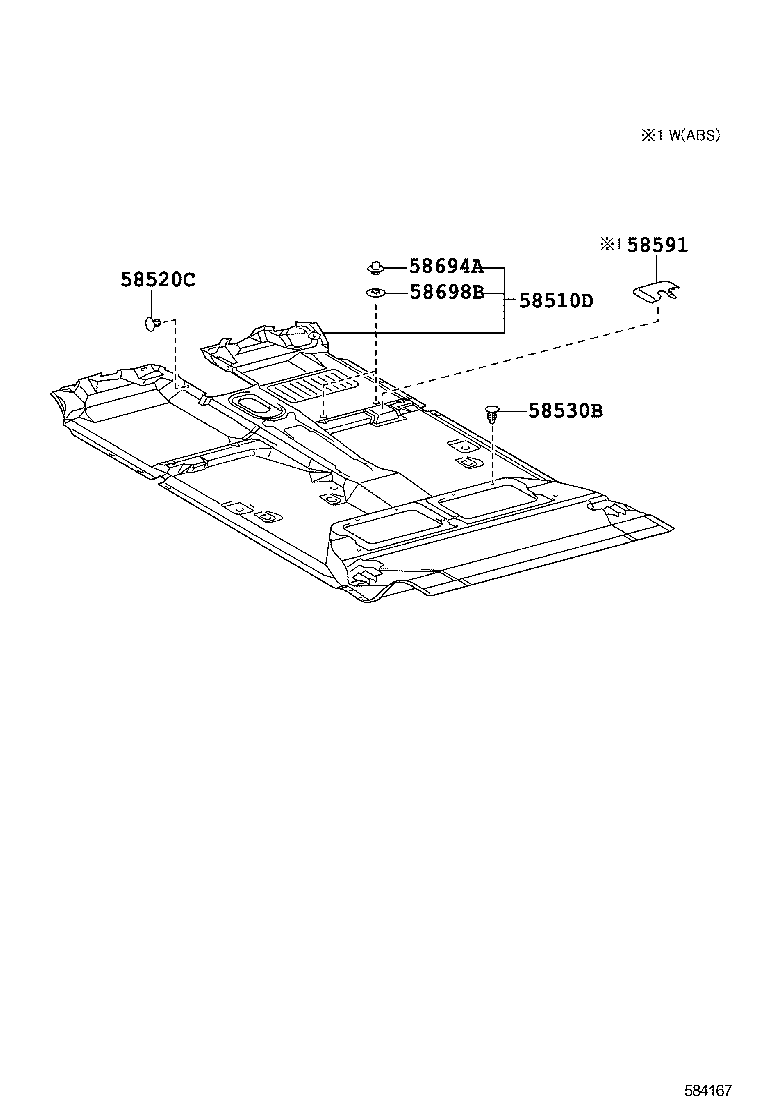

diagram 58510D 58520C 58530B 58591
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-0K150D0

KUN25..GCC

RED,TRIM3#

 1
58510-0K110D0

TGN16..DCB..SR;KUN15,25,TGN26..DCB..5F..GCC

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),RED,TRIM3#

 1
58510-0K110B0

TGN16..DCB..SR;TGN15,16..DCB..GEN;KUN15,25,TGN26..LHD..DCB..5F..(GCC,GEN)

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0029D0

KUN10,15,25,TGN1#,26..GCC

RED,TRIM3#

 2
90467-T0029B0

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26..ANCOM,GCC,GEN,SA;KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN26,36..DCB..5F..DLX..(LA,PHL);KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GCC,GEN,PKN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GCC,GEN,IDN,LA,SA,TH)

MD.GRAY,TRIM1#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-T0031D0

KUN15,25,TGN15,16,26..DCB..GCC

RED,TRIM3#

 8
90467-T0031B0

KUN26..DCB..5F..SA;TGN36..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN25,TGN26..SR..(ANCOM,GEN,MA);KUN26..(DCB,THDCB)..(ARL,GEN,LA);KUN15,35,TGN26..(DCB,THDCB)..DLX;GGN15,25,KUN16,25,36,LAN15,25,35,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA)

MD.GRAY,TRIM1#

 8

ILLUST NO. 1 OF 2(1107- )DCB,SADCB,THDCB

Click highlighted areas on diagram

diagram 58510D 58520C 58530B 58591 58694A 58698B
Part # Description Qty Price
