KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,6#,RN50,55,YN5#,6#

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320A 88320B 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88322 88325A 88329 88329C 88329C 88332 88335 88360 88360A 88364 88374 88374 88374 88375 88375 88375
Part # Description Qty Price

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

COMPONET OF COMPRESSOR

diagram 88321 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88360A 88360C 88371A 9009904370 9009904924 9009908058 9009908058
Part # Description Qty Price
Common parts
90099-04370
90099-04924
90099-08058

ILLUST NO. 1 OF 2(9708- )RZN14#,154,16#,174,19#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88446 88595 88688N 9009904349 9009904950 9009907065 9009907114 9017910132 9151281040 9151281070 9151281085 9151281085 91512H1085 91512H1085 9331915008
Part # Description Qty Price
Common parts
90099-04349
90099-04950
90099-07065
90099-07114
90179-10132
91512-81040
91512-81070
91512-81085
91512-H1085
93319-15008

ILLUST NO. 1 OF 2(9708- )LN14#,15#,16#,17#,19#

Click highlighted areas on diagram

diagram 8271189185 88301 88302 88320 88330A 88403 88410 88431 88444 88446 88446A 88469B 88595 88595D 88648F 88688N 9009904349 9009904950 9009907053 9009907065 9009907114 9009910015 9011908474 9011908720 9011910367 9011912160 9017910132 9331915008
Part # Description Qty Price
Common parts
82711-89185
90099-04349
90099-04950
90099-07053
90099-07065
90099-07114
90099-10015
90119-08474
90119-08720
90119-10367
90119-12160
90179-10132
93319-15008

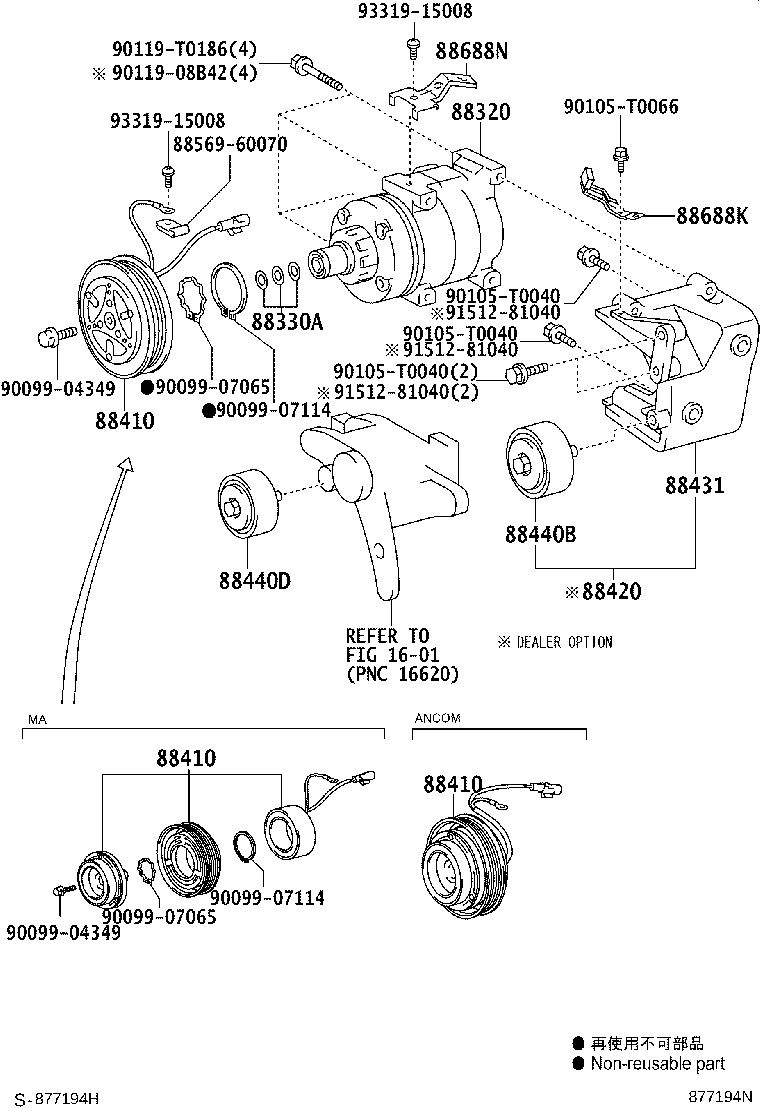

(0408-0808)KUN16,25,36..TH ; (0408-0808)KUN15..XTR..DCR ; (0408-0808)KUN26..SR..GEN

Click highlighted areas on diagram

diagram 1601 88320 88330A 88410 88410 88410 88420 88431 88440B 88440D 8856960070 88688K 88688N 9009904349 9009904349 9009907065 9009907065 9009907114 9009907114 90105T0040 90105T0040 90105T0040 90105T0066 9011908B42 90119T0186 9151281040 9151281040 9151281040 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0K080

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88320-0K080

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-30420

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88335-30420

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K080

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K390

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88410-0K460

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K020

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88431-0K020

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88440B - PULLEY ASSY, IDLE
88440-0K060

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88440-0K060

KUN16,25,36..MA,TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K010

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88440-0K010

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K100

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
88688-0K100

KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)

 1
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90105-T0040
90105-T0066
90119-08B42
90119-T0186
91512-81040
93319-15008
Linked diagrams
1601
