KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0608)KUN16,26,36..RHD ; (0608- )KUN16,26,36..RHD..GEN,IDN,SA,TH

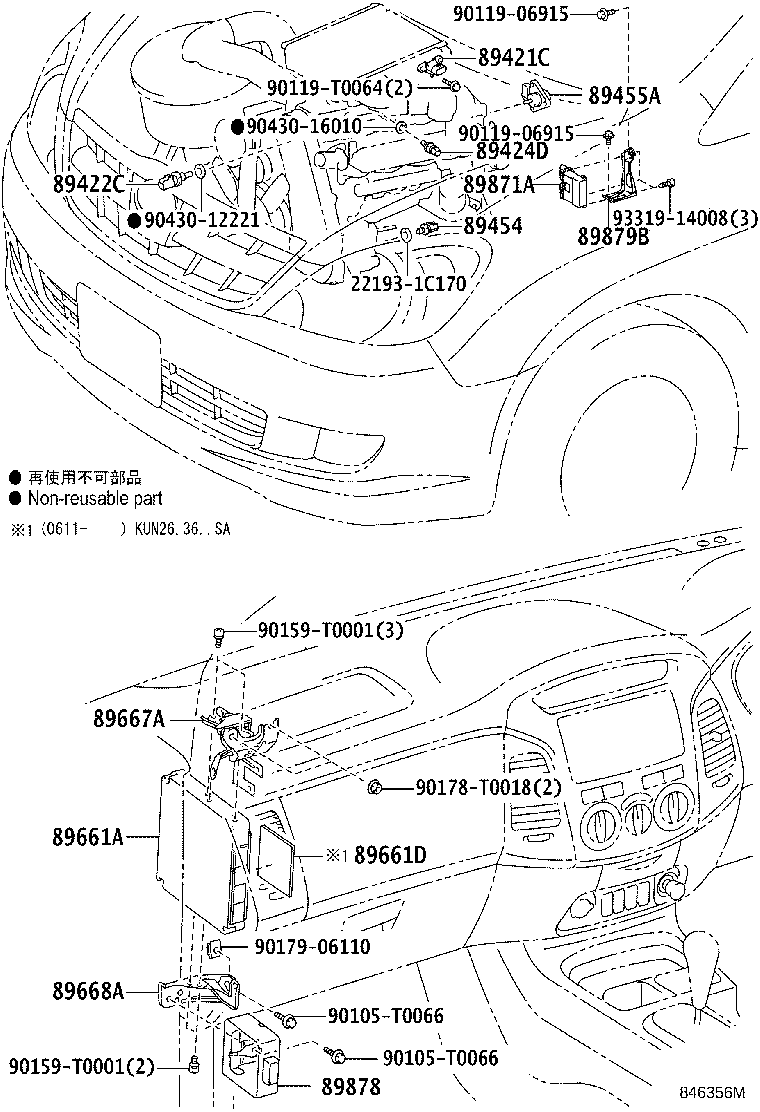

Click highlighted areas on diagram

diagram 221931C170 89421C 89422C 89424D 89454 89455A 89661A 89661D 89667A 89668A 89871A 89878 89879B 90105T0066 90105T0066 9011906915 9011906915 90119T0064 90159T0001 90159T0001 90178T0018 9017906110 9043012221 9043016010 9331914008
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71020

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB,XTR)..5F;KUN26..4FC..(GEN,LA,PHL,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,THDCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010

KUN15,25..HDCR..TH;KUN16,26,36..ARL,GEN,PHL,TH

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

KUN1#,2#,3#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-0K220

KUN16..5F..TH

P/N LABEL=896610K220

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0K010

KUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..RHD..(GEN,SA);KUN15,35..RHD..DLX..SA;KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN26..(SCB,XTR)..5F..(ARL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN16,36,LAN15,25,35..RHD..(DCB,SCB)..5F

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K030

KUN25..SCB..MA;KUN16,36..XTR..TH;KUN25..RHD..(GEN,SA);KUN15,35..RHD..DLX..SA;KUN25..(DCB,XTR)..5F..SR;KUN26..DCB..5F..(ARL,SA,TH);KUN26..(SCB,XTR)..5F..(ARL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN16,36,LAN15,25,35..RHD..(DCB,SCB)..5F

 1
89871A - DRIVER, INJECTOR
89871-71010

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB,XTR)..5F;KUN26..4FC..(GEN,LA,PHL,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,THDCB,XTR)..5F..(GEN,LA,PHL,SA,TH)

 1
89878 - DRIVER, TURBO MOTOR
89878-71020

KUN16,26,36..TH

 1
89879B - BRACKET, INJECTOR DRIVER
89879-71010

KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN25..RHD..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN15,26,3#..RHD..(DCB,SCB,XTR)

 1
Common parts
22193-1C170
90105-T0066
90119-06915
90119-T0064
90159-T0001
90178-T0018
90179-06110
90430-12221
90430-16010
93319-14008

ILLUST NO. 2 OF 2(1107- )KUN1#,2#,3#,LAN15,25,35

Click highlighted areas on diagram

diagram 89661A 89661A 89667A 89667A 89668A 89668A 89878 89878 90105T0066 90105T0066 90105T0066 90105T0066 90159T0001 90159T0001 90159T0001 90159T0001 90178T0018 90178T0018 9017906110 9017906110
Part # Description Qty Price
Common parts
90105-T0066
90159-T0001
90178-T0018
90179-06110

ILLUST NO. 1 OF 2(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

diagram 221931C170 8401 85911K 89421C 89421C 89421C 89422C 89424D 89424D 89454 89455A 89455A 89871A 89871A 89871A 89871A 898790K010 89879B 89879B 89879B 89879B 90105T0059 90105T0066 90105T0066 90105T0066 90105T0066 90105T0066 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 90119T0064 90119T0064 9043012221 9043016010 9155480612 91631G0614 9167180616 9331914008 9331914008 9331914008 9331914008
Part # Description Qty Price
Common parts
22193-1C170
89879-0K010
90105-T0059
90105-T0066
90119-06915
90119-T0064
90430-12221
90430-16010
91554-80612
91631-G0614
91671-80616
93319-14008
Linked diagrams
8401
