Toyota Hilux KUN16 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
HILUX
KUN16R-CRMSYT (2004)
7151 - SEAT & SEAT TRACK

KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

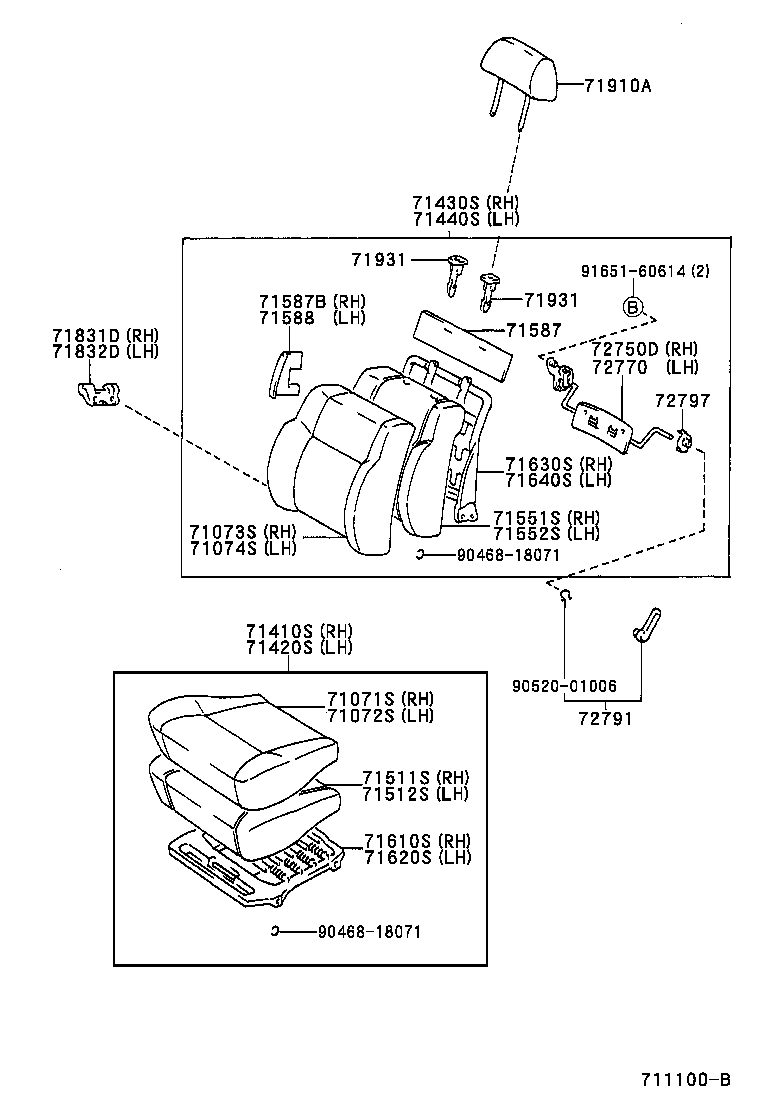

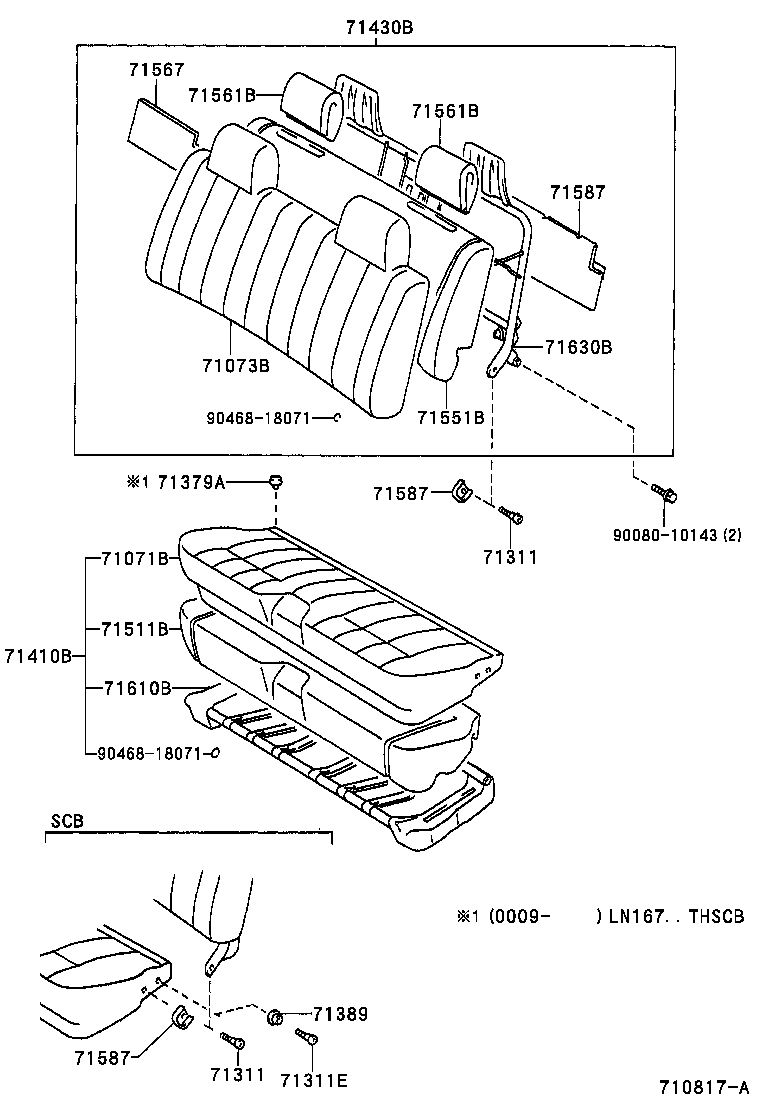

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

Part #	Description	Period	Qty	Price
Common parts
90080-10143
90468-18071

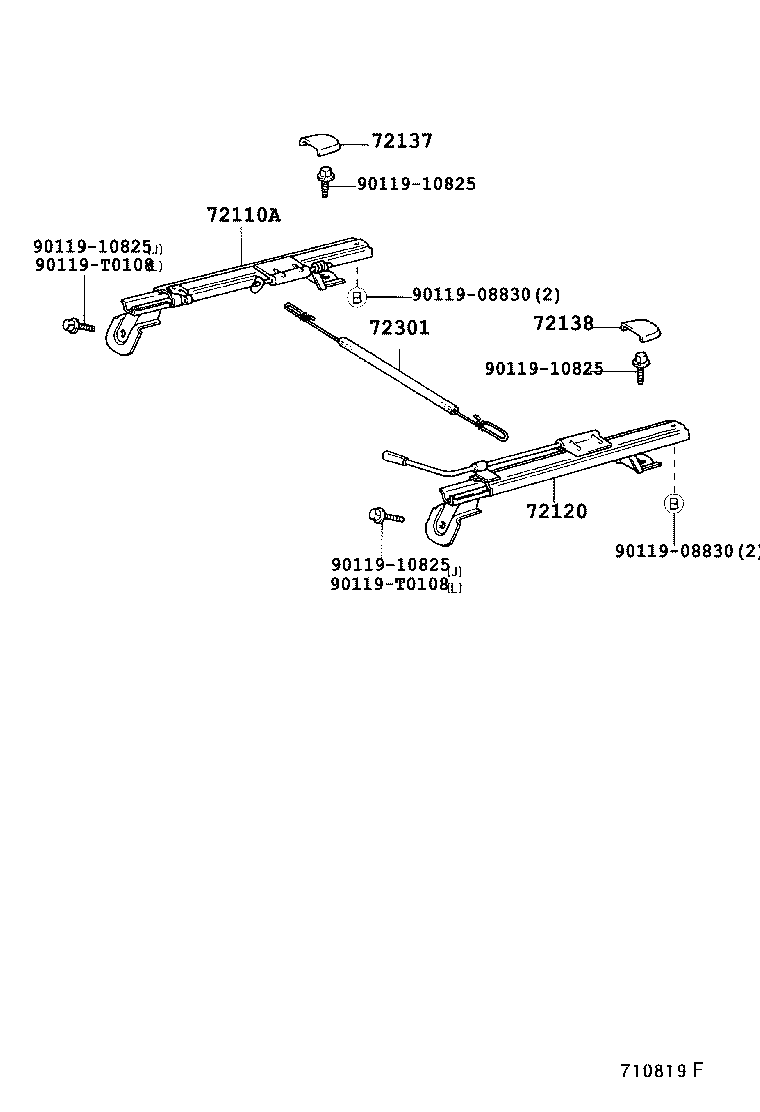

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-08830
90119-10825
90119-T0108

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

Part #	Description	Period	Qty	Price
Common parts
90468-18071
94185-60800

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-10825
90119-T0108
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

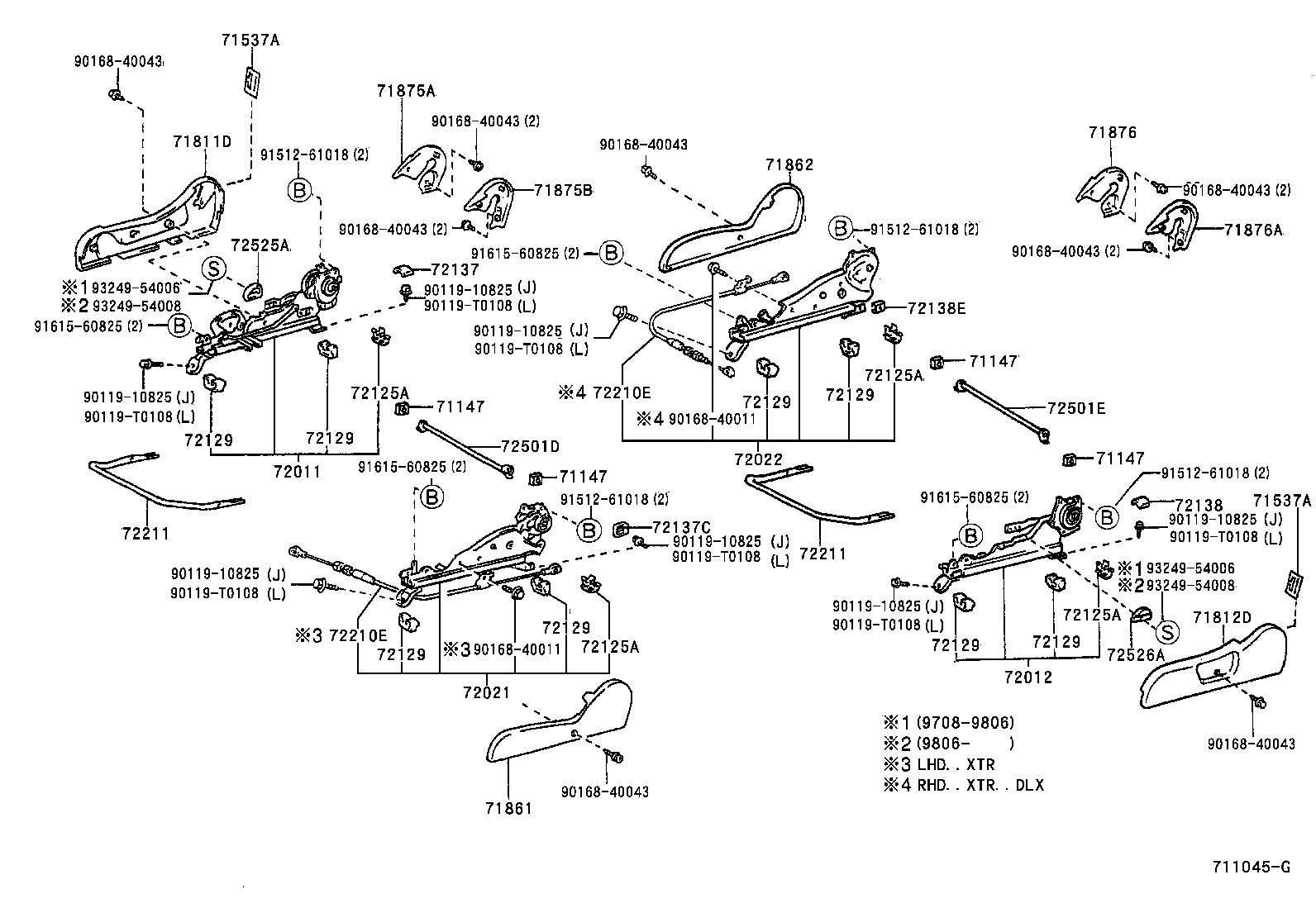

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

Part #	Description	Period	Qty	Price
Common parts
90468-18071
90520-01006
91651-60614

ILLUST NO. 3 OF 3(0408- )SMT,XTR

Click highlighted areas on diagram

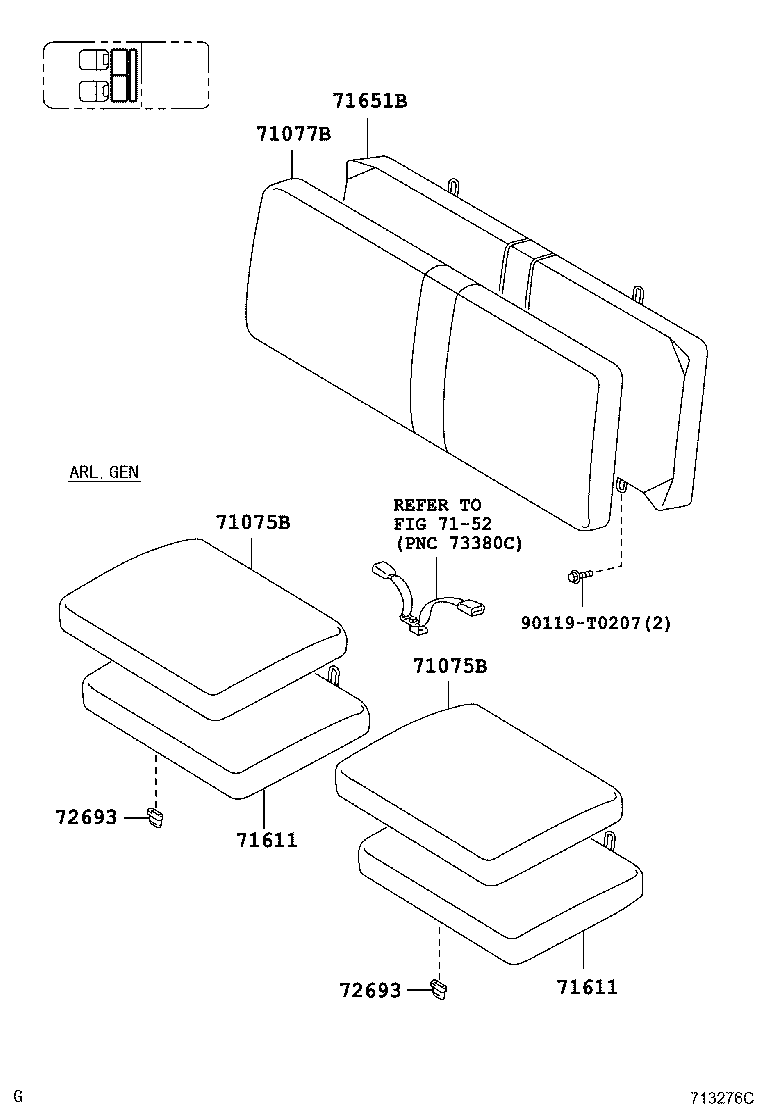

REAR SEAT

Part #	Description	Period	Qty
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-0K030A2	KUN15..XTR..HDCR;KUN16,2#,36,TGN16,26..XTR..TH IVORY,TRIM0#	08/2004 - 08/2008	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-0K010	KUN15..XTR..DLX;KUN15..XTR..HDCR;GGN15,25,KUN16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
Common parts
90119-T0207
Linked diagrams
7152

ILLUST NO. 1 OF 3(0408- )RHD

Click highlighted areas on diagram

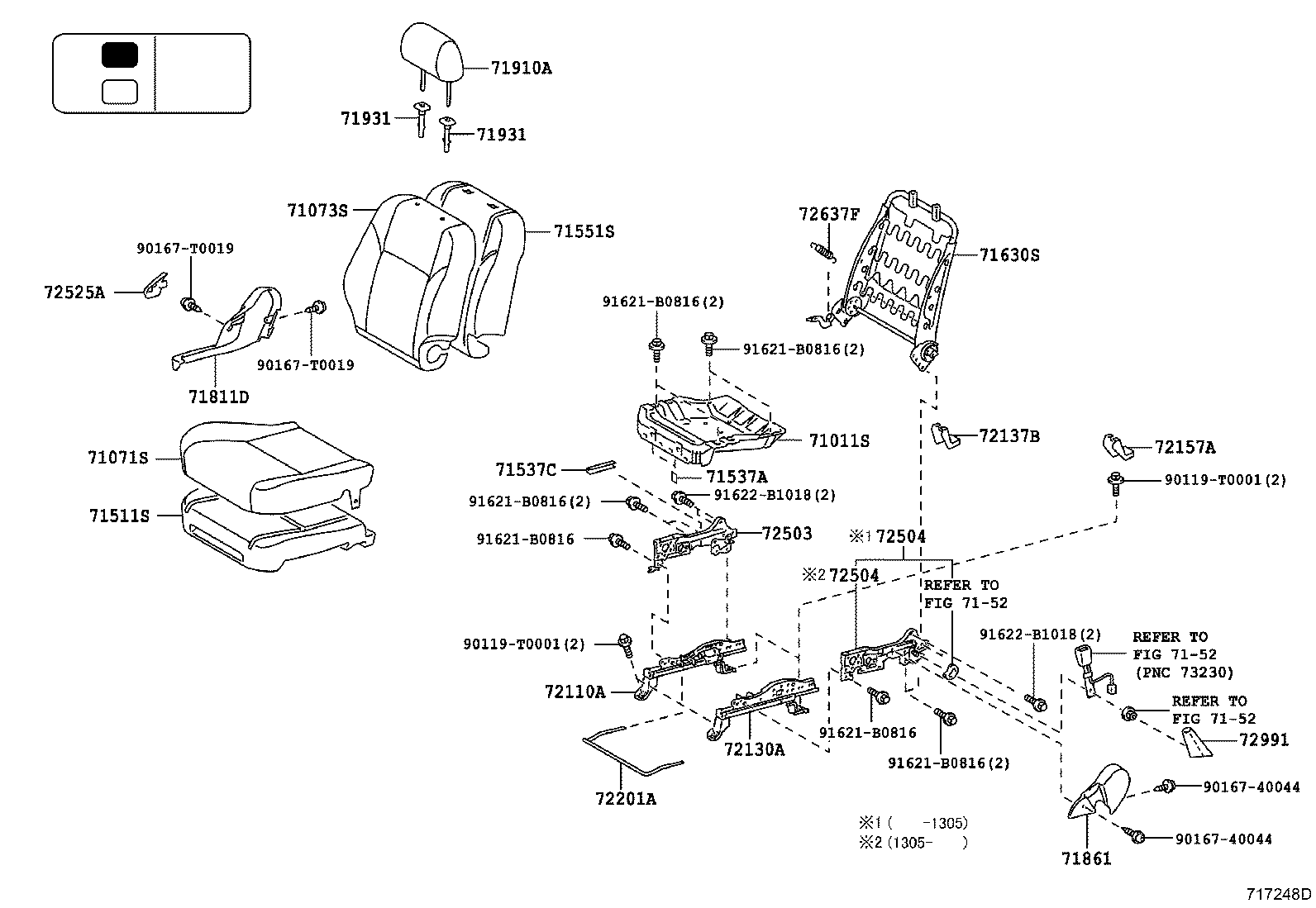

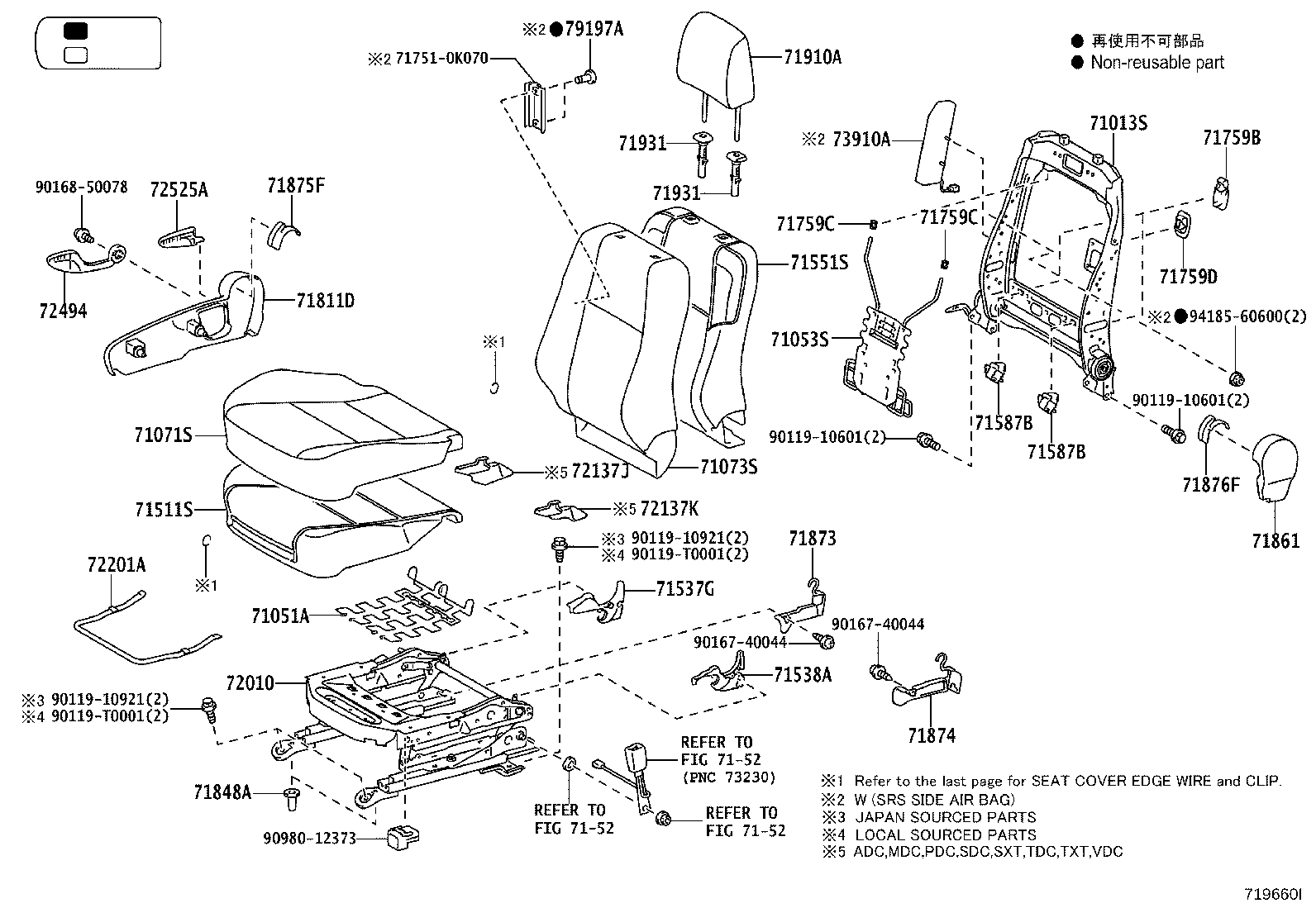

DRIVER SEAT

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030	KUN15,TGN16..XTR..5F..(HDCR,HTWC);KUN15..RHD..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN16,2#,36,TGN10,16,26..RHD..(SCB,XTR)..(ARL,GEN,IDN,TH)	08/2004 - 09/2007	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K100B0	KUN15..DCB..HDCR;KUN15..SR..DCR..TH;GGN15,25,KUN16,2#,TGN16,26..SR..(ARL,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	1
71071-0K100A0	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0#	08/2004 - 08/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K080A0	KUN15,16,2#,36,TGN16,26..XTR..SR..TH IVORY,TRIM0#	08/2004 - 08/2008	1
71073-0K080B0	KUN15..SR..DCR..TH;KUN16,2#,TGN16,26..XTR..TH MID.GRAY,TRIM1#	08/2004 - 08/2008	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA)	08/2004 - 02/2012	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)	08/2004 - 12/2008	4
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-0K010	KUN1#,2#	08/2004 - 11/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU	08/2004 - 02/2012	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K020	KUN1#,2#..SCB,XTR	08/2004 - 01/2005	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K040A0	KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K040A0	KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K050B0	KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	2
71910-0K050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72137B - COVER, SEAT TRACK, RH
72137-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72137-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72157-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040A0	KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K010	TGN16..XTR;TGN26..RHD;KUN25..THDCB;KUN26..XTR..IV3;TGN26..4FC..GCC;TGN26..DCB..DLX..LA;KUN36..(DCB,XTR)..(LA,TH);KUN3#..(SCB,THDCB)..(GEN,SA);KUN26..(DCB,XTR)..SR..(ARL,LA,PHL,TH);GGN25,KUN15,TGN10..RHD..(SCB,XTR)..DLX;KUN2#,35,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN15,TGN26,36..DCB..SR..(ANCOM,ARL,PHL);KUN16,26,TGN26..(SCB,THDCB)..(ARL,GEN,TH);GGN25,KUN15,16,25..(DCB,SCB,XTR)..(SR,STD)..(ANCOM,ARL,MA,PHL,PKN,TH)..CBU;GGN15,KUN25,LAN15,25,TGN15,16,36..RHD..(SCB,XTR)..(5F,5FC)..(ARL,GEN,MA,PKN,SA)	08/2004 - 02/2012	1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(0408- )RHD

Click highlighted areas on diagram

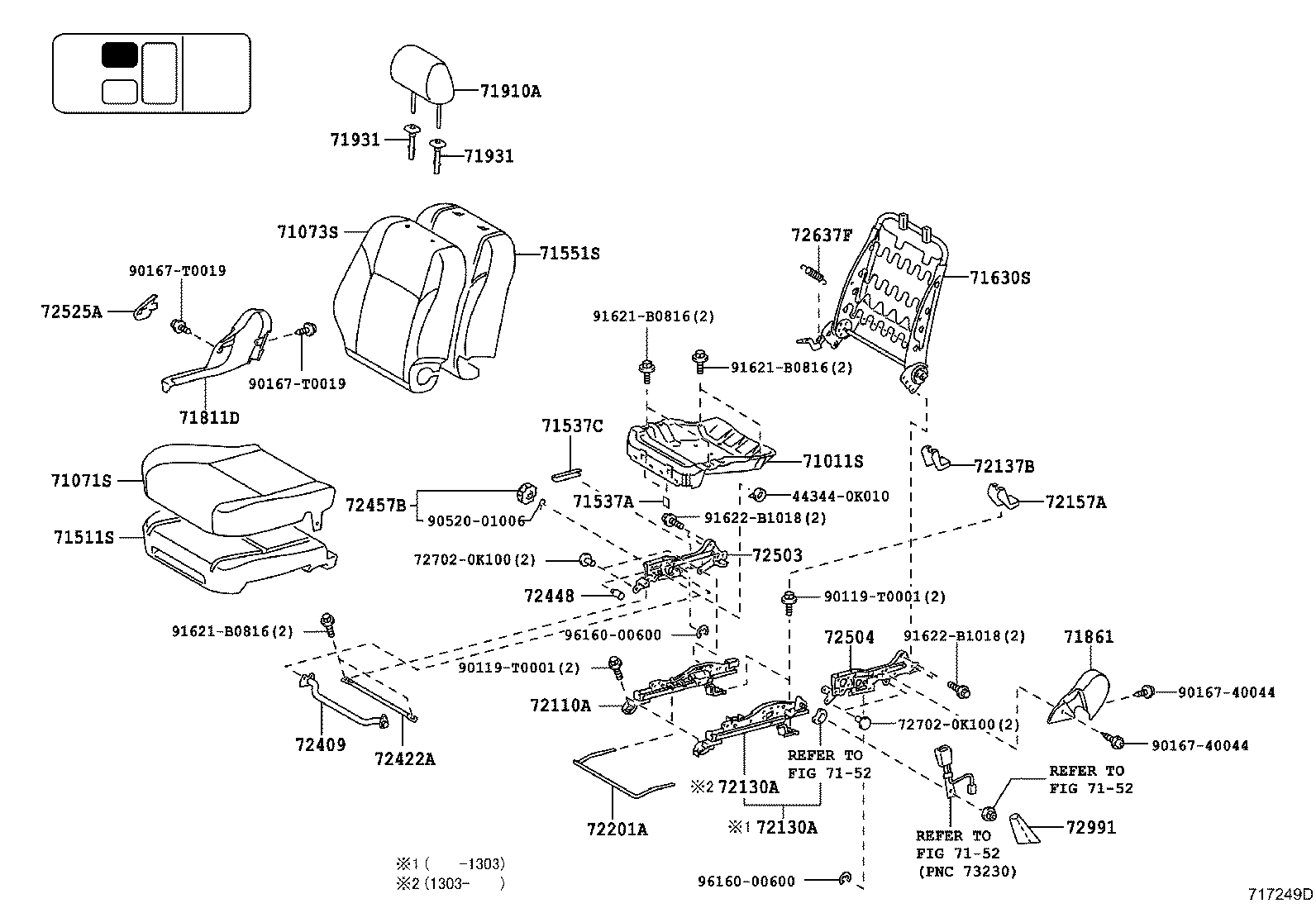

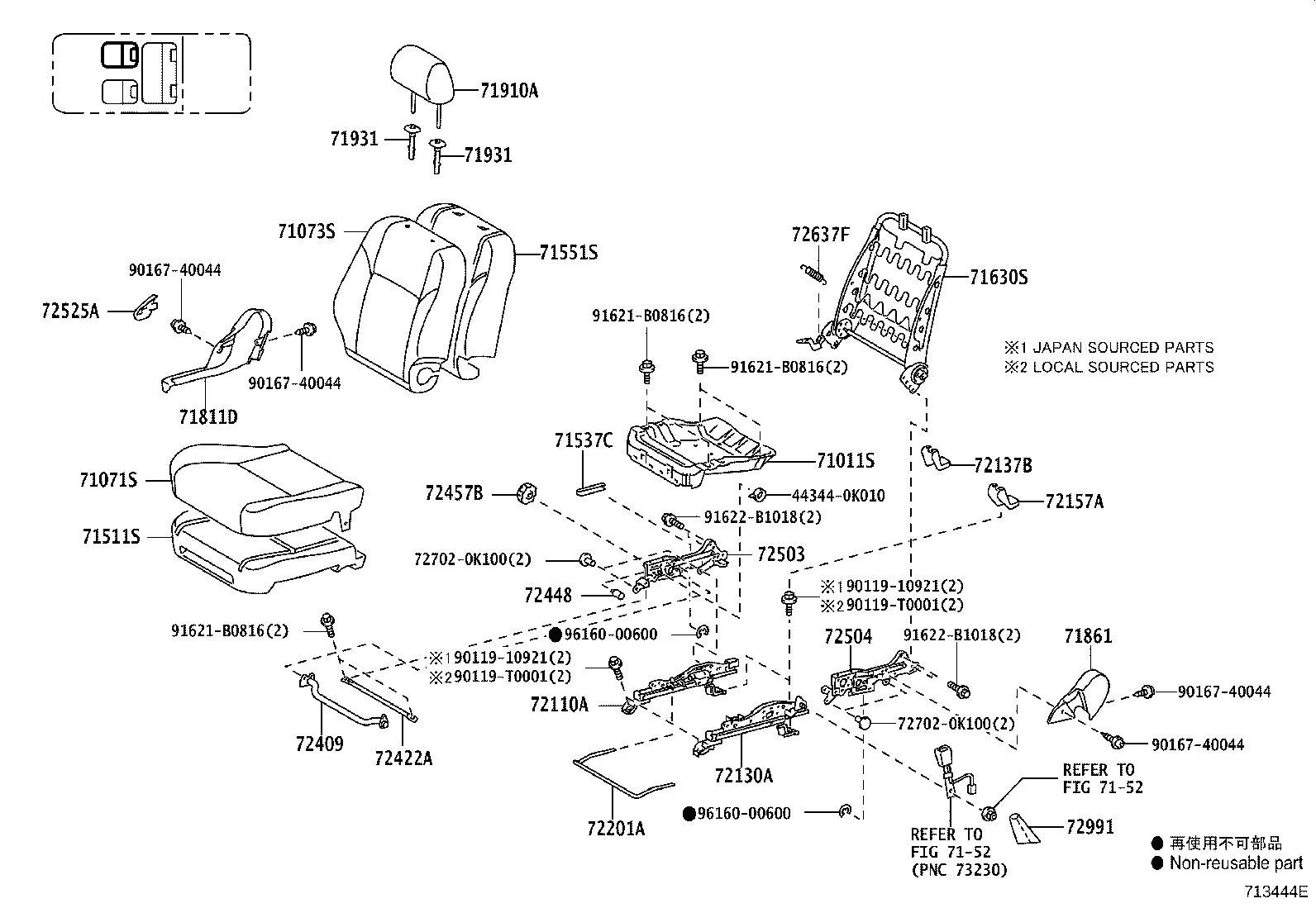

DRIVER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030	KUN15,TGN16..XTR..5F..(HDCR,HTWC);KUN15..RHD..(SCB,XTR)..DLX..(GEN,TH);GGN15,25,KUN16,2#,36,TGN10,16,26..RHD..(SCB,XTR)..(ARL,GEN,IDN,TH)	08/2004 - 09/2007	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K100B0	KUN15..DCB..HDCR;KUN15..SR..DCR..TH;GGN15,25,KUN16,2#,TGN16,26..SR..(ARL,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	1
71071-0K100A0	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0#	08/2004 - 08/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K080A0	KUN15,16,2#,36,TGN16,26..XTR..SR..TH IVORY,TRIM0#	08/2004 - 08/2008	1
71073-0K080B0	KUN15..SR..DCR..TH;KUN16,2#,TGN16,26..XTR..TH MID.GRAY,TRIM1#	08/2004 - 08/2008	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA)	08/2004 - 02/2012	1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-0K010	KUN1#,2#	08/2004 - 11/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU	08/2004 - 02/2012	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-0K020	KUN1#,2#..SCB,XTR	08/2004 - 01/2005	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K040A0	KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K040A0	KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K050B0	KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	2
71910-0K050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72137B - COVER, SEAT TRACK, RH
72137-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72137-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72157-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
72409 - SHAFT SUB-ASSY, VERTICAL ADJUSTING
72409-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72422A - ROD, FRONT SEAT ADJUSTER
72422-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72448 - PIN, FR SEAT ADJUSTER, NO.2 RH
72448-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72457B - KNOB, VERTICAL SEAT ADJUSTER, RH
72457-0K010A0	KUN1#,2#,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 04/2005	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH)	08/2004 - 09/2008	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040A0	KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K010	TGN16..XTR;TGN26..RHD;KUN25..THDCB;KUN26..XTR..IV3;TGN26..4FC..GCC;TGN26..DCB..DLX..LA;KUN36..(DCB,XTR)..(LA,TH);KUN3#..(SCB,THDCB)..(GEN,SA);KUN26..(DCB,XTR)..SR..(ARL,LA,PHL,TH);GGN25,KUN15,TGN10..RHD..(SCB,XTR)..DLX;KUN2#,35,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN15,TGN26,36..DCB..SR..(ANCOM,ARL,PHL);KUN16,26,TGN26..(SCB,THDCB)..(ARL,GEN,TH);GGN25,KUN15,16,25..(DCB,SCB,XTR)..(SR,STD)..(ANCOM,ARL,MA,PHL,PKN,TH)..CBU;GGN15,KUN25,LAN15,25,TGN15,16,36..RHD..(SCB,XTR)..(5F,5FC)..(ARL,GEN,MA,PKN,SA)	08/2004 - 02/2012	1
Common parts
44344-0K010
72702-0K100
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

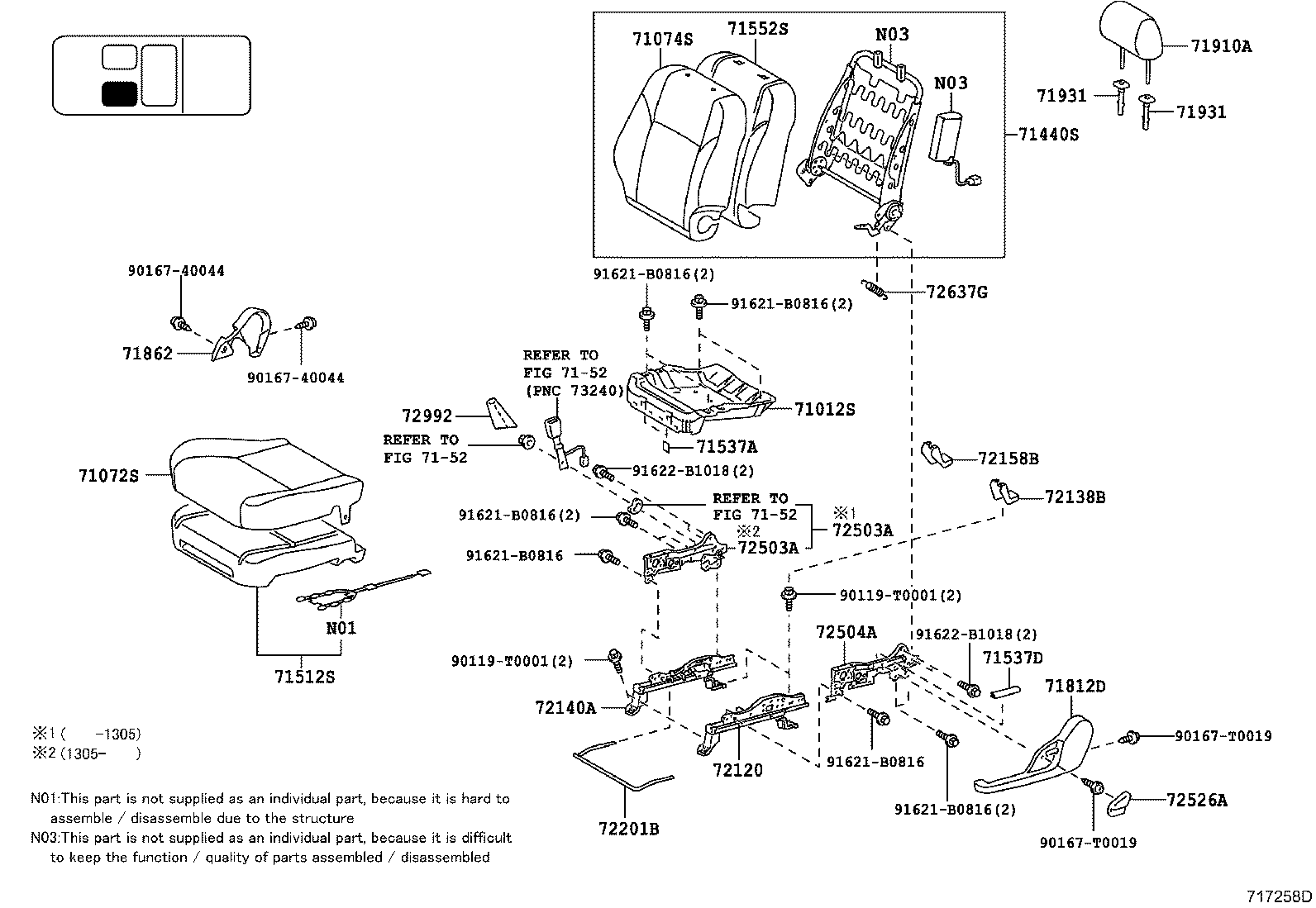

ILLUST NO. 2 OF 3(0408- )RHD..SMT,XTR

Click highlighted areas on diagram

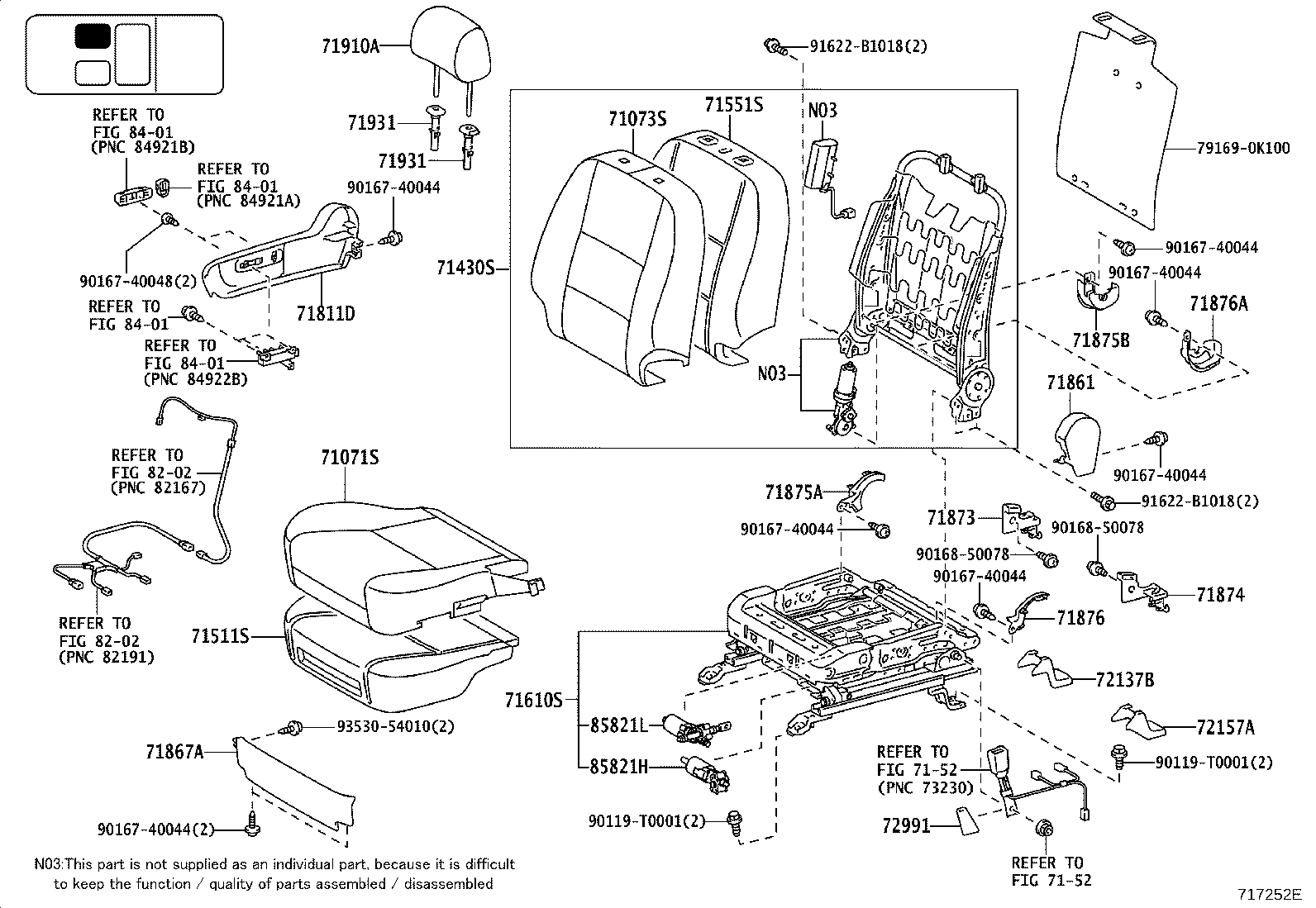

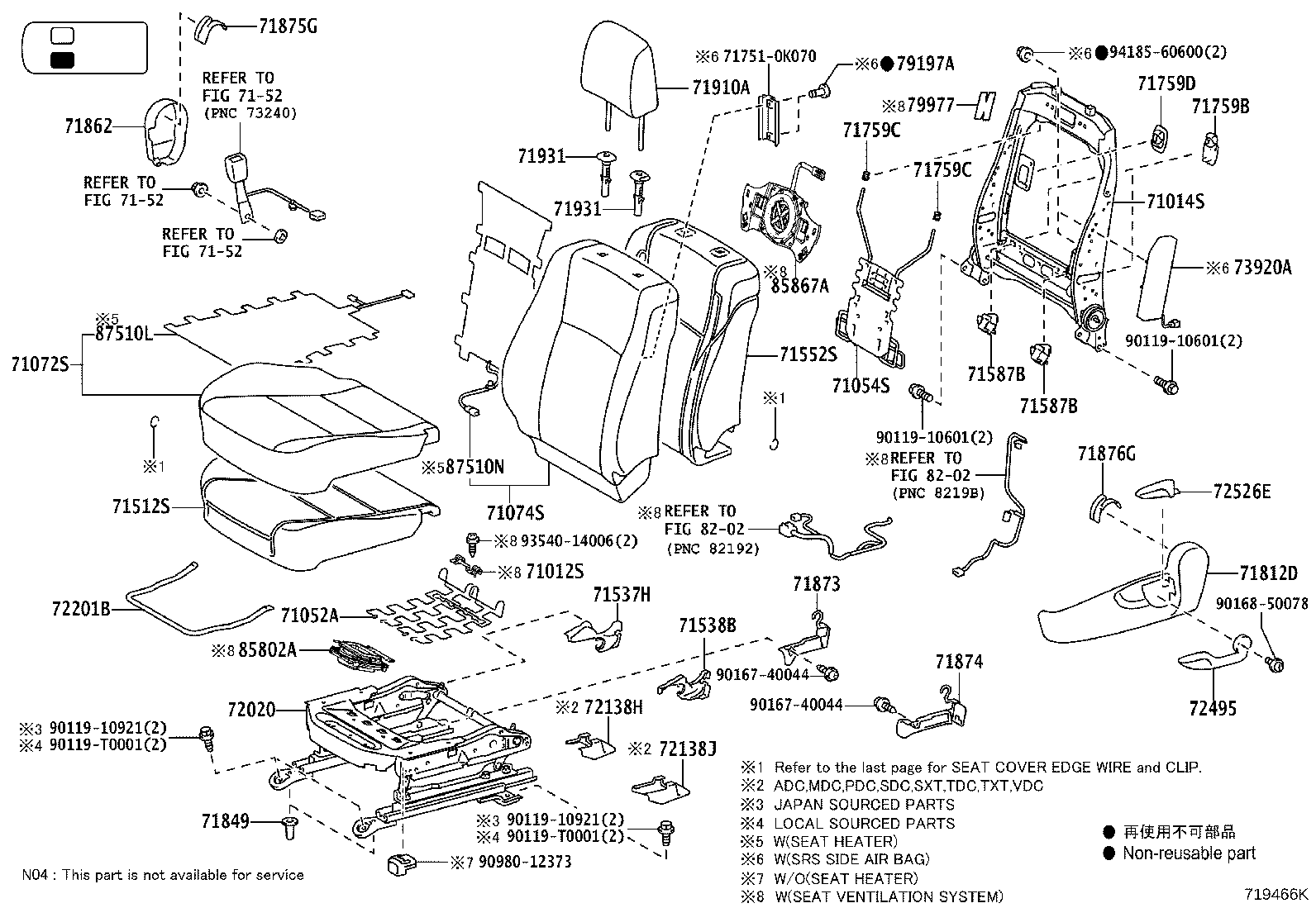

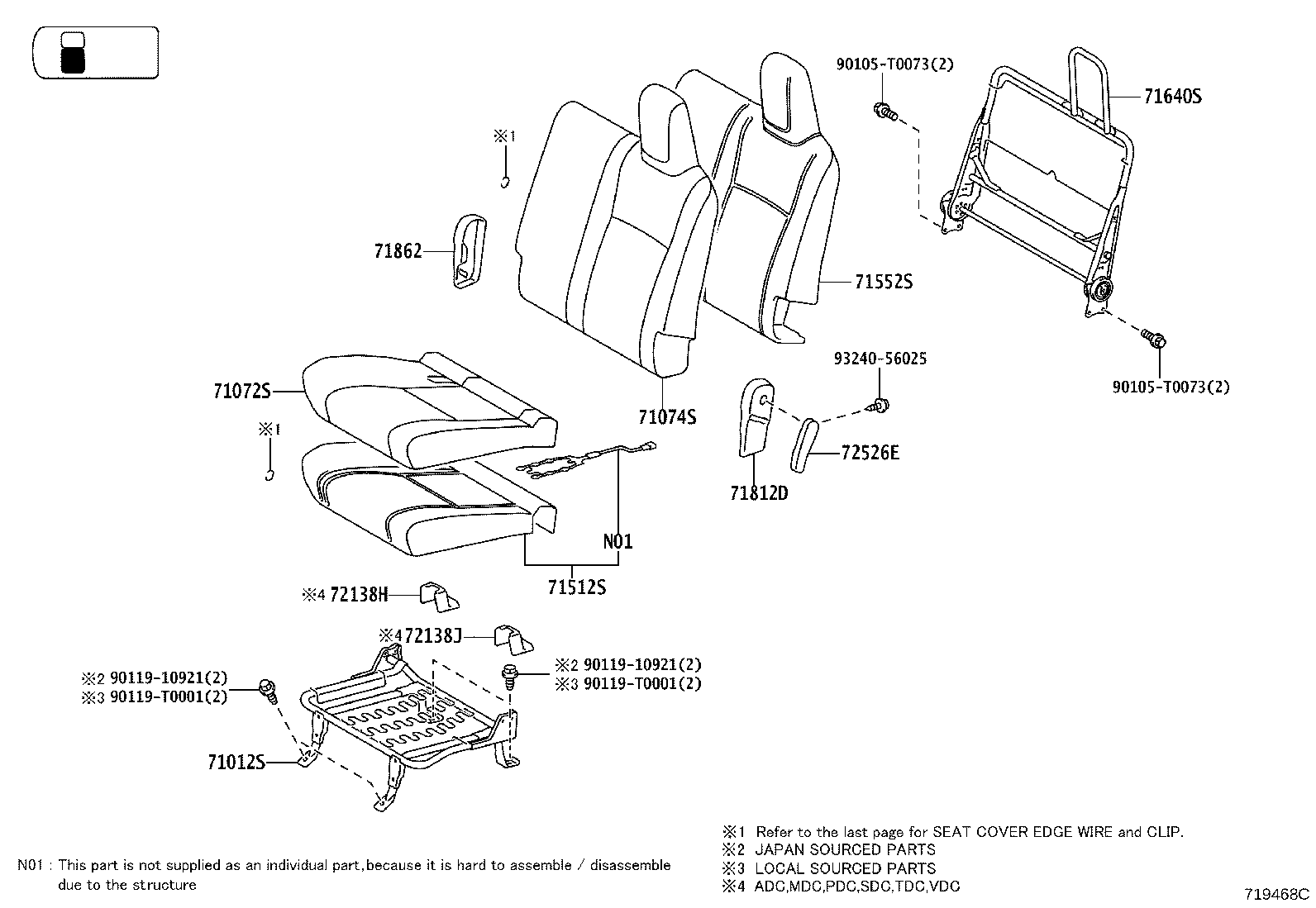

PASSENGER SEAT

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030	KUN15..LHD..SCB;KUN15..XTR..DLX;KUN16,2#..THSCB,XTR;GGN15,25,KUN26..(SCB,XTR)..(4FC,5FC);KUN15,TGN16..(SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN25,KUN10,36,TGN10,11,15,26..(SCB,XTR)..(ARL,GCC,GEN,TH)..CBU	08/2004 - 09/2007	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K170B0	KUN26..SR..ARL;KUN16,2#,TGN26..XTR..TH;GGN15,25,KUN15,TGN16..SR..(DCR,HTWC)..(ARL,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	1
71072-0K170A0	GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0#	08/2004 - 08/2008	1
71317 - PLATE, FRONT SEAT BACK HINGE
71317-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	01/2005 - 08/2008	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0K050	KUN35..SCB,THDCB;TGN16..LHD..5F..DLX;TGN26..DCB..DLX..LA;KUN35..LHD..DCB..DLX;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16..(DCB,XTR)..(GCC,PHL,SA,TH);KUN15,TGN36..LHD..DLX..(ANCOM,GEN,LA);GGN25,KUN10,25,LAN15,25,TGN10,11,15..LHD;KUN26,36..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);KUN25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,TH)	08/2004 - 12/2008	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)	08/2004 - 12/2008	4
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020	GGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH)	08/2004 - 12/2008	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-0K030	GGN15,25,KUN15,16,2#,36,TGN16,26..RHD..XTR	08/2004 - 08/2008	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K030A0	KUN15,16,2#,36,TGN16,26..XTR..SR..TH IVORY,TRIM0#	08/2004 - 08/2008	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020A0	KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K050B0	KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1#	08/2004 - 08/2008	2
71910-0K050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050A0	GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0#	08/2004 - 09/2008	2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K030	GGN15,25,KUN15,16,2#,36,TGN16,26..RHD..XTR	08/2004 - 08/2008	1
72138B - COVER, SEAT TRACK, LH
72137-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72137-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72139A - SPRING, SEAT TRACK COVER
72139-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K030	GGN15,25,KUN15,16,2#,36,TGN16,26..RHD..XTR	08/2004 - 08/2008	1
72158B - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K010B0	KUN16,2#,TGN16,26..XTR..TH GRAY,TRIM1#	08/2004 - 12/2007	1
72158-0K010A0	KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0#	08/2004 - 10/2008	1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
72271 - BRACKET, SEAT TRACK CONTROL CABLE, RH
72271-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
72272A - BRACKET, SEAT TRACK CONTROL CABLE, LH
72272-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040A0	KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0#	08/2004 - 09/2008	1
72637G - SPRING, SEAT BACK, LH
72637-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
73217 - TUBE, ADJUSTER, RH
73217-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	01/2005 - 08/2008	1
78910B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 RH
78910-0K020	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH
78910-0K010	GGN15,25,KUN15,16,2#,36,TGN16,26..XTR	08/2004 - 08/2008	1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
96160-00800
Linked diagrams
7152

ILLUST NO. 3 OF 3(1107- )SMT,XTR

Click highlighted areas on diagram

REAR SEAT

Part #	Description	Period	Qty	Price
Common parts
90119-T0207

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W/O(VERTICAL ADJUSTER)

Part #	Description	Period	Qty	Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty	Price
Common parts
44344-0K010
72702-0K100
90119-T0001
90167-40044
90167-T0019
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(POWER SEAT)

Part #	Description	Period	Qty	Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(SRS SIDE AIR BAG)

Part #	Description	Period	Qty	Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )RHD

Click highlighted areas on diagram

*DRS W(POWER & SRS SIDE AIR BAG)

Part #	Description	Period	Qty	Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 2 OF 3(1107- )RHD

Click highlighted areas on diagram

PASSENGER SEAT W(SRS SIDE AIR BAG)

Part #	Description	Period	Qty	Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 3(1107- )RHD..XTR

Click highlighted areas on diagram

PASSENGER SEAT (WALK-IN TYPE)

Part #	Description	Period	Qty	Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
96160-00800
Linked diagrams
7152

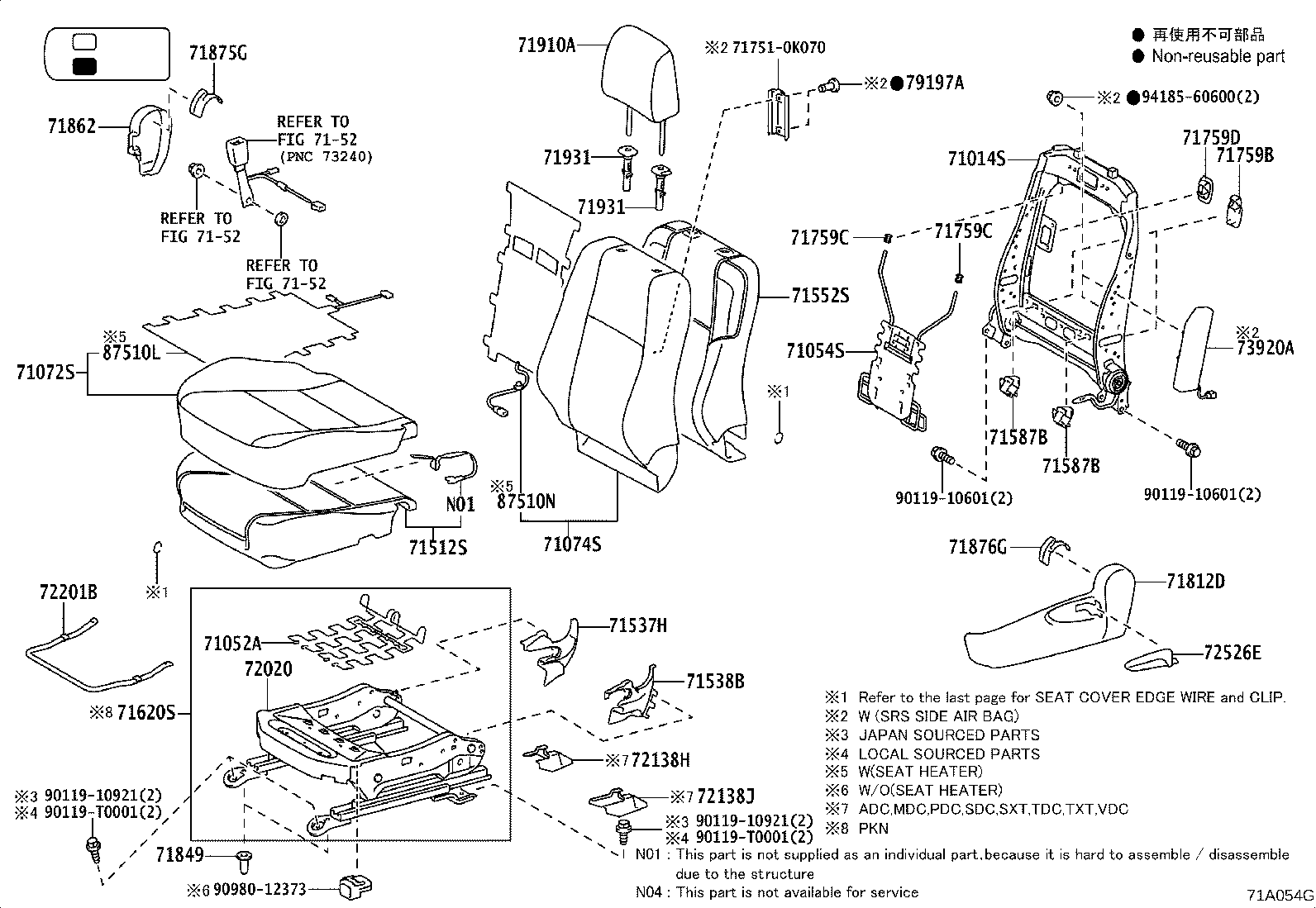

(1505- )

Click highlighted areas on diagram

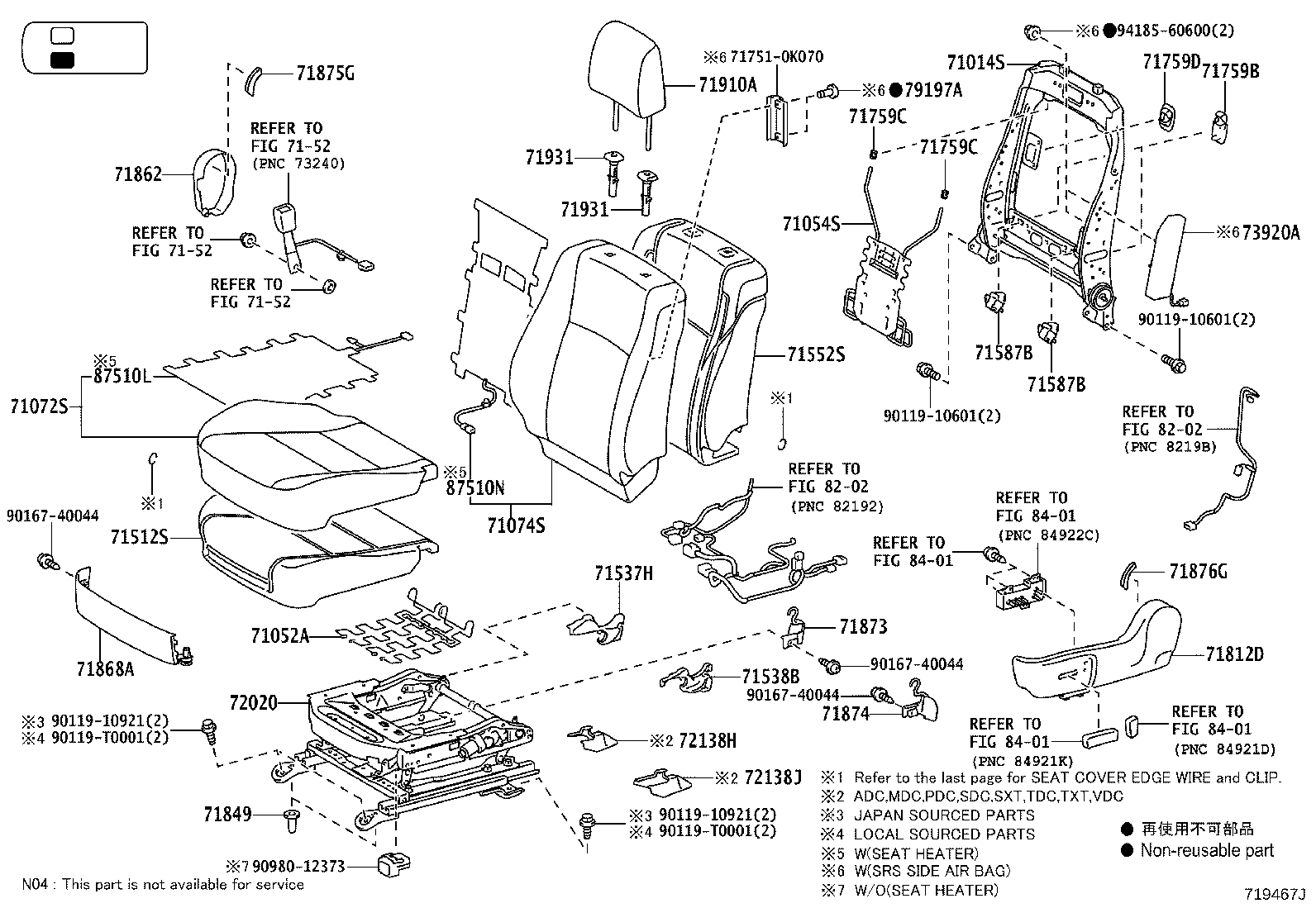

FRONT(LH MANUAL 4WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 6WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(LH POWER 8WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH BENCH)

Part #	Description	Period	Qty	Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

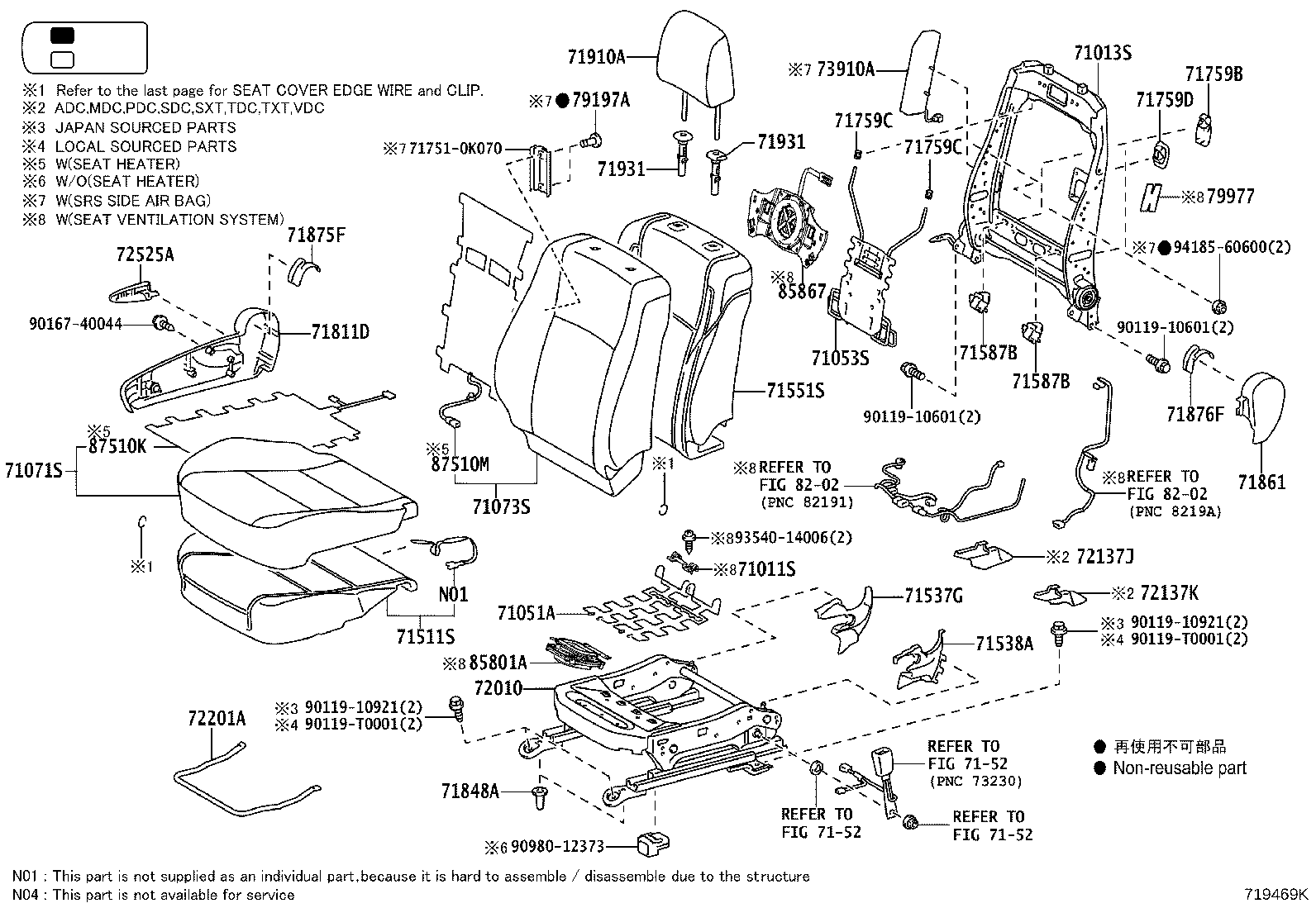

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY HIGH BACK)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

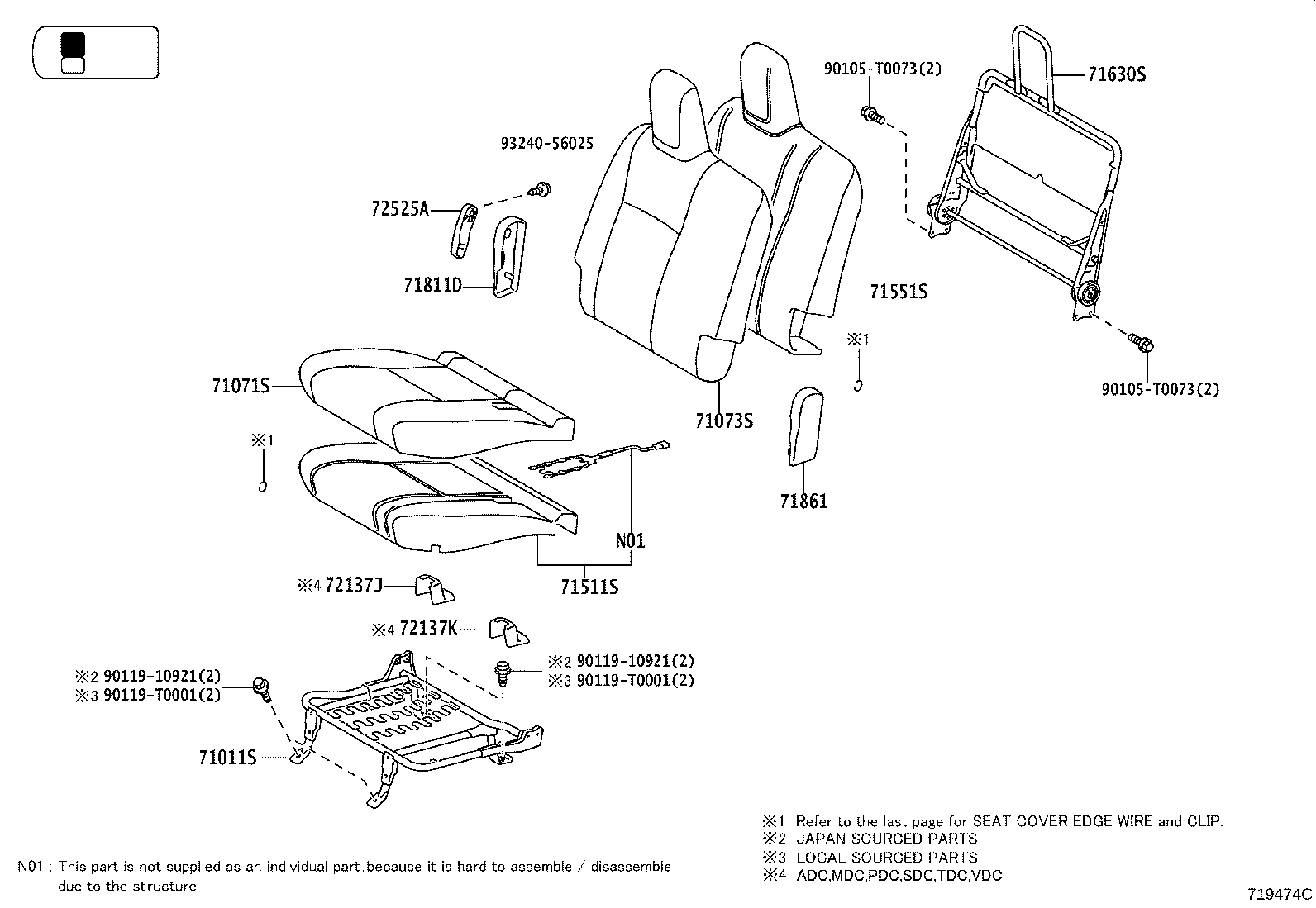

(1505- )

Click highlighted areas on diagram

FRONT(RH BENCH)

Part #	Description	Period	Qty	Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(1505- )

Click highlighted areas on diagram

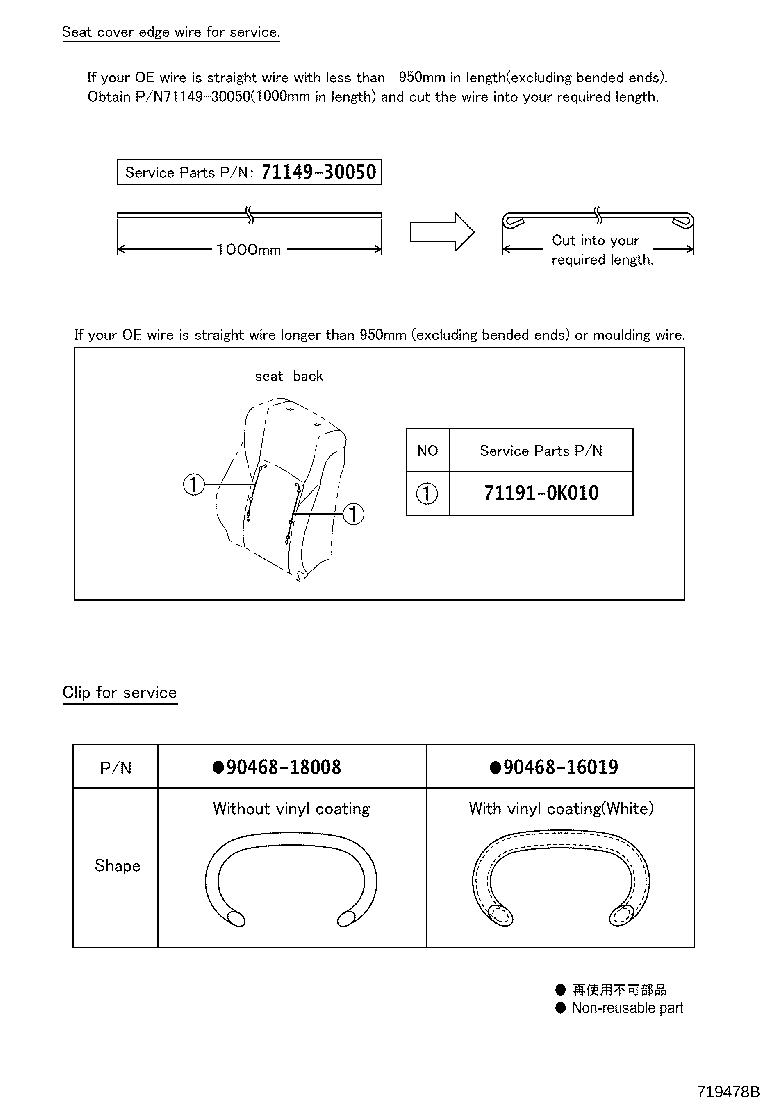

SEAT COVER EDGE WIRE & CLIP

Part #	Description	Period	Qty	Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH POWER 8WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY)

Part #	Description	Period	Qty	Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

KUN16R-CRMSYT (2004)

ILLUST NO. 1 OF 3(9708- )

ILLUST NO. 2 OF 3(9708- )

ILLUST NO. 1 OF 2(9708- )

ILLUST NO. 2 OF 2(9708- )

ILLUST NO. 2 OF 3(9708- )

ILLUST NO. 1 OF 3(9708- )

ILLUST NO. 3 OF 3(0408- )SMT,XTR

ILLUST NO. 1 OF 3(0408- )RHD

ILLUST NO. 1 OF 3(0408- )RHD

ILLUST NO. 2 OF 3(0408- )RHD..SMT,XTR

ILLUST NO. 3 OF 3(1107- )SMT,XTR

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 1 OF 3(1107- )RHD

ILLUST NO. 2 OF 3(1107- )RHD

ILLUST NO. 2 OF 3(1107- )RHD..XTR

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

(1505- )

Part Price Details
