KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0608)1KDFTV ; (0608- )1KDFTV..KUN26..THDCB ; (0608- )1KDFTV..IDN,LA,PHL

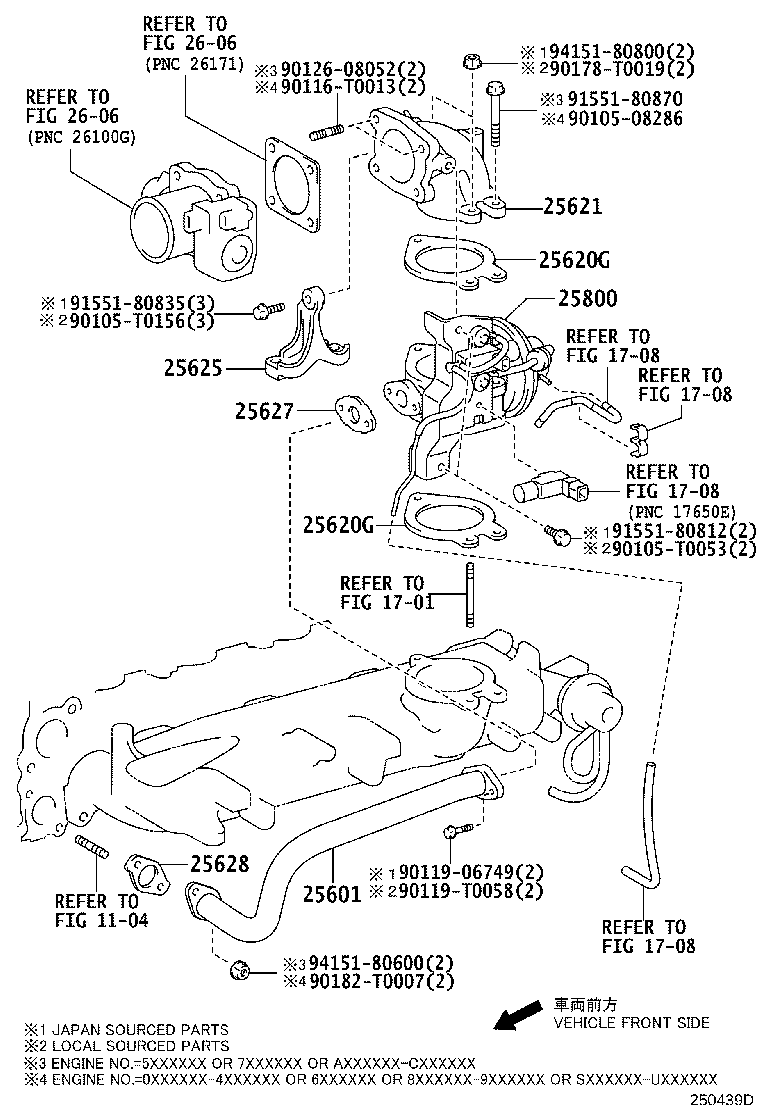

Click highlighted areas on diagram

diagram 1104 1701 1708 1708 1708 1708 25601 25620G 25620G 25621 25625 25627 25628 25800 2606 2606 9010508286 90105T0053 90105T0156 90116T0013 9011906749 90119T0058 90178T0019 9017906298 90182T0007 9155180812 9155180835 9212280825 9415180800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-0L010

2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH)

*130

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..DCR..(LA,PHL,TH)

*130

 2
25620G - GASKET, DIESEL THROTTLE
26171-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..DCR..(LA,PHL,TH)

*130

 2
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-0L010

2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH)

*130

 1
25625 - BRACKET, EGR VALVE
26127-0L010

1KDFTV..KUN16,26;2KDFTV..KUN15,25..HDCR

 1
25627 - GASKET, EGR VALVE
25627-0L010

2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH)

*130

 1
25628 - GASKET, EGR INLET
25628-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..DCR..(LA,PHL,TH)

*130

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0L010

1KDFTV..KUN16,26,36..GEN,LA,PHL,SA,TH

 1
25800-0L040

1KDFTV..KUN16,26,36..GEN,PHL,TH

 1
Common parts
90105-08286
90105-T0053
90105-T0156
90116-T0013
90119-06749
90119-T0058
90178-T0019
90179-06298
90182-T0007
91551-80812
91551-80835
92122-80825
94151-80800
Linked diagrams
1104
1701
1708
2606

(1107- )1KDFTV..4FC,5F..DCR..CO,LA,MA,PHL,SA,TH

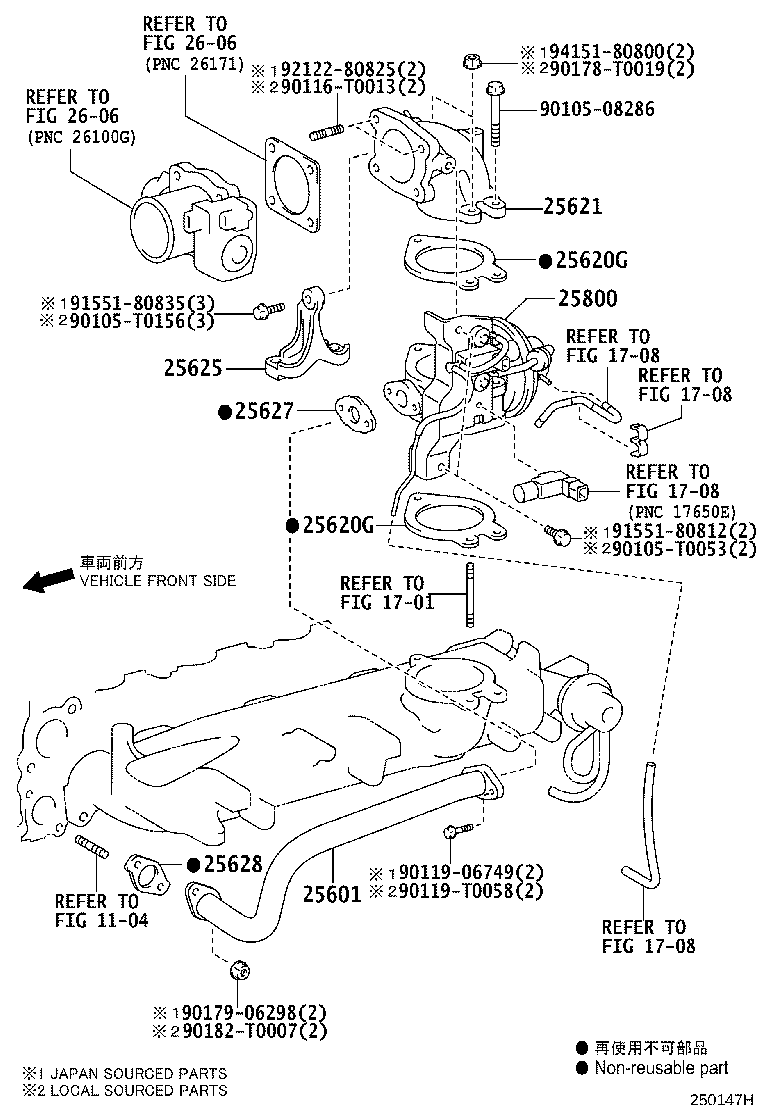

Click highlighted areas on diagram

diagram 1104 1701 1708 1708 1708 1708 25601 25620G 25620G 25621 25625 25627 25628 25800 2606 2606 9010508286 90105T0053 90105T0156 90116T0013 9011906749 90119T0058 9012608052 90178T0019 90182T0007 9155180812 9155180835 9155180870 9415180600 9415180800
Part # Description Qty Price
Common parts
90105-08286
90105-T0053
90105-T0156
90116-T0013
90119-06749
90119-T0058
90126-08052
90178-T0019
90182-T0007
91551-80812
91551-80835
91551-80870
94151-80600
94151-80800
Linked diagrams
1104
1701
1708
2606
