KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0608)1KDFTV ; (0608- )1KDFTV..KUN26..THDCB ; (0608- )1KDFTV..IDN,LA,PHL

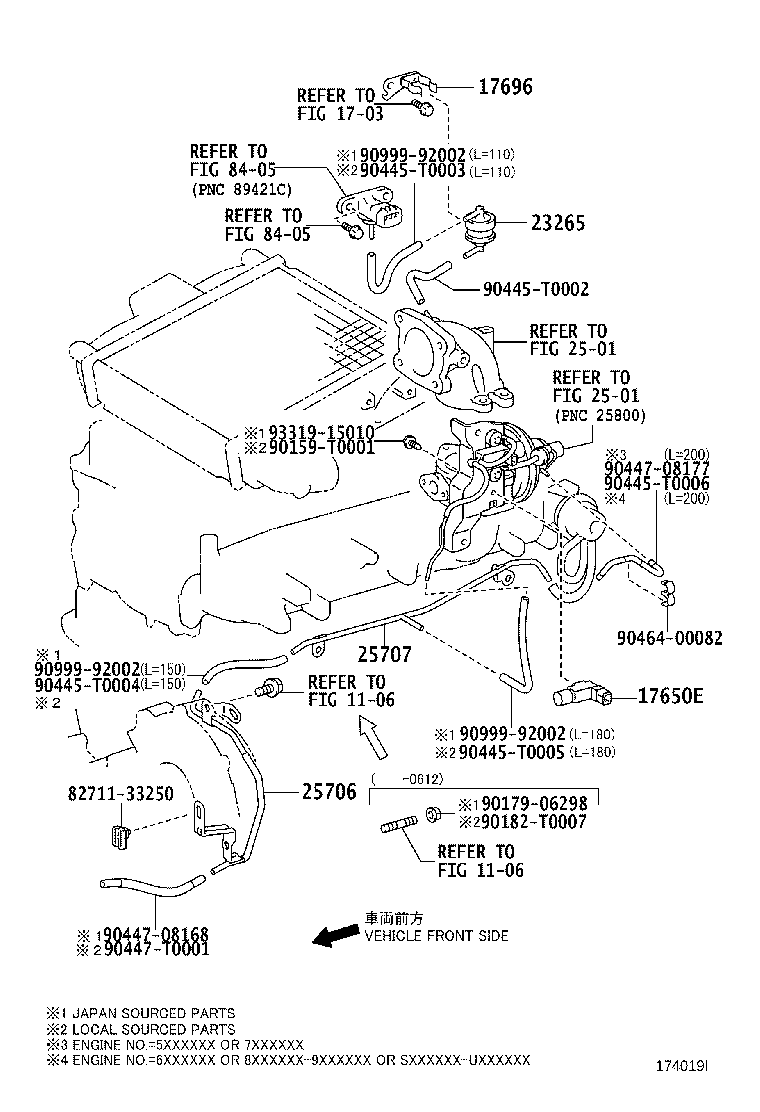

Click highlighted areas on diagram

diagram 1106 1106 1703 17650E 17696 23265 2501 2501 25706 25707 8271133250 8405 8405 90159T0001 9017906298 90182T0007 90445T0002 90445T0003 90445T0004 90445T0005 90445T0006 9044708168 9044708177 90447T0001 9046400082 9099992002 9099992002 9099992002 9331915010
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12184

1KDFTV..KUN16,26,36..GEN,PHL,TH

 1
17696 - BRACKET, GAS FILTER
17696-0L020

2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,THDCB,XTR)..(GEN,LA,PHL,SA,TH)

 1
23265 - FILTER, GAS, NO.1
90917-11036

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;1KDFTV..KUN26..4FC..(LA,PHL,TH);1KDFTV..KUN26..DCB..5F..(LA,PHL,SA,TH);1KDFTV..KUN26,36..(THDCB,XTR)..(GEN,TH);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30020

1KDFTV..KUN16,26;1KDFTV..KUN36..LA,SA;2KDFTV..KUN25,35..ANCOM,LA

*163 OR *184

 1
25706-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
25706-30020

1KDFTV..KUN16,26,36

*163 OR *184

 2
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-30020

1KDFTV..KUN16,26;1KDFTV..KUN36..LA,SA;2KDFTV..KUN25,35..ANCOM,LA

*163 OR *184

 1
25707-30020

1KDFTV..KUN16,26,36

*163 OR *184

 2
25707-0L020

2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(LA,PHL,TH);1KDFTV,2KDFTV..KUN16,3#..(DCB,SCB,XTR)..(ANCOM,LA,TH)

*130

 1
Common parts
82711-33250
90159-T0001
90179-06298
90182-T0007
90445-T0002
90445-T0003
90445-T0004
90445-T0005
90445-T0006
90447-08168
90447-08177
90447-T0001
90464-00082
90999-92002
93319-15010
Linked diagrams
1106
1703
2501
8405

(1505- )1KDFTV

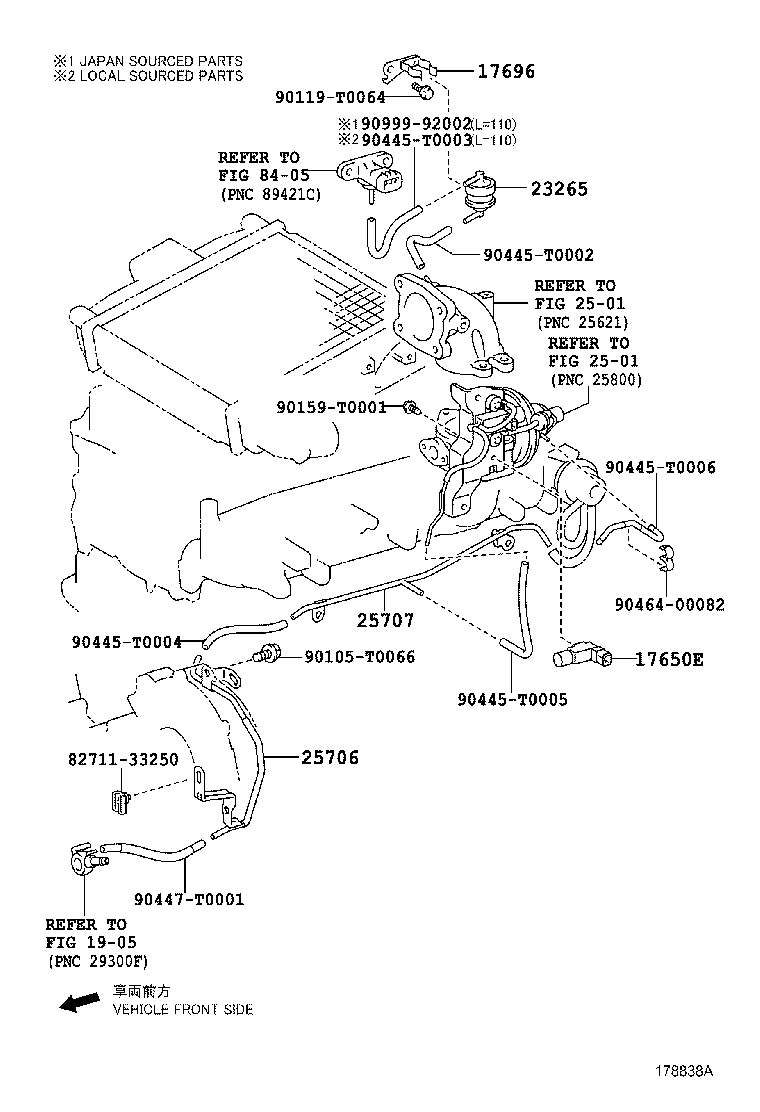

Click highlighted areas on diagram

W(EGR)

diagram 17650E 17696 1905 23265 2501 2501 25706 25707 8271133250 8405 90105T0066 90119T0064 90159T0001 90445T0002 90445T0003 90445T0004 90445T0005 90445T0006 90447T0001 9046400082 9099992002
Part # Description Qty Price
Common parts
82711-33250
90105-T0066
90119-T0064
90159-T0001
90445-T0002
90445-T0003
90445-T0004
90445-T0005
90445-T0006
90447-T0001
90464-00082
90999-92002
Linked diagrams
1905
2501
8405

(1505- )1KDFTV

Click highlighted areas on diagram

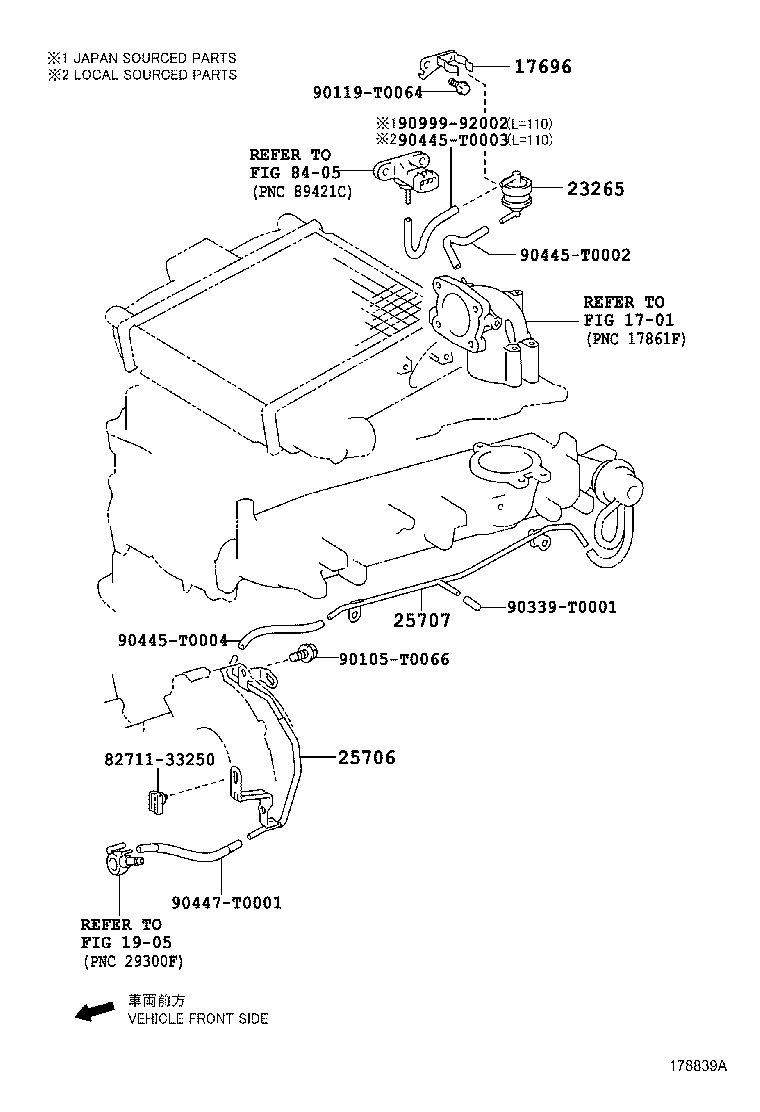

W/O(EGR)

diagram 1701 17696 1905 23265 25706 25707 8271133250 8405 90105T0066 90119T0064 90339T0001 90445T0002 90445T0003 90445T0004 90447T0001 9099992002
Part # Description Qty Price
Common parts
82711-33250
90105-T0066
90119-T0064
90339-T0001
90445-T0002
90445-T0003
90445-T0004
90447-T0001
90999-92002
Linked diagrams
1701
1905
8405
