KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408-0608)1KDFTV ; (0608- )1KDFTV..KUN26..THDCB ; (0608- )1KDFTV..IDN,LA,PHL

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17135A 17136 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 1901 90105T0118 90105T0156 9011608348 9011608408 90116T0015 9011906748 90119T0057 90119T0062 90119T0236 9012610034 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 9017906298 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 90560T0006 9155180814 9155180835 91651B0814 9167100816 9167180814 9167180814 9212280870 9415180800 9415180800 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L020

1KDFTV..KUN16,26

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30050

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH)

*130

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17111 - MANIFOLD, INTAKE
17101-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-T0011

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 2
17118 - STAY, MANIFOLD
17118-0L030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L030

2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-0L010

2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L020

2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0L011

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17271 - INSULATOR, TURBO, NO.1
17271-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130 TYPE A:REF ILL.

 1
17271-30020

1KDFTV..KUN16,26,36..ARL,PHL,SA,TH

*163 OR *184,TYPE A

 1
17274 - ELBOW, COMPRESSOR INLET
17274-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17276 - GASKET, COMPRESSOR INLET
17276-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L010

1KDFTV..KUN16,26,36..PHL,TH

*130

 1
17293 - STAY, TURBOCHARGER
17293-0L010

1KDFTV..KUN16,26,36..PHL,TH

*130

 1
Common parts
90105-T0118
90105-T0156
90116-08348
90116-08408
90116-T0015
90119-06748
90119-T0057
90119-T0062
90119-T0236
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-06298
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90560-T0006
91551-80814
91551-80835
91651-B0814
91671-00816
91671-80814
92122-80870
94151-80800
94184-01041
Linked diagrams
1901

ILLUST NO. 2 OF 2(0408- )1KDFTV

Click highlighted areas on diagram

diagram 17201 9011606048 9011606048 9011610175 9012608009 90126T0006 90126T0008 90126T0009 90126T0009
Part # Description Qty Price
17201 - TURBOCHARGER SUB-ASSY
17201-0L040

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
Common parts
90116-06048
90116-10175
90126-08009
90126-T0006
90126-T0008
90126-T0009

ILLUST NO. 1 OF 2(1107- )1KDFTV..4FC,5F..DCR..CO,GEN,LA,MA,PHL,SA,TH

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17135A 17136 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 17861F 17861G 17873A 2501 25861C 9010508286 90105T0118 90105T0156 9011608408 90116T0015 9011906748 90119T0057 90119T0062 9012608052 9012608052 9012610034 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 9017908101 9017908229 9017910070 90182T0007 9020110109 9038710171 90560T0006 9155180812 9155180814 9155180835 9155180835 9155180870 91651B0814 9167100816 9212280870 9415180600 9415180800 9415180800 9415180800 9418401041
Part # Description Qty Price
Common parts
90105-08286
90105-T0118
90105-T0156
90116-08408
90116-T0015
90119-06748
90119-T0057
90119-T0062
90126-08052
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90560-T0006
91551-80812
91551-80814
91551-80835
91551-80870
91651-B0814
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041
Linked diagrams
2501

ILLUST NO. 2 OF 2(1107- )1KDFTV ; (1208- )2KDFTV..KUN35..5FC

Click highlighted areas on diagram

diagram 04175 17201 9011606048 9011606048 9011610175 9012608009 90126T0006 90126T0008 90126T0009 90126T0009
Part # Description Qty Price
Common parts
90116-06048
90116-10175
90126-08009
90126-T0006
90126-T0008
90126-T0009

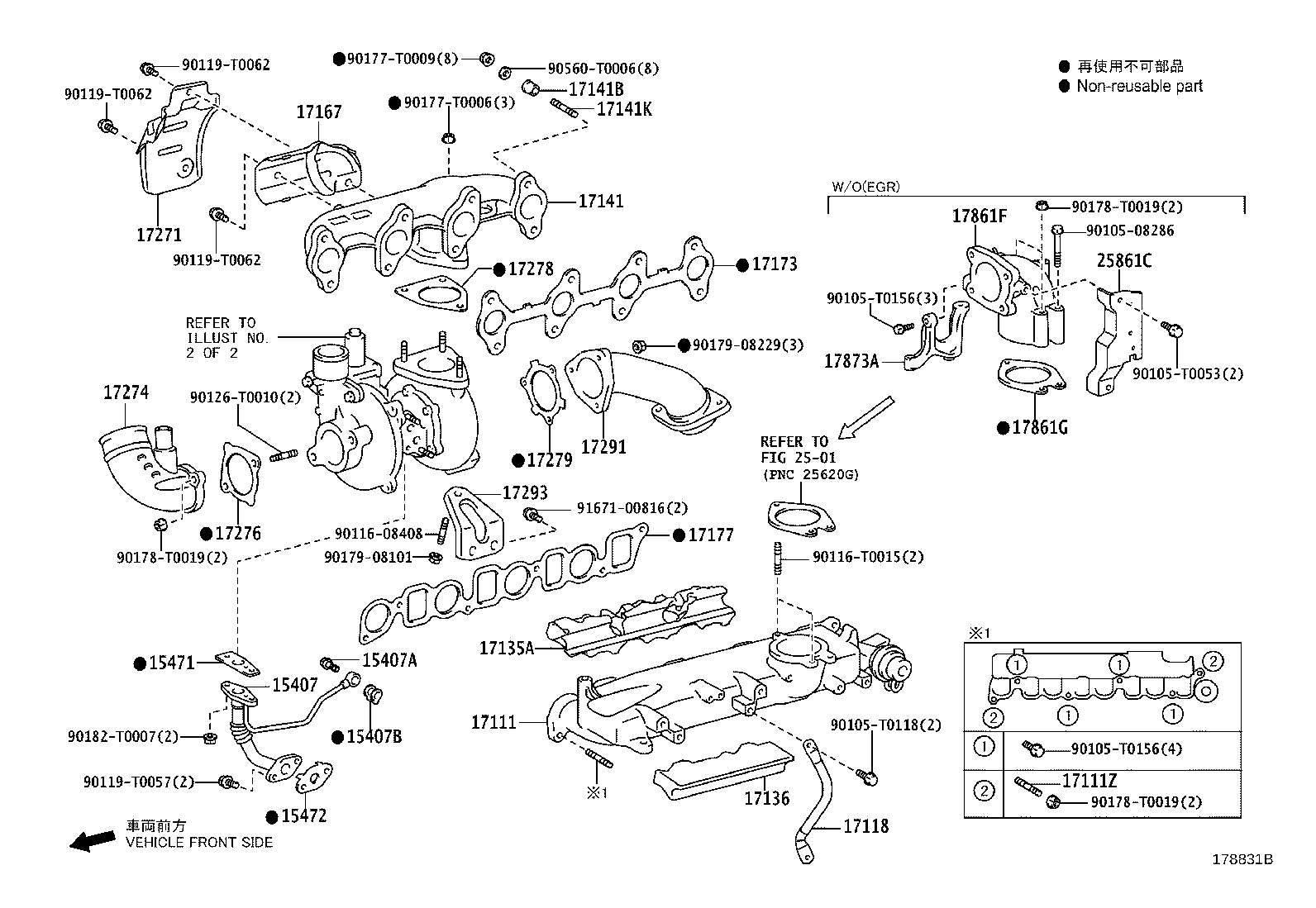

ILLUST NO. 1 OF 2(1505- )1KDFTV

Click highlighted areas on diagram

MANIFOLD

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17135A 17136 17141 17141B 17141K 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 17861F 17861G 17873A 2501 25861C 9010508286 90105T0053 90105T0118 90105T0156 90105T0156 9011608408 90116T0015 90119T0057 90119T0062 90119T0062 90119T0062 90126T0010 90177T0006 90177T0009 90178T0019 90178T0019 90178T0019 9017908101 9017908229 90182T0007 90560T0006 9167100816
Part # Description Qty Price
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0156
90116-08408
90116-T0015
90119-T0057
90119-T0062
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90182-T0007
90560-T0006
91671-00816
Linked diagrams
2501

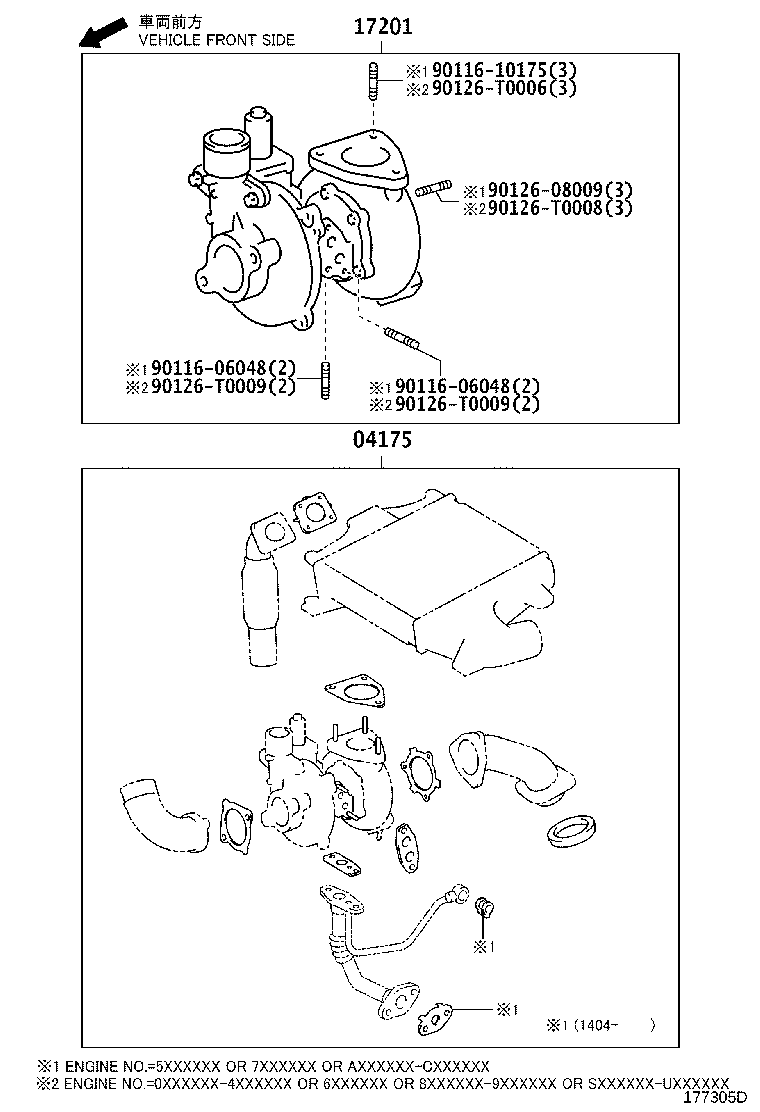

ILLUST NO. 2 OF 2(1505- )1KDFTV

Click highlighted areas on diagram

TURBOCHARGER

diagram 04175 17201 90126T0006 90126T0008 90126T0009 90126T0009
Part # Description Qty Price
Common parts
90126-T0006
90126-T0008
90126-T0009
