KUN16R-CRMSYT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

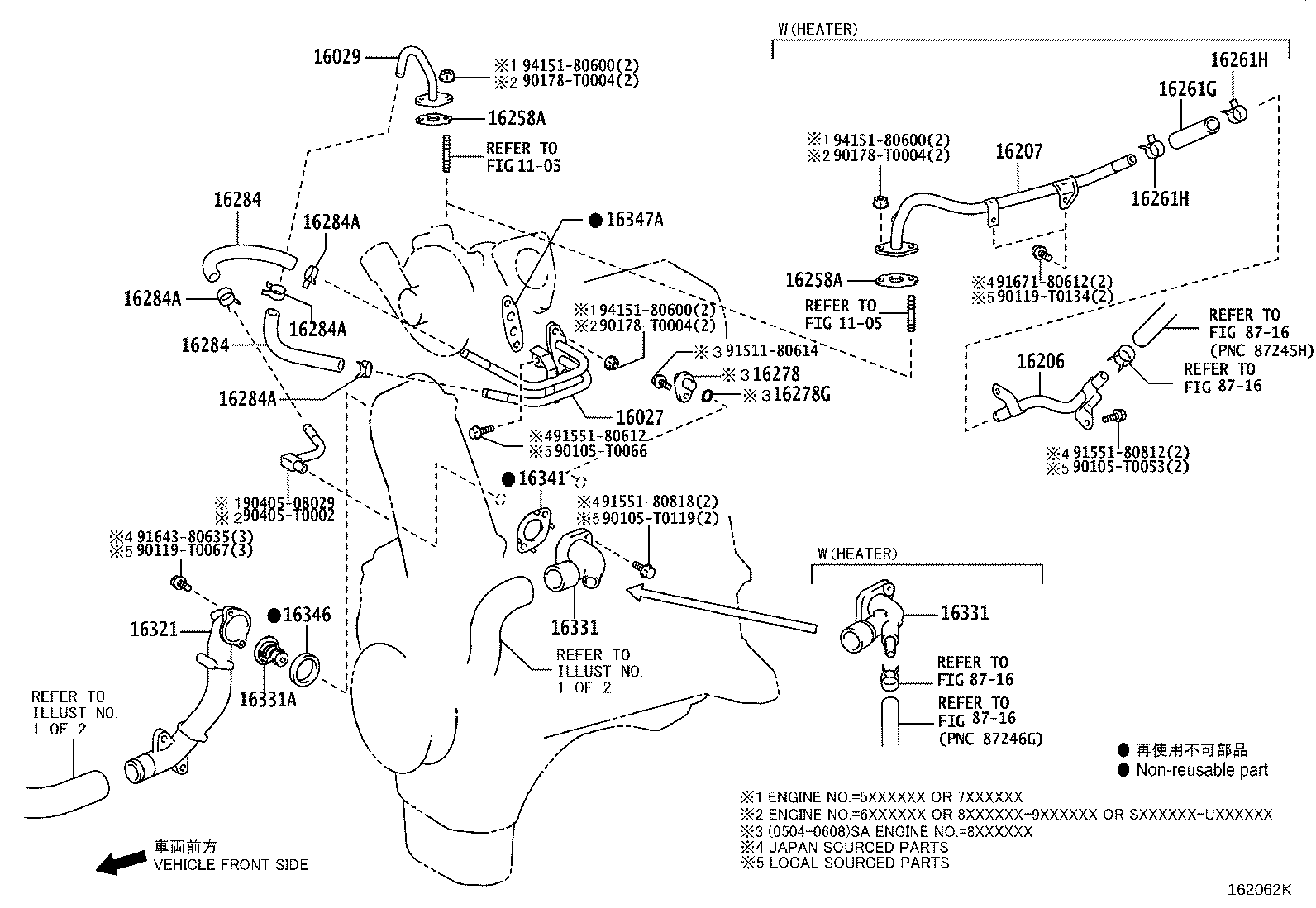

ILLUST NO. 2 OF 2(0408-0608)1KDFTV ; (0608- )1KDFTV..GEN,IDN,LA,PHL,SA,TH ; (0908- )2KDFTV..KU

Click highlighted areas on diagram

diagram 1105 1105 16027 16029 16206 16207 16258A 16258A 16261G 16261H 16261H 16278 16278G 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331 16331A 16341 16346 16347A 8716 8716 8716 90105T0053 90105T0066 90105T0119 90119T0067 90119T0134 90178T0004 90178T0004 90178T0004 9040508029 90405T0002 9151180614 9155180612 9155180812 9155180818 9164380635 9167180612 9415180600 9415180600 9415180600
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
16029 - PIPE SUB-ASSY, TURBO WATER, NO.3
16029-0L010

1KDFTV..KUN16,26,36..PHL,TH

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
16258A - GASKET(FOR HEATER RETURN)
16258-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
16284 - HOSE, TURBO WATER, NO.1
16284-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 2
16284 - HOSE, TURBO WATER, NO.1
16284-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 4
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90466-T0014

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 4
16321 - INLET, WATER
16321-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
16331 - OUTLET, WATER
16331-0L030

1KDFTV,2KDFTV..KUN15,16,2#,36..(DCB,SCB,XTR)..(GEN,MA,PHL,TH)

*130

 1
16331 - OUTLET, WATER
16331-0L030

1KDFTV,2KDFTV..KUN15,16,2#,36..(DCB,SCB,XTR)..(GEN,MA,PHL,TH)

*130

 1
16331A - THERMOSTAT
90916-03118

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
16346 - GASKET, THERMOSTAT
16346-0K010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
16347A - GASKET(FOR TURBO WATER PIPE)
16347-0L010

1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)

*130

 1
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0004
90405-08029
90405-T0002
91511-80614
91551-80612
91551-80812
91551-80818
91643-80635
91671-80612
94151-80600
Linked diagrams
1105
8716

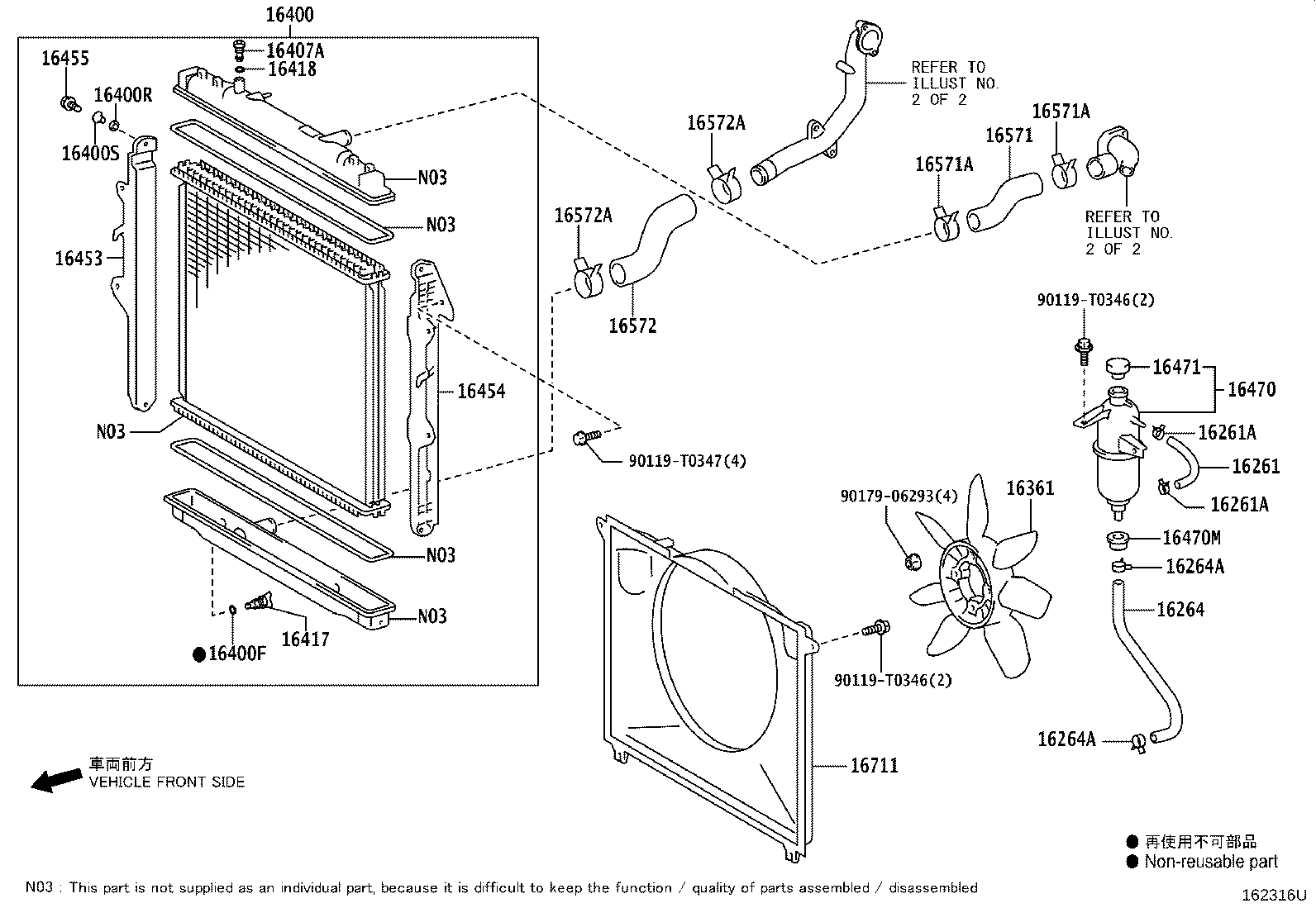

ILLUST NO. 1 OF 2(0408-0808)1KDFTV,2KDFTV ; (0808-0809)1KDFTV,2KDFTV..KUN15,2#,3#..ANCOM,LA,MA,SA ;

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16571 16571A 16571A 16572 16572A 16572A 16711 90119T0346 90119T0346 90119T0347 9017906293
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-0L010

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16261-0L010

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-T0046

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0046

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-T0046

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0046

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0L010

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16264-0L010

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0030

2KDFTV..KUN15..XTR..DLX;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN15..(DCB,SCB)..(GCC,GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,16,2#,3#..ARL,GCC,GEN,PHL,TH

 2
90466-T0030

2KDFTV..KUN15..XTR..DLX;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN15..(DCB,SCB)..(GCC,GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,16,2#,3#..ARL,GCC,GEN,PHL,TH

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0030

2KDFTV..KUN15..XTR..DLX;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN15..(DCB,SCB)..(GCC,GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,16,2#,3#..ARL,GCC,GEN,PHL,TH

 2
90466-T0030

2KDFTV..KUN15..XTR..DLX;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN15..(DCB,SCB)..(GCC,GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,16,2#,3#..ARL,GCC,GEN,PHL,TH

 2
16361 - FAN
16361-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16361-0L020

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16400 - RADIATOR ASSY
16400-0L120

1KDFTV,2KDFTV..KUN15,16,2#,3#..5F..(ARL,GEN,PHL,TH)

 1
16400-0L120

1KDFTV,2KDFTV..KUN15,16,2#,3#..5F..(ARL,GEN,PHL,TH)

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..LHD..4FC..(GEN,LA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16492-21050

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..LHD..4FC..(GEN,LA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16407A - COCK SUB-ASSY, RADIATOR DRAIN
16407-67240

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16407-67240

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16417 - COCK
16417-0C180

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16417-0C180

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16453 - PLATE, RADIATOR SIDE
16453-0L120

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16453-0L120

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16454 - PLATE, RADIATOR SIDE
16454-0L120

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16454-0L120

1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
91651-B0820

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN10,25,35..ANCOM,GCC,GEN,LA;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

 4
91651-B0820

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN10,25,35..ANCOM,GCC,GEN,LA;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

 4
16470 - TANK ASSY, RADIATOR RESERVE
16470-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..RHD..(DCB,SCB)..5F;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16470-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..RHD..(DCB,SCB)..5F;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16470M - GROMMET
90480-T0004

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
90480-T0004

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-30010

1KDFTV,2KDFTV..KUN1#,2#,3#

 1
16401-30010

1KDFTV,2KDFTV..KUN1#,2#,3#

 1
16571 - HOSE, RADIATOR, INLET
16571-0L030

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16571-0L030

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16572 - HOSE, RADIATOR, OUTLET
16572-0L030

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16572-0L030

1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..GCC,GEN,SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV,2KDFTV..KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);1KDFTV,2KDFTV..KUN10,15,26,36..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
90466-T0012

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
16711 - SHROUD, FAN
16711-0L050

1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,PHL,TH

 1
16711-0L050

1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,PHL,TH

 1
Common parts
90119-T0346
90119-T0347
90179-06293

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16546 16571 16571A 16571A 16572 16572A 16572A 16711 888990K020 8889952050 90119T0254 90119T0254 90119T0347 9017906293
Part # Description Qty Price
Common parts
88899-0K020
88899-52050
90119-T0254
90119-T0347
90179-06293

ILLUST NO. 2 OF 2(1107- )1KDFTV..4FC,5F..DCR..CO,GEN,LA,PHL,SA,TH

Click highlighted areas on diagram

EXCEPT EURO 4 REGULATION

diagram 1105 1105 16027 16029 16206 16207 16258A 16258A 16261G 16261H 16261H 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331 16331A 16341 16346 16347A 8716 8716 8716 8716 90105T0053 90105T0066 90105T0119 90119T0067 90119T0134 90178T0018 90178T0018 90178T0018 9040508029 90405T0002 9155180612 9155180812 9155180818 9164380635 9167180612 9415180600 9415180600 9415180600
Part # Description Qty Price
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0018
90405-08029
90405-T0002
91551-80612
91551-80812
91551-80818
91643-80635
91671-80612
94151-80600
Linked diagrams
1105
8716

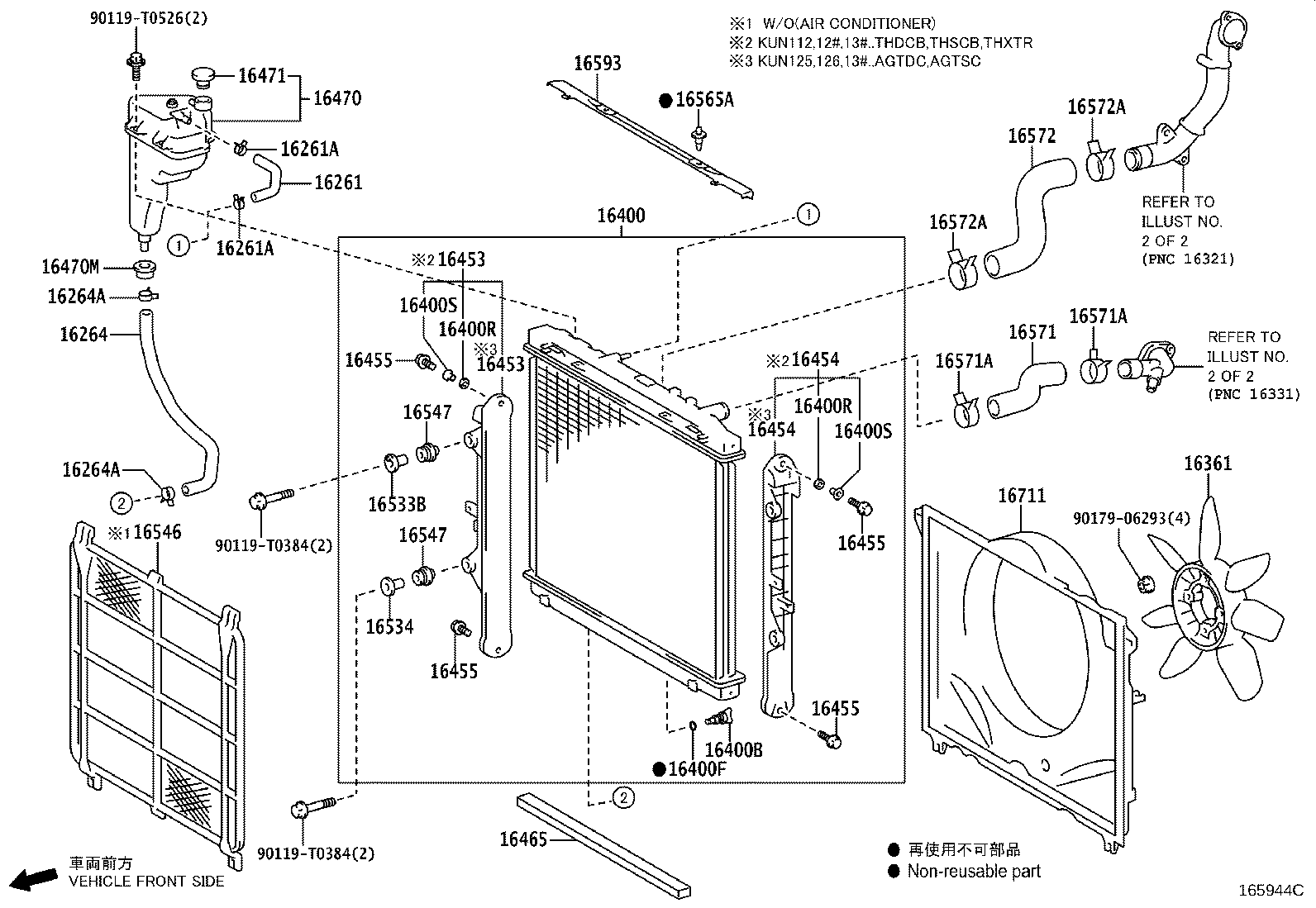

ILLUST NO. 1 OF 2(1505- )1KDFTV,2KDFTV

Click highlighted areas on diagram

RADIATOR SIDE

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400B 16400F 16400R 16400R 16400S 16400S 16453 16453 16454 16454 16455 16455 16455 16455 16465 16470 16470M 16471 16533B 16534 16546 16547 16547 16565A 16571 16571A 16571A 16572 16572A 16572A 16593 16711 90119T0384 90119T0384 90119T0526 9017906293
Part # Description Qty Price
Common parts
90119-T0384
90119-T0526
90179-06293

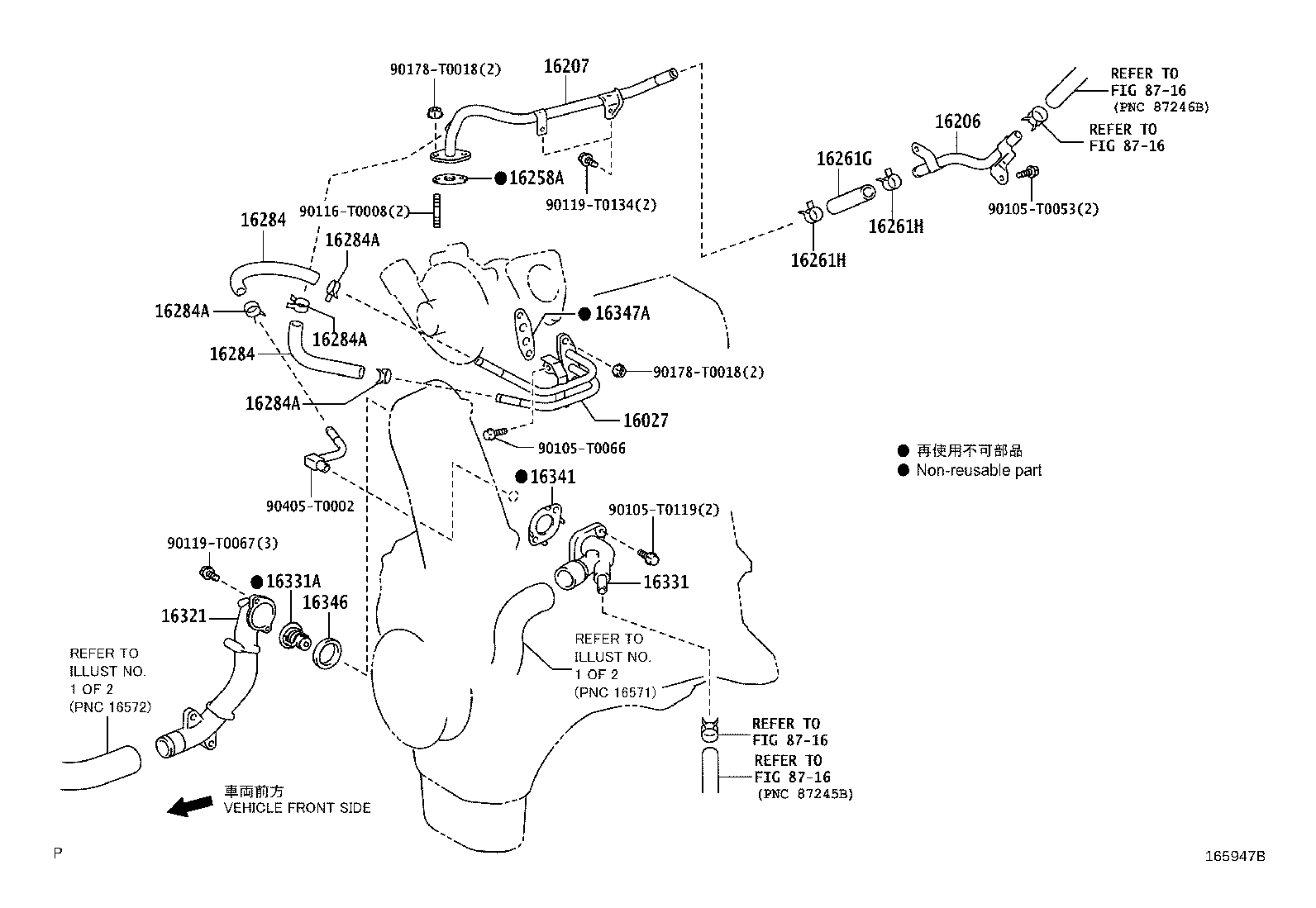

ILLUST NO. 2 OF 2(1505- )1KDFTV

Click highlighted areas on diagram

ENGINE SIDE

diagram 16027 16206 16207 16258A 16261G 16261H 16261H 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331A 16341 16346 16347A 8716 8716 8716 8716 90105T0053 90105T0066 90105T0119 90116T0008 90119T0067 90119T0134 90178T0018 90178T0018 90405T0002
Part # Description Qty Price
Common parts
90105-T0053
90105-T0066
90105-T0119
90116-T0008
90119-T0067
90119-T0134
90178-T0018
90405-T0002
Linked diagrams
8716
