Toyota Hilux KUN16 INTERIOR LAMP

KUN16R-CRMDYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
93560-14020

(9708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90164-45005
90467-06132
Linked diagrams
8202
8701

ILLUST NO. 1 OF 2(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-16055
Linked diagrams
7456
8202
8424

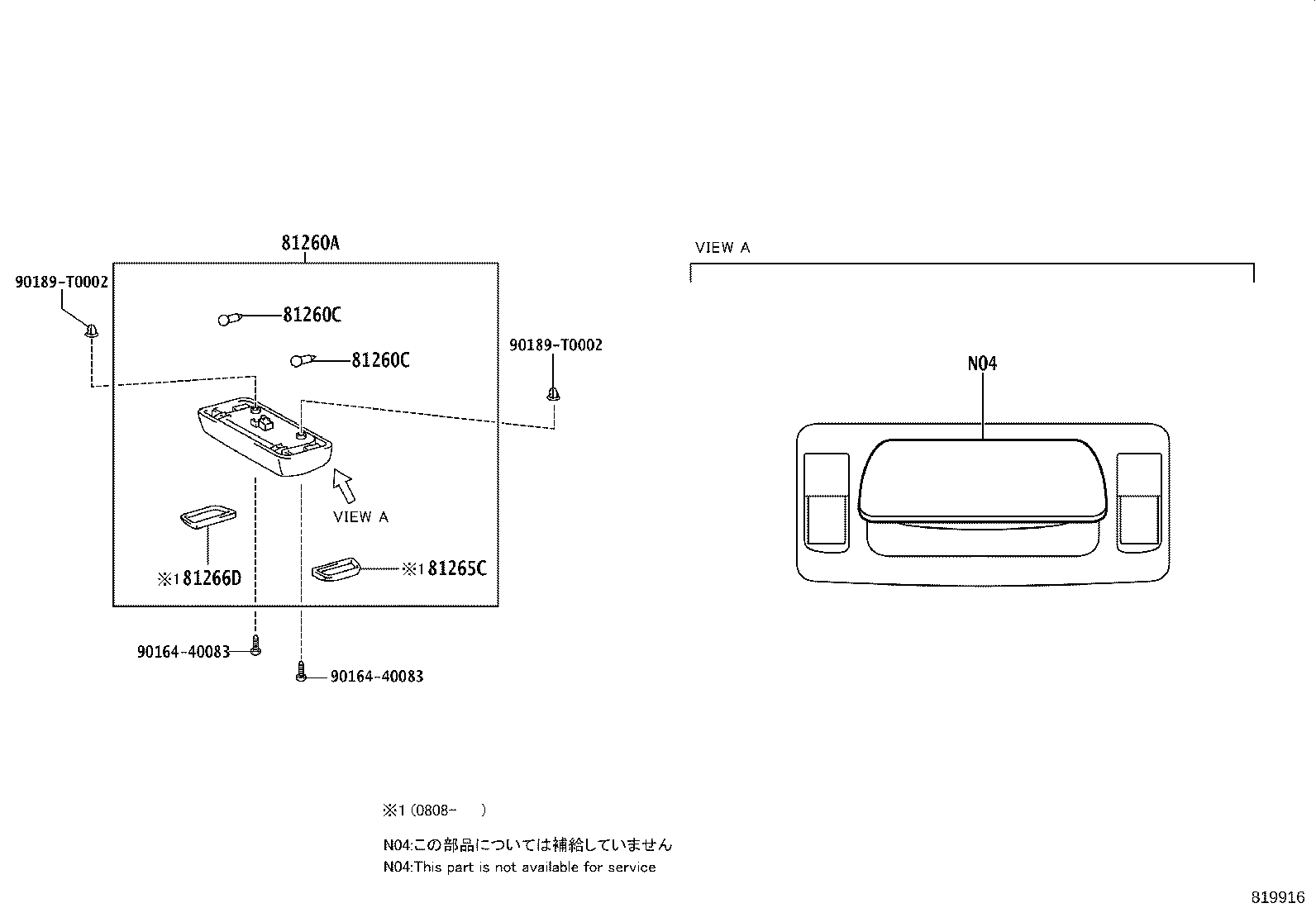

ILLUST NO. 2 OF 2(0408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90164-40083
90189-T0002

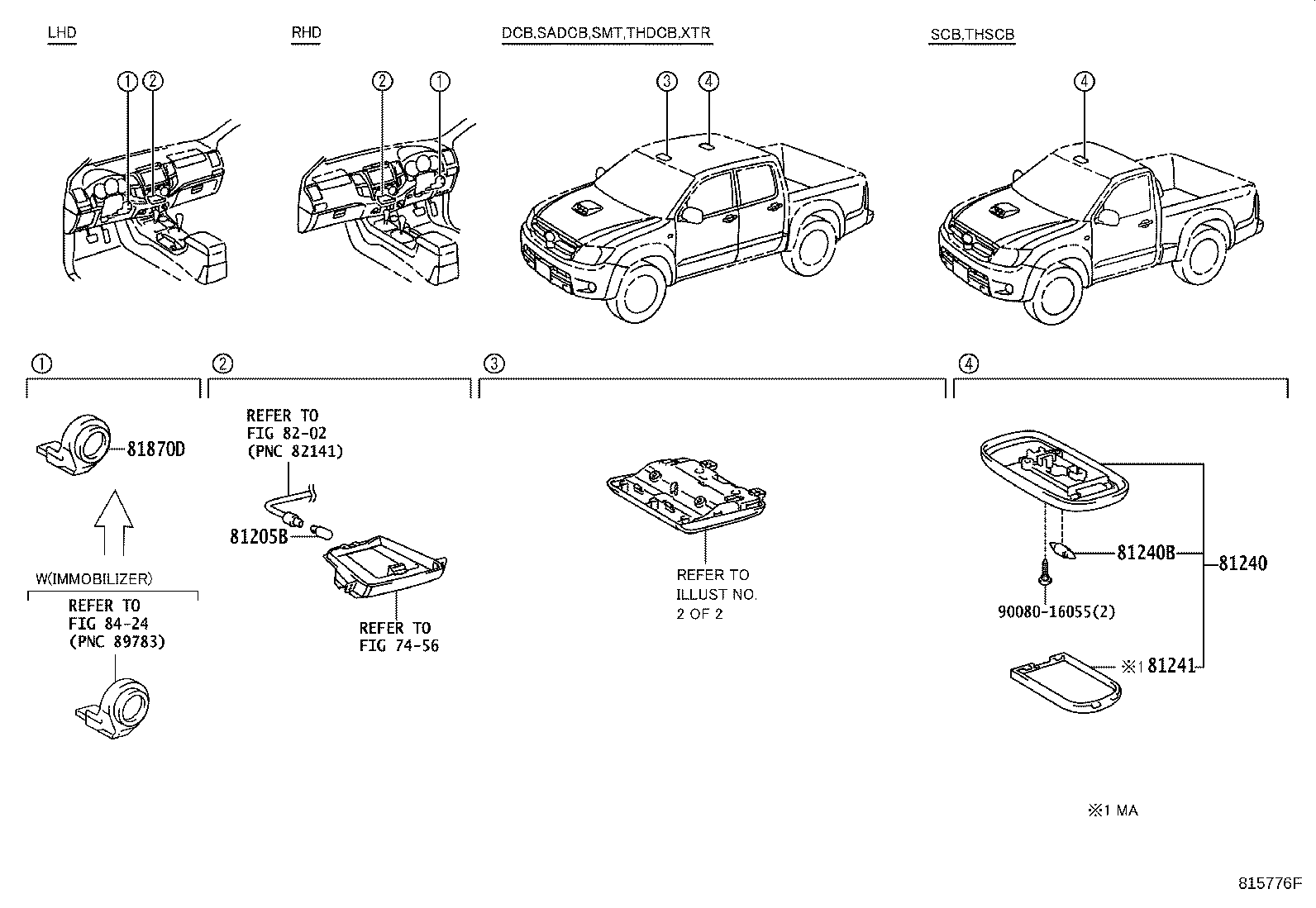

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81240 - LAMP ASSY, ROOM, NO.1
81240-0K010B0	KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN15..(DCB,SCB)..GEN;GGN15..(DCB,XTR)..5FC;KUN16..(ARL,GEN)..CBU;KUN26,TGN16..SCB..(GEN,LA);KUN26..4FC..(CO,GEN,LA,PHL,TH);KUN25,35,TGN26,36..CO,GEN,IDN,LA,TH;KUN15,TGN16..(DCB,SMT,XTR)..(CNG,HDCR,HTWC)..(ARL,GEN,TH);KUN26,36..(DCB,SADCB,SMT,THDCB,XTR)..(5F,5FC)..(ARL,CO,GEN,LA,PHL,TH) LT.GRAY,TRIM1#,2#	07/2011 - 12/2015	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	KUN16,TGN36..(4FC,5F)..(ANCOM,ARL,GEN,LA,TH);GGN15,25,35,KUN10,15,2#,3#,LAN15,25,35,TGN1#,26 12V 8W	07/2011 - 12/2999	1
Common parts
90080-16055
Linked diagrams
7456
8202
8424

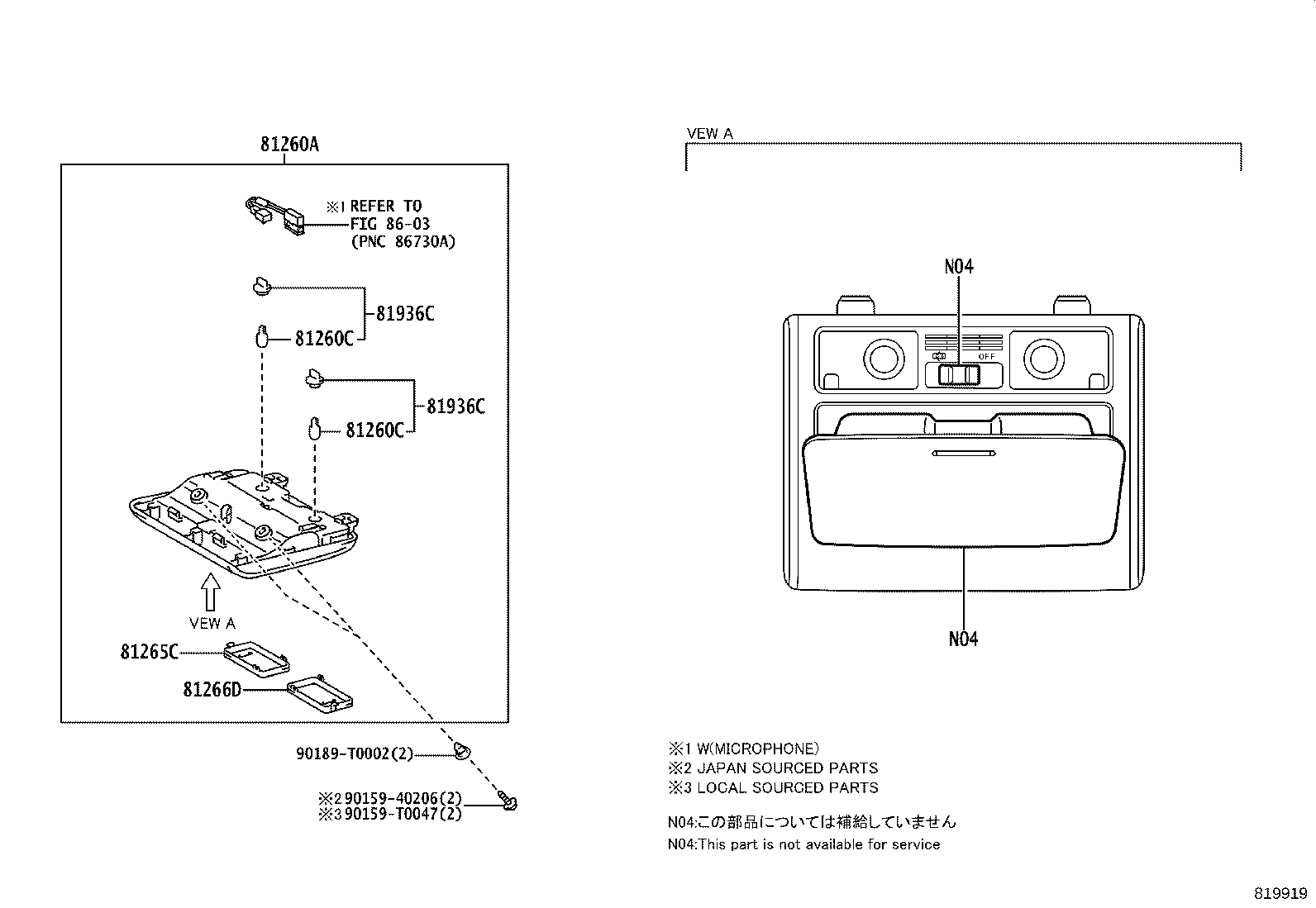

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81260A - LAMP ASSY, MAP
81260-0K070B0	KUN25..IDN;KUN26..XTR..ARL;GGN15,KUN16..XTR..DLX LT.GRAY,TRIM1#	07/2011 - 08/2013	1
81260-0K080B0	KUN25..IDN;KUN26..XTR..ARL;KUN26..DCB..5FC..ARL;KUN15..(DCB,SMT)..DLX..TH;GGN15,KUN16,TGN16..RHD..(SMT,XTR) LT.GRAY,TRIM1#,2#	08/2013 - 04/2015	1
81260C - BULB(FOR MAP LAMP)
90981-11062	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) 12V 8W	07/2011 - 12/2999	2
81260C - BULB(FOR MAP LAMP)
90981-11062	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) 12V 8W	07/2011 - 12/2999	2
81265C - LENS, MAP LAMP, NO.1
81265-0K020	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
81266D - LENS, MAP LAMP, NO.2
81266-0K020	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	1
81936C - BULB ASSY
81936-12150	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	2
81936C - BULB ASSY
81936-12150	KUN15..SR;TGN16..DCB;TGN36..LHD..(DCB,THDCB);KUN15..DCB..DLX..(GCC,GEN,PHL,SA);GGN15,25,35,KUN16,2#,3#,LAN15,25,35,TGN15,26..(DCB,SADCB,SMT,THDCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)	07/2011 - 12/2999	2
Common parts
90159-40206
90159-T0047
90189-T0002
Linked diagrams
8603

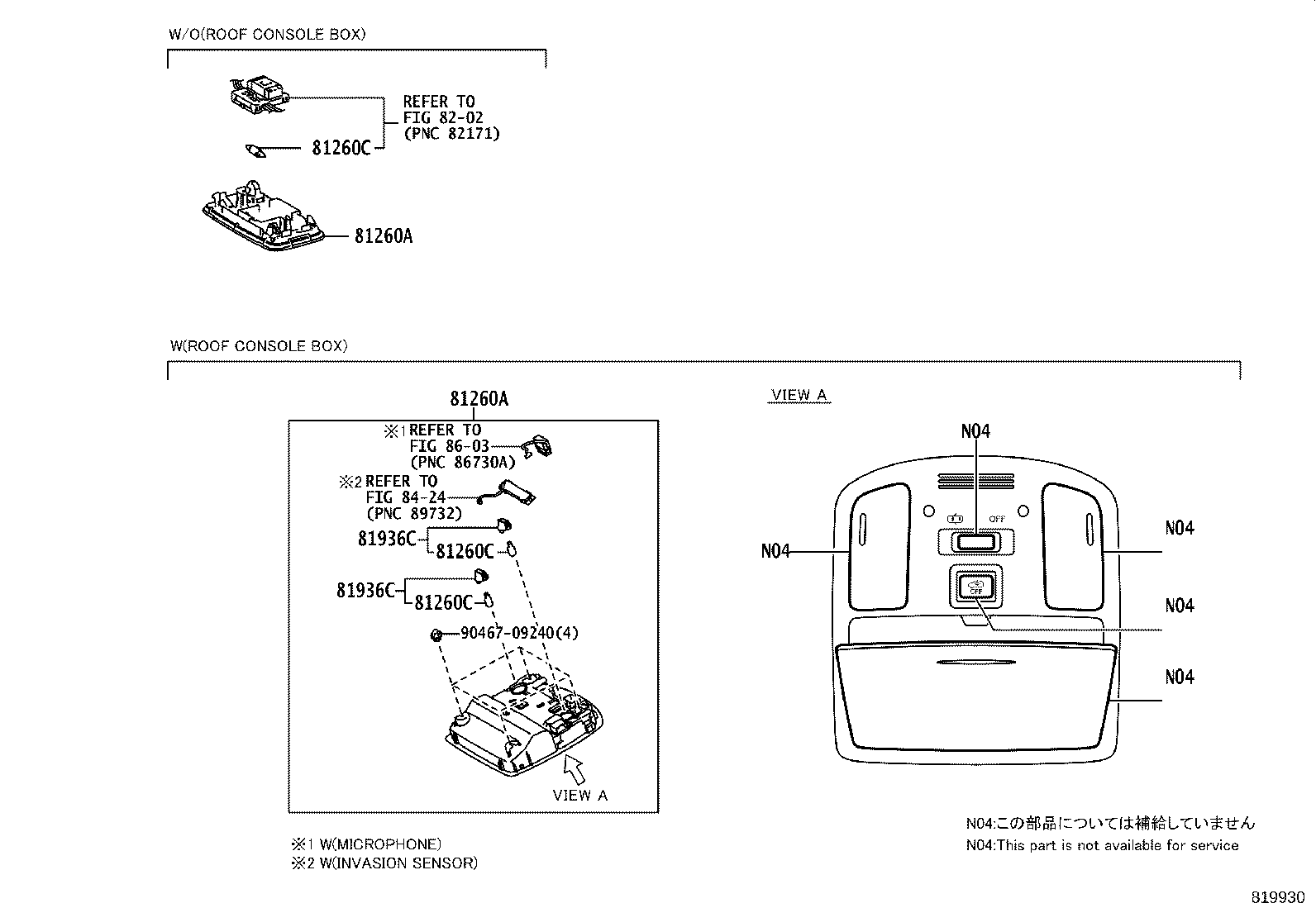

ILLUST NO. 1 OF 2(1505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Linked diagrams
8202
8424

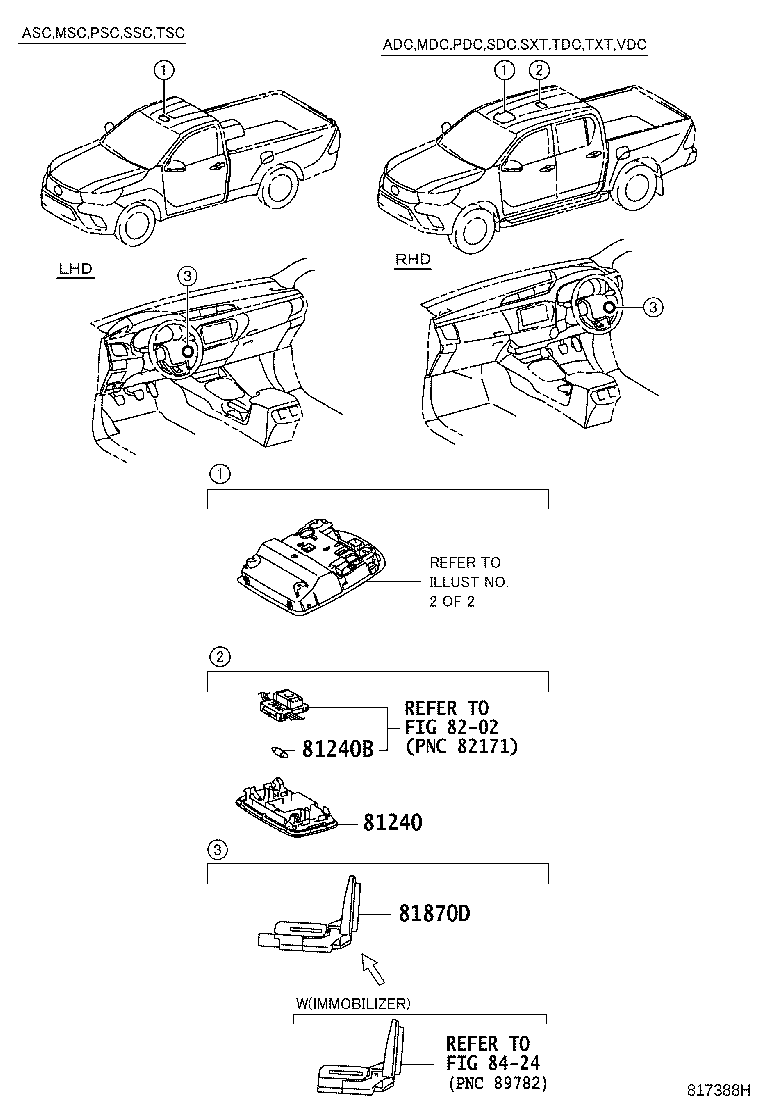

ILLUST NO. 2 OF 2(1505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90467-09240
Linked diagrams
8202
8424
8603
