KUN16R-CRMDYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RCB,XTR

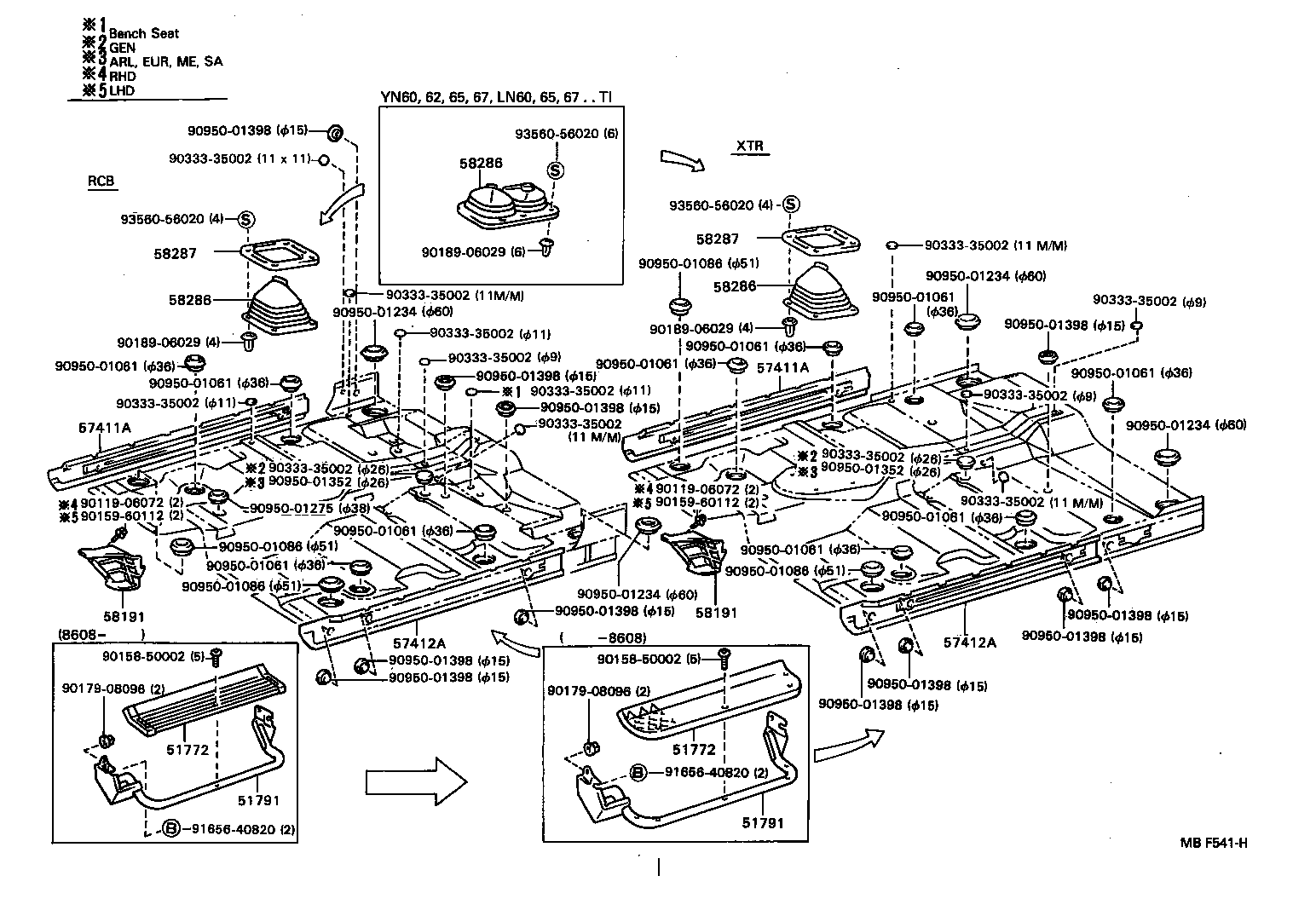

Click highlighted areas on diagram

diagram 51772 51772 51791 51791 57411A 57411A 57412A 57412A 58191 58191 58286 58286 58286 58287 58287 9011906072 9011906072 9015850002 9015850002 9015960112 9015960112 9017908096 9017908096 9018906029 9018906029 9018906029 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001061 9095001086 9095001086 9095001086 9095001086 9095001234 9095001234 9095001234 9095001234 9095001275 9095001352 9095001352 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9095001398 9165640820 9165640820 9356056020 9356056020 9356056020
Part # Description Qty Price
Common parts
90119-06072
90158-50002
90159-60112
90179-08096
90189-06029
90333-35002
90950-01061
90950-01086
90950-01234
90950-01275
90950-01352
90950-01398
91656-40820
93560-56020

ILLUST NO. 3 OF 3(0408- )DCB,SMT,THDCB,XTR

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51083 51084 51773B 51773C 51774A 51774C 51795A 51796 51797 51798 90105T0077 90105T0077 90105T0077 90105T0077 90105T0077 90168T0007 90168T0007 90182T0016 9026905048 9026905048 9026905048
Part # Description Qty Price
Common parts
90105-T0077
90168-T0007
90182-T0016
90269-05048

ILLUST NO. 2 OF 2(1107- )DCB,SADCB,SMT,THDCB,XTR

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51083 51084 51773B 51773C 51774A 51774C 51795A 51796 51797 51798 90105T0077 90105T0077 90105T0077 90105T0077 90105T0077 90168T0007 90168T0007 90182T0016 9026905048 9026905048 9026905048 9026905069 9026905069 9026905069
Part # Description Qty Price
Common parts
90105-T0077
90168-T0007
90182-T0016
90269-05048
90269-05069

ILLUST NO. 1 OF 3(1107- )

Click highlighted areas on diagram

FRONT FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58227B 58228B 58280A 58280A 58280A 58387H 90105T0063 90105T0077 90105T0077 90105T0077 90105T0077 90115T0011 90159T0014 90159T0014 9017606027 9017606027 90189T0013 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
57213H - BRACKET, BODY MOUNTING, NO.2 RH
57213-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57214B - BRACKET, BODY MOUNTING, NO.2 LH
57214-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-0K010

GGN15;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..SCB..(LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN25,35,KUN10,16,25,3#,LAN15,25,35,TGN1#,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-0K010

GGN15;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..SCB..(LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PHL,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,PHL,SA,TH);GGN25,35,KUN10,16,25,3#,LAN15,25,35,TGN1#,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-0K020

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57465B - BRACKET, FRONT SEAT, INNER
57465-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57466B - BRACKET, FRONT SEAT, INSIDE LH
57466-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 2
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-0K020

KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,LAN15,TGN1#

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-0K030

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57512-0K010

KUN15..XTR..TH;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-0K020

KUN15..XTR..TH;KUN25..SCB..MA;KUN15..RHD..(DCB,SCB,SMT);GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN10,15,16,36..RHD..5F..(ARL,GEN,IDN,PKN,SA,TH)

 1
57535 - BRACE, FRONT FLOOR, RH
57535-0K010

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

 1
57536 - BRACE, FRONT FLOOR, LH
57536-0K010

KUN26..4FC..CO;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-0K020

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)

 1
58111 - PAN, FRONT FLOOR
58111-0K030

KUN15..XTR..DLX;KUN15..DCB,SCB,SMT;GGN15,KUN10,16,3#,LAN15,35,TGN1#,36..5F

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-0K010

KUN25..SCB..MA;KUN15..XTR..DLX;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
58191 - FOOTREST, FRONT FLOOR
58191-0K010

GGN15,25,KUN1#,2#,3#,TGN10,16,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,MA,PKN,TH)

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K030

KUN16,36..5F;KUN15,35..5F..HDCR

 1
58280-0K020

TGN11,16,36..5F

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K030

KUN16,36..5F;KUN15,35..5F..HDCR

 1
58280-0K020

TGN11,16,36..5F

 1
58280A - BOOT ASSY, SHIFT LEVER
58280-0K030

KUN16,36..5F;KUN15,35..5F..HDCR

 1
58280-0K020

TGN11,16,36..5F

 1
Common parts
90105-T0063
90105-T0077
90115-T0011
90159-T0014
90176-06027
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
Linked diagrams
5752

ILLUST NO. 1 OF 3(1505- )

Click highlighted areas on diagram

FLOOR PANEL

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57465B 57468C 57469B 57486 57487 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118E 58137D 58139A 58147 58149A 58221F 58222B 90115T0011 90119T0438 90119T0438 90119T0438 90119T0438
Part # Description Qty Price
Common parts
90115-T0011
90119-T0438
Linked diagrams
5752
