KUN16R-CRMDYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )RZN144,148,149,154,16#,174,19#

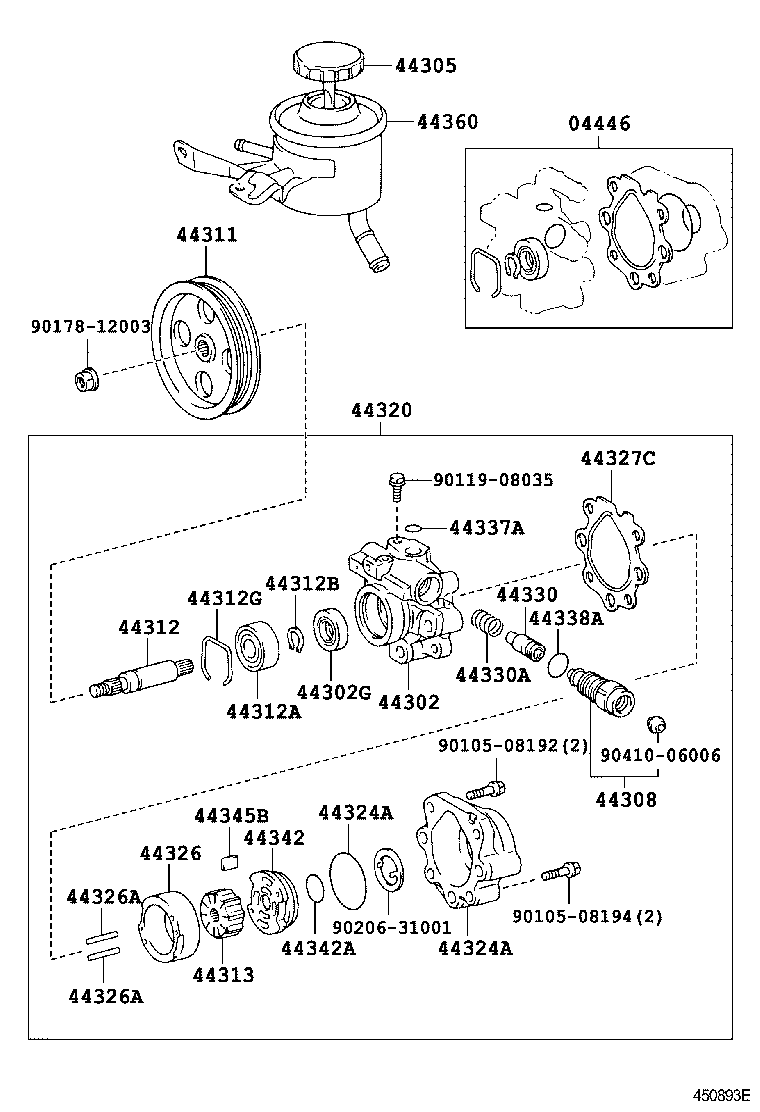

Click highlighted areas on diagram

diagram 04446 44302 44302G 44305 44308 44311 44312 44312A 44312B 44312G 44313 44320 44324A 44324A 44326 44326A 44326A 44327C 44330 44330A 44337A 44338A 44342 44342A 44345B 44360 9010508192 9010508194 9011908035 9017812003 9020631001 9041006006
Part # Description Qty Price
Common parts
90105-08192
90105-08194
90119-08035
90178-12003
90206-31001
90410-06006

(1107- )KUN1#,2#,3#

Click highlighted areas on diagram

diagram 04446 44302A 44305 44308 44310C 44312 44312A 44312F 44312G 44313 44316 44320 44330 44330A 44337 44341 44360 44362A 4503 4503 4503 4503 4503 9008010265 9008011505 90119T0292 90119T0292 90178T0032
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-0K010

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
90316-T0001

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-0K041

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35

 1
44305-0K042

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,LAN15,25,35..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-0K020

KUN10,16;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44310C - RING, O(FOR VANE PUMP)
90301-T0014

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44312 - SHAFT, VANE PUMP
44312-0K010

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-T0005

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44312F - RING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)
90520-T0001

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90520-T0002

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44313 - ROTOR, VANE PUMP
44313-09010

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44316 - GEAR, VANE PUMP
44316-0K010

KUN10,16,2#,3#;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44320 - PUMP ASSY, VANE
44310-0K020

KUN10,16;KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-0K130

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK A

 1
44330-0K140

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK B

 1
44330-0K160

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK D

 1
44330-0K150

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK C

 1
44330-0K170

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK E

 1
44330-0K180

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,TGN1#;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

MARK F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-T0001

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-06060

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-06010

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-0K010

KUN15..DCB,SMT,XTR;KUN10,16,2#,3#,LAN15,25,35;KUN15..SCB..(GCC,GEN,PHL,PKN,SA)

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90080-30093

KUN15..DCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,25,35,KUN10,16,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
Common parts
90080-10265
90080-11505
90119-T0292
90178-T0032
Linked diagrams
4503
