KUN16R-CRMDYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

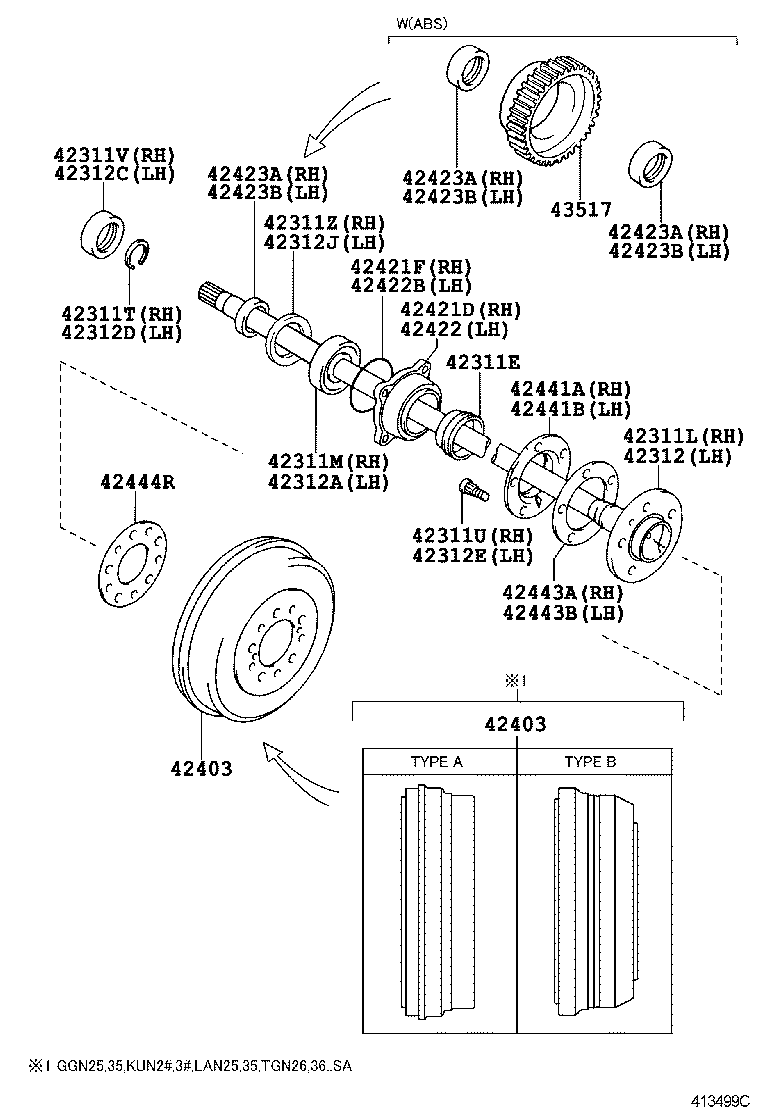

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42403B 42423 42424 42424A 42441 42443 42444R 42454 42611E
Part # Description Qty Price

(1107- )

Click highlighted areas on diagram

diagram 42311E 42311L 42311M 42311T 42311U 42311V 42311Z 42312 42312A 42312C 42312D 42312E 42312J 42403 42403 42421D 42421F 42422 42422B 42423A 42423A 42423A 42423B 42423B 42423B 42441A 42441B 42443A 42443B 42444R 43517
Part # Description Qty Price
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-T0002

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 2
42311L - SHAFT, REAR AXLE, RH
42311-0K070

TGN16..XTR;TGN16..ARL,SA;KUN16..SR..TH;KUN15..DLX..PHL;GGN15,KUN16..ARL,GEN;KUN15..SCB..HDCR..GEN;KUN15,TGN16..(DCB,XTR)..5F..SR..(GCC,GEN,PHL,SA)

 1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90366-T0044

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH)

 1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-T0033

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH

 5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-T0008

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42311Z - WASHER(FOR REAR AXLE SHAFT RH)
90208-T0001

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42312 - SHAFT, REAR AXLE, LH
42311-0K070

TGN16..XTR;TGN16..ARL,SA;KUN16..SR..TH;KUN15..DLX..PHL;GGN15,KUN16..ARL,GEN;KUN15..SCB..HDCR..GEN;KUN15,TGN16..(DCB,XTR)..5F..SR..(GCC,GEN,PHL,SA)

 1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90366-T0044

GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH)

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-T0008

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-T0033

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH

 5
42312J - WASHER (FOR REAR AXLE SHAFT LH)
90208-T0001

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-0K080

GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-0K080

GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH

 2
42421D - CASE, REAR AXLE BEARING, RH
42421-0K030

KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH

 1
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-T0043

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42422 - CASE, REAR AXLE BEARING, LH
42421-0K030

KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH

 1
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-T0043

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-0K020

TGN16..XTR;KUN16..SR..TH;KUN16..ARL,GEN;KUN35..SMT..5FC;KUN26..THDCB..SR;TGN16..DCB..5F..SR..GCC;KUN15,TGN16..DLX..(ARL,PHL);KUN15,25,TGN26..SR..(GEN,MA,PHL);GGN15,25,KUN36,TGN36..ARL,GEN,TH;KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,MA,PHL,TH)

 2
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-0K030

GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-0K030

GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH

 1
42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-30010

GGN15,KUN1#,LAN15,TGN1#

 1
42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-30010

GGN15,KUN1#,LAN15,TGN1#

 1
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35070

GGN15,KUN1#,LAN15,TGN1#

 2
43517 - ROTOR, SKID CONTROL, REAR
43517-71010

KUN26..RHD;TGN16..XTR;KUN35..SR..SA;TGN16..ARL,SA;KUN16..SR..TH;KUN16..ARL,GEN;GGN25..5FC..DLX;KUN35..SMT..5FC;KUN26..DCB..5F..IART;KUN26..LHD..(4FC,5FC);TGN36..(DCB,THDCB)..DLX;GGN15,KUN35..RHD..(SCB,XTR);KUN15,25..SR..(GEN,MA,PHL,SA);KUN15,35..(DCB,SCB)..HDCR..(GEN,PHL);GGN15,25,KUN25..RHD..DCB..5F..(ARL,SA);KUN15,TGN26..DLX..(DCR,HTWCF)..(LA,PHL);GGN25,35,KUN36,TGN26,36..SR..(ANCOM,CO,GEN,LA,SA,TH);KUN26,TGN16..LHD..(DCB,SADCB,THDCB)..5F..SR..(DCR,HTWC)

 2
