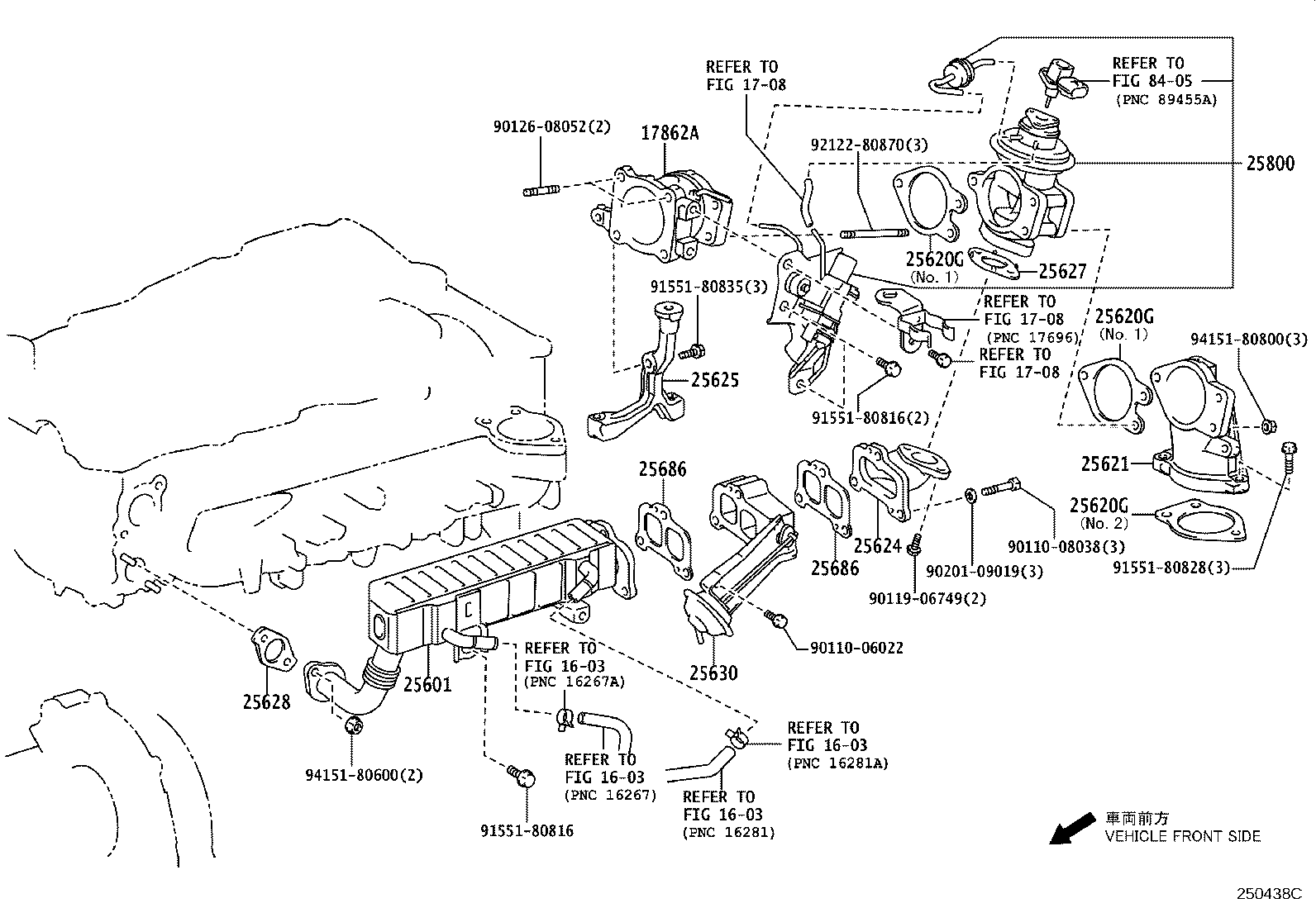

KUN16R-CRMDYQ (2011)
Toyota Hilux
(1107- )1KDFTV..KUN16,26..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17862A - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17862-30020 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360 |
1 | ||
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-30080 |
1KDFTV..KUN16,26..ARL *360 |
1 | ||
| 25601-0L020 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
1 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.2 |
1 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.2 |
1 | ||
| 25620G - GASKET, DIESEL THROTTLE | ||||
| 26171-30030 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.1 |
2 | ||
| 26171-30050 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360,NO.2 |
1 | ||
| 25621 - CONNECTOR, INTAKE AIR(FOR GASKET) | ||||
| 17861-30090 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360 |
1 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25611-30010 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 26127-30030 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-30060 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-30031 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-30020 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
1 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30020 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
2 | ||
| 25686 - GASKET, EGR COOLER, NO.2 | ||||
| 25686-30020 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN *360 |
2 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-30120 |
1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL) *360 |
1 | ||
| Common parts | ||||
| 90110-06022 | ||||
| 90110-08038 | ||||
| 90119-06749 | ||||
| 90126-08052 | ||||
| 90201-09019 | ||||
| 91551-80816 | ||||
| 91551-80828 | ||||
| 91551-80835 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1708 | ||||
| 8405 | ||||
