KUN16R-CRMDYQ (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price

(9708- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Linked diagrams
4503
8719

(1107- )1GRFE,1KDFTV,2KDFTV,5LE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price

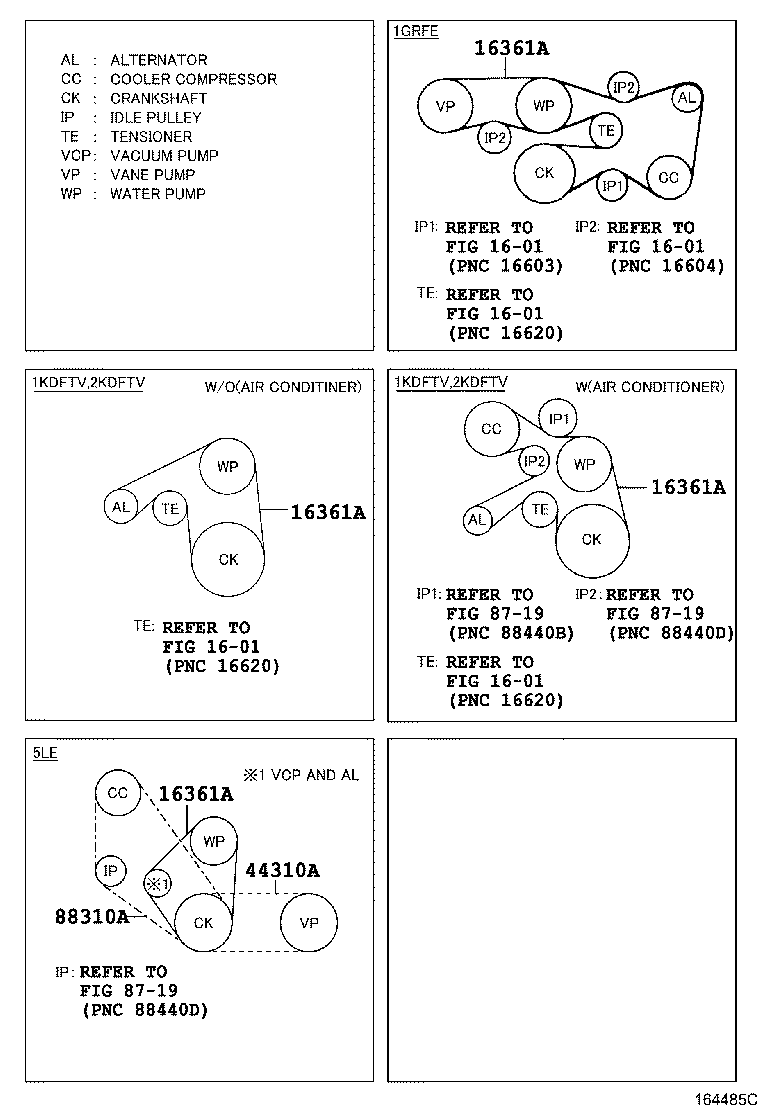

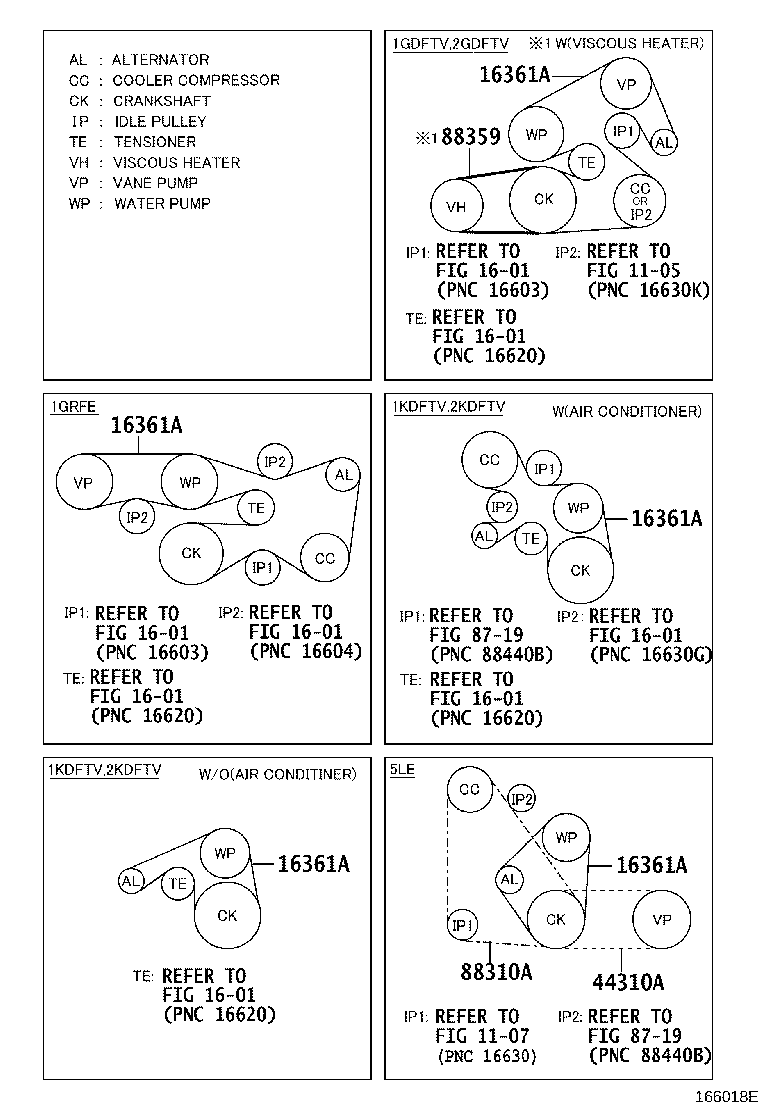

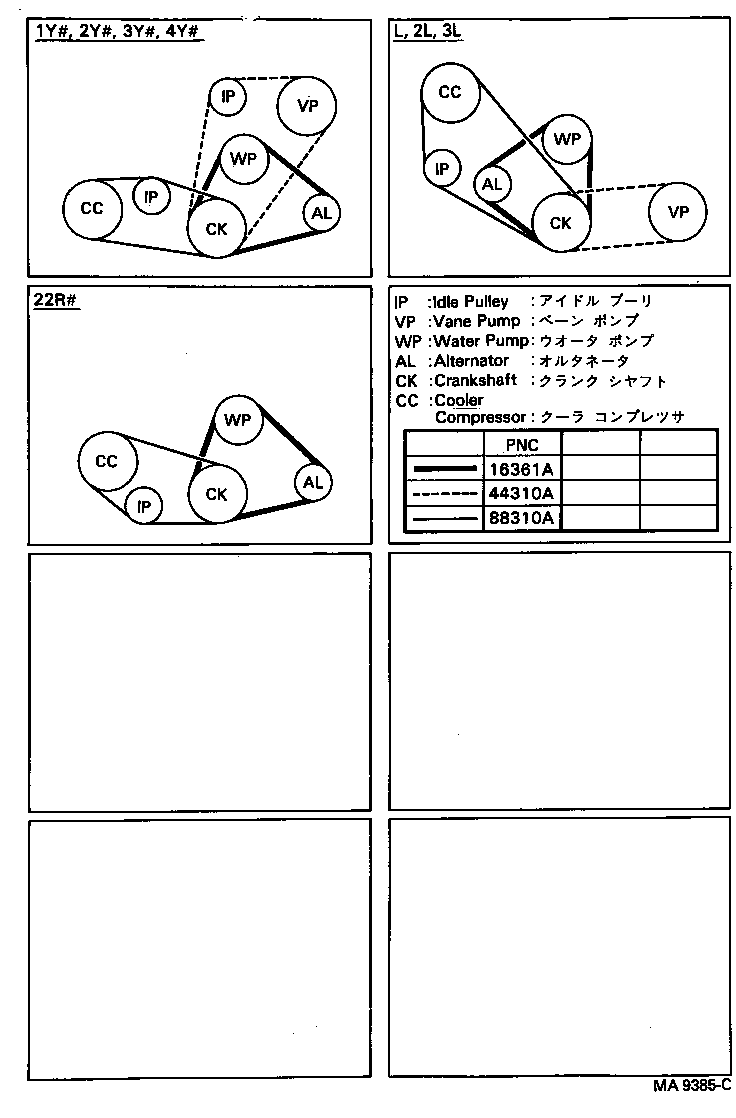

16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-T2006	2KDFTV..KUN25..THDCB;1KDFTV..KUN26..DLX..DCR;2KDFTV..KUN15..RHD..DCR..SA;2KDFTV..KUN25..DCB..(GCC,LA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA);1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA) AIR CONDITIONER-AIR CONDITIONER(DOP)	07/2011 - 12/2015	1
90916-T2006	2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN35..SCB..LA..CBU;1KDFTV..KUN26..DCB..5FC..IV3;1KDFTV..KUN26..DLX..DCR..CBU;1KDFTV..KUN26..(SCB,XTR)..5F..ARL..IV3;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN25..5F..DLX..(GCC,LA,PKN,SA)..CBU;1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA,SA);2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 09/2016	1
90916-T2005	1KDFTV..KUN26..ARL;1KDFTV..KUN26..LA..IV3;2KDFTV..KUN15..LHD..DLX..(GCC,SA);2KDFTV..KUN15..RHD..DCR..(GEN,PKN,SA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN15,35..LHD..(SCB,XTR)..(GEN,LA,PHL);1KDFTV,2KDFTV..KUN10,16,36..DLX..(ARL,GCC,IDN,LA);1KDFTV,2KDFTV..KUN2#..DLX..(DCR,HDCR)..(GCC,GEN,LA,PKN,SA)	07/2011 - 09/2016	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-T2006	2KDFTV..KUN25..THDCB;1KDFTV..KUN26..DLX..DCR;2KDFTV..KUN15..RHD..DCR..SA;2KDFTV..KUN25..DCB..(GCC,LA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA);1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA) AIR CONDITIONER-AIR CONDITIONER(DOP)	07/2011 - 12/2015	1
90916-T2006	2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN35..SCB..LA..CBU;1KDFTV..KUN26..DCB..5FC..IV3;1KDFTV..KUN26..DLX..DCR..CBU;1KDFTV..KUN26..(SCB,XTR)..5F..ARL..IV3;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN25..5F..DLX..(GCC,LA,PKN,SA)..CBU;1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA,SA);2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 09/2016	1
90916-T2005	1KDFTV..KUN26..ARL;1KDFTV..KUN26..LA..IV3;2KDFTV..KUN15..LHD..DLX..(GCC,SA);2KDFTV..KUN15..RHD..DCR..(GEN,PKN,SA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN15,35..LHD..(SCB,XTR)..(GEN,LA,PHL);1KDFTV,2KDFTV..KUN10,16,36..DLX..(ARL,GCC,IDN,LA);1KDFTV,2KDFTV..KUN2#..DLX..(DCR,HDCR)..(GCC,GEN,LA,PKN,SA)	07/2011 - 09/2016	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-T2006	2KDFTV..KUN25..THDCB;1KDFTV..KUN26..DLX..DCR;2KDFTV..KUN15..RHD..DCR..SA;2KDFTV..KUN25..DCB..(GCC,LA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA);1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA) AIR CONDITIONER-AIR CONDITIONER(DOP)	07/2011 - 12/2015	1
90916-T2006	2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN35..SCB..LA..CBU;1KDFTV..KUN26..DCB..5FC..IV3;1KDFTV..KUN26..DLX..DCR..CBU;1KDFTV..KUN26..(SCB,XTR)..5F..ARL..IV3;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN25..5F..DLX..(GCC,LA,PKN,SA)..CBU;1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA,SA);2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 09/2016	1
90916-T2005	1KDFTV..KUN26..ARL;1KDFTV..KUN26..LA..IV3;2KDFTV..KUN15..LHD..DLX..(GCC,SA);2KDFTV..KUN15..RHD..DCR..(GEN,PKN,SA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN15,35..LHD..(SCB,XTR)..(GEN,LA,PHL);1KDFTV,2KDFTV..KUN10,16,36..DLX..(ARL,GCC,IDN,LA);1KDFTV,2KDFTV..KUN2#..DLX..(DCR,HDCR)..(GCC,GEN,LA,PKN,SA)	07/2011 - 09/2016	1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-T2006	2KDFTV..KUN25..THDCB;1KDFTV..KUN26..DLX..DCR;2KDFTV..KUN15..RHD..DCR..SA;2KDFTV..KUN25..DCB..(GCC,LA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA);1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA) AIR CONDITIONER-AIR CONDITIONER(DOP)	07/2011 - 12/2015	1
90916-T2006	2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN35..SCB..LA..CBU;1KDFTV..KUN26..DCB..5FC..IV3;1KDFTV..KUN26..DLX..DCR..CBU;1KDFTV..KUN26..(SCB,XTR)..5F..ARL..IV3;2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN25..5F..DLX..(GCC,LA,PKN,SA)..CBU;1KDFTV,2KDFTV..KUN1#,36..DLX..(ARL,GCC,LA,SA);2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER	07/2011 - 09/2016	1
90916-T2005	1KDFTV..KUN26..ARL;1KDFTV..KUN26..LA..IV3;2KDFTV..KUN15..LHD..DLX..(GCC,SA);2KDFTV..KUN15..RHD..DCR..(GEN,PKN,SA);2KDFTV..KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);2KDFTV..KUN15,35..LHD..(SCB,XTR)..(GEN,LA,PHL);1KDFTV,2KDFTV..KUN10,16,36..DLX..(ARL,GCC,IDN,LA);1KDFTV,2KDFTV..KUN2#..DLX..(DCR,HDCR)..(GCC,GEN,LA,PKN,SA)	07/2011 - 09/2016	1
Linked diagrams
1601
8719

(1505- )1G#,2GDFTV,1KDFTV,2KDFTV,5LE

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
