KUN15R-TRMRYP (2012)

Toyota Hilux

Production Feb 2012 - Sep 2016
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

Click highlighted areas on diagram

TYPE A:JAR 2.5L(FENDER APRON REAR)

diagram 85031B 85031B 85035 85035 85310 85330 85330A 85332 85348 85348F 85348G 85349C 85371 85372 85372B 85372H 85372J 85372M 85373 85373 9011906698 9048025025
Part # Description Qty Price
Common parts
90119-06698
90480-25025

(9708- )

Click highlighted areas on diagram

TYPE C:JAR 2.5L(FENDER APRON FRONT)

diagram 85035 85035 85310 85330 85330A 85332 85348 85348 85348G 85348G 85349C 85371 85372 85372B 85372J 85372M 85373 85373 9011906698 9048025025 9095901136
Part # Description Qty Price
Common parts
90119-06698
90480-25025
90959-01136

(9708- )

Click highlighted areas on diagram

TYPE B:JAR 4.6L

diagram 8271116820 8271117190 827113F030 827113H430 85031B 85035 85035 85301 85310 85330 85330A 85332C 85348 85348D 85348E 85348F 85348G 85349C 85361A 85372 85372B 85372H 85372J 85372K 85372L 85372M 85373 85373 9011906520 9095901136
Part # Description Qty Price
Common parts
82711-16820
82711-17190
82711-3F030
82711-3H430
90119-06520
90959-01136

(1202- )PKN

Click highlighted areas on diagram

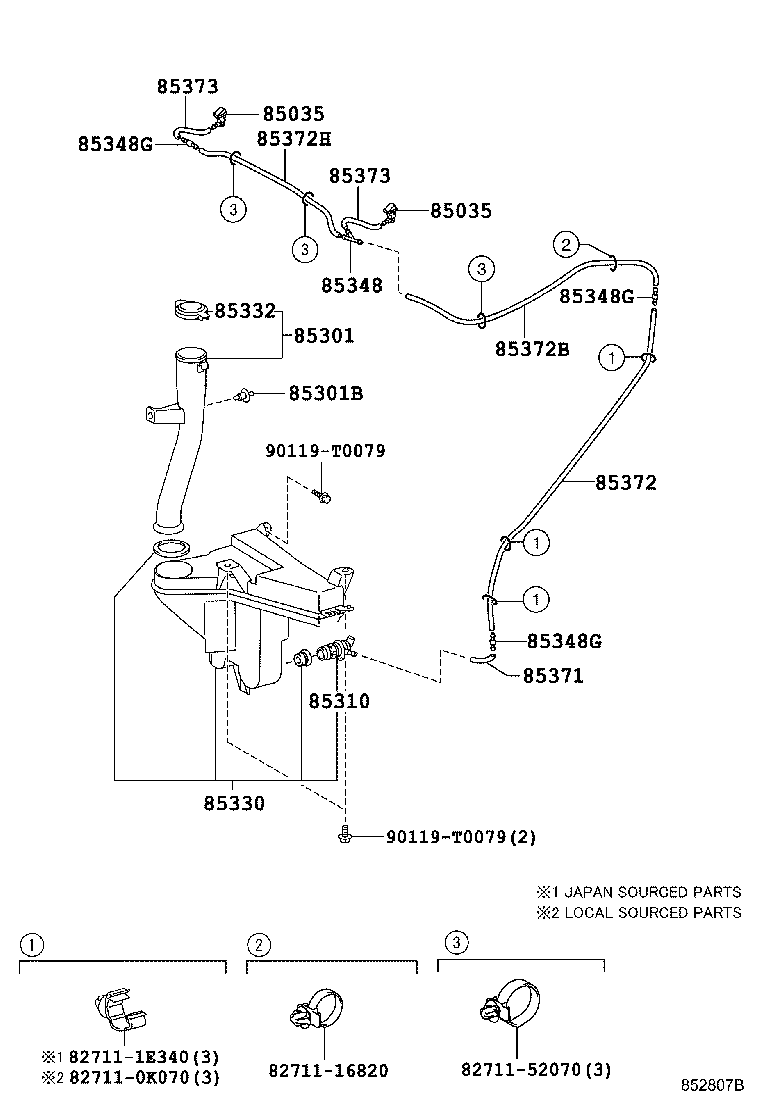

diagram 827110K070 8271116820 827111E340 8271152070 85035 85035 85301 85301B 85310 85330 85332 85348 85348G 85348G 85348G 85371 85372 85372B 85372H 85373 85373 90119T0079 90119T0079
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 2
85301 - INLET SUB-ASSY, WASHER
85301-0K150

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85301B - CLIP, WASHER
90467-07076A0

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

IVORY

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..GCC,GEN,PHL,PKN,SA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85310-0K200

KUN15,25..PKN

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-0K010

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-0K051

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

 3
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33160

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59091

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=950

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33159

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

L=900

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

*H,L=120

 2
Common parts
82711-0K070
82711-16820
82711-1E340
82711-52070
90119-T0079
