Toyota Hilux KUN15 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty

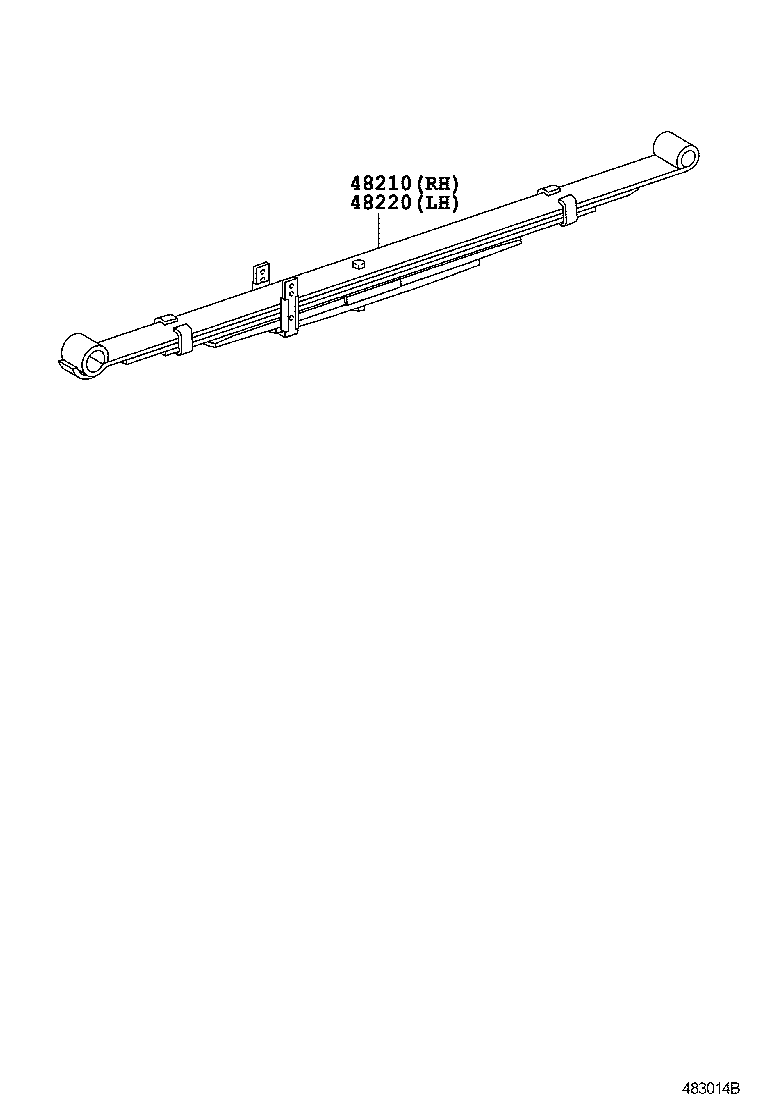

48210 - SPRING ASSY, REAR RH
48210-0K290	KUN15..PKN 5-LEAF	02/2012 - 09/2016	1
48220 - SPRING ASSY, REAR LH
48210-0K290	KUN15..PKN 5-LEAF	02/2012 - 09/2016	1

Part #	Description	Period	Qty
04483A - SHACKLE KIT, REAR SPRING, RH
04483-0K050	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-0K050	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36	07/2011 - 12/2999	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-0K011	GGN15,KUN1#,LAN15,TGN1#	07/2011 - 09/2016	1
48046A - BOLT, U(FOR REAR SPRING)
90117-T0003	GGN15,KUN1#,LAN15,TGN1# L=175	07/2011 - 09/2016	4
48046A - BOLT, U(FOR REAR SPRING)
90117-T0003	GGN15,KUN1#,LAN15,TGN1# L=175	07/2011 - 09/2016	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-0K011	GGN15,KUN1#,LAN15,TGN1#	07/2011 - 09/2016	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0009	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-T0009	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-T0008	GGN15,KUN1#,LAN15,TGN1#..SCB	07/2011 - 09/2016	4
48210B - BUSH(FOR REAR SPRING PIN)
90385-T0008	GGN15,KUN1#,LAN15,TGN1#..SCB	07/2011 - 09/2016	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-T0010	GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH	07/2011 - 12/2999	4
48341 - BUMPER, REAR SPRING
48341-0K010	GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH	07/2011 - 09/2016	2
48409A - PIN SUB-ASSY, REAR SPRING BRACKET
48409-0K010	GGN15,KUN15,16,LAN15,TGN15,16..SCB	07/2011 - 09/2016	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-09630	KUN15..PKN MARK 48531-0K350	02/2012 - 09/2016	1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	KUN15,25..PKN	07/2011 - 09/2016	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-T3001	KUN15,25..PKN	07/2011 - 09/2016	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	KUN15,25..PKN	07/2011 - 09/2016	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-T3002	KUN15,25..PKN	07/2011 - 09/2016	4
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	KUN15,25..PKN	07/2011 - 09/2016	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	KUN15,25..PKN	07/2011 - 09/2016	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	KUN15,25..PKN	07/2011 - 09/2016	8
48530H - BUSH, REAR SHOCK ABSORBER
90385-T0004	KUN15,25..PKN	07/2011 - 09/2016	8
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-09630	KUN15..PKN MARK 48531-0K350	02/2012 - 09/2016	1
Common parts
48373-0K010
90105-T0128
90105-T0135
90105-T0146
90119-T0028
90170-T0016
90178-T0027
90178-T0061
90201-T0006
90201-T0012
90201-T0014

Part #	Description	Period	Qty	Price
Common parts
90105-14025
90119-08686
90179-14039
90201-14005
90201-15012
91612-61025
91641-H0820
94130-01432

KUN15R-TRMRYP (2012)

ILLUST NO. 1 OF 2(9708- )KDN145,15#,LN14#,15#,RZN14#,154,YN140

ILLUST NO. 1 OF 2(0408- )GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH ; (1008- )KUN15..

ILLUST NO. 2 OF 2(1202- )KUN15..PKN

ILLUST NO. 1 OF 2(1107- )GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,PKN,TH
