KUN15R-PRMSHT (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2KDFTV..KUN35..LHD..GEN ; (1107- )1KDFTV,2KDFTV..KUN1#,2#,36 ; (1107-

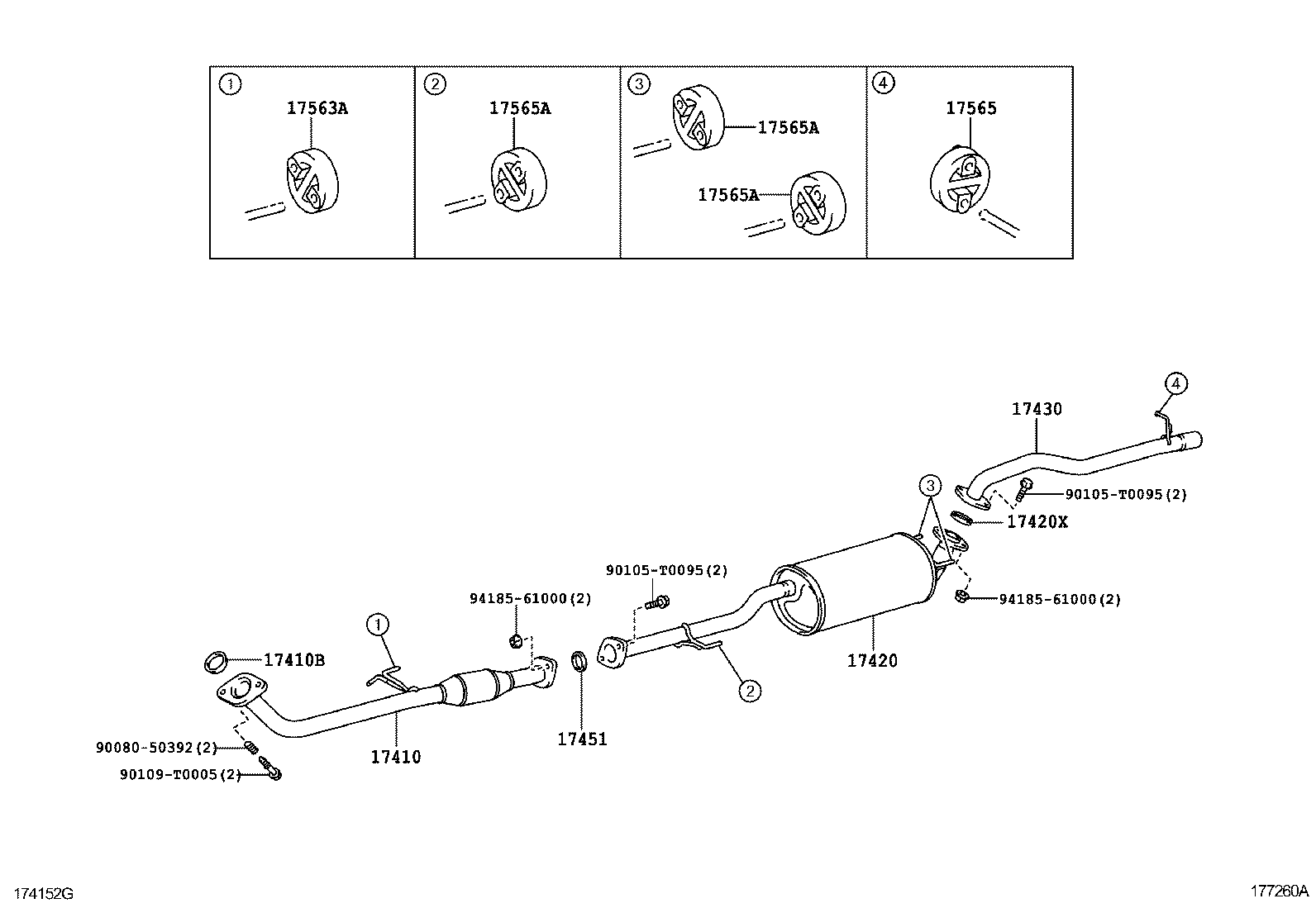

Click highlighted areas on diagram

EXCEPT EURO 5 REGULATION

diagram 17410 17410B 17420 17420X 17430 17451 17563A 17565 17565A 17565A 17565A 9008050392 90105T0095 90105T0095 90109T0005 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-0L030

1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH

*114=TOYOTA/AB5/Y

 1
17401-0L030

1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH

*114=TOYOTA/AB5/Y,THAI SPEC(EURO 3 REGULATION)

 1
17401-0L160

2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25,35..5F..SR..TH

 1
17401-0L060

2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA

 1
17410B - GASKET, EXHAUST PIPE
17451-0L010

2KDFTV..KUN35..LHD..GEN;1KDFTV,2KDFTV..KUN1#,2#,36;2KDFTV..KUN35..CO,LA,PHL,SA,TH

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-0L120

1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH

THAI SPEC(EURO 3 REGULATION)

 1
17403-0L061

2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26..4FC..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..DCB..HDCR;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN26..(5F,5FC)..(ARL,TH);1KDFTV,2KDFTV..KUN16,25,3#..ARL,TH

 1
17403-0L081

2KDFTV..KUN15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV,5LE..KUN25,LAN15,25,35..GCC,GEN,PKN,SA

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-T6002

1GRFE..GGN15,25;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-0L111

2KDFTV..KUN35..SR..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE..KUN1#,2#,36,LAN15,25,35..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)

 1
17451 - GASKET, EXHAUST PIPE
90917-T6002

2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0M010

2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0M010

1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M010

1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M010

1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M010

1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH

 3
Common parts
90080-50392
90105-T0095
90109-T0005
94185-61000

(1505-1708)2GDFTV..GUN135..GEN ; (1505- )2GDFTV..GUN135..H ; (1505- )1GDFTV,2

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17430 17451A 17564 17565 17565A 17565A 17565A 17572B 9008050392 9008050392 90105T0058 90109T0005 90109T0005 90177T0006 90177T0006 9155381035
Part # Description Qty Price
Common parts
90080-50392
90105-T0058
90109-T0005
90177-T0006
91553-81035
