KUN15R-PRMSHT (2004)
Toyota Hilux

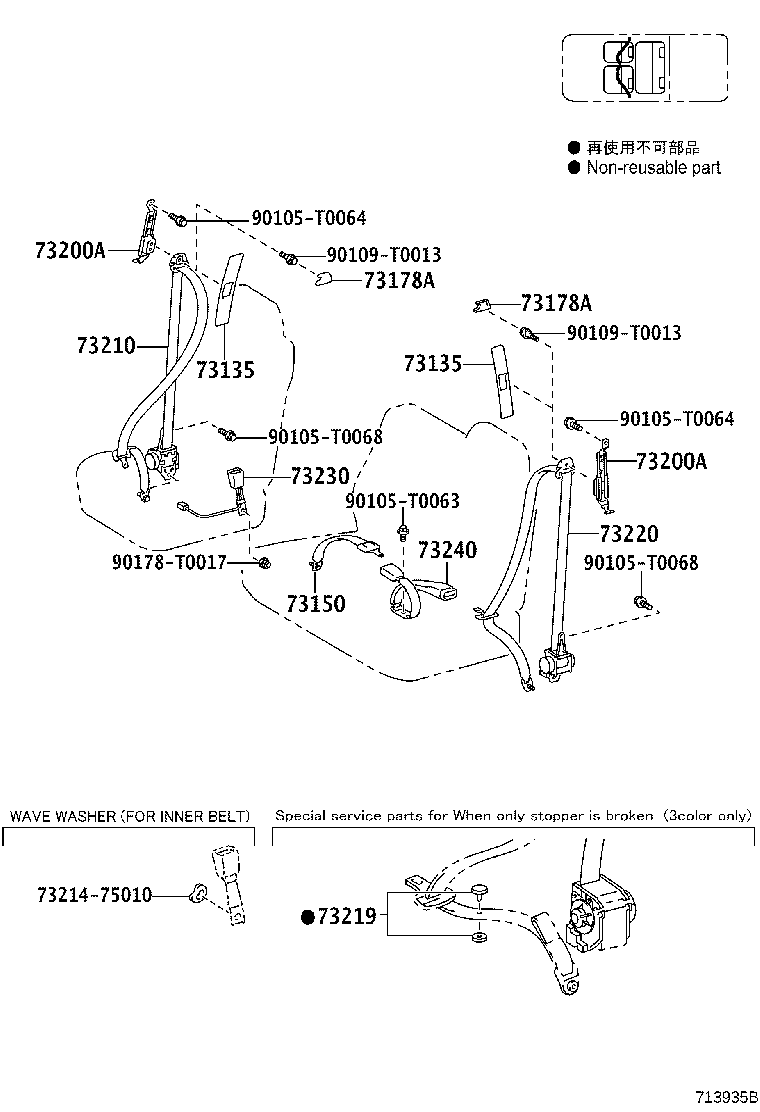

ILLUST NO. 1 OF 2(0408- )DCB,THDCB
FRONT (*PAS = FOR ONE PERSON TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135-02010A0 |
KUN25..RHD..DCB..SA;GGN15,25,KUN26..XTR..SR..ARL;KUN15,2#,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH);GGN25,KUN16,LAN15,25,35,TGN16,26,36..(DCB,XTR)..(PHL,SA,TH) IVORY,TRIM0# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135-02010A0 |
KUN25..RHD..DCB..SA;GGN15,25,KUN26..XTR..SR..ARL;KUN15,2#,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH);GGN25,KUN16,LAN15,25,35,TGN16,26,36..(DCB,XTR)..(PHL,SA,TH) IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200-02020B0 |
GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200-02090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200-02020B0 |
GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200-02090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 73210-0K090B0 |
KUN15..PHL;KUN25,TGN26..THDCB..DLX;KUN15,25..RHD..DCB..(GEN,TH);TGN26..(DCB,THDCB)..SR..(GEN,TH);KUN16,26,35..(DCB,THDCB)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) GRAY |
1 | ||
| 73219-33010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BLACK |
1 | ||
| 73219-33030 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 73220-0K090B0 |
KUN15,16,25..DCB..(PHL,TH);KUN26,TGN26..(DCB,THDCB)..(GEN,TH);KUN15,25,35,TGN15,16..LHD..(DCB,THDCB)..GEN GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K020A0 |
KUN15..SR..DCR..TH;KUN15,36..DCB..SR..TH;KUN16,2#,TGN16,26..SR..TH IVORY,TRIM0# |
1 | ||
| 73230-0K020B0 |
KUN15,16..XTR..DCR..TH;KUN26..RHD..(DCB,SCB,XTR);KUN25,TGN16,26..(DCB,XTR)..TH;KUN15,16..(DCB,SCB)..(ARL,TH);GGN15,25,KUN36,TGN10,16,36..RHD..(5F,5FC)..(ARL,IDN,SA) GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K010B0 |
KUN25..TH;KUN15..DCB..TH;KUN15..XTR..DCR;TGN26..THDCB..DLX;KUN15,2#..LHD..DLX..GEN;KUN16,35..(DCB,THDCB,XTR)..(GEN,TH);KUN26,TGN15,16,26..(DCB,SCB,XTR)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73230-0K010A0 |
KUN15..SR..DCR..TH;KUN15,36..DCB..SR..TH;KUN16,2#,TGN16,26..SR..TH IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-T0013 | ||||
| 90178-T0017 | ||||
ILLUST NO. 2 OF 2(0408- )DCB,THDCB
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) GRAY |
1 | ||
| 73219-33010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BLACK |
1 | ||
| 73219-33030 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BEIGE |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 73360-0K030B0 |
KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73360-0K030B0 |
KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73360-0K030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K020B0 |
GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73380-0K020A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-0K020B0 |
GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 73390-0K020A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 90109-T0014 | ||||
| 90950-T1002 | ||||
ILLUST NO. 1 OF 2(0408- )RHD..DCB
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135-02010A0 |
KUN25..RHD..DCB..SA;GGN15,25,KUN26..XTR..SR..ARL;KUN15,2#,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH);GGN25,KUN16,LAN15,25,35,TGN16,26,36..(DCB,XTR)..(PHL,SA,TH) IVORY,TRIM0# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73135-02010A0 |
KUN25..RHD..DCB..SA;GGN15,25,KUN26..XTR..SR..ARL;KUN15,2#,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH);GGN25,KUN16,LAN15,25,35,TGN16,26,36..(DCB,XTR)..(PHL,SA,TH) IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B3 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH) LT.GRAY,TRIM1# |
2 | ||
| 73178-33020A1 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200-02020B0 |
GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200-02090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 73200-02020B0 |
GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH) LT.GRAY,TRIM1# |
2 | ||
| 73200-02090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 73210-0K090B0 |
KUN15..PHL;KUN25,TGN26..THDCB..DLX;KUN15,25..RHD..DCB..(GEN,TH);TGN26..(DCB,THDCB)..SR..(GEN,TH);KUN16,26,35..(DCB,THDCB)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) GRAY |
1 | ||
| 73219-33010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BLACK |
1 | ||
| 73219-33030 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K090A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 73220-0K090B0 |
KUN15,16,25..DCB..(PHL,TH);KUN26,TGN26..(DCB,THDCB)..(GEN,TH);KUN15,25,35,TGN15,16..LHD..(DCB,THDCB)..GEN GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K020A0 |
KUN15..SR..DCR..TH;KUN15,36..DCB..SR..TH;KUN16,2#,TGN16,26..SR..TH IVORY,TRIM0# |
1 | ||
| 73230-0K020B0 |
KUN15,16..XTR..DCR..TH;KUN26..RHD..(DCB,SCB,XTR);KUN25,TGN16,26..(DCB,XTR)..TH;KUN15,16..(DCB,SCB)..(ARL,TH);GGN15,25,KUN36,TGN10,16,36..RHD..(5F,5FC)..(ARL,IDN,SA) GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K010B0 |
KUN25..TH;KUN15..DCB..TH;KUN15..XTR..DCR;TGN26..THDCB..DLX;KUN15,2#..LHD..DLX..GEN;KUN16,35..(DCB,THDCB,XTR)..(GEN,TH);KUN26,TGN15,16,26..(DCB,SCB,XTR)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73230-0K010A0 |
KUN15..SR..DCR..TH;KUN15,36..DCB..SR..TH;KUN16,2#,TGN16,26..SR..TH IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-T0013 | ||||
| 90178-T0017 | ||||
