KUN15R-PRMSHT (2004)
Toyota Hilux

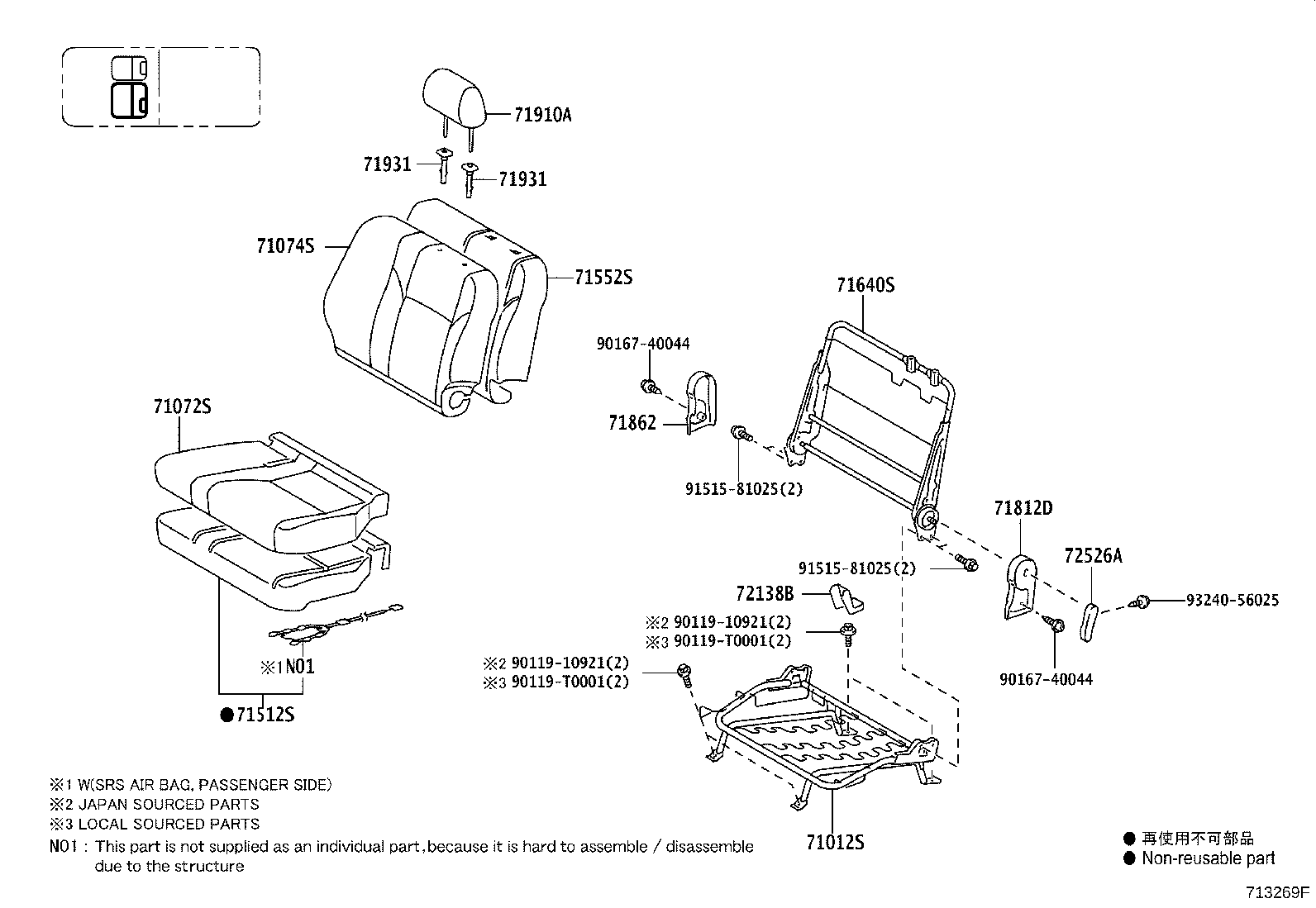

ILLUST NO. 2 OF 3(0409- )RHD..DCB,SCB
PASSENGER SEAT(FOR TWO PEOPLE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0K030 |
TGN16..LHD..DCB;KUN15,25..DCB..(GCC,MA,PHL,SA,TH);KUN15,25,LAN25..LHD..DCB..(GEN,SA);GGN15,25,KUN16,26,36,LAN15,TGN15,26,36..DCB..(ARL,GCC,GEN,PHL,SA,TH) |
1 | ||
| 71011-0K030 |
TGN36..DLX;TGN26..ANCOM;KUN15..SR..DCR..TH;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0K170B0 |
KUN26..SR..ARL;KUN16,2#,TGN26..XTR..TH;GGN15,25,KUN15,TGN16..SR..(DCR,HTWC)..(ARL,TH) MID.GRAY,TRIM1# |
1 | ||
| 71072-0K170A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0K080A0 |
KUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
KUN35..SCB,THDCB;TGN16..LHD..5F..DLX;TGN26..DCB..DLX..LA;KUN35..LHD..DCB..DLX;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16..(DCB,XTR)..(GCC,PHL,SA,TH);KUN15,TGN36..LHD..DLX..(ANCOM,GEN,LA);GGN25,KUN10,25,LAN15,25,TGN10,11,15..LHD;KUN26,36..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);KUN25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,TH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
GGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K020A0 |
KUN15,16,2#,36,TGN26..DCB..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K020A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K050B0 |
KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72137-0K010B0 |
KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0K040A0 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91515-81025 | ||||
| 93240-56025 | ||||
ILLUST NO. 3 OF 3(0408- )DCB,THDCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71222B - WIRE, RR SEAT CUSHION CONNECTING | ||||
| 71222-0K020 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) |
2 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-0K010A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71485-0K010B0 |
GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 71486C - COVER, REAR SEAT HINGE, LH | ||||
| 71486-0K010A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..DCB..SR..(ARL,GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71486-0K010B0 |
GGN15,25,KUN15,16,2#,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH) |
2 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
TGN16..DCB..5F..(GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,25,35,TGN15,26..(DCB,THDCB)..(GCC,GEN,MA,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030B3 |
KUN25..DCB..SR;TGN26,36..DCB..DLX..LA;TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,TH);KUN15,16,26..(DCB,THDCB)..(GCC,GEN,LA,PHL,TH);GGN25,KUN25,3#,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,GCC,GEN,LA) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0K020B0 |
GGN15,25,KUN15,16,2#,TGN16,26,36..(DCB,THDCB)..SR..(ARL,GCC,GEN,PHL,TH) GRAY,TRIM1# |
2 | ||
| 71940-0K020A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0K020B0 |
GGN15,25,KUN15,16,2#,TGN16,26,36..(DCB,THDCB)..SR..(ARL,GCC,GEN,PHL,TH) GRAY,TRIM1# |
2 | ||
| 71940-0K020A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
2 | ||
| 72645 - CUSHION, REAR SEAT BACK LOCK | ||||
| 72645-0K010 |
KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,PHL,TH) |
2 | ||
| 72645 - CUSHION, REAR SEAT BACK LOCK | ||||
| 72645-0K010 |
KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(GCC,GEN,PHL,TH) |
2 | ||
| 72995B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 72995-0K010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) GRAY,TRIM1# |
1 | ||
| 72995-0K010A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-0K010A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(PHL,TH) IVORY,TRIM0# |
1 | ||
| 72998-0K010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) GRAY,TRIM1# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K010B0 |
KUN15,16,2#,TGN26,36..DCB..SR..(PHL,TH) GRAY,TRIM1# |
1 | ||
| 78950-0K010A0 |
KUN15,16,2#,36,TGN26,36..DCB..SR..(MA,PHL,TH) IVORY,TRIM0# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0K030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 79011-0K030B0 |
GGN15,25,KUN15,16,2#,TGN16,26,36..(DCB,THDCB)..SR..(ARL,GCC,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0K030B0 |
KUN15,16,2#,TGN16,26,36..(DCB,THDCB)..SR..(GCC,GEN,PHL,TH) GRAY,TRIM1# |
1 | ||
| 79013-0K030A0 |
KUN15,16,2#,36,TGN16,26,36..DCB..SR..(GCC,PHL,TH) IVORY,TRIM0# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0K010 |
KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH) |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0K010 |
KUN25..DCB..SR;TGN26..DCB..DLX..LA;KUN26..4FC..(GEN,LA,PHL,TH);KUN26,36,TGN16..(DCB,THDCB)..5F..(GCC,GEN,LA,PHL,SA,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH) |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K010 |
KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN35,TGN36..(DCB,THDCB)..5F..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH);GGN15,25,KUN15,16,25,LAN15,25,35,TGN15..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K010 |
KUN25..DCB..SR;KUN25..LHD..DCB..SA;TGN26..DCB..DLX..LA;KUN35..(DCB,THDCB)..DLX;KUN26..4FC..(GEN,LA,PHL,TH);KUN25,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA);KUN26,36,TGN16..(DCB,THDCB)..5F..(GCC,GEN,LA,PHL,SA,TH);GGN25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA,TH) |
1 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 79328 - BRACKET, REAR SEAT LEG, FRONT RH | ||||
| 79328-0K010 |
GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90109-08127 | ||||
| 90119-T0206 | ||||
| 90167-40044 | ||||
| 90179-08275 | ||||
| 93560-55018 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0408- )RHD
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0K030 |
KUN15,TGN36..DCB..(PHL,SA);KUN26..DCB..(ARL,PHL,SA,TH);GGN15,25,KUN15,16,25,36,LAN25,35,TGN16,26..RHD..DCB |
1 | ||
| 71011-0K030 |
TGN36..4FC..ANCOM;KUN2#,3#..DCB..(ANCOM,LA);TGN26,36..DCB..5F..DLX..(ANCOM,LA);GGN25,KUN15,LAN15,TGN26..(5F,5FC)..(SR,STD)..(DCR,DEFI,HTWC)..(ANCOM,PKN,TH) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0K100B0 |
KUN15..DCB..HDCR;KUN15..SR..DCR..TH;GGN15,25,KUN16,2#,TGN16,26..SR..(ARL,TH) MID.GRAY,TRIM1# |
1 | ||
| 71071-0K100A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0K080A0 |
KUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71073-0K080B0 |
KUN15..SR..DCR..TH;KUN16,2#,TGN16,26..XTR..TH MID.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH) |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0K010 |
KUN1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K050B0 |
KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72137-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72157-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0K010 |
TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA) |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K040A0 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-0K010 |
TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA) |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0K010 |
TGN16..XTR;TGN26..RHD;KUN25..THDCB;KUN26..XTR..IV3;TGN26..4FC..GCC;TGN26..DCB..DLX..LA;KUN36..(DCB,XTR)..(LA,TH);KUN3#..(SCB,THDCB)..(GEN,SA);KUN26..(DCB,XTR)..SR..(ARL,LA,PHL,TH);GGN25,KUN15,TGN10..RHD..(SCB,XTR)..DLX;KUN2#,35,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN15,TGN26,36..DCB..SR..(ANCOM,ARL,PHL);KUN16,26,TGN26..(SCB,THDCB)..(ARL,GEN,TH);GGN25,KUN15,16,25..(DCB,SCB,XTR)..(SR,STD)..(ANCOM,ARL,MA,PHL,PKN,TH)..CBU;GGN15,KUN25,LAN15,25,TGN15,16,36..RHD..(SCB,XTR)..(5F,5FC)..(ARL,GEN,MA,PKN,SA) |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 3(0408- )RHD..DCB,SCB
PASSENGER SEAT(FOR ONE PERSON TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0K030 |
TGN16..LHD..DCB;KUN15,25..DCB..(GCC,MA,PHL,SA,TH);KUN15,25,LAN25..LHD..DCB..(GEN,SA);GGN15,25,KUN16,26,36,LAN15,TGN15,26,36..DCB..(ARL,GCC,GEN,PHL,SA,TH) |
1 | ||
| 71011-0K030 |
TGN36..DLX;TGN26..ANCOM;KUN15..SR..DCR..TH;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0K170B0 |
KUN26..SR..ARL;KUN16,2#,TGN26..XTR..TH;GGN15,25,KUN15,TGN16..SR..(DCR,HTWC)..(ARL,TH) MID.GRAY,TRIM1# |
1 | ||
| 71072-0K170A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0K080A0 |
KUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
KUN35..SCB,THDCB;TGN16..LHD..5F..DLX;TGN26..DCB..DLX..LA;KUN35..LHD..DCB..DLX;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16..(DCB,XTR)..(GCC,PHL,SA,TH);KUN15,TGN36..LHD..DLX..(ANCOM,GEN,LA);GGN25,KUN10,25,LAN15,25,TGN10,11,15..LHD;KUN26,36..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);KUN25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,TH) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH) |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-0K010 |
KUN1#,2#..DCB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
GGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K020A0 |
KUN15,16,2#,36,TGN26..DCB..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K020A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K050B0 |
KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-0K010 |
KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA) |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72137-0K010B0 |
KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-0K010 |
KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB)..DLX..(GEN,PHL,SA) |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72158-0K010B0 |
KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0K010 |
GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH) |
1 | ||
| 72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K040 |
GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH) |
1 | ||
| 72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K030 |
GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0K040A0 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 72637-0K010 |
GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH) |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-0K020 |
KUN36..SCB;KUN26..XTR..ARL;KUN25..ANCOM,LA;TGN26..DCB..DLX..LA;TGN26..DCB..4FC..(GCC,TH);KUN3#..(DCB,XTR)..(ANCOM,LA,TH);GGN25,TGN26,36..SR..(ANCOM,ARL,PHL);GGN15,25,KUN26..(SCB,XTR)..(4FC,5FC);KUN26,TGN36..LHD..(DCB,THDCB)..5F..DLX;TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,SA,TH);GGN15,KUN15,16,2#..(DCB,THDCB)..SR..(ARL,GEN,LA,MA,PHL,TH);KUN10,15,25,LAN15,25,TGN10,11,15..LHD..(SCB,THDCB,THSCB)..(GCC,GEN,SA);KUN15,35,TGN16,36..(SCB,THDCB,XTR)..(HDCR,HTWC)..(ANCOM,GCC,GEN,LA,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 3(0408- )RHD
DRIVER SEAT W(VERTICAL ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0K030 |
KUN15,TGN36..DCB..(PHL,SA);KUN26..DCB..(ARL,PHL,SA,TH);GGN15,25,KUN15,16,25,36,LAN25,35,TGN16,26..RHD..DCB |
1 | ||
| 71011-0K030 |
TGN36..4FC..ANCOM;KUN2#,3#..DCB..(ANCOM,LA);TGN26,36..DCB..5F..DLX..(ANCOM,LA);GGN25,KUN15,LAN15,TGN26..(5F,5FC)..(SR,STD)..(DCR,DEFI,HTWC)..(ANCOM,PKN,TH) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0K100B0 |
KUN15..DCB..HDCR;KUN15..SR..DCR..TH;GGN15,25,KUN16,2#,TGN16,26..SR..(ARL,TH) MID.GRAY,TRIM1# |
1 | ||
| 71071-0K100A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0K080A0 |
KUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71073-0K080B0 |
KUN15..SR..DCR..TH;KUN16,2#,TGN16,26..XTR..TH MID.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA) |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-0K010 |
KUN1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K050B0 |
KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72137-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72157-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0K010 |
TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA) |
1 | ||
| 72409 - SHAFT SUB-ASSY, VERTICAL ADJUSTING | ||||
| 72409-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72422A - ROD, FRONT SEAT ADJUSTER | ||||
| 72422-0K020 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72448 - PIN, FR SEAT ADJUSTER, NO.2 RH | ||||
| 72448-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-0K010A0 |
KUN1#,2#,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K010 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,MA,TH) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K040A0 |
KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH) IVORY,TRIM0# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-0K010 |
TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA) |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0K010 |
TGN16..XTR;TGN26..RHD;KUN25..THDCB;KUN26..XTR..IV3;TGN26..4FC..GCC;TGN26..DCB..DLX..LA;KUN36..(DCB,XTR)..(LA,TH);KUN3#..(SCB,THDCB)..(GEN,SA);KUN26..(DCB,XTR)..SR..(ARL,LA,PHL,TH);GGN25,KUN15,TGN10..RHD..(SCB,XTR)..DLX;KUN2#,35,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN15,TGN26,36..DCB..SR..(ANCOM,ARL,PHL);KUN16,26,TGN26..(SCB,THDCB)..(ARL,GEN,TH);GGN25,KUN15,16,25..(DCB,SCB,XTR)..(SR,STD)..(ANCOM,ARL,MA,PHL,PKN,TH)..CBU;GGN15,KUN25,LAN15,25,TGN15,16,36..RHD..(SCB,XTR)..(5F,5FC)..(ARL,GEN,MA,PKN,SA) |
1 | ||
| Common parts | ||||
| 44344-0K010 | ||||
| 72702-0K100 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
