KUN15R-PRMSHT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KUN36..SCB ; (0408- )GGN15,25,KUN1#,2#,35,LAN15,25,TGN1#,26,36..SCB,T

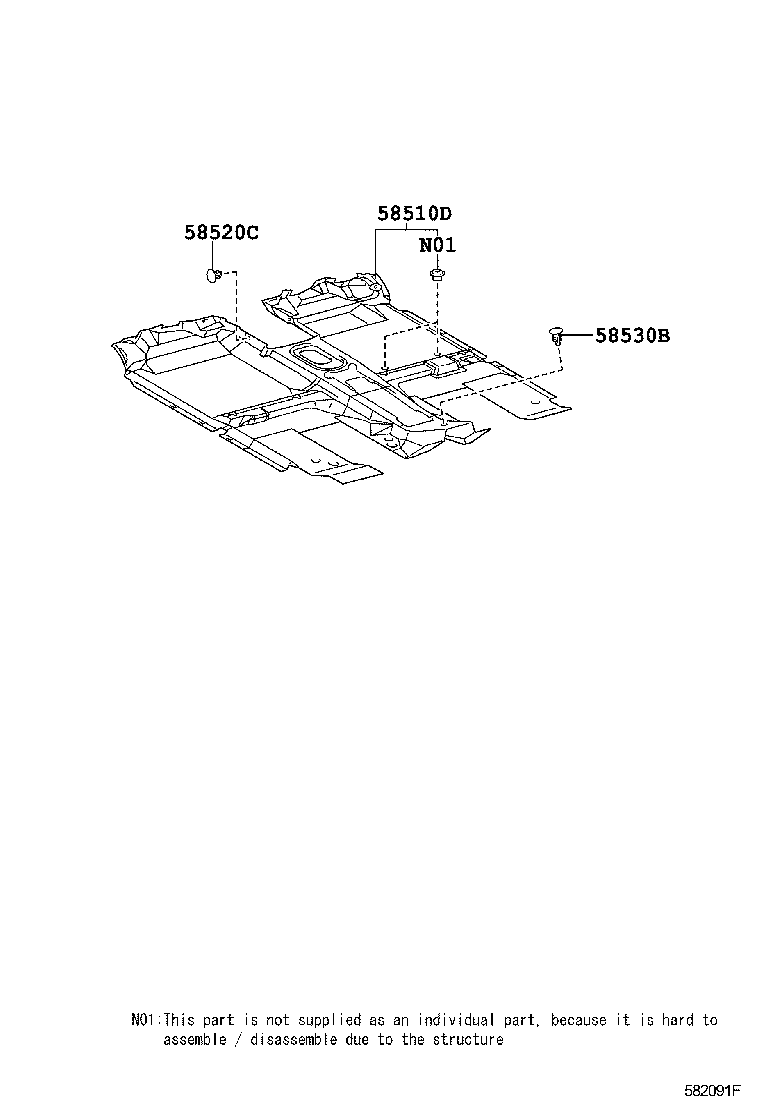

Click highlighted areas on diagram

diagram 58510D 58520C 58530B
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-0K010A0

KUN15,16,2#,36,TGN26..DCB..SR..TH

IVORY,TRIM0#

 1
58510-0K090B0

KUN15..DCB..DCR..TH

MID. GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0029E0

KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH)

MD.NEUTRAL BONE,TRIM0#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-T0031E0

KUN15,16,2#,36,TGN26,36..DCB..SR..(MA,PHL,TH)

MD.NEUTRAL BONE,TRIM0#

 8

(0408- )DCB,THDCB

Click highlighted areas on diagram

diagram 58510D 58520C 58530B 58591
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-0K010A0

KUN15,16,2#,36,TGN26..DCB..SR..TH

IVORY,TRIM0#

 1
58510-0K090B0

KUN15..DCB..DCR..TH

MID. GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0029E0

KUN15,16,2#,36,TGN16,26,36..SR..(MA,PHL,TH)

MD.NEUTRAL BONE,TRIM0#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-T0031E0

KUN15,16,2#,36,TGN26,36..DCB..SR..(MA,PHL,TH)

MD.NEUTRAL BONE,TRIM0#

 8
