KUN15R-PRMSHT (2004)
Toyota Hilux
ILLUST NO. 1 OF 2(0408- )KUN15,TGN10..RHD..CBU ; (0408- )GGN15,KUN16,LAN15,TGN15,16..RHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-0K010 |
KUN15..XTR..SR;KUN15..RHD..DCB;KUN15..RHD..SCB..GEN;GGN15,KUN16,TGN16..RHD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-0K090 |
KUN15..XTR..SR;KUN15..RHD..DCB;KUN15..RHD..SCB..GEN;GGN15,KUN16,TGN10,16..RHD |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-0K090 |
KUN15..XTR..SR;KUN15..RHD..DCB;KUN15..RHD..SCB..GEN;GGN15,KUN16,TGN10,16..RHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09251 |
KUN15..XTR..SR;KUN15..SCB..(GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN1#..ARL,GCC,GEN,IDN,TH |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0004 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0004 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-09251 |
KUN15..XTR..SR;KUN15..SCB..(GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN1#..ARL,GCC,GEN,IDN,TH |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN35..(SCB,THDCB)..(ANCOM,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH OD=43 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN35..(SCB,THDCB)..(ANCOM,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH OD=43 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0K010 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN35..(SCB,THDCB)..(ANCOM,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
KUN25..SCB..MA;KUN25..GCC,GEN,SA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN15..SCB..(GCC,GEN);KUN15,16,TGN16..XTR..SR;TGN16..5F..(ARL,GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);KUN36..RHD..(DCB,SCB,XTR)..5F;KUN35..(SCB,THDCB)..(ANCOM,GEN,SA);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,LAN25,35,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-T0001 |
KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,35..(SCB,THDCB)..(ANCOM,GCC,GEN,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-0K010 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-T0001 |
KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,35..(SCB,THDCB)..(ANCOM,GCC,GEN,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03025 | ||||

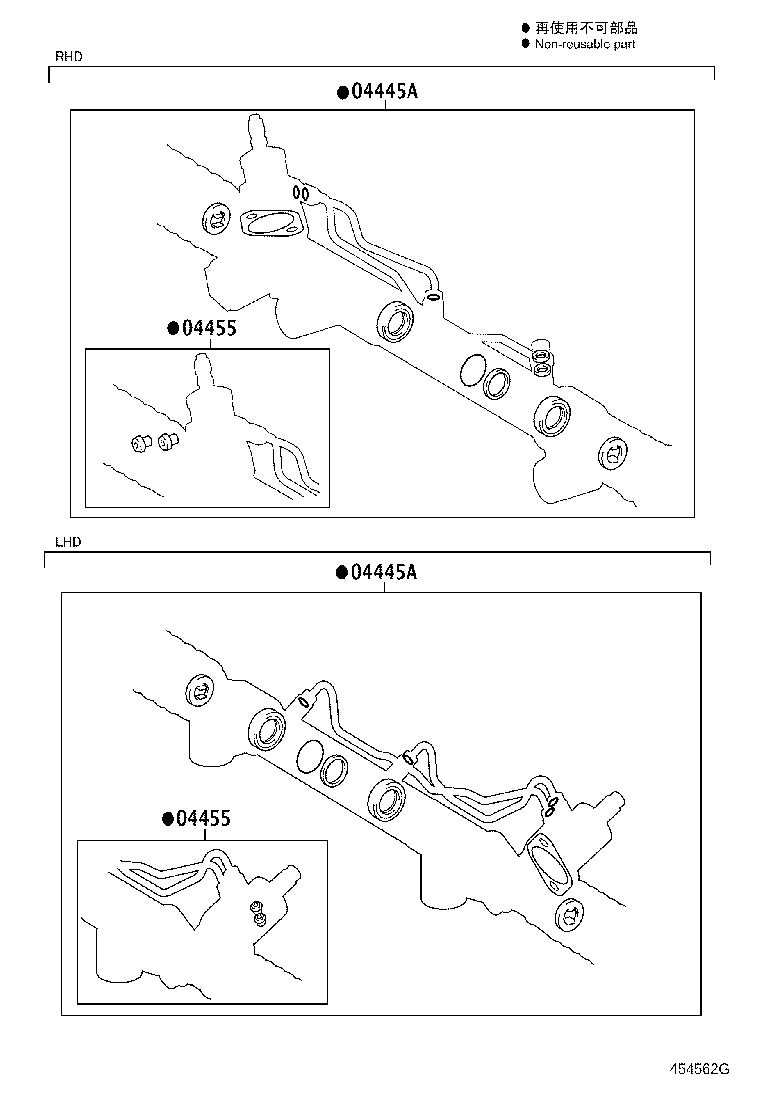

ILLUST NO. 2 OF 2(0408- )KUN15..LHD..IV3 ; (0408- )KUN15,TGN10..CBU ; (0408- )GGN15,25,35,K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K070 |
KUN15..XTR..SR;KUN15..SCB..(GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN1#..ARL,GCC,GEN,IDN,TH |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K070 |
KUN15..XTR..SR;KUN15..SCB..(GCC,GEN);KUN15..DCB..(GCC,GEN,PHL,TH);GGN15,KUN10,16,TGN1#..ARL,GCC,GEN,IDN,TH |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K020 |
KUN15..DCB;KUN15,16,TGN16..XTR..SR..TH;KUN15..SCB..(GCC,GEN,PKN,SA);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K020 |
KUN15..DCB;KUN15,16,TGN16..XTR..SR..TH;KUN15..SCB..(GCC,GEN,PKN,SA);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
