KUN15R-PRMSHT (2004)
Toyota Hilux

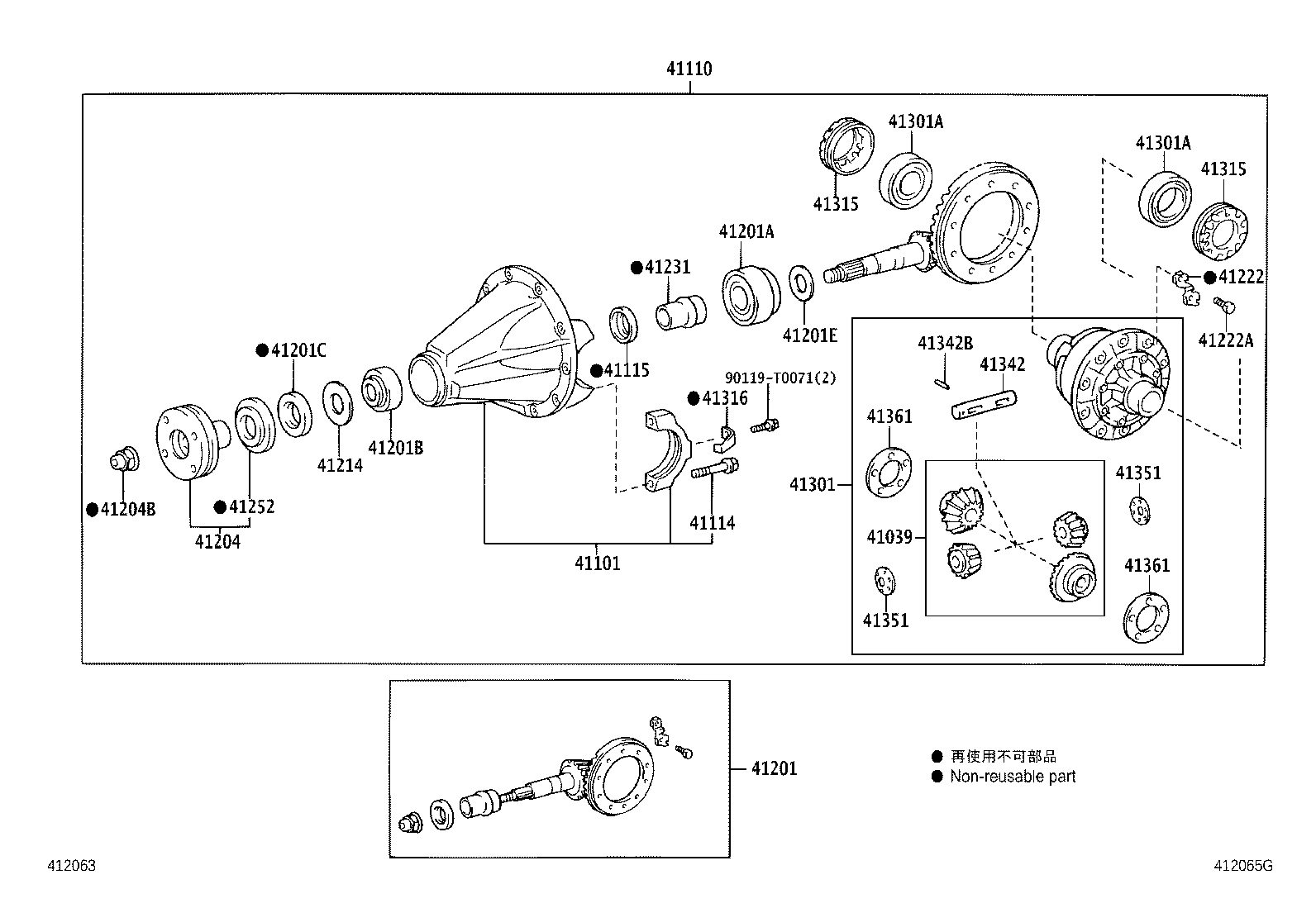

ILLUST NO. 1 OF 2(0408- )KUN15..SR..SA ; (0408- )KUN2#,TGN26..GCC,GEN,PHL ; (0408- )GGN15,K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41301-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41342-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 90250-T0006 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| Common parts | ||||
| 90119-T0071 | ||||

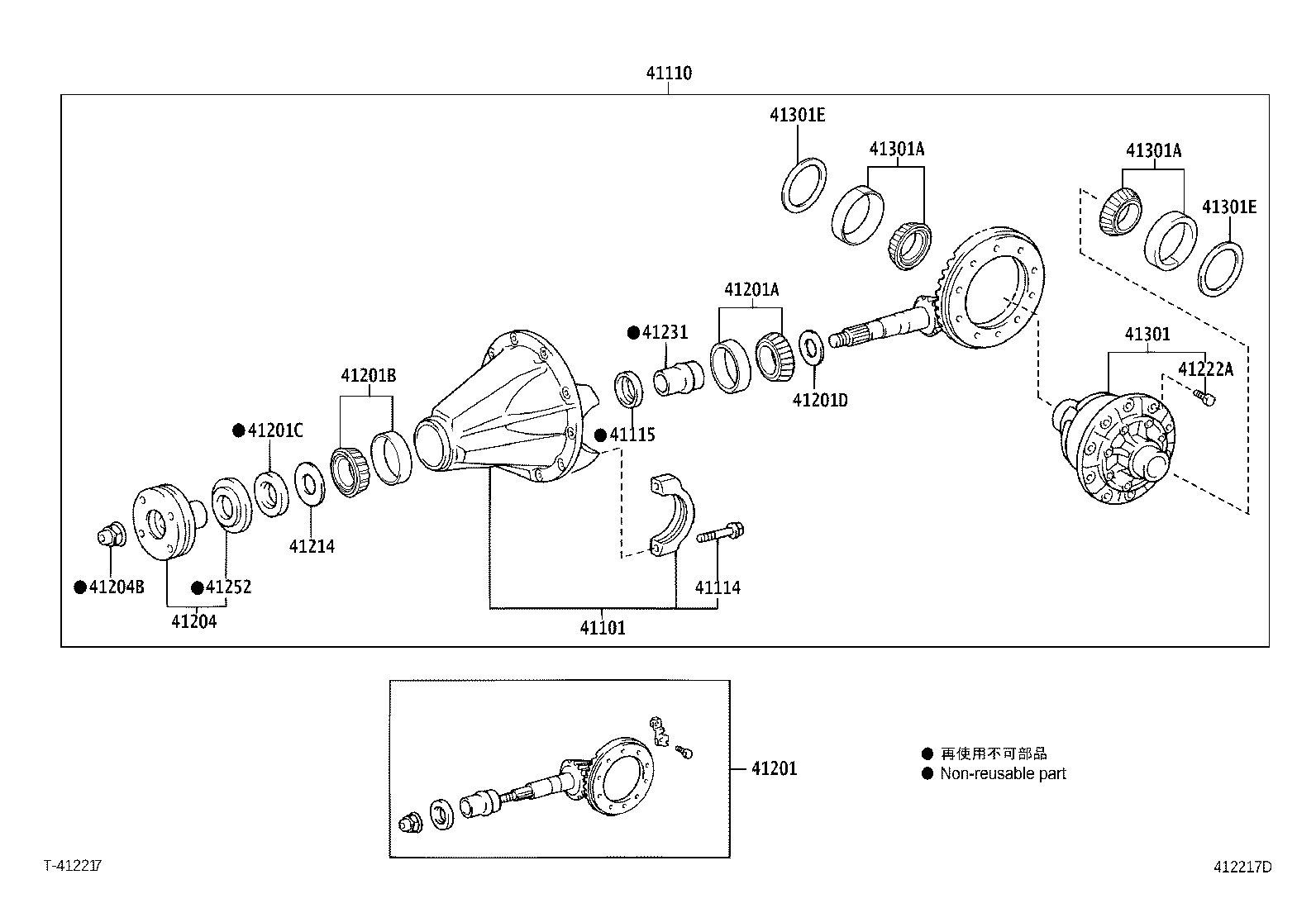

ILLUST NO. 1 OF 2(0408- )SCB..MA ; (0408- )TGN16..GEN ; (0408- )TGN26..THDCB..DLX ; (0408-
W(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41039-71010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35111 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.76 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35110 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.73 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35112 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.79 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35109 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.70 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35115 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.88 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35113 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.82 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35114 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.85 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35118 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.97 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35120 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.03 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35116 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.91 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35117 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=1.94 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35129 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.27 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35121 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.06 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35119 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.00 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35123 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.09 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35127 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.21 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35125 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.15 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35124 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.12 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35130 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.30 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35128 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.24 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35131 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.33 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 90564-35126 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) OD=52,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41315-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41316-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41351-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K020 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.55 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K030 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.60 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K060 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.75 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K040 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.65 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K050 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.70 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K070 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.80 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K090 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.90 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| 41361-0K080 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) T=1.85 |
2 | ||
| Common parts | ||||
| 90119-T0071 | ||||

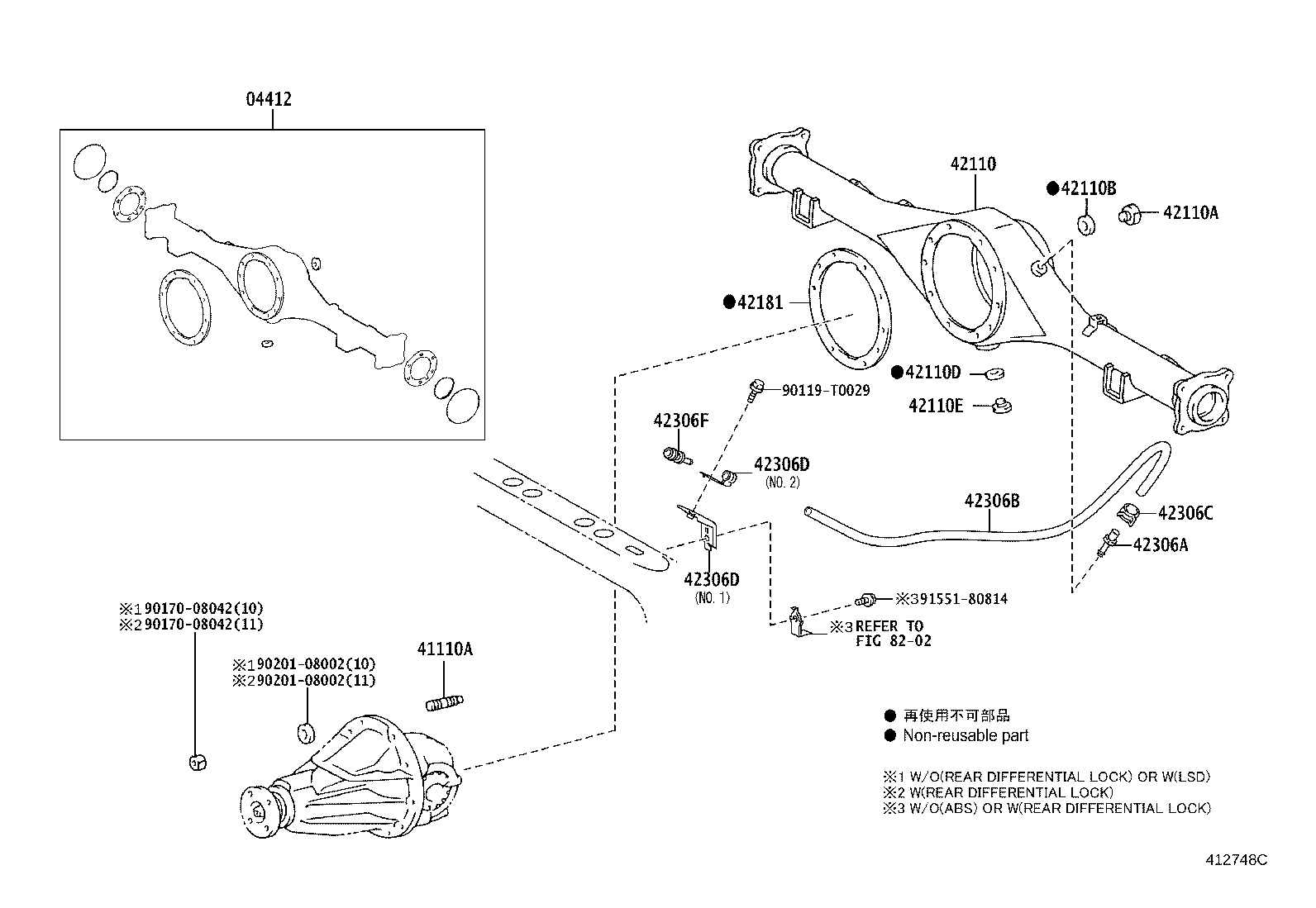

ILLUST NO. 2 OF 2(0408-0708) ; (0708-0710)DCB,SCB,XTR ; (0710-0712)DCB,SCB,XTR..ANCOM,ARL,GCC,GEN,ID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K210 |
TGN10,15..CBU;KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 04412-0K210 |
TGN10,15..CBU;KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 04412-0K210 |
TGN10,15..CBU;KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 S=14 & 14,L=42 |
2 | ||
| 90116-08233 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K020 |
KUN15..DCB..HDCR;KUN15..SCB..TH..CBU ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K020 |
KUN15..DCB..HDCR;KUN15..SCB..TH..CBU ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K020 |
KUN15..DCB..HDCR;KUN15..SCB..TH..CBU ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K010 |
KUN15..DLX..PHL;KUN16..(SCB,XTR)..TH;KUN15..(DCB,SCB,XTR)..(GEN,TH);LAN15,TGN10,15,16..(GEN,IDN,PKN)..CBU |
1 | ||
| 42110-0K010 |
KUN15..DLX..PHL;KUN16..(SCB,XTR)..TH;KUN15..(DCB,SCB,XTR)..(GEN,TH);LAN15,TGN10,15,16..(GEN,IDN,PKN)..CBU |
1 | ||
| 42110-0K010 |
KUN15..DLX..PHL;KUN16..(SCB,XTR)..TH;KUN15..(DCB,SCB,XTR)..(GEN,TH);LAN15,TGN10,15,16..(GEN,IDN,PKN)..CBU |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90341-18006 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90341-18006 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN25,35..(DCB,SCB)..DLX..(GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,PHL,PKN,SA,TH) |
1 | ||
| 90930-03031 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN25,35..(DCB,SCB)..DLX..(GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,PHL,PKN,SA,TH) |
1 | ||
| 90930-03031 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN25,35..(DCB,SCB)..DLX..(GCC,GEN,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,PHL,PKN,SA,TH) |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90341-18057 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 90341-18057 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH) |
1 | ||
| 42181-60020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH) |
1 | ||
| 42181-60020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
ILLUST NO. 1 OF 2(0501- )KUN35..ANCOM ; (0501- )GGN25,KUN2#,TGN16,26..LHD..ANCOM,LA,SA ; (0501
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41101-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K010 |
KUN16,36..ARL,TH;KUN26..5F..(GEN,PHL);GGN15,KUN15..HDCR,HTWC *FGR=43:12=3.583 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41110-0K040 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 90105-T0081 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41115-0K010 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09450 |
TGN10,15,26,36..GCC,GEN,IDN,PHL,TH *FGR=41:9=4.556 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09060 |
TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PHL,PKN,TH) *FGR=41:10=4.100 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09010 |
KUN16,36..ARL,TH;KUN26..5F..(ARL,GEN,PHL,TH);GGN15,25,KUN15..(HDCR,HTWC)..(ARL,TH) *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0016 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 90366-T0013 |
KUN26..THDCB;KUN25..GCC,GEN;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,IDN,PHL,TH)..CBU |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90311-T0013 |
KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);GGN15,25,KUN10,25,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN15,36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204-0K010 |
TGN26..TH;GGN15,25,KUN1#,2#,TGN16..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-22003 |
TGN26..RHD;KUN25..SCB..MA;KUN16..XTR..TH;TGN26..GCC,GEN;KUN25..GCC,GEN,SA;KUN25..(DCB,XTR)..SR;KUN16,TGN36..(DCB,SCB)..(ARL,PHL,SA,TH);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,SA,TH);KUN15,TGN15..(DCB,SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN15,25,KUN3#,TGN10..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN,IDN,LA,SA,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 90177-T0004 |
TGN16..XTR..TH;KUN15..PHL..CBU;TGN16..5F..(ARL,GCC,GEN);KUN10,15,LAN15,TGN11..(DCB,SCB,XTR)..(DCR,DEFI,HTWC)..(GCC,GEN,PKN,TH) OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41214-26011 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 90101-11353 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41231-24010 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);TGN16..5F..(ARL,GCC,GEN);KUN26,TGN26..LHD..(GCC,GEN);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,TGN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,25,TGN10,11,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL,SA) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41301-0K010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
| 90366-T0010 |
KUN16..DCB,SCB;KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;KUN26..LHD..(GEN,PHL);TGN16..5F..(ARL,GCC,GEN);KUN15,36,LAN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,25,TGN10,11,15,26,36..(DLX,SR)..(ARL,GCC,GEN,IDN,PHL) |
2 | ||
ILLUST NO. 2 OF 2(0708- )THDCB,THSCB ; (0710- )LA ; (0712-)ANCOM ; (0812- )GGN25,35,KUN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K210 |
TGN10,15..CBU;KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K020 |
KUN15..DCB..HDCR;KUN15..SCB..TH..CBU ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
1 | ||
| 42110-0K010 |
KUN15..DLX..PHL;KUN16..(SCB,XTR)..TH;KUN15..(DCB,SCB,XTR)..(GEN,TH);LAN15,TGN10,15,16..(GEN,IDN,PKN)..CBU |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
