KUN15R-PRMSHT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0808)TGN15..SA ; (0408-0808)KUN10,15,LAN15,35..DCR,DEFI ; (0502-0808)TGN10,15

Click highlighted areas on diagram

diagram 33105A 33504F 33505B 33506F 33530F 33548F 33558A 90119T0052 9161160830
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-35060

TGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D050E0

KUN15,16,2#,36..(DCB,XTR)..5F..SR..(LA,MA,PHL,TH)

SANDAL WOOD,TRIM0#

 1
33504-0D050B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..DCB..5F..SR;KUN25..ANCOM,GEN,LA;TGN26..DCB..DLX..LA;KUN15..SR..DCR..(PHL,TH);KUN26..(THDCB,XTR)..5F..(ARL,GEN);KUN26..(DCB,SCB)..5F..(ARL,LA,TH);KUN15,TGN10,36..5F..DLX..(ANCOM,IDN,LA,PHL);GGN15,25,KUN3#,LAN15,TGN15,16..5F..(ANCOM,ARL,GEN,LA,PKN);KUN15,16,TGN26..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GEN,PKN,TH)

DK.GRAY,TRIM1#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH)

TYPE C:REFER 33-01

 1
33505-35030

KUN15..DCB..HDCR;KUN16,2#,36..5F..TH

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
33505-35020

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-27071

KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC

 1
33570-0K010

KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR

TYPE C:REFER 33-01

 1
33570-0K020

KUN16,36..5F..TH;KUN15..DCB..HDCR

TYPE B:REFER 33-01

 1
33570-71010

KUN16,36..5F..TH;KUN15..DCB..HDCR

TYPE A:REFER 33-01

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K102

KUN15..HDCR;KUN16,36..5F..(ARL,TH)

 1
33530-0K033

KUN15..RHD..DCR..(GEN,TH)

 1
33530-0K030

KUN15..RHD..DCR

 1
33530-0K100

KUN16,36..RHD..5F;KUN15,35..RHD..HDCR

 1
33530-0K031

KUN15..RHD..DCR

 1
33530-0K101

KUN16,36..RHD..5F;KUN15,35..RHD..HDCR

 1
33530-0K010

TGN10,15..RHD

 1
33530-0K032

KUN15..RHD..DCR

 1
33530-0K012

TGN10,15..RHD

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010

TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1
33558-71010

TGN36..DCB..SA;KUN15..XTR..DLX;KUN15..PHL..CBU;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10,36..(SCB,XTR)..(DLX,SR)..(HDCR,HTWC);GGN15,KUN1#,LAN15,35,TGN11,15..(DCB,SCB)..5F..(ARL,GCC,GEN,PKN,SA,TH)

 1
Common parts
90119-T0052
91611-60830

(0408-0808)KUN15..SR..TH ; (0408-0808)GGN15,KUN16,3#,TGN11,16,36..5F

Click highlighted areas on diagram

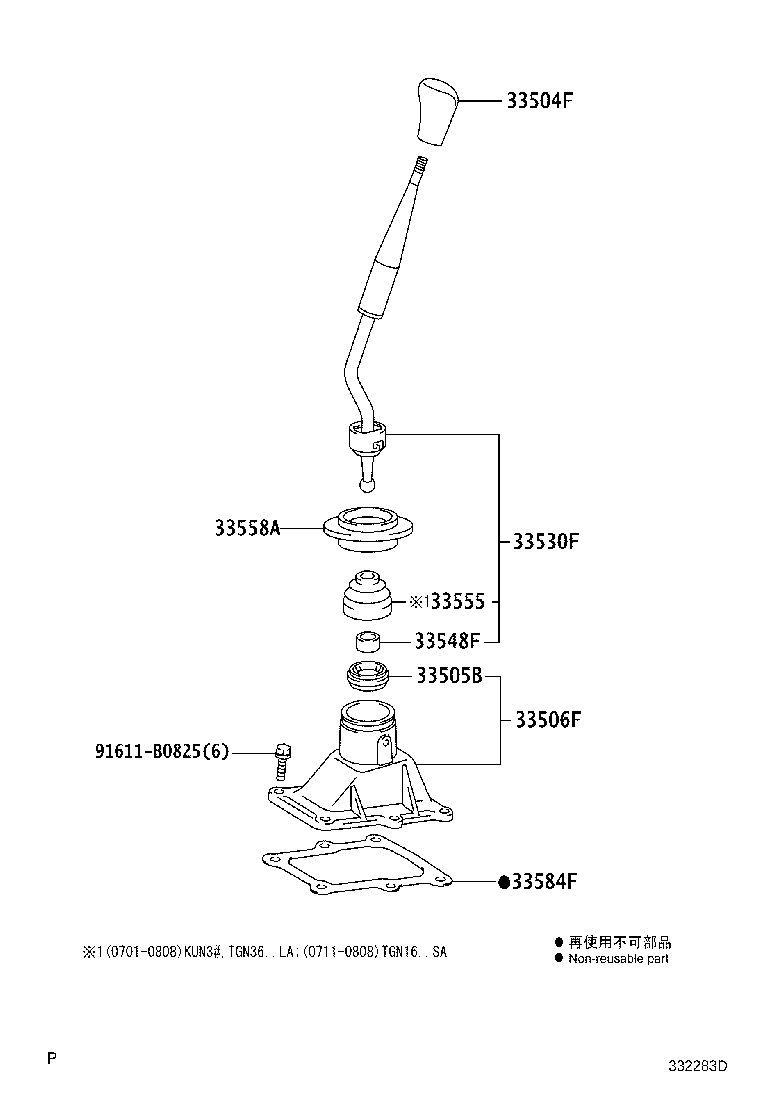

diagram 33504F 33505B 33506F 33530F 33548F 33555 33558A 33584F 91611B0825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D050E0

KUN15,16,2#,36..(DCB,XTR)..5F..SR..(LA,MA,PHL,TH)

SANDAL WOOD,TRIM0#

 1
33504-0D050B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..DCB..5F..SR;KUN25..ANCOM,GEN,LA;TGN26..DCB..DLX..LA;KUN15..SR..DCR..(PHL,TH);KUN26..(THDCB,XTR)..5F..(ARL,GEN);KUN26..(DCB,SCB)..5F..(ARL,LA,TH);KUN15,TGN10,36..5F..DLX..(ANCOM,IDN,LA,PHL);GGN15,25,KUN3#,LAN15,TGN15,16..5F..(ANCOM,ARL,GEN,LA,PKN);KUN15,16,TGN26..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GEN,PKN,TH)

DK.GRAY,TRIM1#

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-35030

KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH)

TYPE C:REFER 33-01

 1
33505-35030

KUN15..DCB..HDCR;KUN16,2#,36..5F..TH

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
33505-35020

TGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-27071

KUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC

 1
33570-0K010

KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR

TYPE C:REFER 33-01

 1
33570-0K020

KUN16,36..5F..TH;KUN15..DCB..HDCR

TYPE B:REFER 33-01

 1
33570-71010

KUN16,36..5F..TH;KUN15..DCB..HDCR

TYPE A:REFER 33-01

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K102

KUN15..HDCR;KUN16,36..5F..(ARL,TH)

 1
33530-0K033

KUN15..RHD..DCR..(GEN,TH)

 1
33530-0K030

KUN15..RHD..DCR

 1
33530-0K100

KUN16,36..RHD..5F;KUN15,35..RHD..HDCR

 1
33530-0K031

KUN15..RHD..DCR

 1
33530-0K101

KUN16,36..RHD..5F;KUN15,35..RHD..HDCR

 1
33530-0K010

TGN10,15..RHD

 1
33530-0K032

KUN15..RHD..DCR

 1
33530-0K012

TGN10,15..RHD

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010

TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1
33558-71010

TGN36..DCB..SA;KUN15..XTR..DLX;KUN15..PHL..CBU;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10,36..(SCB,XTR)..(DLX,SR)..(HDCR,HTWC);GGN15,KUN1#,LAN15,35,TGN11,15..(DCB,SCB)..5F..(ARL,GCC,GEN,PKN,SA,TH)

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33182-35020

KUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR

TYPE C:REFER 33-01

 1
33182-35020

KUN16,36..5F..TH;KUN15..DCB..HDCR

TYPE B:REFER 33-01,TYPE A:REFER 33-01

 1
Common parts
91611-B0825
