Toyota Hilux KUN15 CLUTCH & RELEASE FORK

Manufacturers Home
Toyota
GR
HILUX
KUN15R-PRMSHT (2004)
3101 - CLUTCH & RELEASE FORK

KUN15R-PRMSHT (2004)

Toyota Hilux

Production Aug 2004 - Aug 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408-0608)HDCR..TH ; (0408-0608)KUN16,26,36..5F..TH

Click highlighted areas on diagram

Part #	Description	Period	Qty

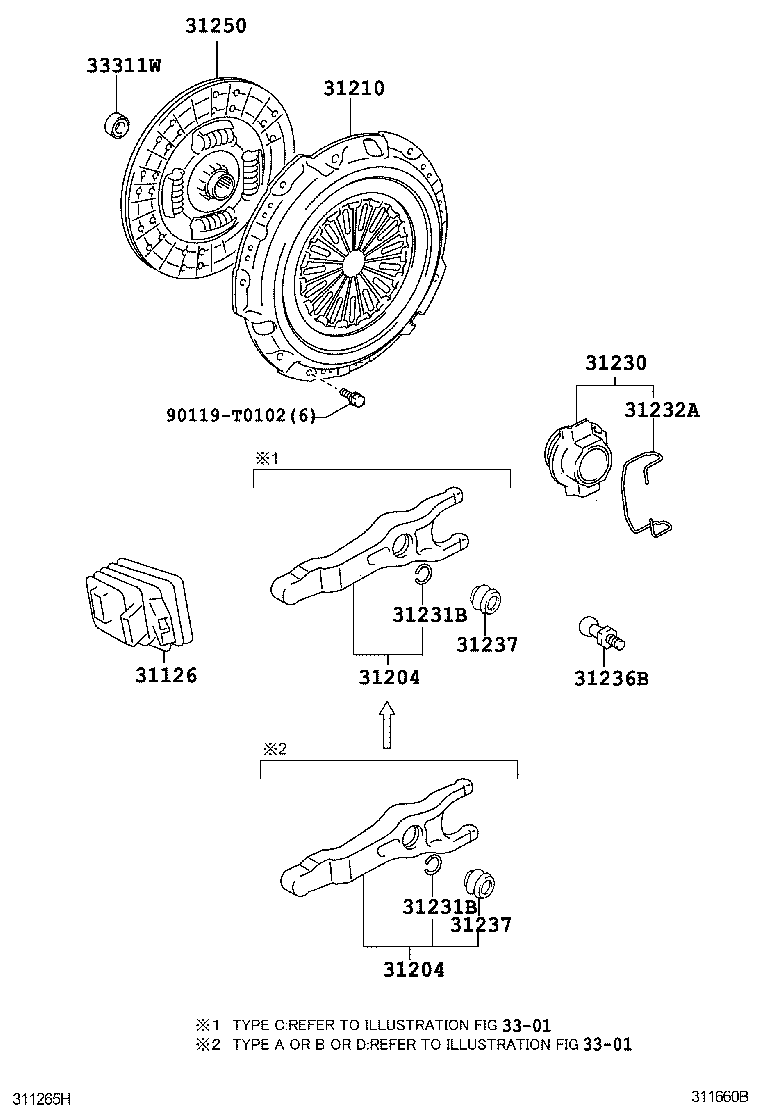

31126 - BOOT, CLUTCH RELEASE FORK
31126-60081	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31126-60081	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31126-0K050	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31210 - COVER ASSY, CLUTCH
31210-0K021	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2007 - 03/2007	1
31210-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 01/2007	1
31210-0K040	KUN15,25..HDCR..TH	08/2004 - 04/2005	1
31210-0K022	KUN10,15..DCR..(GCC,GEN,PHL,TH)	03/2007 - 09/2007	1
31210-0K070	KUN25..TH;KUN15..DCB..HDCR	04/2005 - 08/2008	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31230-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31230-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232A - CLIP, RELEASE BEARING HUB
31232-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01	08/2006 - 08/2008	1
31232-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010	KUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31237-60010	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237-60010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010	KUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31237-60010	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237-60010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31250 - DISC ASSY, CLUTCH
31250-0K201	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2004 - 08/2005	1
31250-0K200	KUN16,26..5F;KUN15,25..HDCR	08/2004 - 09/2004	1
31250-0K203	KUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	11/2005 - 06/2006	1
31250-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 02/2007	1
31250-0K202	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2005 - 10/2005	1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006	KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15,26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH)	08/2004 - 12/2008	1
Common parts
90119-T0102

(0408- )KUN10,15..DCR

Click highlighted areas on diagram

Part #	Description	Period	Qty

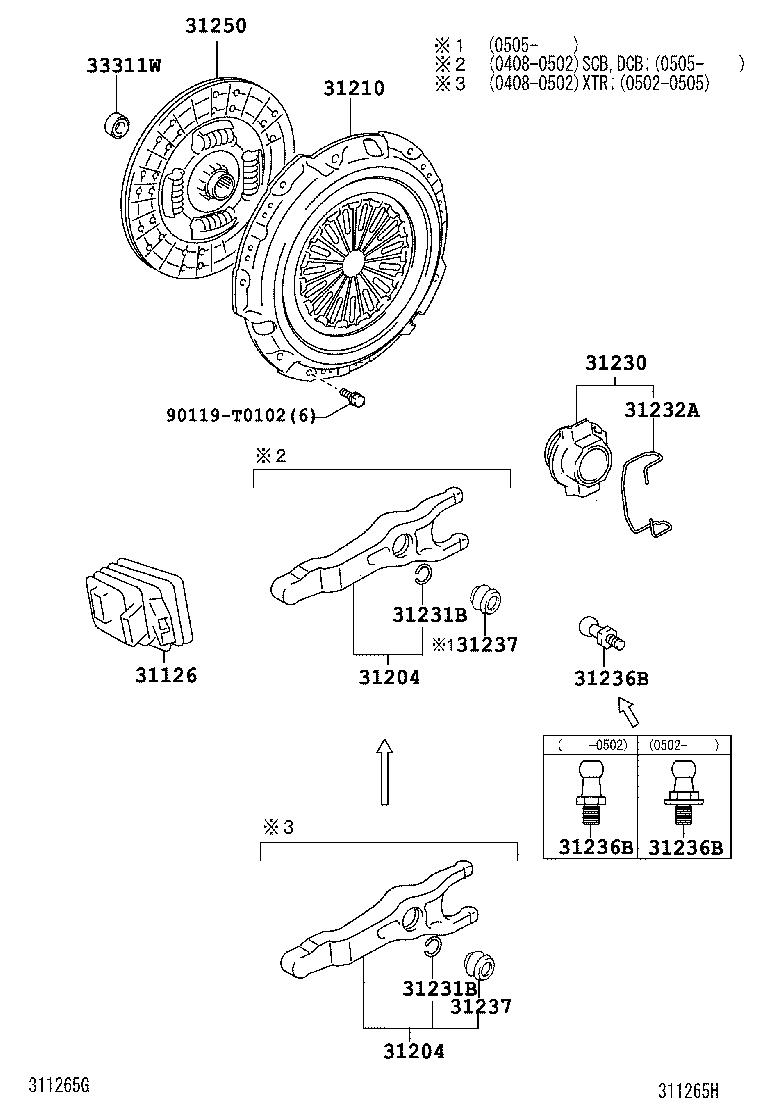

31126 - BOOT, CLUTCH RELEASE FORK
31126-60081	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31126-60081	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31126-0K050	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31210 - COVER ASSY, CLUTCH
31210-0K021	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2007 - 03/2007	1
31210-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 01/2007	1
31210-0K040	KUN15,25..HDCR..TH	08/2004 - 04/2005	1
31210-0K022	KUN10,15..DCR..(GCC,GEN,PHL,TH)	03/2007 - 09/2007	1
31210-0K070	KUN25..TH;KUN15..DCB..HDCR	04/2005 - 08/2008	1
31210 - COVER ASSY, CLUTCH
31210-0K021	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2007 - 03/2007	1
31210-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 01/2007	1
31210-0K040	KUN15,25..HDCR..TH	08/2004 - 04/2005	1
31210-0K022	KUN10,15..DCR..(GCC,GEN,PHL,TH)	03/2007 - 09/2007	1
31210-0K070	KUN25..TH;KUN15..DCB..HDCR	04/2005 - 08/2008	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31230-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31230-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232A - CLIP, RELEASE BEARING HUB
31232-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01	08/2006 - 08/2008	1
31232-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010	KUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31237-60010	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237-60010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31250 - DISC ASSY, CLUTCH
31250-0K201	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2004 - 08/2005	1
31250-0K200	KUN16,26..5F;KUN15,25..HDCR	08/2004 - 09/2004	1
31250-0K203	KUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	11/2005 - 06/2006	1
31250-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 02/2007	1
31250-0K202	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2005 - 10/2005	1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006	KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15,26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH)	08/2004 - 12/2008	1
Common parts
90119-T0102

(0608- )HDCR..TH ; (0608- )KUN16,26,36..5F..TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
31126 - BOOT, CLUTCH RELEASE FORK
31126-60081	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31126-60081	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31126-0K050	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0K080	KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 05/2005	1
31204-0K010	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31204-0K070	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31204-0K050	KUN15..DCR	08/2004 - 02/2005	1
31204-35070	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31204-0K081	KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	05/2005 - 08/2008	1
31210 - COVER ASSY, CLUTCH
31210-0K021	KUN10,15..DCR..(GCC,GEN,PHL,TH)	02/2007 - 03/2007	1
31210-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 01/2007	1
31210-0K040	KUN15,25..HDCR..TH	08/2004 - 04/2005	1
31210-0K022	KUN10,15..DCR..(GCC,GEN,PHL,TH)	03/2007 - 09/2007	1
31210-0K070	KUN25..TH;KUN15..DCB..HDCR	04/2005 - 08/2008	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31230-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31230-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31231B - RING, SNAP(FOR CLUTCH RELEASE HUB)
90520-T0031	KUN15..PHL..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
90521-22003	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
90521-22003	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232A - CLIP, RELEASE BEARING HUB
31232-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01	08/2006 - 08/2008	1
31232-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	08/2004 - 08/2008	1
31232-71030	KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)	08/2004 - 02/2012	1
31236B - SUPPORT, RELEASE FORK
31236-60060	KUN15..DCR	08/2004 - 02/2005	1
31236-60060	KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01	08/2004 - 02/2005	1
31236-71010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31236-71010	KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010	KUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31237-60010	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237-60010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-60010	KUN15..XTR..DLX;KUN10,15..(DCB,SCB)..DCR..(GCC,GEN,PHL,TH)	02/2005 - 03/2008	1
31237-60010	KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01	02/2005 - 08/2008	1
31237-60010	KUN15..DCB..HDCR;KUN16,2#,36..5F..TH TYPE B:REFER 33-01,TYPE A:REFER 33-01	08/2006 - 08/2008	1
31250 - DISC ASSY, CLUTCH
31250-0K201	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2004 - 08/2005	1
31250-0K200	KUN16,26..5F;KUN15,25..HDCR	08/2004 - 09/2004	1
31250-0K203	KUN16,26,36..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	11/2005 - 06/2006	1
31250-0K020	KUN10,15..DCR..(GCC,GEN,PHL,TH)	08/2004 - 02/2007	1
31250-0K202	KUN16,26..5F..(ARL,PHL,TH);KUN15,25,35..5F..HDCR..(ANCOM,GCC,GEN,MA,TH)	09/2005 - 10/2005	1
33311W - BEARING (FOR INPUT SHAFT)
90363-T0006	KUN16..XTR..TH;KUN25..SCB..MA;KUN25..ANCOM,GCC,GEN;KUN25..(DCB,XTR)..5F..SR;KUN15,26,36,TGN16,26..(DCB,SCB,THDCB,XTR)..5F..(ARL,GCC,GEN,PHL,TH);KUN10,16,35,TGN10,11,15..(DCB,SCB,THDCB)..5F..(ANCOM,ARL,GCC,GEN,IDN,TH)	08/2004 - 12/2008	1
Common parts
90119-T0102
Linked diagrams
3301

KUN15R-PRMSHT (2004)

(0408-0608)HDCR..TH ; (0408-0608)KUN16,26,36..5F..TH

(0408- )KUN10,15..DCR

(0608- )HDCR..TH ; (0608- )KUN16,26,36..5F..TH

Part Price Details
