KUN15R-PRMSHT (2004)
Toyota Hilux

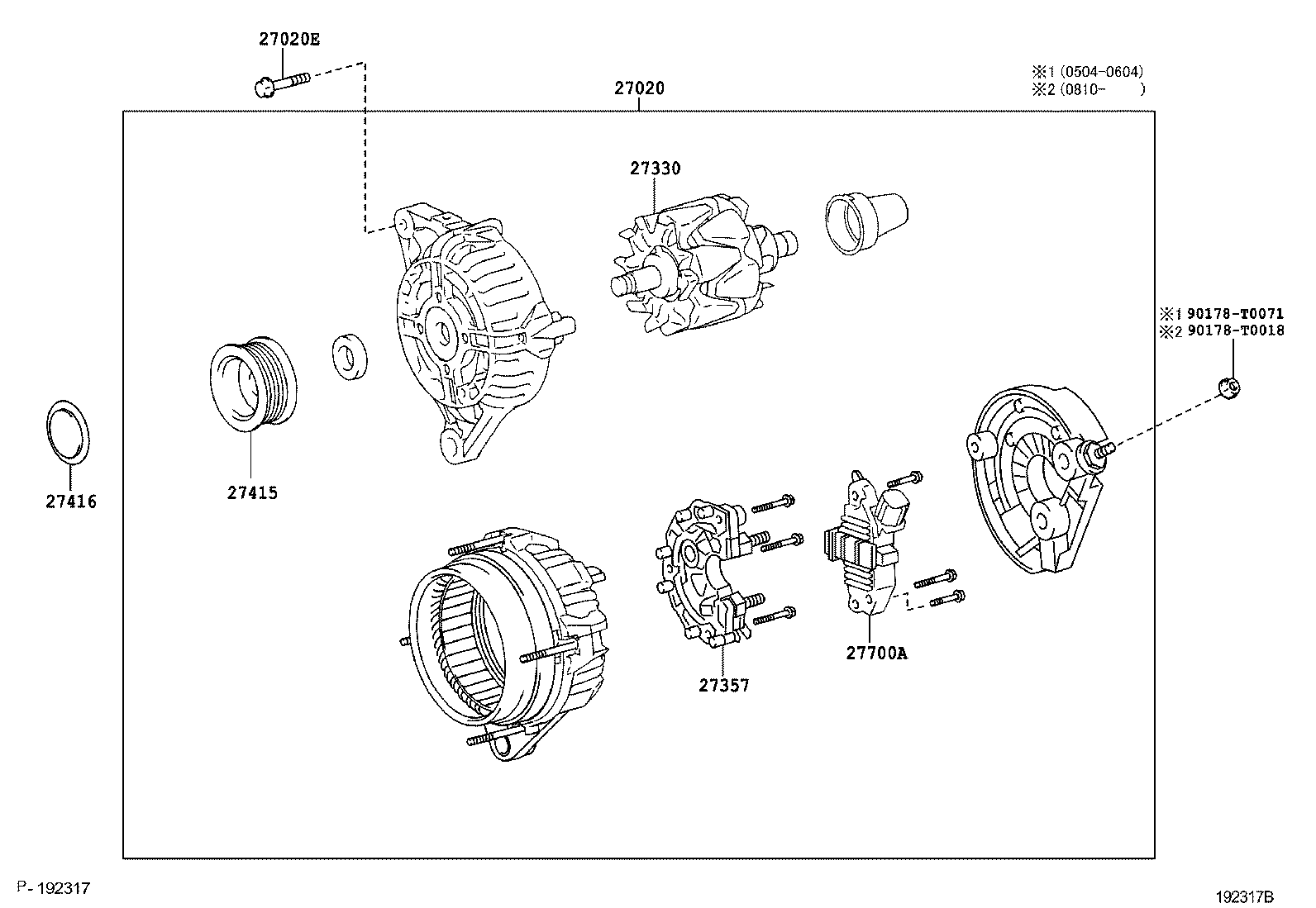

(0504-0604)1KDFTV,2KDFTV..KUN15,2#,3#..SA ; (0810- )1KDFTV,2KDFTV..KUN15,2#,3#..
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 90178-T0071 | ||||

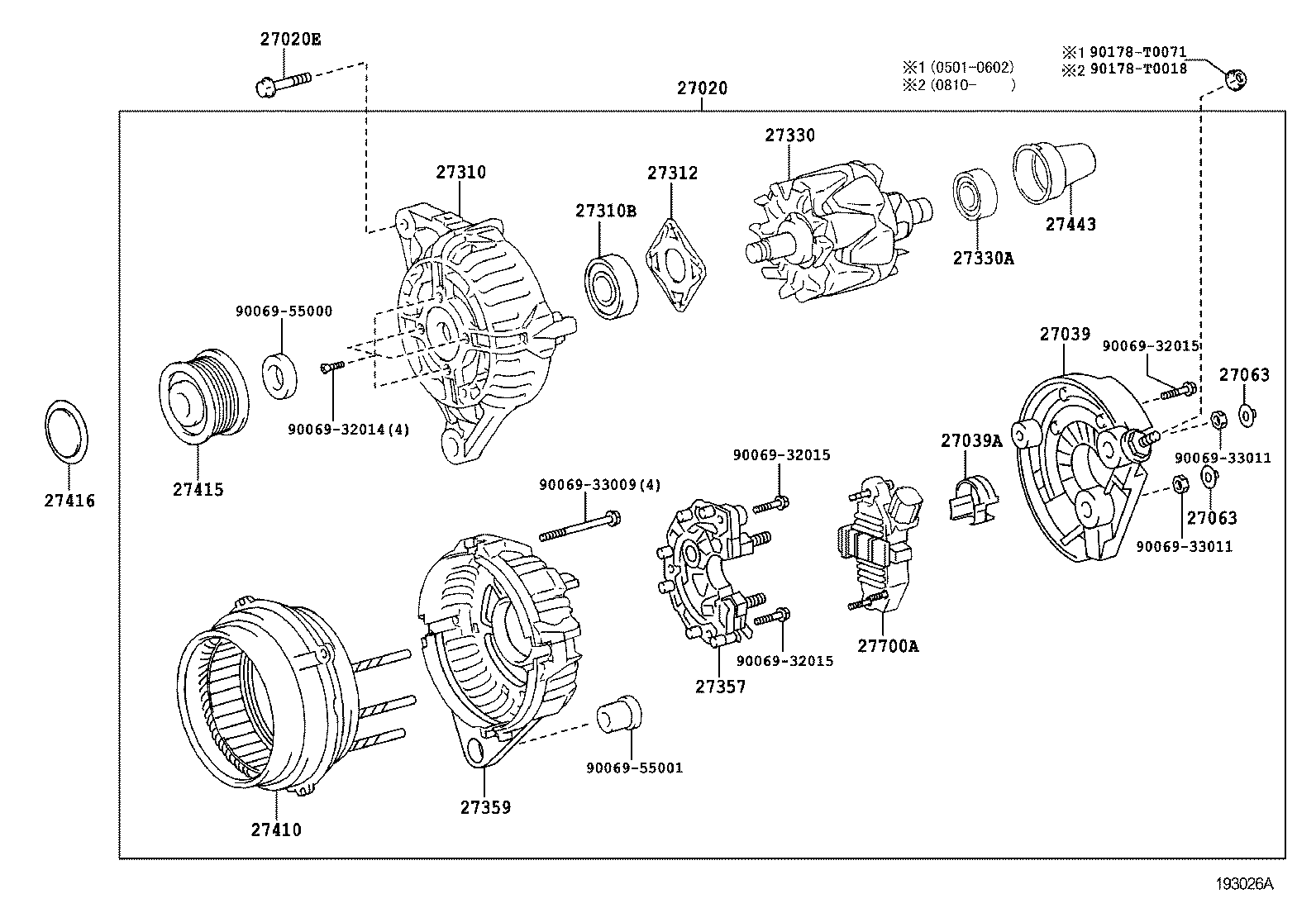

(0501-0602)2KDFTV..KUN25,35..ANCOM ; (0810- )1KDFTV,2KDFTV..KUN2#,3#..LA ; (0812
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90069-32014 | ||||
| 90069-32015 | ||||
| 90069-33009 | ||||
| 90069-33011 | ||||
| 90069-55000 | ||||
| 90069-55001 | ||||
| 90178-T0018 | ||||
| 90178-T0071 | ||||
(0408- )1KDFTV,2KDFTV..KUN15,26,36..XTR..SA ;(0408- )1KDFTV,2KDFTV..ARL,GCC,
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH 12V 80A |
1 | ||
| 27060-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH 12V 80A |
1 | ||
| 27060-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10092 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90105-10092 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 90105-10092 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27415-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27415-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27416-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 27416-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90068-00022 | ||||
| 90068-00023 | ||||
| 90068-04033 | ||||
| 90068-05010 | ||||
| 90178-T0018 | ||||
| 90178-T0071 | ||||
