KUN15R-PRMSHT (2004)
Toyota Hilux

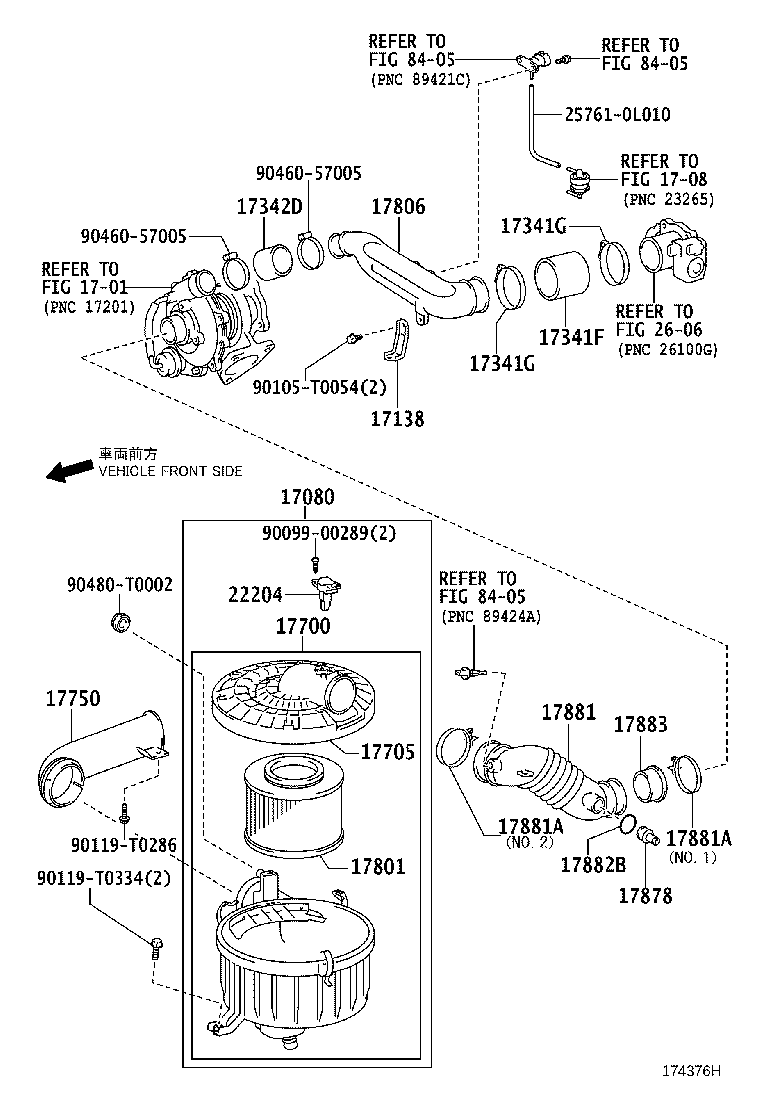

ILLUST NO. 1 OF 2(0408-0808)2KDFTV..KUN15,25..HDCR..TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L080 |
2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
1 | ||
| 17700-0L081 |
2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
1 | ||
| 17700-0L150 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17700-0L151 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17705-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L051 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881-0L090 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17881-0L050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| Common parts | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8405 | ||||

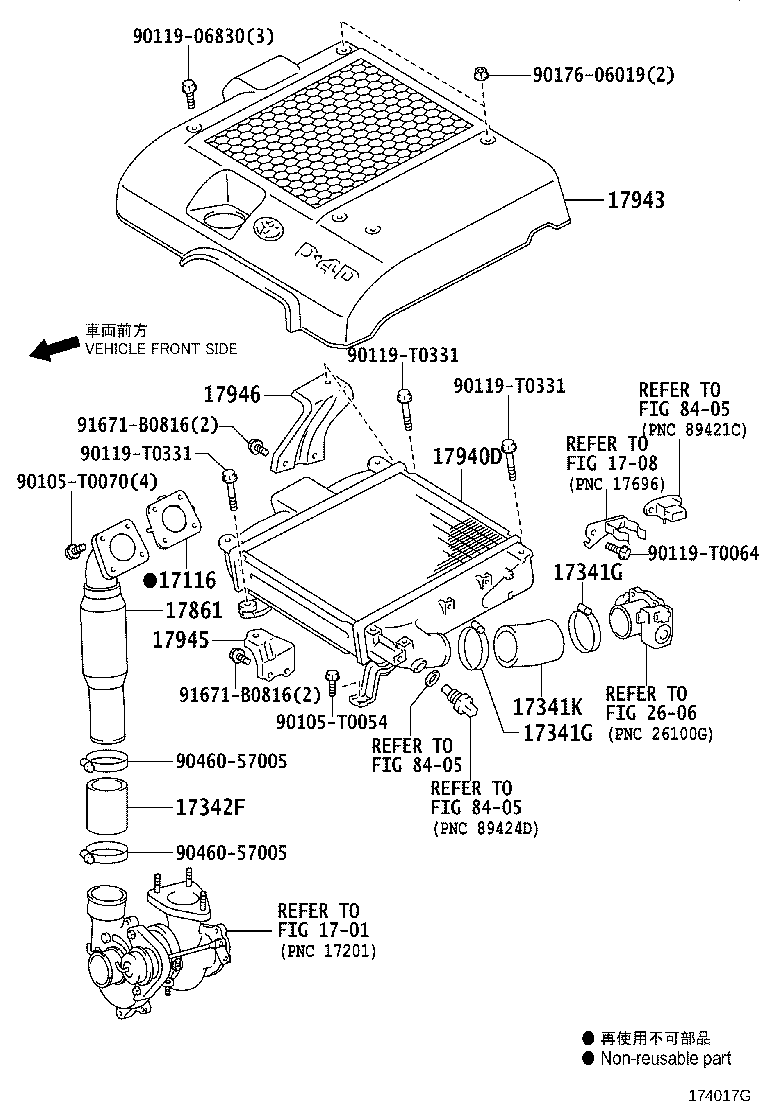

ILLUST NO. 2 OF 2(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..ARL,GEN,PHL,TH |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L010 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L040 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-0L010 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30030 |
2KDFTV..KUN15,25..HDCR..TH;1KDFTV..KUN16,26,36..GEN,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-T0064 | ||||
| 90119-T0331 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 91671-B0816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
(0408-0808)2KDFTV..KUN15..RHD..DCR ; (0408-0808)2KDFTV..KUN10,15..LHD..GCC,GEN,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17138-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30060 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 90460-80006 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-30050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L080 |
2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
1 | ||
| 17700-0L080 |
2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
1 | ||
| 17700-0L081 |
2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
1 | ||
| 17700-0L081 |
2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
1 | ||
| 17700-0L150 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17700-0L150 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17700-0L151 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17700-0L151 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17705-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17705-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17113-0L020 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17113-0L020 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17878-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L051 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881-0L051 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881-0L090 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17881-0L090 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17881-0L050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881-0L050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 17882B - CLAMP(FOR COOL AIR INTAKE) | ||||
| 90467-31110 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 90467-31110 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17883-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| Common parts | ||||
| 25761-0L010 | ||||
| 90099-00289 | ||||
| 90105-T0054 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90460-57005 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(0408-0808)1KDFTV..ARL,GEN,PHL,TH ; (0808- )1KDFTV..GEN,IDN,PHL,TH ; (0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L080 |
2KDFTV..KUN25..GEN,MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH) |
1 | ||
| 17700-0L081 |
2KDFTV..KUN10,25..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) |
1 | ||
| 17700-0L150 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17700-0L151 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L050 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17705-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN15..PHL..CBU;1KDFTV,2KDFTV..KUN10,26,35..LHD..(GCC,GEN);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);2KDFTV..KUN25..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L051 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881-0L090 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17881-0L050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..DCB,SCB,THDCB,XTR;2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.2 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) NO.1 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(1107-1208)2KDFTV..KUN35..PHL ; (1107- )2KDFTV..KUN10,15..DCR ; (1107- )2KDFT
W/O(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 25761-0L010 | ||||
| 90099-00289 | ||||
| 90105-T0054 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90460-57005 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
