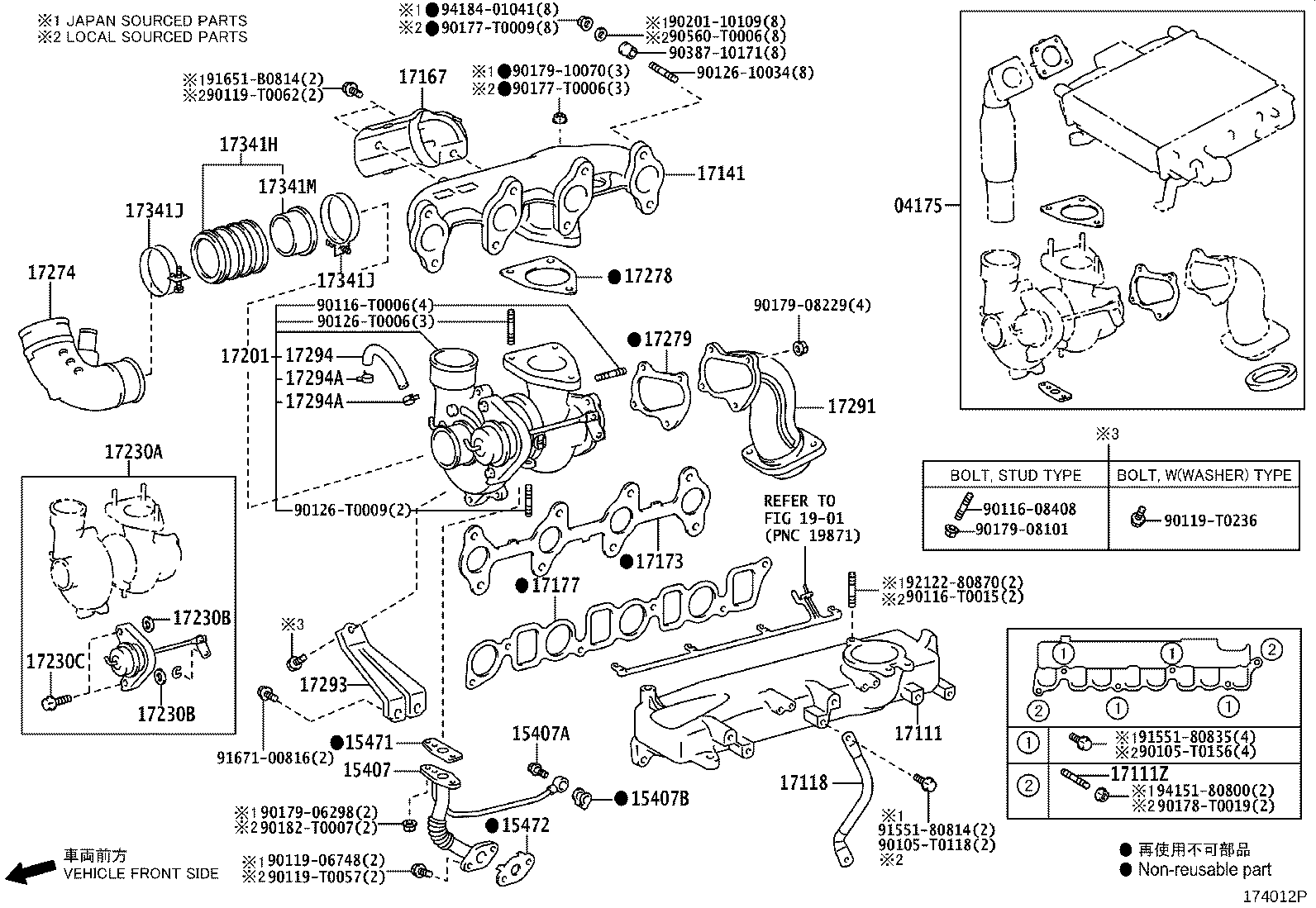

KUN15R-PRMSHT (2004)
Toyota Hilux
(0408-0908)2KDFTV..KUN15,25..HDCR..TH ; (0908-)2KDFTV..KUN15..HDCR ; (1008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 04175-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,LA) |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30032 |
2KDFTV..KUN10,25,35..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) *163 OR *184 |
1 | ||
| 15407-30060 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 15407-30031 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA *163 OR *184 |
1 | ||
| 15407-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-T0004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-T0006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0L030 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0L030 |
2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17141-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0L010 |
2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0L020 |
2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17173-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0L011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0L030 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17201-30120 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..GCC,GEN,MA,SA *163 OR *184 |
1 | ||
| 17201-0L050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-39095 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17230-39085 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06044 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=2.0 |
2 | ||
| 90201-06043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=1.0 |
2 | ||
| 90201-06045 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=3.0 |
2 | ||
| 90201-06042 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=0.5 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06044 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=2.0 |
2 | ||
| 90201-06043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=1.0 |
2 | ||
| 90201-06045 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=3.0 |
2 | ||
| 90201-06042 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=0.5 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60620 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-0L020 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-0L050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-0L040 |
2KDFTV..KUN15,25..HDCR..TH *130 |
1 | ||
| 17293-30080 |
2KDFTV..KUN15,25..HDCR..TH *163 OR *184 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-T0011 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 90445-T0010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0008 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 90466-T0008 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0008 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 90466-T0008 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
2 | ||
| 17341H - HOSE, AIR | ||||
| 17880-0L050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| 96111-10650 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 17341J - CLAMP, HOSE | ||||
| 96111-10650 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 17341M - HOSE, AIR, NO.1 | ||||
| 17883-0L010 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| Common parts | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-08408 | ||||
| 90116-T0006 | ||||
| 90116-T0015 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90119-T0062 | ||||
| 90119-T0236 | ||||
| 90126-10034 | ||||
| 90126-T0006 | ||||
| 90126-T0009 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-06298 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90560-T0006 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 92122-80870 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1901 | ||||

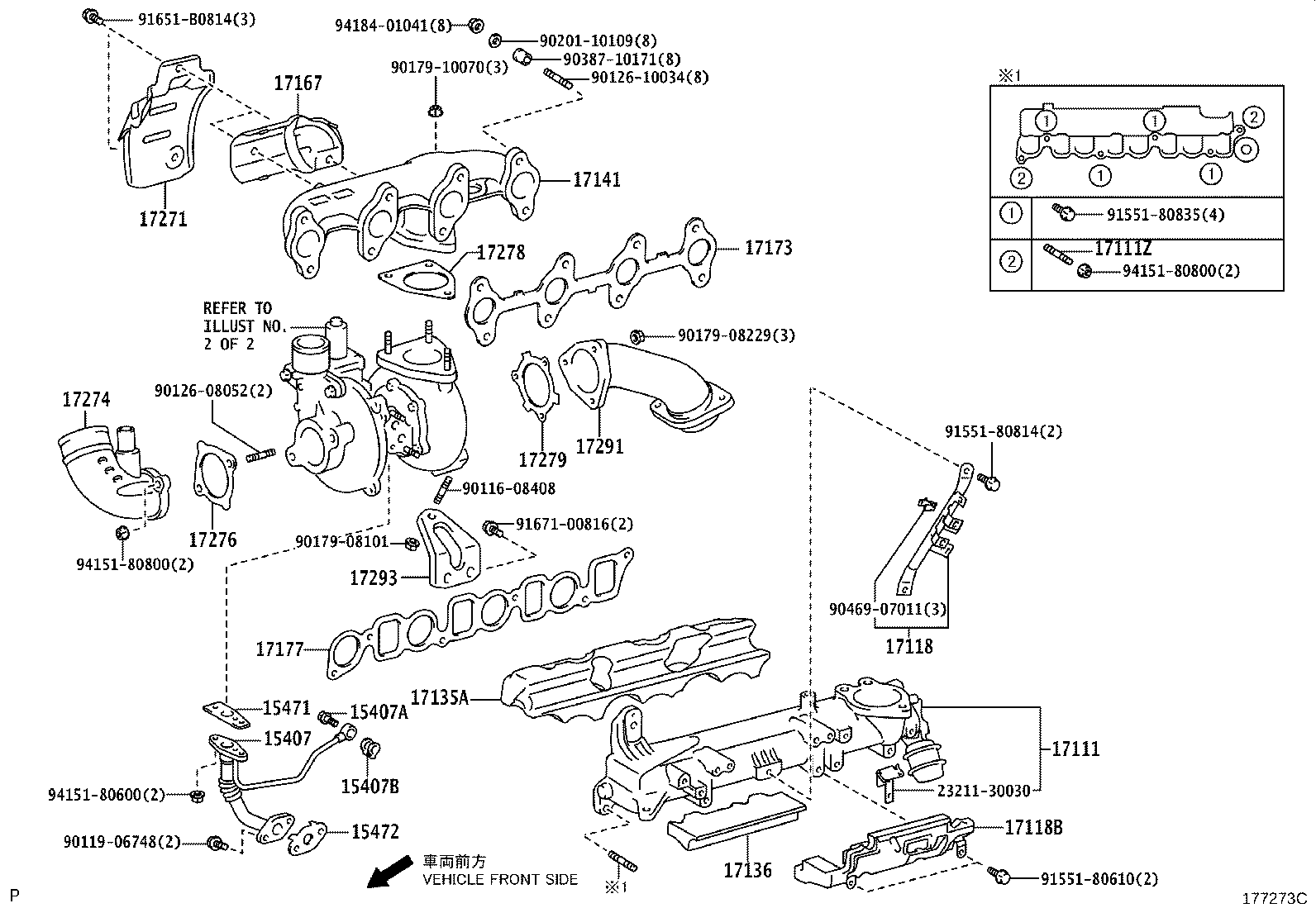

(0408- )2KDFTV..KUN10,15..DCR ; (0501- )2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-0L120 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 04175-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,LA) |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30032 |
2KDFTV..KUN10,25,35..GCC,GEN,MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH) *163 OR *184 |
1 | ||
| 15407-30060 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 15407-30031 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA,SA *163 OR *184 |
1 | ||
| 15407-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-T0004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-T0006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH) *130 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0L030 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-0L040 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-0L030 |
2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17141-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0L020 |
2KDFTV..KUN15,25..(DCB,XTR)..HDCR..TH;1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH) *130 |
1 | ||
| 17173-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0L011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-0L030 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17201-30120 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..GCC,GEN,MA,SA *163 OR *184 |
1 | ||
| 17201-0L050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-39095 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17230-39085 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06044 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=2.0 |
2 | ||
| 90201-06043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=1.0 |
2 | ||
| 90201-06045 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=3.0 |
2 | ||
| 90201-06042 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=0.5 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-06044 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=2.0 |
2 | ||
| 90201-06043 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=1.0 |
2 | ||
| 90201-06045 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=3.0 |
2 | ||
| 90201-06042 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) T=0.5 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60620 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
2 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-0L050 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-T0011 |
2KDFTV..KUN15,25..HDCR..TH |
1 | ||
| 90445-T0010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0008 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 90466-T0008 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-T0008 |
2KDFTV..KUN15,25..HDCR..TH |
2 | ||
| 90466-T0008 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
2 | ||
| 17299 - STAY, TURBINE OUTLET ELBOW | ||||
| 17299-0L010 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0L030 |
2KDFTV..KUN15..DCR..TH *114=TOYOTA/0L030/N,*130 |
1 | ||
| 25051-30030 |
2KDFTV..KUN15..DCR..TH *114=TOYOTA/30030/N,*163 OR *184 |
1 | ||
| 25051-30050 |
2KDFTV..KUN15..DCR..TH *163 OR *184 |
1 | ||
| 25051-0L060 |
2KDFTV..KUN15..DCR..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08286 | ||||
| 90105-T0053 | ||||
| 90105-T0118 | ||||
| 90105-T0121 | ||||
| 90105-T0156 | ||||
| 90116-06048 | ||||
| 90116-08260 | ||||
| 90116-10219 | ||||
| 90116-T0006 | ||||
| 90116-T0013 | ||||
| 90116-T0015 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90126-10035 | ||||
| 90126-T0009 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-06298 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90560-T0006 | ||||
| 91551-80812 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91671-00816 | ||||
| 91671-80814 | ||||
| 92122-80825 | ||||
| 92122-80870 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 2501 | ||||
(1107-1502)2TRFE..TGN16..DCB,XTR..GEN ; (1107-1502)2TRFE..TGN16,36..ANCOM,GCC,SA ;
W/O(AIR INJECTION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0108 | ||||
| 90119-T0233 | ||||
| 90119-T0236 | ||||
| 90119-T0238 | ||||
| 90119-T0342 | ||||
| 90178-T0019 | ||||
| 90179-08101 | ||||
| 91551-B0828 | ||||
| 91619-61230 | ||||
| 91671-00835 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(1107-1408)1KDFTV..KUN26..THDCB..5F..SR ; (1107-)1KDFTV..KUN26..THDCB..DLX ; (1
CHILE SPEC(EURO 4 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23211-30030 | ||||
| 90116-08408 | ||||
| 90119-06748 | ||||
| 90126-08052 | ||||
| 90126-10034 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90469-07011 | ||||
| 91551-80610 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
ILLUST NO. 1 OF 2(1107-1208)2KDFTV..KUN35..PHL ; (1107-1208)2KDFTV..KUN25..SCB..MA ; (1107- )2KDF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08286 | ||||
| 90105-T0053 | ||||
| 90105-T0118 | ||||
| 90105-T0121 | ||||
| 90105-T0156 | ||||
| 90116-10219 | ||||
| 90116-T0013 | ||||
| 90116-T0015 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90126-08052 | ||||
| 90126-10035 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90560-T0006 | ||||
| 91551-80812 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 91551-80870 | ||||
| 91671-00816 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 2501 | ||||
ILLUST NO. 2 OF 2(1107-1208)2KDFTV..KUN35..PHL ; (1107-1208)2KDFTV..KUN25..SCB..MA ; (1107- )2KDF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06048 | ||||
| 90116-08260 | ||||
| 90116-T0006 | ||||
| 90126-T0009 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
