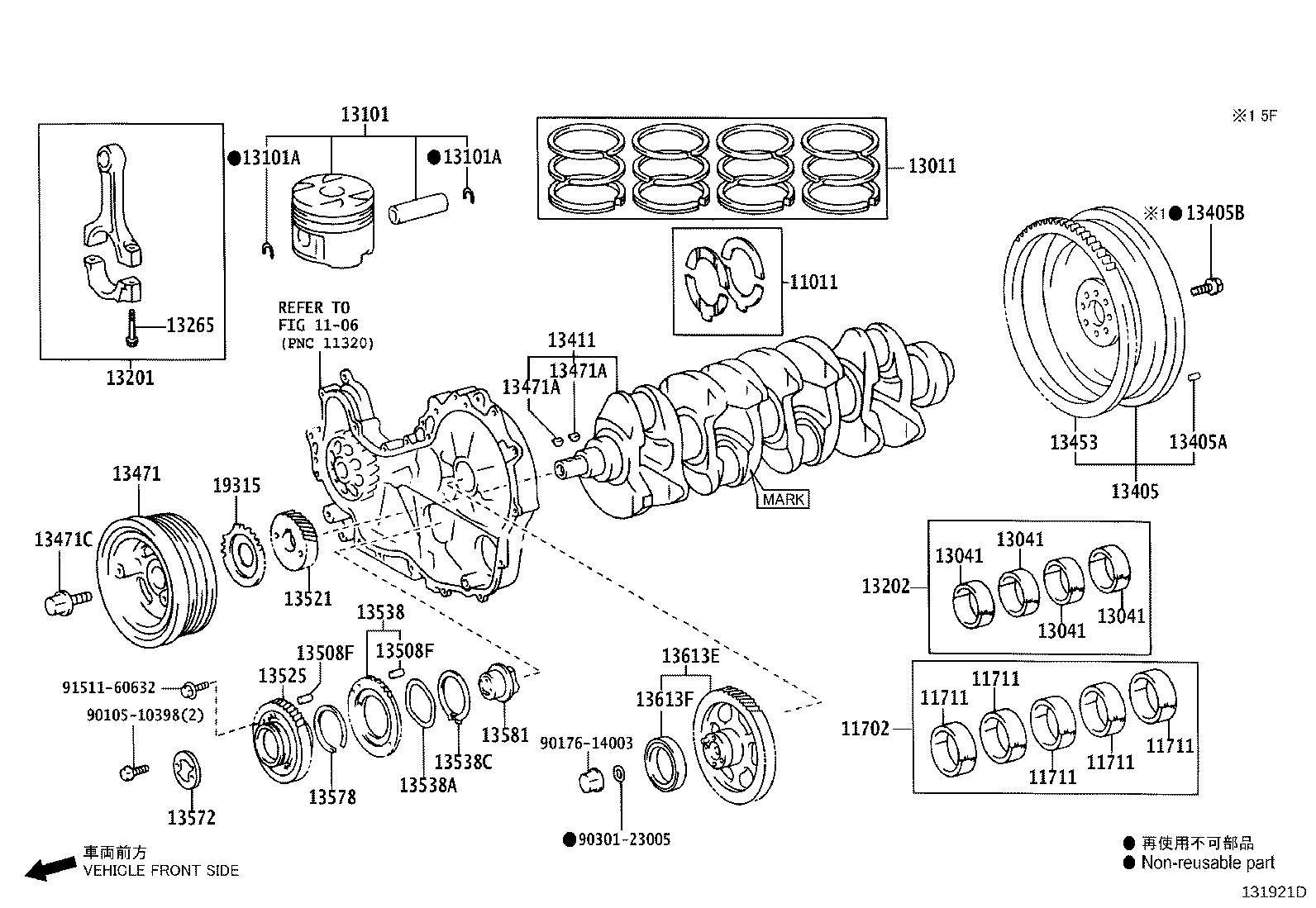

KUN15R-PRMSHT (2004)
Toyota Hilux
(0408- )2KDFTV..KUN15..RHD..DCB,SCB,XTR ; (0408- )2KDFTV..KUN10,15..LHD..DLX,
*130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| Common parts | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| 91511-60632 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0408- )2KDFTV..KUN25..RHD..GEN,SA ; (0408-)2KDFTV..KUN25..DCB,XTR..SR ; (04
*130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| Common parts | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| 91511-60632 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0408- )2KDFTV..KUN35..SR..TH ; (0408- )2KDFTV..KUN35..SCB,THDCB ; (0408-
*130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| Common parts | ||||
| 90105-T0096 | ||||
| 90105-T0150 | ||||
| 90176-14003 | ||||
| 90301-T0009 | ||||
| 91511-60632 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0504- )2KDFTV..KUN35..DLX ; (0504- )2KDFTV..KUN10,15,25 ; (0504- )2KDFTV.
*163 OR *184
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.250 |
1 | ||
| 11011-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) STD,*130 |
1 | ||
| 11012-30010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 11705-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
5 | ||
| 11701-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
5 | ||
| 11701-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
5 | ||
| 11701-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
5 | ||
| 11701-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-30030 |
2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..(ANCOM,GEN,LA,MA,PHL,TH) O/S 0.50 |
1 | ||
| 13011-0L020 |
2KDFTV..KUN35..ANCOM,LA;2KDFTV..KUN25..SCB..(LA,MA);2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..DCB..(ANCOM,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..(PHL,TH) STD,*130 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0L02004 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK4,*130:REFER R/M |
4 | ||
| 13041-0L02003 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK3,*130:REFER R/M |
4 | ||
| 13041-0L02002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK2,*130:REFER R/M |
4 | ||
| 13041-0L02005 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK5,*130:REFER R/M |
4 | ||
| 13041-0L02006 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) MARK6,*130:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3007002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3007003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-3007001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-30070 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13103-30030 |
2KDFTV..KUN15..DCR..(GEN,PHL,TH);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GEN,MA) O/S 0.50 |
4 | ||
| 13101-0L05002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-3012003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*163 OR *184,RRM |
4 | ||
| 13101-0L05003 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L05001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*130:REFER R/M |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50 |
4 | ||
| 13101-3012002 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK2,*163 OR *184,RRM |
4 | ||
| 13103-0L050 |
2KDFTV..KUN15,25..HDCR..TH O/S 0.50,*130 |
4 | ||
| 13101-3012001 |
2KDFTV..KUN15,25..HDCR..TH STD,MARK1,*163 OR *184,RRM |
4 | ||
| 13101-0L02002 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK2,*130:REFER R/M |
4 | ||
| 13101-0L02003 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK3,*130:REFER R/M |
4 | ||
| 13101-0L02001 |
2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) STD,MARK1,*130:REFER R/M |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN25,35..ANCOM,GCC,GEN;2KDFTV..KUN15,25..LHD..(PHL,SA)..CBU;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-0L030 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,MA,PHL,TH *130 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25,*130 |
1 | ||
| 13205-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.50 |
1 | ||
| 13204-30020 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) U/S 0.25 |
1 | ||
| 13204-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.25 |
1 | ||
| 13205-30020 |
2KDFTV..KUN15,25..HDCR..TH U/S 0.50,*130 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN15,25 |
8 | ||
| 13265-67021 |
2KDFTV..KUN10,15,25,35..ANCOM,GCC,GEN,LA,MA,PHL,TH |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-0L020 |
1KDFTV..KUN16,26,36..5F..(PHL,TH);2KDFTV..KUN15,25,35..(DCB,SCB,XTR)..5F..HDCR..(ANCOM,GCC,GEN,MA,TH) *130 |
1 | ||
| 13405-30030 |
2KDFTV..KUN25..LHD..SA;2KDFTV..KUN35..(DCB,THDCB)..(GEN,SA);1KDFTV..KUN16,26,36..5F..(ARL,GEN,PHL,TH);2KDFTV..KUN15,25..5F..HDCR..(GCC,GEN,MA,TH) *163 OR *184 |
1 | ||
| 13405-0L010 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-T0010 |
2KDFTV..KUN15..DCR L=23,OD=8,*130 |
3 | ||
| 90250-T0008 |
2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN15,25..(DCB,XTR)..5F..SR..HDCR;2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..5F..(PHL,TH) L=22,OD=10,*130 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-T0113 |
2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..5F..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PKN,TH) *130 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0L030 |
2KDFTV..KUN15,25 *130 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-0L010 |
1KDFTV..KUN26..4FC..LA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25,35..SCB..(LA,MA);2KDFTV..KUN25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN1#,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) *130 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-0L020 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-T0002 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN) *130,(L) |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0218 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-T0011 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
2 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-T0001 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-T0032 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA) *130 |
1 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-0L010 |
2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH) *130 |
1 | ||
| Common parts | ||||
| 90105-10398 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 91511-60632 | ||||
| Linked diagrams | ||||
| 1106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
