KUN15R-CRMDYT (2008)
Toyota Hilux

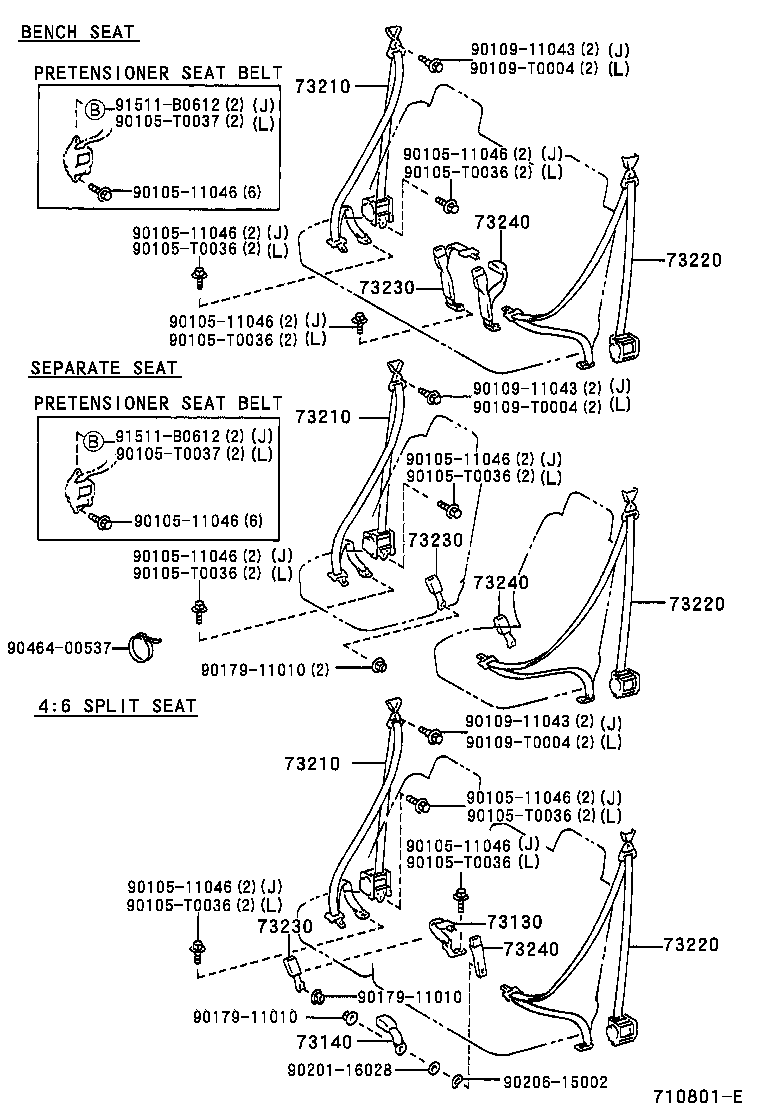

ILLUST NO. 1 OF 2(9708- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11046 | ||||
| 90105-T0036 | ||||
| 90105-T0037 | ||||
| 90109-11043 | ||||
| 90109-T0004 | ||||
| 90179-11010 | ||||
| 90201-16028 | ||||
| 90206-15002 | ||||
| 90464-00537 | ||||
| 91511-B0612 | ||||
(0408- )SMT,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B1 |
KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR;KUN35,TGN16..(SMT,XTR)..5F GRAY,TRIM1# |
2 | ||
| 73135-02010B1 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010B1 |
KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR;KUN35,TGN16..(SMT,XTR)..5F GRAY,TRIM1# |
2 | ||
| 73135-02010B1 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020P2 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73178-33020P2 |
KUN35,TGN16..SMT..5F;KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020P2 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73178-33020P2 |
KUN35,TGN16..SMT..5F;KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020B1 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73200-02090B1 |
KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR;KUN35,TGN16..(SMT,XTR)..5F GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02020B1 |
KUN15..XTR..DCR;GGN15,25,KUN16,2#,TGN16,26..XTR GRAY,TRIM1# |
2 | ||
| 73200-02090B1 |
KUN15..(SMT,XTR)..DCR;GGN15,25,KUN16,26,36..XTR;KUN35,TGN16..(SMT,XTR)..5F GRAY,TRIM1# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K070B0 |
KUN15..XTR..DCR;KUN16,2#,TGN16,26..XTR..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73210-0K070B0 |
KUN15..XTR..TH GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) GRAY |
1 | ||
| 73219-33010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BLACK |
1 | ||
| 73219-33030 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) BEIGE |
1 | ||
| 73219-33010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) BLACK |
1 | ||
| 73219-33020 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) GRAY |
1 | ||
| 73219-33030 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73210-0K070B0 |
KUN15..XTR..DCR;KUN16,2#,TGN16,26..XTR..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73210-0K070B0 |
KUN15..XTR..TH GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0K020B0 |
KUN15,16..XTR..DCR..TH;KUN26..RHD..(DCB,SCB,XTR);KUN25,TGN16,26..(DCB,XTR)..TH;KUN15,16..(DCB,SCB)..(ARL,TH);GGN15,25,KUN36,TGN10,16,36..RHD..(5F,5FC)..(ARL,IDN,SA) GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0K010B0 |
KUN25..TH;KUN15..DCB..TH;KUN15..XTR..DCR;TGN26..THDCB..DLX;KUN15,2#..LHD..DLX..GEN;KUN16,35..(DCB,THDCB,XTR)..(GEN,TH);KUN26,TGN15,16,26..(DCB,SCB,XTR)..(GEN,TH) GRAY,TRIM1# |
1 | ||
| 73230-0K010B0 |
TGN16..SCB..GEN;KUN35,TGN15..GEN,TH;KUN15,26..(SMT,THDCB)..DLX;KUN15,25,TGN26..LHD..DLX..GEN;TGN16..(DCB,SMT)..5F..(GEN,TH);KUN15,2#,36..(DCB,XTR)..5F..TH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-T0013 | ||||
| 90109-T0026 | ||||
| 90109-T0036 | ||||
| 90178-T0017 | ||||

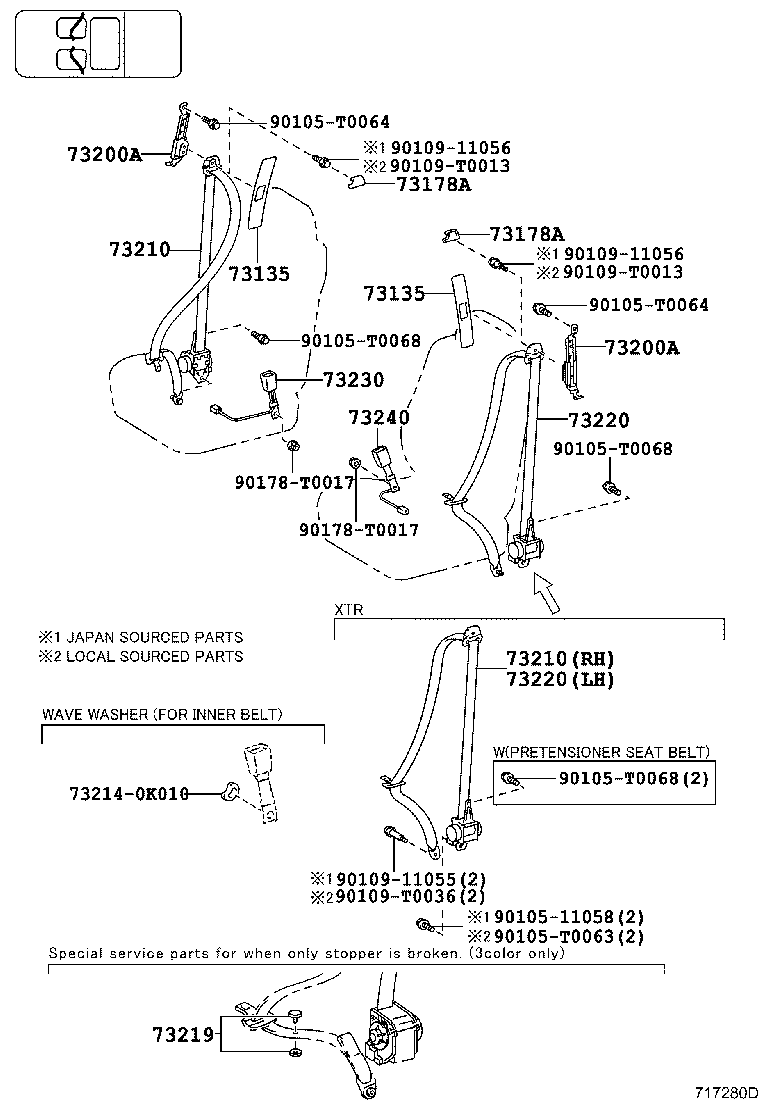

ILLUST NO. 1 OF 2(1107- )DCB,SADCB,THDCB,XTR
PASSENGER SEAT(ONE PERSON TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 73214-0K010 | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-11055 | ||||
| 90109-11056 | ||||
| 90109-T0013 | ||||
| 90109-T0036 | ||||
| 90178-T0017 | ||||

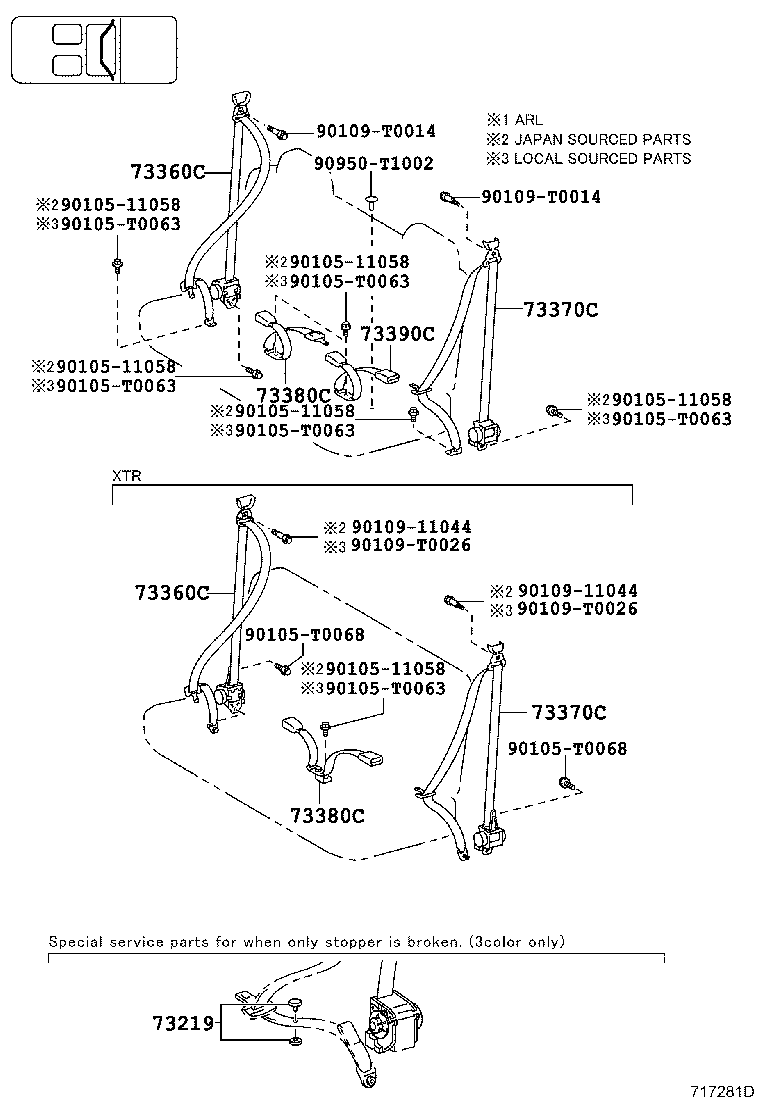

ILLUST NO. 2 OF 2(1107- )DCB,SADCB,THDCB,XTR
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-11058 | ||||
| 90105-T0063 | ||||
| 90105-T0068 | ||||
| 90109-11044 | ||||
| 90109-T0014 | ||||
| 90109-T0026 | ||||
| 90950-T1002 | ||||
