KUN15L-TRMDYV (2008)
Toyota Hilux

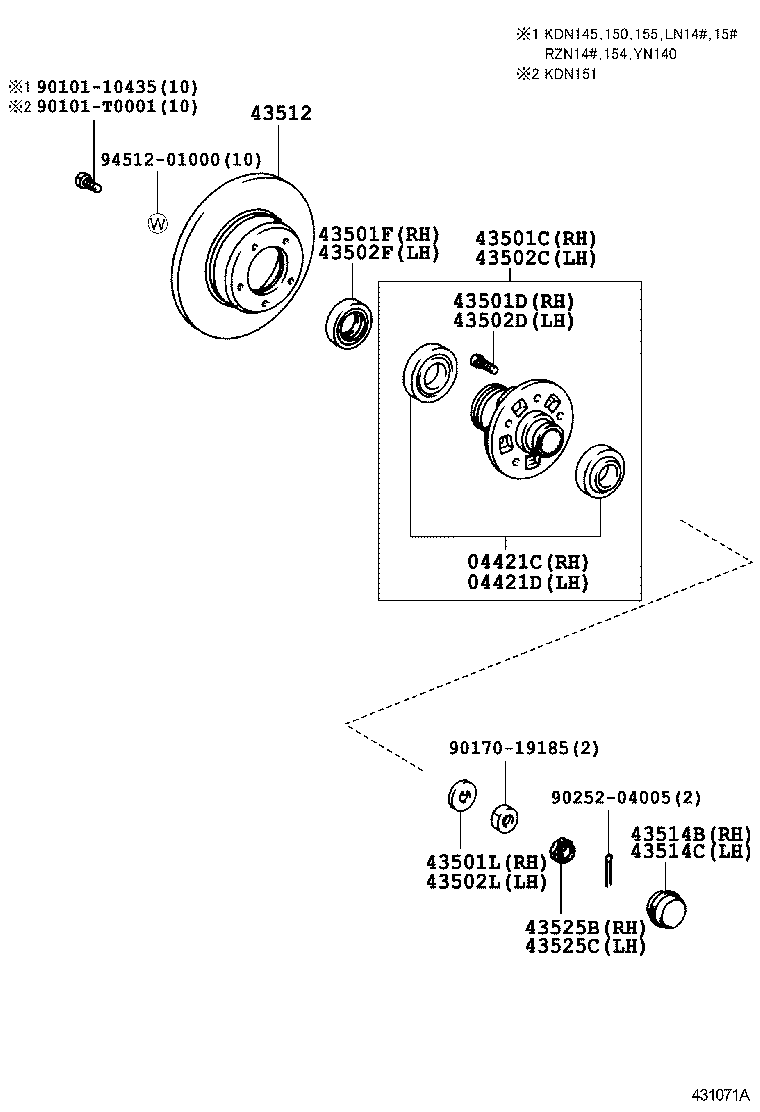

(9708- )KDN145,15#,LN14#,15#,RZN14#,154,YN140
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-10435 | ||||
| 90101-T0001 | ||||
| 90170-19185 | ||||
| 90252-04005 | ||||
| 94512-01000 | ||||

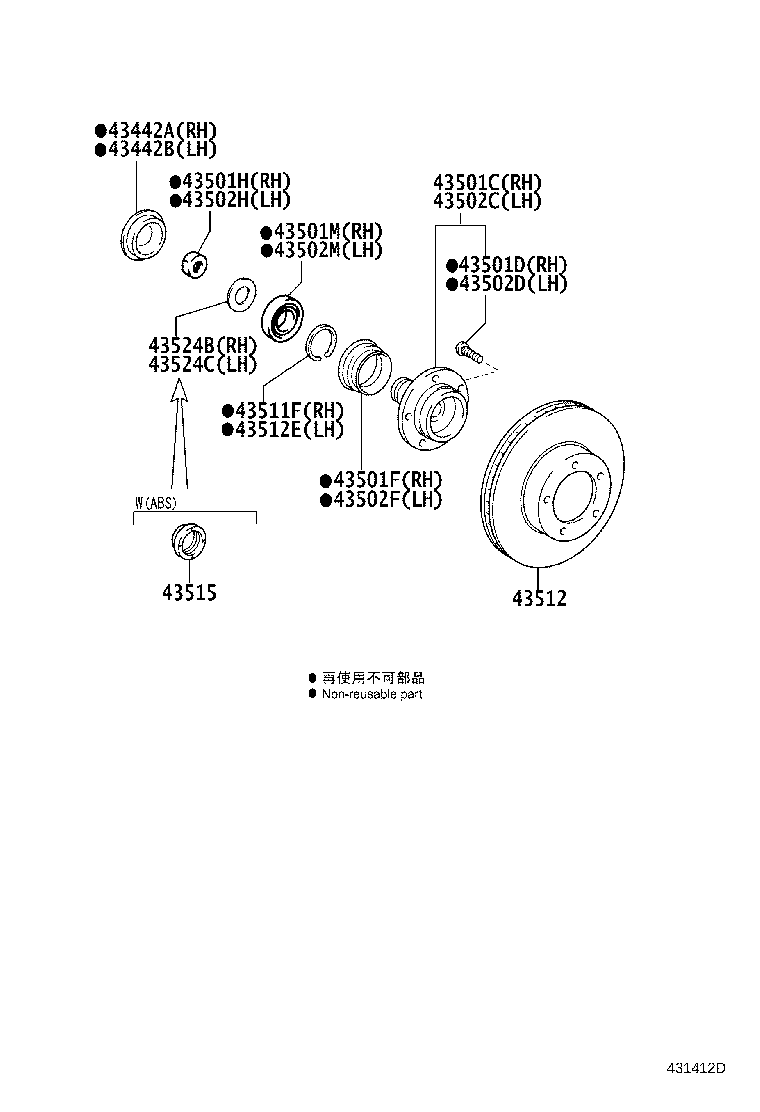

(0408- )GGN15,KUN1#,LAN15,TGN1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43442A - CAP, KNUCKLE GREASE RETAINER, INNER, RH | ||||
| 43442-0K010 |
TGN36..SCB;KUN35..DCB..ANCOM;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43442B - CAP, KNUCKLE GREASE RETAINER, INNER, LH | ||||
| 43442-0K010 |
TGN36..SCB;KUN35..DCB..ANCOM;KUN16,36,TGN16..XTR..TH;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-0K010 |
KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);GGN15,KUN10,15,LAN15,TGN10,11,15..DCB,SCB,XTR |
1 | ||
| 43502-0K010 |
GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
5 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-T0010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-T0002 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90366-T0007 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-0K010 |
GGN15,KUN1#,TGN1#..ARL,GCC,GEN,IDN,PHL,TH |
1 | ||
| 43502-0K010 |
KUN16..DCB,SCB;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);GGN15,KUN10,15,LAN15,TGN10,11,15..DCB,SCB,XTR |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
5 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-T0010 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-T0002 |
GGN15,KUN1#,LAN15,TGN1# |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90366-T0007 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
1 | ||
| 43511F - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-T0003 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-0K010 |
KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN);KUN16,TGN10..(DCB,SCB)..(DLX,SR);GGN15,KUN10,15,LAN15,TGN11,15..(DCB,SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
2 | ||
| 43512E - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-T0003 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-0K010 |
KUN15..LHD..SA;KUN15,16..XTR..SR;KUN15,16,TGN15..(DCB,SCB)..(ARL,GCC,GEN);GGN15,KUN10,LAN15,TGN10,11,16..(5F,5FC)..(ARL,GCC,GEN,SA) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH |
2 | ||
| 43524B - SPACER, FRONT WHEEL INNER BEARING, RH | ||||
| 43524-0K010 |
KUN16..XTR..TH;KUN15..DLX..(PHL,SA);KUN16,TGN10..(DCB,SCB)..DLX;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||
| 43524C - SPACER, FRONT WHEEL INNER BEARING, LH | ||||
| 43524-0K010 |
KUN16..XTR..TH;KUN15..DLX..(PHL,SA);KUN16,TGN10..(DCB,SCB)..DLX;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
1 | ||

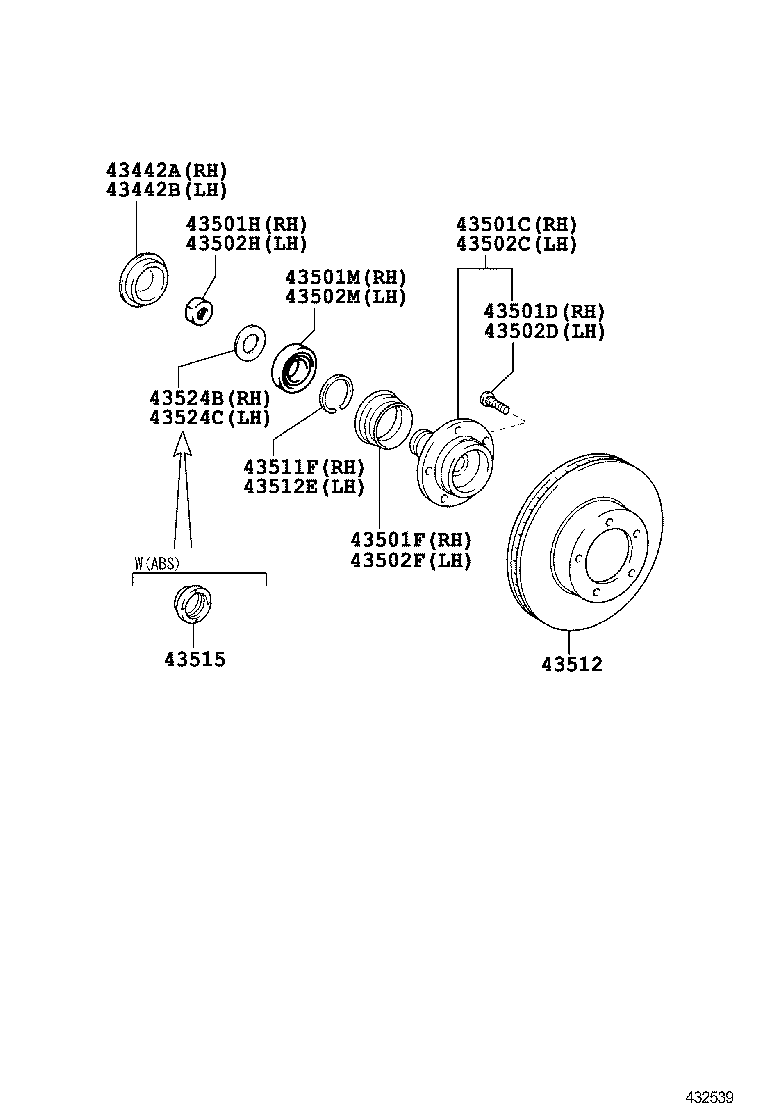

(1107- )GGN15,KUN1#,LAN15,TGN1#
| Part # | Description | Qty | Price |
|---|
