KUN15L-TRMDYV (2008)
Toyota Hilux
ILLUST NO. 2 OF 2(9708- )KZN165,190,LN14#,15#,16#,17#,19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06161 | ||||
| 90461-10781 | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(9708- )KDN165,190,KZN165,190,LN140,145,147,15#,16#,172,192,RZN142,147,149,154,1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-54035 | ||||
| 90105-12116 | ||||
| 90119-06595 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-60032 | ||||
| 90167-T0003 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90464-00786 | ||||
| 90467-11061 | ||||
| 90541-06058 | ||||
| 90541-09024 | ||||
| 91611-60618 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 94130-60600 | ||||
ILLUST NO. 1 OF 2(9708- )LHD..SCB,XTR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35470 | ||||
| 87616-35010 | ||||
| 90080-54035 | ||||
| 90105-12116 | ||||
| 90119-08667 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90201-06547 | ||||
| 90269-04059 | ||||
| 90430-12245 | ||||
| 90460-26001 | ||||
| 90460-46003 | ||||
| 90464-00042 | ||||
| 90464-00786 | ||||
| 90467-08043 | ||||
| 90467-11061 | ||||
| 90541-06058 | ||||
| 90959-01192 | ||||
| 91611-60618 | ||||
| 91621-J0614 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 94130-60600 | ||||
ILLUST NO. 1 OF 2(0408- )KUN15,16,2#,3#,LAN15,25,35..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-0K040 |
KUN15,16,2#..(DCB,SCB)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 77010-0K041 |
KUN16..4FC;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN25..(DCB,SCB,SMT)..(GCC,GEN,MA,PKN,TH);KUN15,26,3#..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77027-0K010 |
KUN25..SCB..MA;TGN26..DCB..GEN;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN16..LHD..GEN;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77027-0K010 |
KUN16..4FC;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;KUN16,TGN26..DCB..(ARL,GEN);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K040 |
KUN15,25,TGN15,16,26..LHD..(SCB,THSCB)..(GCC,GEN)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K020 |
KUN1#,2# |
1 | ||
| 77001-0K021 |
KUN16..4FC;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN25..(DCB,SCB,SMT)..(GCC,GEN,MA,PKN,TH);KUN15,26,3#..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,PHL,TH) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77144-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77671-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
3 | ||
| 77671-0K010 |
TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,35..(DCB,SCB)..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
3 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77169-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0K090 |
KUN25..SCB..MA;KUN36..XTR..TH;KUN15..GCC..IV3;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN15,16..LHD..GEN;TGN26..(DCB,THDCB)..DLX..(GEN,LA);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN16,LAN15,25,35..(DCB,SCB,XTR)..(PKN,SA,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;KUN15,16,TGN36..(DCB,SCB)..5F..DLX..(ARL,LA,SA)..CBU |
1 | ||
| 77201-0K090 |
KUN16..4FC;KUN35..SR..SA;KUN35..SCB..SA;KUN16..DCB..ARL;KUN16..(SCB,SMT,XTR)..CBU;KUN15,TGN16,26..(THDCB,XTR)..DLX;KUN35..(ANCOM,GEN,LA,PHL,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN25,TGN15,26,36..(DCB,SCB)..(GEN,LA)..CBU;KUN2#,36,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)..CBU |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77204-0K020 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DCB,SCB,SMT,XTR)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K020 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77209-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77213-0K020 |
KUN35..SR..SA;GGN25..5FC..SA;KUN35..SCB..SA;GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL);GGN15,KUN16..SCB,SMT,XTR;KUN35..ANCOM,GEN,LA,PHL,TH;GGN15,KUN16..DCB..(4FC,5FC)..SR;TGN26..LHD..(ANCOM,GCC,GEN,SA)..CBU;KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;KUN15,TGN36..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,PHL,SA,TH);GGN35,KUN2#,36,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-35450 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77241-35450 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77241-33011 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77269-0K020 |
KUN35..SR..SA;GGN25..5FC..SA;KUN35..SCB..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN35..ANCOM,GEN,LA,PHL,TH;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,36,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77277T - BRACKET, CHECK VALVE | ||||
| 77277-0K010 |
KUN25..SCB..MA;TGN26..DCB..GEN;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26,TGN16..LHD..GEN;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77277-0K010 |
KUN16..4FC;KUN16..SCB,SMT,XTR;KUN15,TGN16..XTR..DLX;KUN16,TGN26..DCB..(ARL,GEN);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K040 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
3 | ||
| 77281-0K040 |
KUN25;TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN15,16,26,3#,LAN15,25,35,TGN15,16..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH |
3 | ||
| 77281-0K070 |
GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,TGN36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;GGN25,35,KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU |
3 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 77283-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-0K190 |
KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU |
1 | ||
| 77285-0K190 |
GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-0K010 |
KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR)..(ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,TGN26,36..(DCB,SCB,THDCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU |
1 | ||
| 77290-0K010 |
GGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN,PHL,TH)..CBU;GGN25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(ARL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(DCB,SCB,THDCB,THSCB)..5F..DLX..(ANCOM,ARL,GCC,GEN,LA)..CBU;GGN15,25,KUN10,15,LAN15,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH)..CBU |
1 | ||
| 77306-0K010 |
GGN15..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,2#,3#..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,TH)..CBU;GGN25,KUN10,16,TGN10,11,15,26,36..(DCB,SCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,LA)..CBU |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU |
1 | ||
| 77300-60010 |
KUN26..THDCB;KUN25..SCB..MA;KUN36..XTR..TH;KUN15..GCC..IV3;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;KUN10,16,LAN15,25,35..(DCB,SCB,XTR)..(GCC,PKN,SA,TH) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KUN26..THDCB;KUN25..SCB..MA;KUN15..GCC..IV3;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU |
1 | ||
| 77316-52040 |
GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-0K030 |
KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU |
1 | ||
| 77360-0K030 |
GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB)..(ARL,SA)..CBU;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA)..CBU;KUN15,16..(DCB,SCB,XTR)..(GCC,GEN,PHL,PKN,TH)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN1#..(5F,5FC)..(ANCOM,ARL,GCC,GEN,IDN,PKN,SA)..CBU |
1 | ||
| 77377-0K010 |
GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K010 |
KUN15,TGN15,16..GCC |
1 | ||
| 77601-0K040 |
KUN35..GEN;TGN16..SCB..SR;KUN15..SCB..GCC;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 77601-0K040 |
KUN26,36..XTR..SA;KUN15,TGN15,16..GCC;KUN26..ARL,GEN,PHL,TH;GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)..CBU |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K010 |
KUN15,TGN15,16..GCC |
1 | ||
| 77602-0K040 |
KUN35..GEN;TGN16..SCB..SR;KUN15..SCB..GCC;GGN25,KUN2#,36,TGN26,36..ARL,GCC,GEN,MA,PHL,TH |
1 | ||
| 77602-0K040 |
KUN26,36..XTR..SA;KUN15,TGN15,16..GCC;KUN26..ARL,GEN,PHL,TH;GGN25,KUN25,3#,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)..CBU |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN15,KUN15,16,TGN15,16..ARL,GCC,GEN,PHL,TH |
2 | ||
| 77653-0K041 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16,TGN10..RHD..(SCB,SMT,XTR);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN15,KUN15,16,TGN15,16..ARL,GCC,GEN,PHL,TH |
2 | ||
| 77653-0K041 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16,TGN10..RHD..(SCB,SMT,XTR);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K050 |
TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;KUN15,TGN15,16..GCC;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16,TGN10..RHD..(SCB,SMT,XTR);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 77644-35030 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16,TGN10..RHD..(SCB,SMT,XTR);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| 77644-35030 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.2 |
1 | ||
| 77652-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.1 |
1 | ||
| 77652-0K020 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) NO.2 |
1 | ||
| 77652-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) NO.1 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K020 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.2 |
1 | ||
| 77652-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) NO.1 |
1 | ||
| 77652-0K020 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) NO.2 |
1 | ||
| 77652-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) NO.1 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-0K040 |
GGN25..5FC..SA;GGN25..DCB..ARL;GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;TGN26..LHD..(GCC,GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35,TGN36..(DLX,SR)..(ARL,GCC,GEN,MA,PHL,PKN,SA,TH) |
1 | ||
| 77681-0K040 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0K020 |
GGN25..5FC..SA;GGN25..DCB..ARL;GGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;TGN26..LHD..(GCC,GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35,TGN36..(DLX,SR)..(ARL,GCC,GEN,MA,PHL,PKN,SA,TH) |
1 | ||
| 77682-0K020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(GCC,GEN,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,26,36..ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K010 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77697-0K010 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90179-08241 | ||||
| 90269-04059 | ||||
| 90460-46005 | ||||
| 90464-T0003 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
| 8401 | ||||

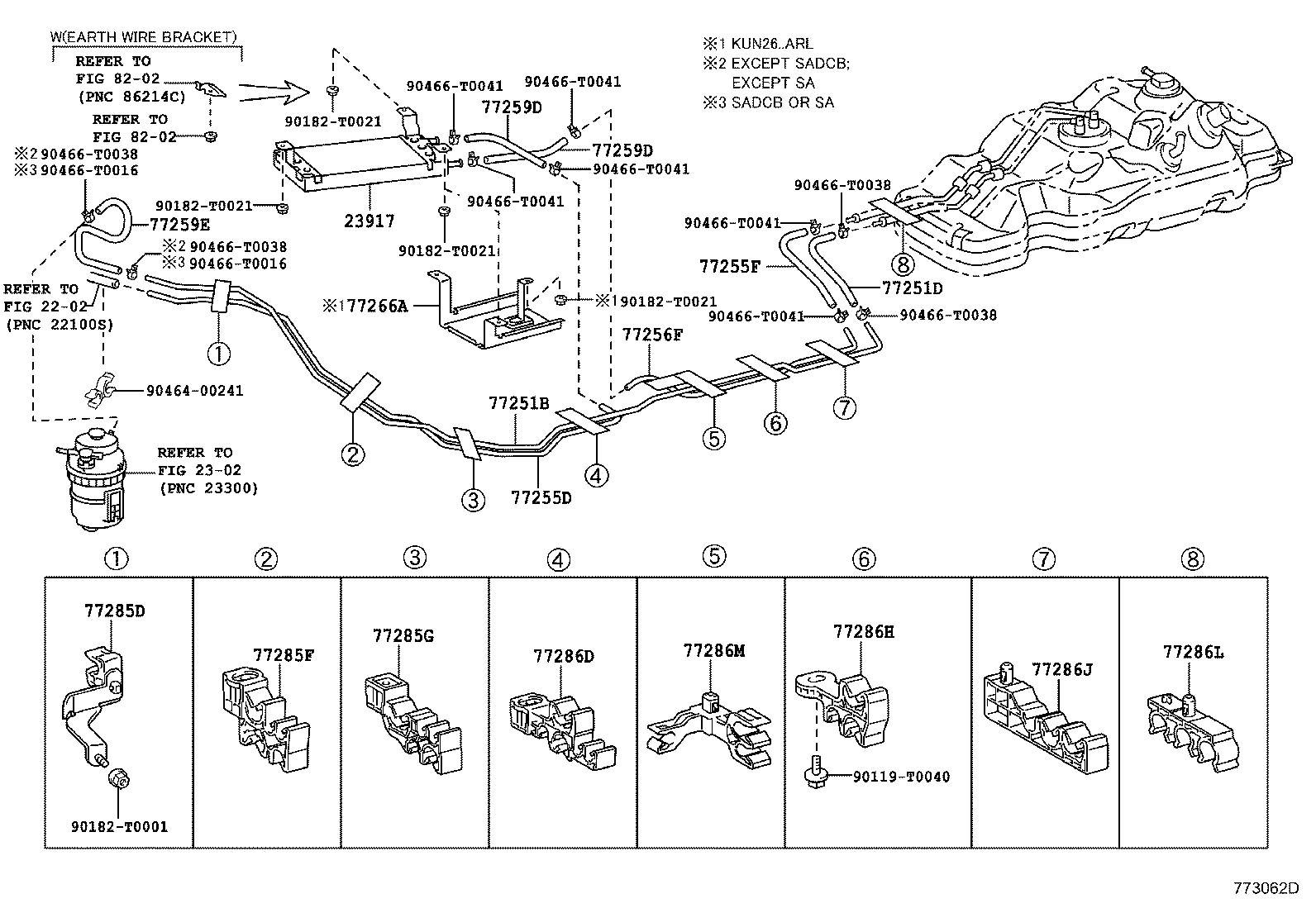

ILLUST NO. 2 OF 2(0408- )KUN15..DCB,SCB ; (0408- )KUN26..SCB..CBU ; (0408- )KUN35..DLX..PHL
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77251-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77251-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77251-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77251-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77251-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-10020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,25,35..(DLX,STD)..(PKN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH) *H,L=200 |
1 | ||
| 95332-10020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,25,35..(DLX,STD)..(PKN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH) *H,L=200 |
1 | ||
| 95332-10020 |
KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,LAN15,25,35..(DLX,STD)..(PKN,SA);KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH) *H,L=200 |
1 | ||
| 95338-10020 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) L=200 |
1 | ||
| 95338-10020 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) L=200 |
1 | ||
| 95338-10020 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0K020 |
KUN25..SR..MA;KUN25..SCB..MA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 77255-0K020 |
KUN25..SR..MA;KUN25..SCB..MA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 77255-0K020 |
KUN25..SR..MA;KUN25..SCB..MA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH) |
1 | ||
| 77255-0K020 |
KUN15..XTR..TH;KUN25,35..ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA;KUN15..(DCB,SCB,SMT)..DCR..(GCC,GEN,PHL,SA,TH) |
1 | ||
| 77255-0K020 |
KUN15..XTR..TH;KUN25,35..ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA;KUN15..(DCB,SCB,SMT)..DCR..(GCC,GEN,PHL,SA,TH) |
1 | ||
| 77255-0K020 |
KUN15..XTR..TH;KUN25,35..ANCOM,GCC,GEN,LA,MA,PHL,PKN,SA;KUN15..(DCB,SCB,SMT)..DCR..(GCC,GEN,PHL,SA,TH) |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-08030 |
KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);KUN15,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PHL,SA,TH) *H,L=220,ID=7.6 |
1 | ||
| 95333-08030 |
KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);KUN15,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PHL,SA,TH) *H,L=220,ID=7.6 |
1 | ||
| 95333-08030 |
KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);KUN15,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PHL,SA,TH) *H,L=220,ID=7.6 |
1 | ||
| 95338-08022 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH L=220 |
1 | ||
| 95338-08022 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH L=220 |
1 | ||
| 95338-08022 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH L=220 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0K050 |
KUN1#,2#,3# |
1 | ||
| 77259-0K050 |
KUN1#,2#,3# |
1 | ||
| 77259-0K050 |
KUN1#,2#,3# |
1 | ||
| 77259-0K060 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77259-0K060 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77259-0K060 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77285-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77285-0K030 |
KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) |
1 | ||
| 77285-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K030 |
KUN16..4FC;KUN15..XTR..TH;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN10,2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K040 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K040 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K040 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K040 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K040 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K040 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K050 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K050 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K050 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77285-0K050 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K050 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77285-0K050 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K090 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K090 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K090 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K090 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K090 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K090 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-0K100 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K100 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K100 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K100 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K100 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K100 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-0K130 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K130 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K130 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K130 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K130 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K130 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-0K060 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K060 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K060 |
TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 77286-0K060 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K060 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 77286-0K060 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN2#,3#,LAN15,25,35..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0040 | ||||
| 90182-T0001 | ||||
| 90464-00241 | ||||
| 90466-T0016 | ||||
| 90466-T0038 | ||||
| 90466-T0040 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 4(1107- )KUN15..LHD..GCC,GEN,PHL ; (1107- )KUN16,26,36,LAN15,25,35 ; (1107-
FUEL TUBE(W/FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0040 | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0016 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(1107- )CBU
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90269-04059 | ||||
| 90464-T0003 | ||||
| 90469-T0003 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 6554 | ||||
ILLUST NO. 1 OF 4(1107- )KUN1#,2#,3#,LAN15,25,35..CBU
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-0K010 | ||||
| 90080-54035 | ||||
| 90105-T0204 | ||||
| 90178-T0020 | ||||
| 90179-06169 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90466-T0041 | ||||
| 90468-14039 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
