KUN15L-TRMDYV (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 71071B 71073B 71311 71311 71311E 71379A 71389 71410B 71430B 71511B 71551B 71561B 71561B 71567 71587 71587 71587 71610B 71630B 9008010143 9046818071 9046818071
Part # Description Qty Price
Common parts
90080-10143
90468-18071

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT BENCH SEAT

diagram 72110A 72120 72137 72138 72301 9011908830 9011908830 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108
Part # Description Qty Price
Common parts
90119-08830
90119-10825
90119-T0108

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

diagram 71071S 71072S 71073S 71074S 71318B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587 71587B 71587B 71588 71588 71610S 71620S 71630S 71640S 71831D 71831D 71832D 71832D 71910A 71910A 71931 71931 71931 71931 9046818071 9046818071 9046818071 9046818071 9418560800
Part # Description Qty Price
Common parts
90468-18071
94185-60800

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

FRONT 6:4 SPLIT SEAT

diagram 71147 71147 71147 71147 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72140A 72211 72211 72501D 72501E 72525A 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9161560825 9324954006 9324954008
Part # Description Qty Price
Common parts
90119-10825
90119-T0108
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71147 71147 71147 71147 71537A 71537A 71811D 71812D 71861 71862 71875A 71875B 71876 71876A 72011 72012 72021 72022 72125A 72125A 72125A 72125A 72129 72129 72129 72129 72129 72129 72129 72129 72137 72137C 72138 72138E 72210E 72210E 72211 72211 72501D 72501E 72525A 72526A 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 9011910825 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 90119T0108 9016840011 9016840011 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9016840043 9151261018 9151261018 9151261018 9151261018 9161560825 9161560825 9161560825 9161560825 9324954006 9324954006 9324954008 9324954008
Part # Description Qty Price
Common parts
90119-10825
90119-T0108
90168-40011
90168-40043
91512-61018
91615-60825
93249-54006
93249-54008

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587B 71588 71610S 71620S 71630S 71640S 71831D 71832D 71910A 71931 71931 72750D 72770 72791 72797 9046818071 9046818071 9052001006 9165160614
Part # Description Qty Price
Common parts
90468-18071
90520-01006
91651-60614

ILLUST NO. 3 OF 3(1107- )DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

REAR SEAT

diagram 71222B 71324A 71324A 71485C 71486C 71779 71779 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72645 72645 72995B 72998 78950 79011 79013 79101B 79103A 79135A 79175E 79318 79328 79977A 9009905179 9010908127 90119T0206 90119T0206 9016740044 9016740044 9017908275 9017908275 9356055018 9356055018
Part # Description Qty Price
Common parts
90099-05179
90109-08127
90119-T0206
90167-40044
90179-08275
93560-55018

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

DRIVER SEAT W/O(VERTICAL ADJUSTER)

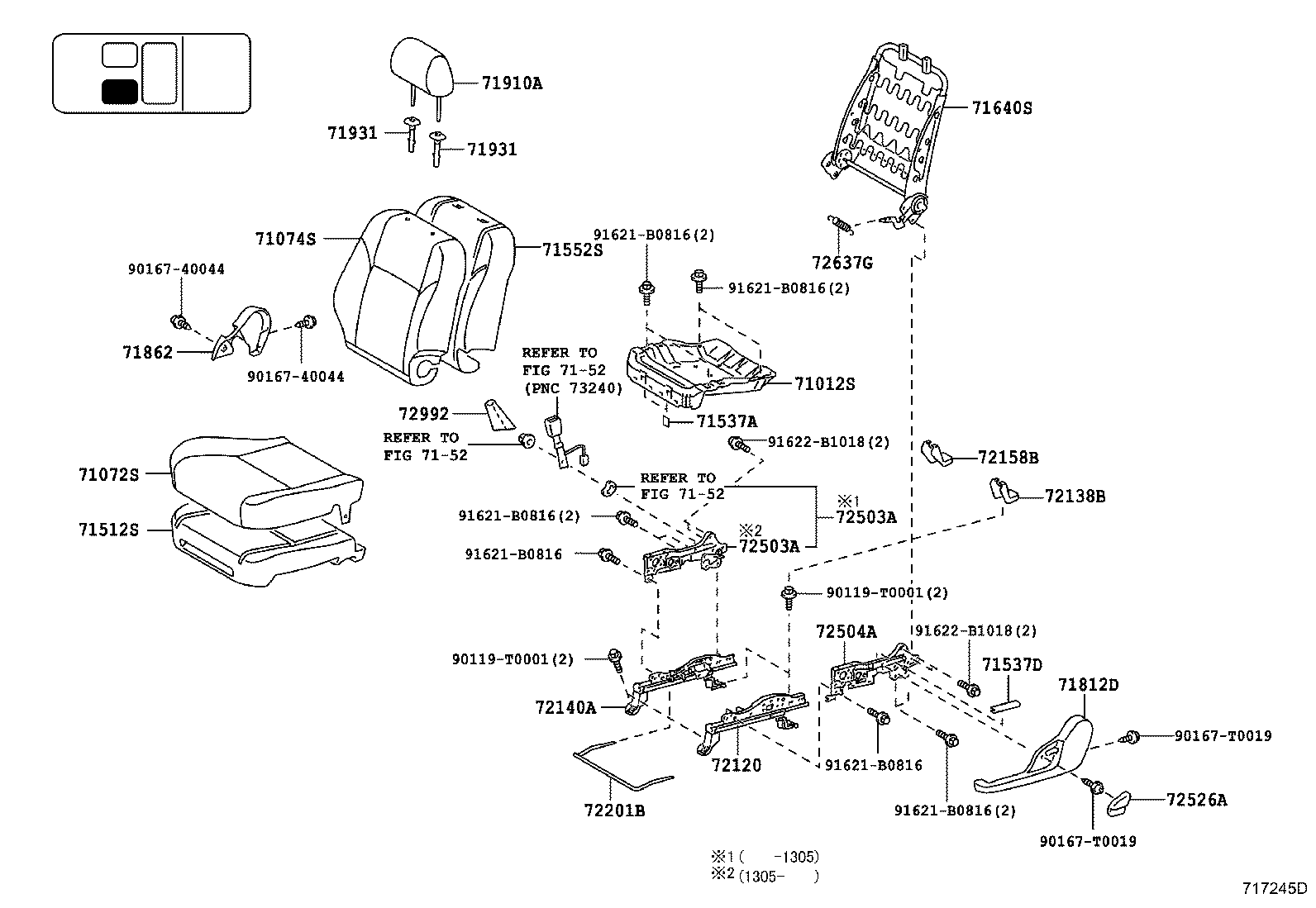

diagram 71012S 71072S 71074S 71512S 7152 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72503A 72504A 72526A 72637G 72992 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

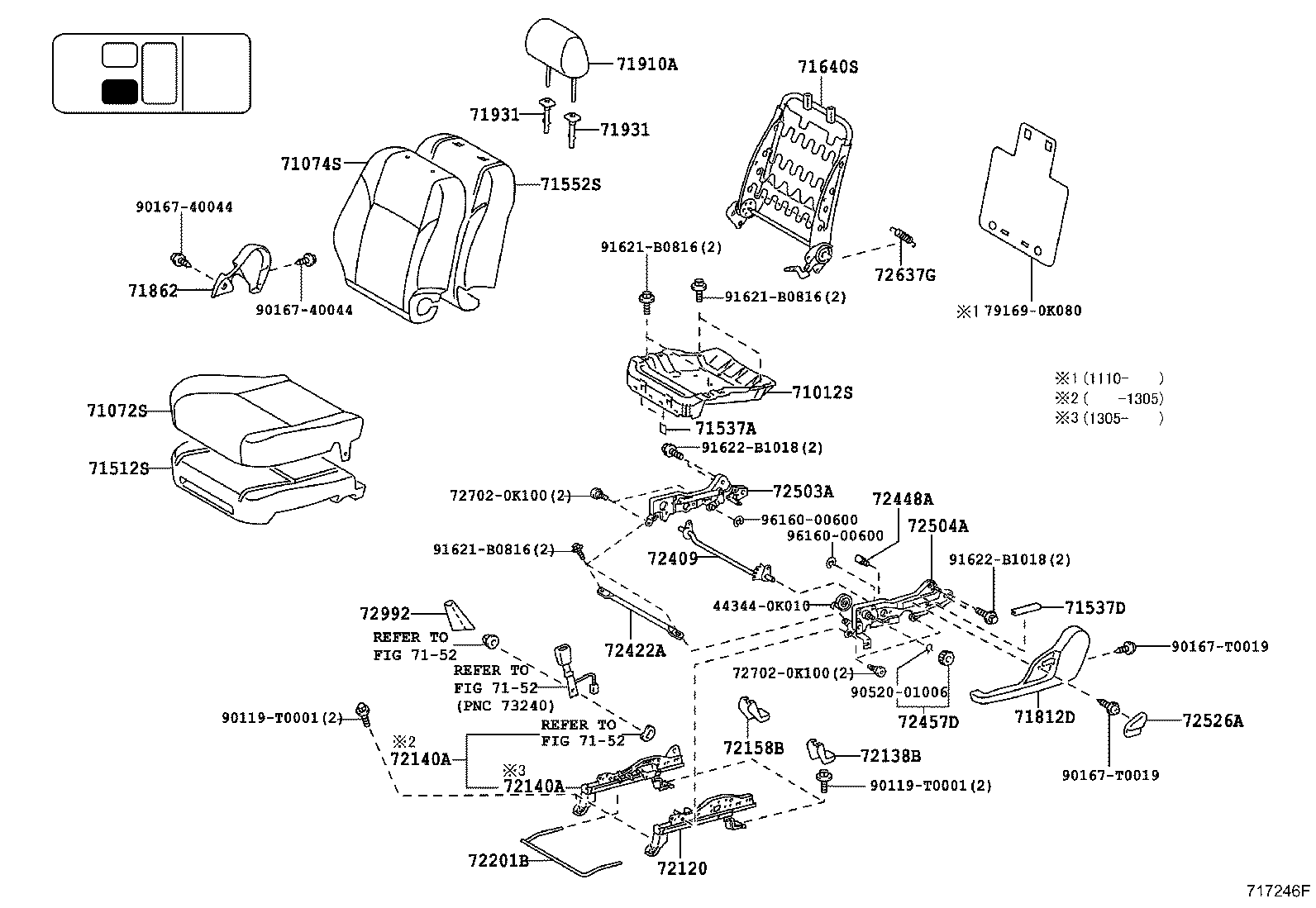

DRIVER SEAT W(VERTICAL ADJUSTER)

diagram 443440K010 71012S 71072S 71074S 71512S 7152 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72140A 72158B 72201B 72409 72422A 72448A 72457D 72503A 72504A 72526A 72637G 727020K100 727020K100 72992 791690K080 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 9052001006 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018 9616000600 9616000600
Part # Description Qty Price
Common parts
44344-0K010
72702-0K100
79169-0K080
90119-T0001
90167-40044
90167-T0019
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

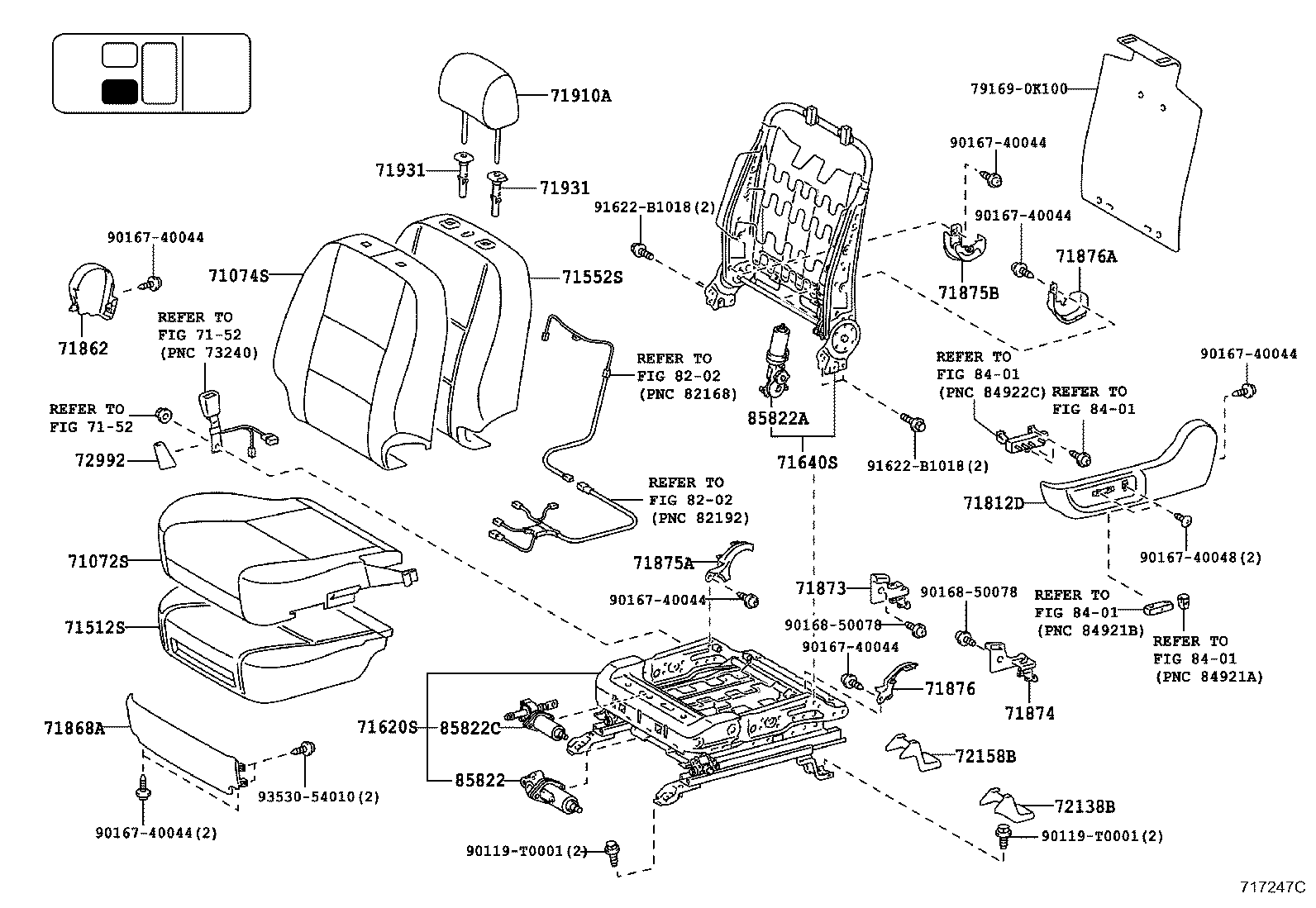

DRIVER SEAT W(POWER SEAT)

diagram 71072S 71074S 71512S 7152 7152 71552S 71620S 71640S 71812D 71862 71868A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72138B 72158B 72992 791690K100 8202 8202 8401 8401 8401 8401 85822 85822A 85822C 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 2 OF 3(1107- )LHD..DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

*PAS (FOR TWO PEOPLE TYPE)

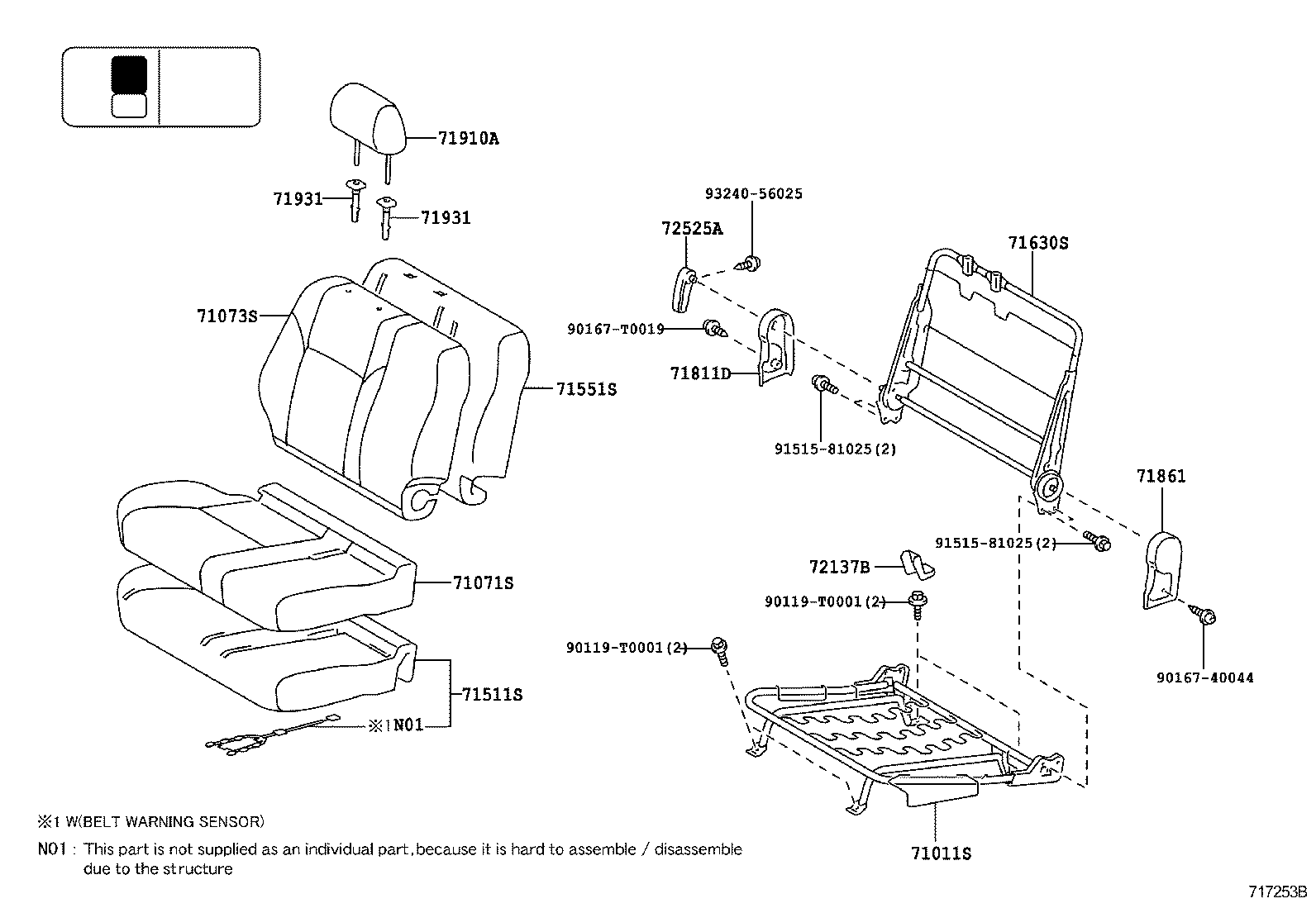

diagram 71011S 71071S 71073S 71511S 71551S 71630S 71811D 71861 71910A 71931 71931 72137B 72525A 90119T0001 90119T0001 9016740044 90167T0019 9151581025 9151581025 9324056025
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91515-81025
93240-56025

ILLUST NO. 2 OF 3(1107- )LHD..DCB,SADCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

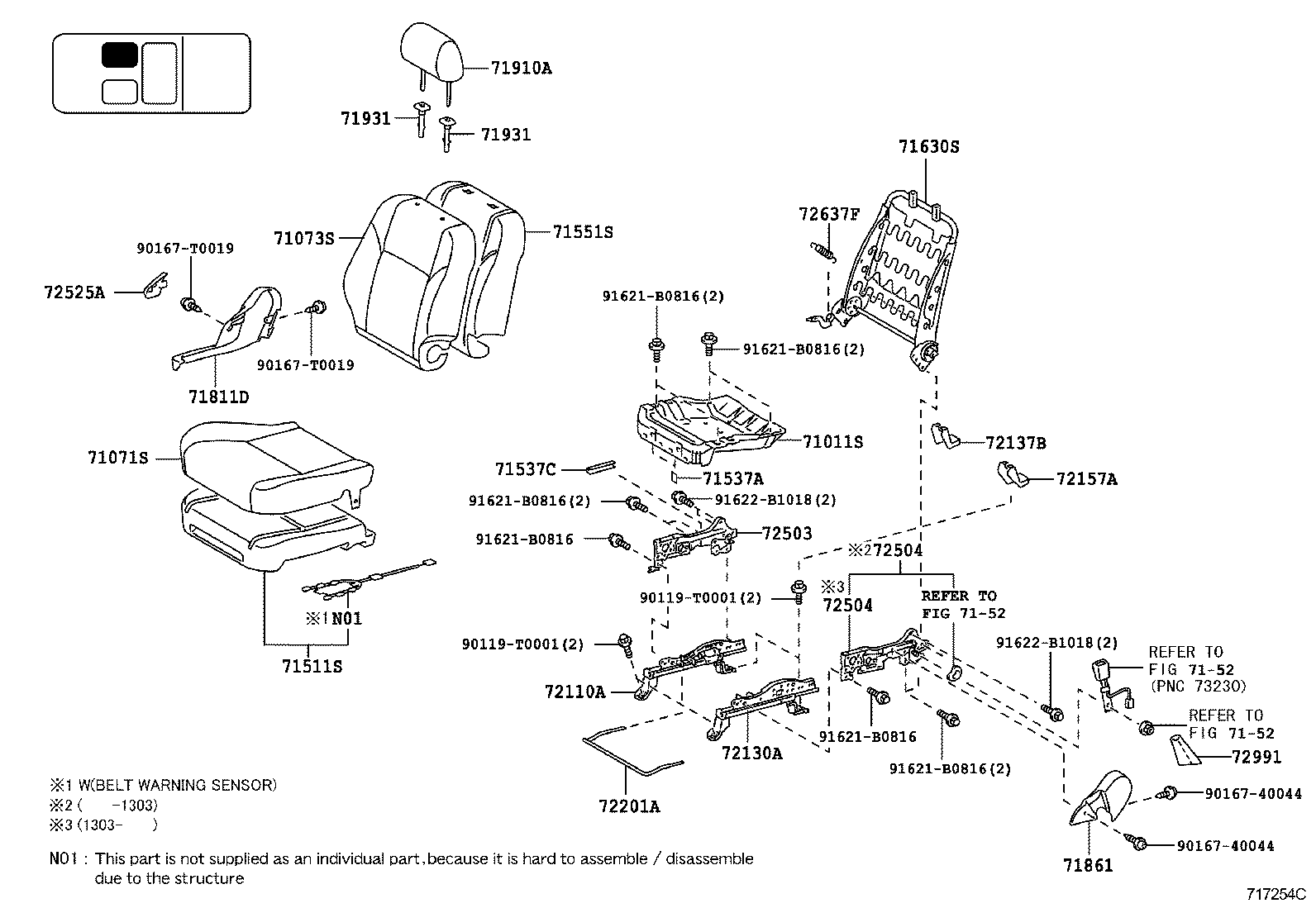

*PAS (FOR ONE PERSON TYPE)

diagram 71011S 71071S 71073S 71511S 7152 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72504 72525A 72637F 72991 90119T0001 90119T0001 9016740044 9016740044 90167T0019 90167T0019 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
90119-T0001
90167-40044
90167-T0019
91621-B0816
91622-B1018
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY HIGH BACK)

diagram 71052A 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71640S 717510K070 71812D 71849 71862 71875G 71876G 72020 72138H 72138J 72201B 72526E 73920A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 6WAY)

diagram 71012S 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71873 71874 71875G 71876G 71910A 71931 71931 72020 72138H 72138J 72201B 72495 72526E 73920A 79197A 79977 8202 8202 85802A 85867A 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016850078 9098012373 9354014006 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(LH POWER 8WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71868A 71873 71874 71875G 71876G 71910A 71931 71931 72020 72138H 72138J 73920A 79197A 8202 8202 8401 8401 8401 8401 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH BENCH)

diagram 71012S 71072S 71074S 71512S 71552S 71640S 71812D 71862 72138H 72138J 72526E 90105T0073 90105T0073 9011910921 9011910921 90119T0001 90119T0001 9324056025
Part # Description Qty Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY)

diagram 71011S 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71875F 71876F 71910A 71931 71931 72010 72137J 72137K 72201A 72525A 73910A 79197A 79977 8202 8202 85801A 85867 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9098012373 9354014006 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
93540-14006
94185-60600
Linked diagrams
7152
8202

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY HIGH BACK)

diagram 71051A 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71630S 717510K070 71811D 71848A 71861 71875F 71876F 72010 72137J 72137K 72201A 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY HIGH BACK)

diagram 71051A 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71630S 717510K070 71811D 71848A 71861 71873 71874 71875F 71876F 72010 72137J 72137K 72201A 72494 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016850078 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH BENCH)

diagram 71011S 71071S 71073S 71511S 71551S 71630S 71811D 71861 72137J 72137K 72525A 90105T0073 90105T0073 9011910921 9011910921 90119T0001 90119T0001 9324056025
Part # Description Qty Price
Common parts
90105-T0073
90119-10921
90119-T0001
93240-56025

(1505- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 711910K010 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(1505- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71873 71874 71875F 71876F 71910A 71931 71931 72010 72137J 72137K 72201A 72494 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016850078 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
90980-12373
94185-60600
Linked diagrams
7152

(1505- )

Click highlighted areas on diagram

FRONT(RH POWER 8WAY)

diagram 71013S 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 71630S 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71867A 71873 71874 71875F 71876F 71910A 71931 71931 72010 72137J 72137K 73910A 79197A 8202 8202 8401 8401 8401 8401 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90167-40044
94185-60600
Linked diagrams
7152
8202
8401

(1505- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 71620S 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71875G 71876G 71910A 71931 71931 72020 72138H 72138J 72201B 72526E 73920A 79197A 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152
