KUN15L-TRMDYV (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2L,3L,5L#

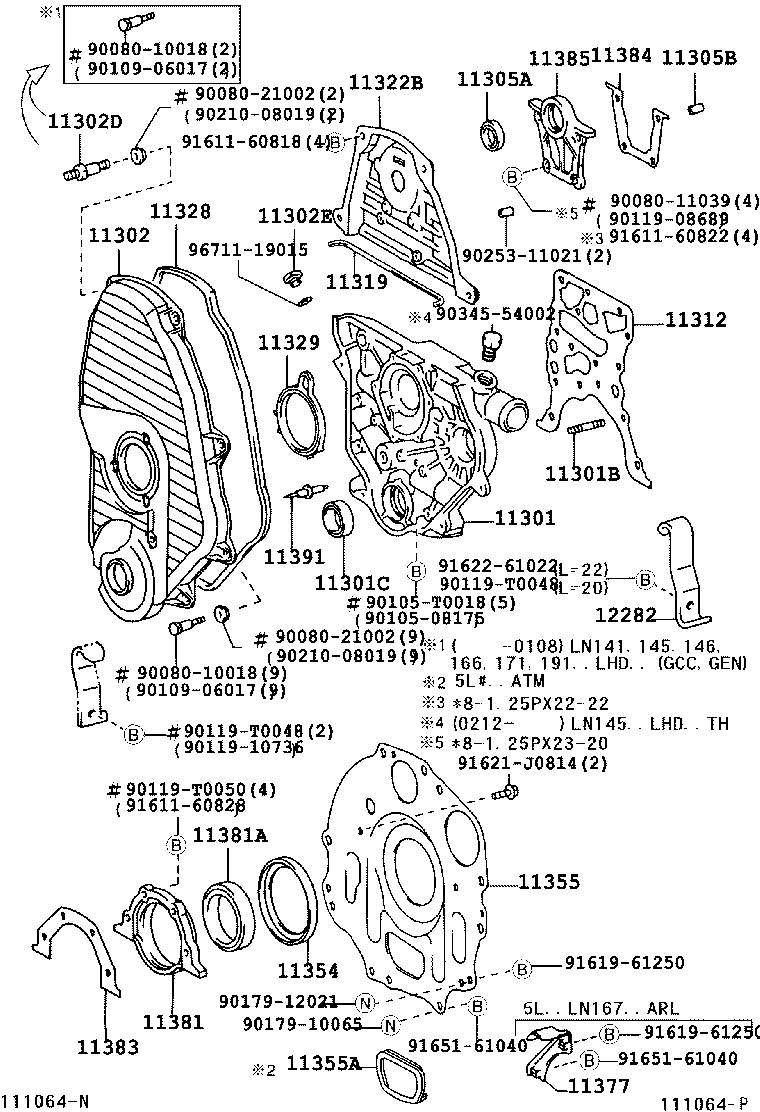

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302D 11302E 11305A 11305B 11312 11319 11322B 11328 11329 11354 11355 11355A 11377 11381 11381A 11383 11384 11385 11391 12282 9008010018 9008010018 9008011039 9008021002 9008021002 9010508175 90105T0018 9010906017 9010906017 9011908689 9011910736 90119T0048 90119T0048 90119T0050 9017910065 9017912021 9021008019 9021008019 9025311021 9034554002 9161160818 9161160822 9161160828 9161961250 9161961250 91621J0814 9162261022 9165161040 9165161040 9671119015
Part # Description Qty Price
Common parts
90080-10018
90080-11039
90080-21002
90105-08175
90105-T0018
90109-06017
90119-08689
90119-10736
90119-T0048
90119-T0050
90179-10065
90179-12021
90210-08019
90253-11021
90345-54002
91611-60818
91611-60822
91611-60828
91619-61250
91621-J0814
91622-61022
91651-61040
96711-19015

(0408- )1KDFTV,2KDFTV..KUN1#,2#,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,TH ; (0708- )2

Click highlighted areas on diagram

diagram 11301A 11301C 11301G 11301H 11301J 11301K 11301L 11302A 11302H 11320 11321 11322A 11322B 11328A 11336A 11354 11354 11355 11355 11356 11381 11381A 11494C 11496A 12511C 1501 15134B 1601 1601 1601 9008021002 9010506231 90105T0042 90105T0051 90105T0051 90105T0066 90105T0069 90105T0069 90105T0121 9010906017 90109T0002 9011606140 9011608374 9011608377 9011610160 90116T0009 90116T0020 9011906748 9011906748 9011906749 9011906750 90119T0057 90119T0057 90119T0058 90119T0059 90178T0018 90178T0032 9017906298 90182T0007 9021008019 9030108010 90301T0008 9040110057 90401T0002 9155180610 9155180610 9155180614 9155180616 9155180616 9212280616 9415180600
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-T0007

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

L=18,OD=8,*130

 1
90250-08120

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

L=18,OD=8,*163 OR *184

 1
90250-T0007

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

L=18,OD=8,*130

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90080-31096

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
90301-T0010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 1
90301-T0010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-T0012

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
90301-09018

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
90301-T0012

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

2KDFTV..KUN25;1KDFTV,2KDFTV..KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH

 1
90341-18015

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
11301K - SENSOR, CRANK POSITION
90919-05025

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
90919-05025

2KDFTV..KUN25;1KDFTV,2KDFTV..KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05050

2KDFTV..KUN25;1KDFTV,2KDFTV..KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH

 1
90919-05050

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-65003

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN16..(SCB,SMT)..CBU;1KDFTV..KUN26,36..GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH)

*163 OR *184

 1
90080-31098

1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..GCC,GEN,LA,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PKN)

*130

 1
90080-31098

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,26..(DCB,SCB,XTR)..(GCC,GEN,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,16,3#..(DCB,SCB,XTR)..(ANCOM,GCC,LA,TH)

*130

 2
90116-08376

1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH)

*130

 2
90116-08374

1KDFTV,2KDFTV..KUN1#,2#,3#..GCC,GEN,MA,PHL,SA,TH

*163 OR *184

 2
90116-08377

1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..GCC,GEN,LA,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PKN)

*130

 2
90116-08377

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN16..(SCB,SMT)..CBU;1KDFTV..KUN26,36..GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH)

*163 OR *184

 2
11320 - CASE ASSY, TIMING GEAR
11320-0L030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA)

*130

 1
11321 - CASE, TIMING GEAR
11321-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
11322A - COVER, TIMING BELT, NO.1
11332-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
11332-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..GCC,GEN,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)

*130

 1
11332-30020

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN16..(SCB,SMT)..CBU;1KDFTV..KUN26,36..GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH)

*163 OR *184

 1
11322B - COVER, TIMING BELT, NO.2
11322-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
11322-30010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);1KDFTV..KUN16..(SCB,SMT)..CBU;1KDFTV..KUN26,36..GEN,PHL,SA,TH;2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH)

*163 OR *184

 1
11322-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..GCC,GEN,PHL,TH;2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)

*130

 1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-30020

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
11328-30020

2KDFTV..KUN25;1KDFTV,2KDFTV..KUN1#,26,3#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-0L020

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
11354-30010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-0L020

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
11354-30010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11355 - PLATE, REAR END
11355-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
11355-67011

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11355-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
11355 - PLATE, REAR END
11355-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
11355-67011

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11355-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
11356 - PLATE, REAR END, NO.2
11356-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN25..GCC,GEN,MA,PKN,TH;1KDFTV,2KDFTV..KUN10,15,26,3#..ARL,GCC,GEN,PHL,TH

 1
11356-0L010

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-0K010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
11381A - SEAL, ENGINE REAR OIL
90080-31100

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
12511C - BRACKET, ALTERNATOR
12511-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN25..GCC,GEN,MA,PKN,TH;1KDFTV,2KDFTV..KUN10,15,26,3#..ARL,GCC,GEN,PHL,TH

 1
12511-0L010

1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..GCC,GEN;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);1KDFTV,2KDFTV..KUN15,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15134-67010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
15134-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130 TYPE B:REF ILL.

 1
