KUN15L-TRMDY (2005)

Toyota Hilux

Production Feb 2005 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )2KDFTV..KUN15..LHD..GEN,PHL ; (0408-)2KDFTV..KUN15..RHD..DLX,SR..DCR

Click highlighted areas on diagram

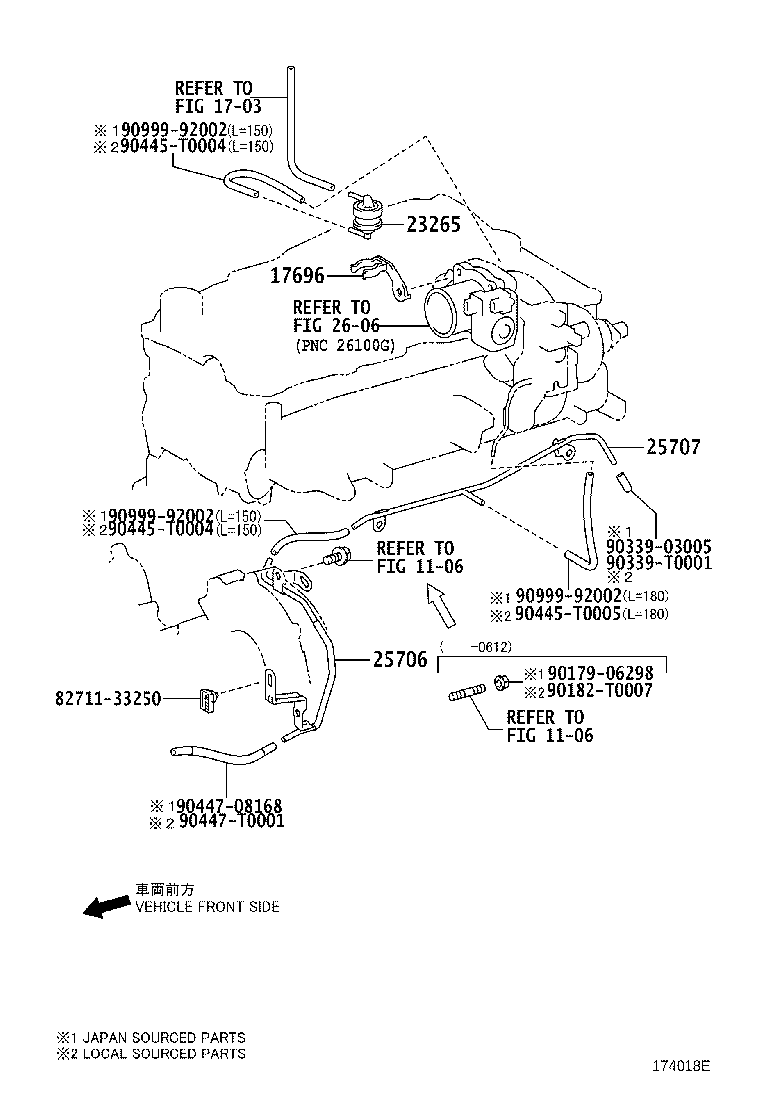

diagram 1106 1106 1703 17696 23265 25706 25707 2606 8271133250 9017906298 90182T0007 9033903005 90339T0001 90445T0004 90445T0004 90445T0005 9044708168 90447T0001 9099992002 9099992002 9099992002
Part # Description Qty Price
17696 - BRACKET, GAS FILTER
17696-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17696-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17696-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
23265 - FILTER, GAS, NO.1
90917-11036

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;1KDFTV..KUN26..4FC..(LA,PHL,TH);1KDFTV..KUN26..DCB..5F..(LA,PHL,SA,TH);1KDFTV..KUN26,36..(THDCB,XTR)..(GEN,TH);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
90917-11036

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;1KDFTV..KUN26..4FC..(LA,PHL,TH);1KDFTV..KUN26..DCB..5F..(LA,PHL,SA,TH);1KDFTV..KUN26,36..(THDCB,XTR)..(GEN,TH);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
90917-11036

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;1KDFTV..KUN26..4FC..(LA,PHL,TH);1KDFTV..KUN26..DCB..5F..(LA,PHL,SA,TH);1KDFTV..KUN26,36..(THDCB,XTR)..(GEN,TH);2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN1#..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
25706-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
25706-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
Common parts
82711-33250
90179-06298
90182-T0007
90339-03005
90339-T0001
90445-T0004
90445-T0005
90447-08168
90447-T0001
90999-92002
Linked diagrams
1106
1703
2606

(1505- )2KDFTV

Click highlighted areas on diagram

W(EGR & INTERCOOLER)

diagram 1701 17696 1905 23265 25706 25707 25760 25760A 25770 25860E 8271133250 8405 90105T0054 90105T0066 90159T0001 90445T0004 90447T0001 9046400082 9046400082 90469T0005 9099992002 9099992002 9099992002
Part # Description Qty Price
Common parts
82711-33250
90105-T0054
90105-T0066
90159-T0001
90445-T0004
90447-T0001
90464-00082
90469-T0005
90999-92002
Linked diagrams
1701
1905
8405

(1505- )2KDFTV

Click highlighted areas on diagram

W(EGR) & W/O(INTERCOOLER)

diagram 17696 1905 23265 25706 25707 25761B 2606 2606 8271133250 8405 90105T0066 90339T0001 90445T0004 90445T0004 90445T0005 90447T0001
Part # Description Qty Price
Common parts
82711-33250
90105-T0066
90339-T0001
90445-T0004
90445-T0005
90447-T0001
Linked diagrams
1905
2606
8405

(1505- )2KDFTV

Click highlighted areas on diagram

W/O(EGR & INTERCOOLER)

diagram 17696 1905 23265 25706 25761B 2606 2606 8271133250 8405 90105T0066 90339T0001 90445T0004 90447T0001
Part # Description Qty Price
Common parts
82711-33250
90105-T0066
90339-T0001
90445-T0004
90447-T0001
Linked diagrams
1905
2606
8405
