KUN15L-PRMDYM (2004)

Toyota Hilux

Production Nov 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

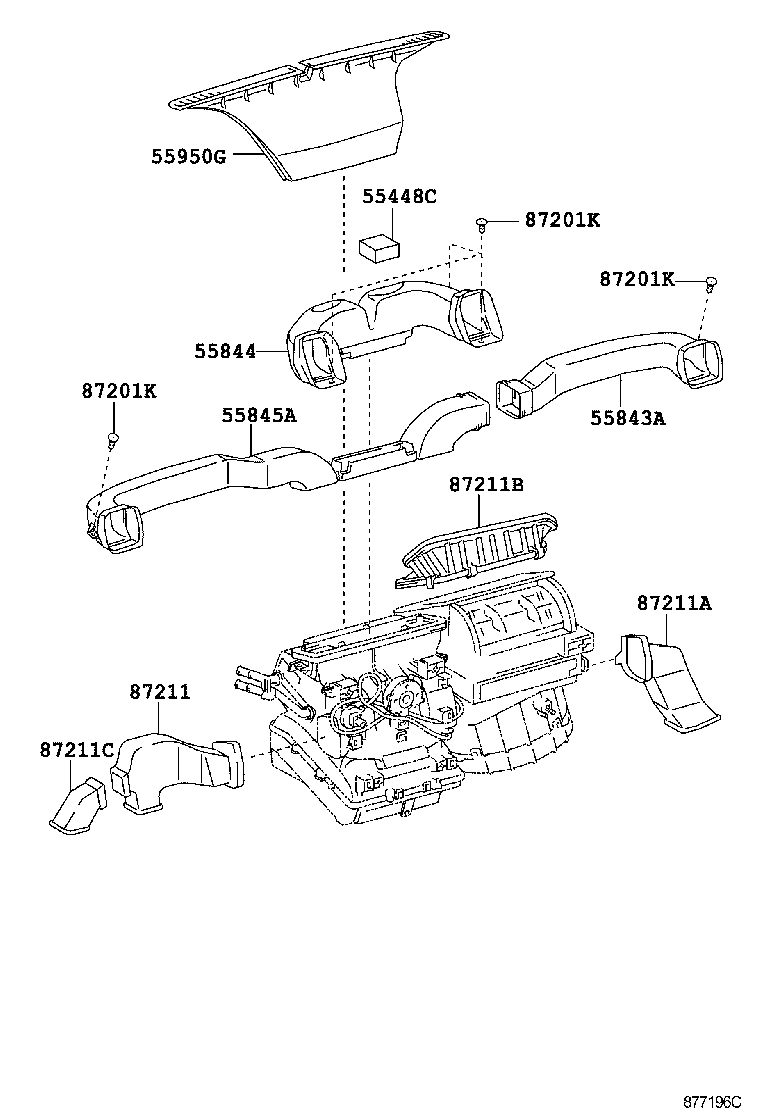

ILLUST NO. 2 OF 3(0411- )LHD

Click highlighted areas on diagram

AIR DUCT

diagram 55448C 55843A 55844 55845A 55950G 87201K 87201K 87201K 87211 87211A 87211B 87211C
Part # Description Qty Price
55448C - CUSHION, INSTRUMENT PANEL, NO.1
55448-0K010

KUN15..XTR..DLX;KUN15..XTR..HDCR;KUN15..(DCB,SCB)..(GEN,PHL,TH);KUN16,2#,36,TGN10,15,16,26,36..(DCB,SCB,XTR)..(GEN,IDN,PHL,TH)

 2
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0K010

TGN36..SCB;KUN25..SCB..MA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN26..4FC..(LA,PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN26,36,TGN16..XTR..(GEN,TH);KUN26..DCB..5F..(LA,PHL,SA,TH);KUN15..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN16..(DCB,SCB)..DLX..(ANCOM,GEN,LA,SA);GGN25,KUN16,LAN15,25,35,TGN15,26..(DCB,SCB,XTR)..(ANCOM,GEN,PKN,SA,TH)

 1
87201K - CLIP (FOR AIR DUCT)
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26,36..DCB..5F..DLX..LA;KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GEN,PKN,SA,TH);KUN16,25..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GEN,LA,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 5
87201K - CLIP (FOR AIR DUCT)
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26,36..DCB..5F..DLX..LA;KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GEN,PKN,SA,TH);KUN16,25..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GEN,LA,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 5
87201K - CLIP (FOR AIR DUCT)
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26,36..DCB..5F..DLX..LA;KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GEN,PKN,SA,TH);KUN16,25..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GEN,LA,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 5
87211 - DUCT, AIR, NO.1
87211-0K030

KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)

 1
87211A - DUCT, AIR, NO.2
87211-0K040

KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)

 1
87211B - DUCT, AIR, NO.3
87211-0K150

KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)

 1
87211C - DUCT, AIR, NO.4
87211-0K330

KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL)

 1
