KUN15L-PRMDYM (2004)
Toyota Hilux

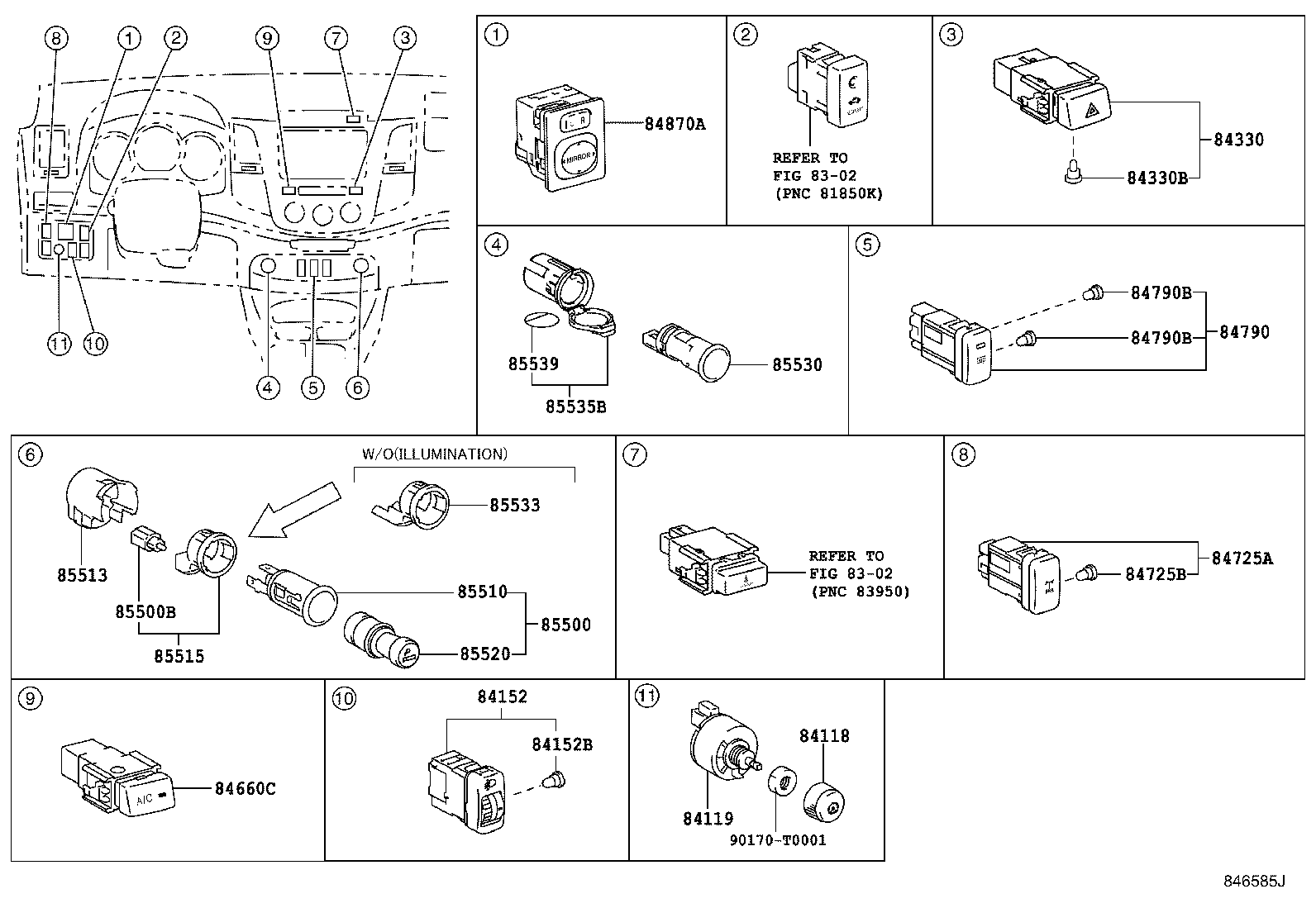

ILLUST NO. 5 OF 8(0411- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0K010 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,35..(DCB,SCB)..DLX..(ANCOM,GCC,GEN,SA);KUN36,TGN26..(DCB,SCB,THDCB)..5F..SR..(GEN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..(DCB,SCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-01056 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,35..(DCB,SCB)..DLX..(ANCOM,GCC,GEN,SA);KUN36,TGN26..(DCB,SCB,THDCB)..5F..SR..(GEN,SA,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..(DCB,SCB,XTR)..(ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH) 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-22110 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
KUN25..SCB..MA;TGN36..4FC..ANCOM;KUN26..LHD..(GEN,LA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15,TGN26..DCB..DLX..(LA,PHL);KUN10,36,TGN10,11..(GCC,IDN,LA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15,16,LAN15,25,35,TGN15,26..(DCB,SCB,THDCB,XTR)..(DLX,STD)..(ANCOM,GCC,GEN,PKN,SA,TH) |
1 | ||
| Common parts | ||||
| 90170-T0001 | ||||
| Linked diagrams | ||||
| 8302 | ||||

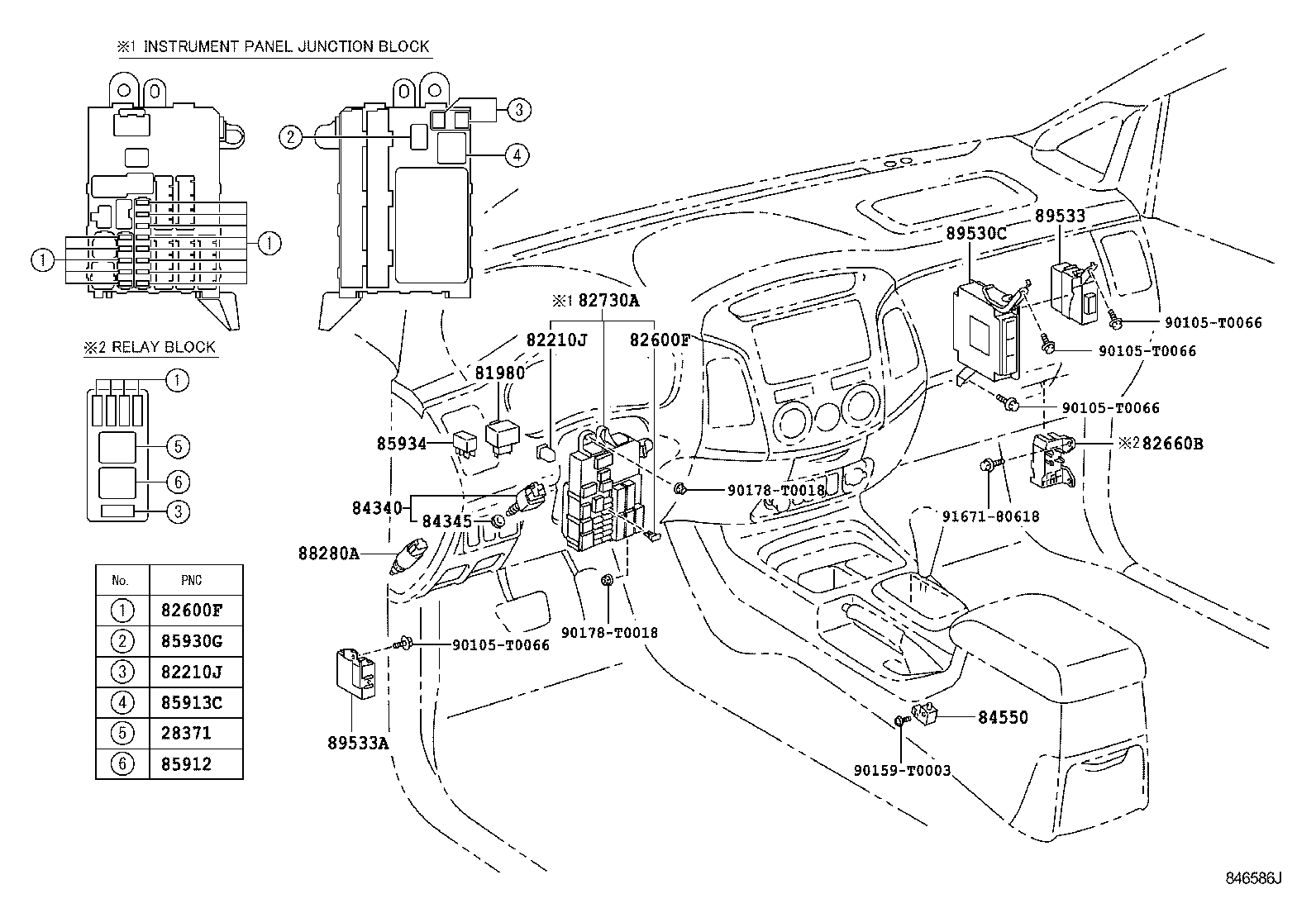

ILLUST NO. 4 OF 8(0411- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN36..DCB..(ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN10,15,LAN15,25,35,TGN10,11,15,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,SA,TH) |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08284 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 10A,MINI FUSE,RED |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09040 |
TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26,TGN15..LHD..(DCB,THDCB)..GEN;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15..ANCOM,ARL,GCC,PKN,SA |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-T2003 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90159-T0003 | ||||
| 90178-T0018 | ||||
| 91671-80618 | ||||
