KUN15L-PRMDYM (2004)

Toyota Hilux

Production Nov 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

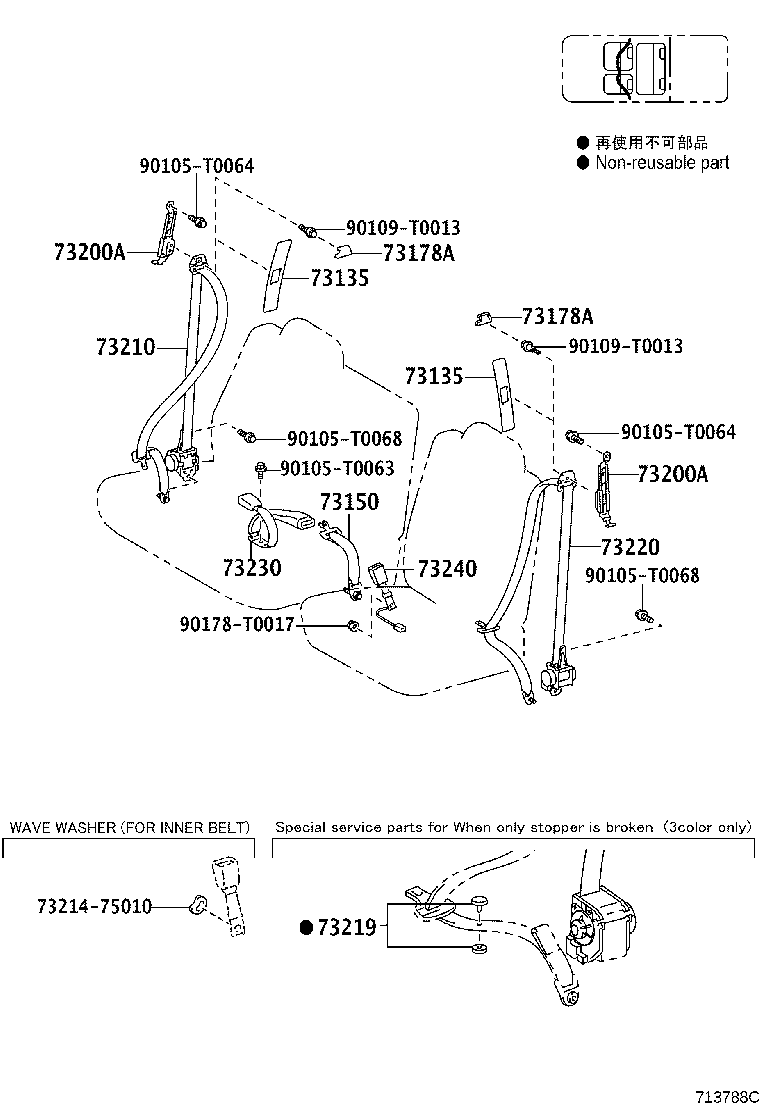

ILLUST NO. 1 OF 2(0411- )LHD..DCB,THDCB

Click highlighted areas on diagram

FRONT

diagram 73135 73135 73150 73178A 73178A 73200A 73200A 73210 7321475010 73219 73220 73230 73240 90105T0063 90105T0064 90105T0064 90105T0068 90105T0068 90109T0013 90109T0013 90178T0017
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010B0

KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);KUN25,TGN26..SR..(ANCOM,GEN,MA);KUN26..(DCB,THDCB)..(ARL,GEN,LA);KUN15,35,TGN26,36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,PHL,SA,TH);GGN15,25,KUN16,25,36,LAN15,25,35,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,ARL,GEN,LA,SA)

LT.GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-02010B0

KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);KUN25,TGN26..SR..(ANCOM,GEN,MA);KUN26..(DCB,THDCB)..(ARL,GEN,LA);KUN15,35,TGN26,36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,PHL,SA,TH);GGN15,25,KUN16,25,36,LAN15,25,35,TGN15,16..(DCB,THDCB)..(5F,5FC)..(ANCOM,ARL,GEN,LA,SA)

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH)

LT.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3

KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..(LA,SA);KUN26..(DCB,THDCB)..(ARL,GEN,LA,TH);KUN25,35,TGN16,36..(DCB,THDCB)..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26..(DCB,THDCB)..(ANCOM,ARL,GEN,PHL,SA,TH)

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020B0

GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH)

LT.GRAY,TRIM1#

 2
73200-02090B0

KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,35,TGN15,16,26..(DCB,THDCB)..(ARL,GEN)

LT.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-02020B0

GGN15,25,KUN15,16,2#,TGN15,16,26,36..DCB..(ARL,GEN,PHL,TH)

LT.GRAY,TRIM1#

 2
73200-02090B0

KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,35,TGN15,16,26..(DCB,THDCB)..(ARL,GEN)

LT.GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0K090B0

KUN15..PHL;KUN25,TGN26..THDCB..DLX;KUN15,25..RHD..DCB..(GEN,TH);TGN26..(DCB,THDCB)..SR..(GEN,TH);KUN16,26,35..(DCB,THDCB)..(GEN,TH)

GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33020

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

GRAY

 1
73219-33010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BLACK

 1
73219-33030

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0K090B0

KUN15,16,25..DCB..(PHL,TH);KUN26,TGN26..(DCB,THDCB)..(GEN,TH);KUN15,25,35,TGN15,16..LHD..(DCB,THDCB)..GEN

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0K010B0

KUN15..PHL;KUN15,25..RHD..GEN;KUN2#,35,TGN16,26..(THDCB,XTR)..DLX..CBU

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0K020B0

KUN15..PHL;KUN26,TGN26..SR..GEN

GRAY,TRIM1#

 1
Common parts
73214-75010
90105-T0063
90105-T0064
90105-T0068
90109-T0013
90178-T0017
