Toyota Hilux KUN15 SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
HILUX
KUN15L-PRMDYM (2004)
7151 - SEAT & SEAT TRACK

KUN15L-PRMDYM (2004)

Toyota Hilux

Production Nov 2004 - Aug 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0411- )LHD

Click highlighted areas on diagram

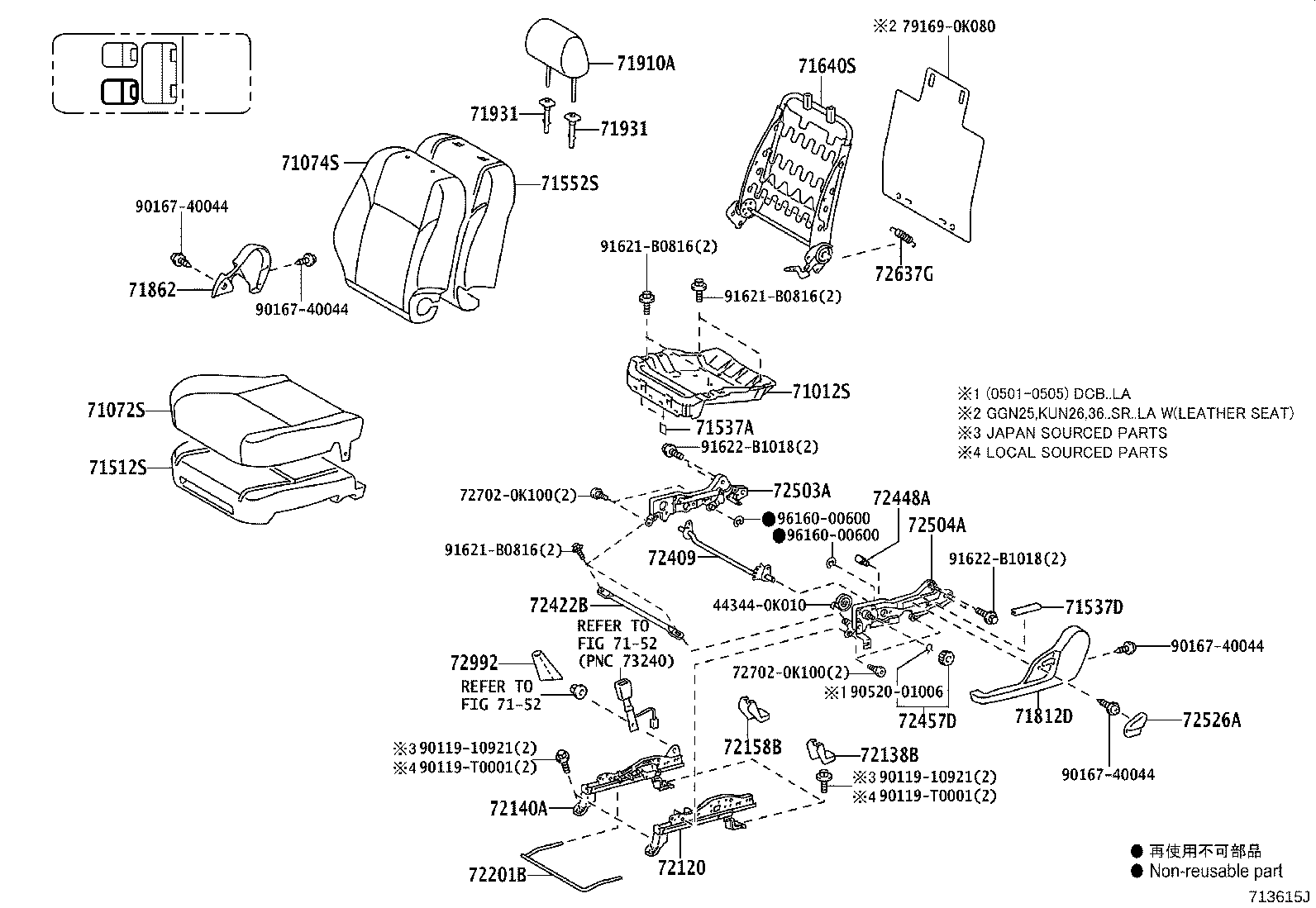

DRIVER SEAT

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030	TGN16..LHD..DCB;KUN15,25..DCB..(GCC,MA,PHL,SA,TH);KUN15,25,LAN25..LHD..DCB..(GEN,SA);GGN15,25,KUN16,26,36,LAN15,TGN15,26,36..DCB..(ARL,GCC,GEN,PHL,SA,TH)	08/2004 - 08/2007	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K150B0	GGN25..DLX..CBU;GGN25..5FC..IV3;TGN16..XTR..GEN;GGN15,KUN26..(4FC,5FC)..DLX;GGN15,KUN15,16,26..(DCB,XTR)..5F..DLX..(ARL,PHL) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0K070B0	GGN25..5FC..IV3;GGN15,KUN26..(4FC,5FC)..DLX;KUN25,TGN16,26..(THDCB,XTR)..DLX;KUN15,25,TGN15,16,26..DLX..(GCC,PHL);GGN15,KUN26..(DCB,THDCB,XTR)..5F..DLX..(ARL,GEN);GGN25,KUN10,16,35,TGN10,11..DLX..(ARL,GCC,GEN)..CBU MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0K050	KUN35..SCB,THDCB;TGN16..LHD..5F..DLX;TGN26..DCB..DLX..LA;KUN35..LHD..DCB..DLX;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16..(DCB,XTR)..(GCC,PHL,SA,TH);KUN15,TGN36..LHD..DLX..(ANCOM,GEN,LA);GGN25,KUN10,25,LAN15,25,TGN10,11,15..LHD;KUN26,36..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);KUN25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,TH)	08/2004 - 12/2008	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)	08/2004 - 12/2008	4
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-0K010	KUN1#,2#..DCB	08/2004 - 11/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020	GGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH)	08/2004 - 12/2008	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020B0	GGN15..5FC;KUN25..SR..MA;KUN25..SCB..LA;KUN15..XTR..DLX;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN26..(DCB,XTR)..ARL;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN36..(5F,5FC)..(ARL,SA)..CBU;TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,TGN36..DCB..(4FC,5F)..(ANCOM,ARL,SA);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K040B1	KUN15..XTR..DLX;TGN16..(DCB,XTR)..DLX..(GCC,GEN);GGN15,25,KUN15,16,2#,35,TGN15,26..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL) GRAY,TRIM1#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K010	KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA)	08/2004 - 12/2008	1
72138B - COVER, SEAT TRACK, LH
72137-0K010B0	KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K010	KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB)..DLX..(GEN,PHL,SA)	08/2004 - 12/2008	1
72158B - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K010B0	KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040B0	GGN15..5FC;KUN25..SR..MA;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;TGN36..DCB..(ANCOM,SA);TGN26..ANCOM,GCC,GEN,SA;KUN15..LHD..SCB..(GCC,SA);GGN25,KUN26..(4FC,5FC)..IV3;KUN10,25,LAN15,25,TGN1#..LHD..5F;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA);GGN15,KUN16,35..DCB..5F..(ANCOM,ARL,LA);GGN25,KUN36..(5F,5FC)..(ANCOM,ARL,LA,SA)..CBU;KUN15,TGN36..(DCB,XTR)..DLX..(GCC,LA,PHL,SA,TH) GRAY,TRIM1#	08/2004 - 12/2008	1
72637G - SPRING, SEAT BACK, LH
72637-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
Common parts
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 3(0411- )LHD

Click highlighted areas on diagram

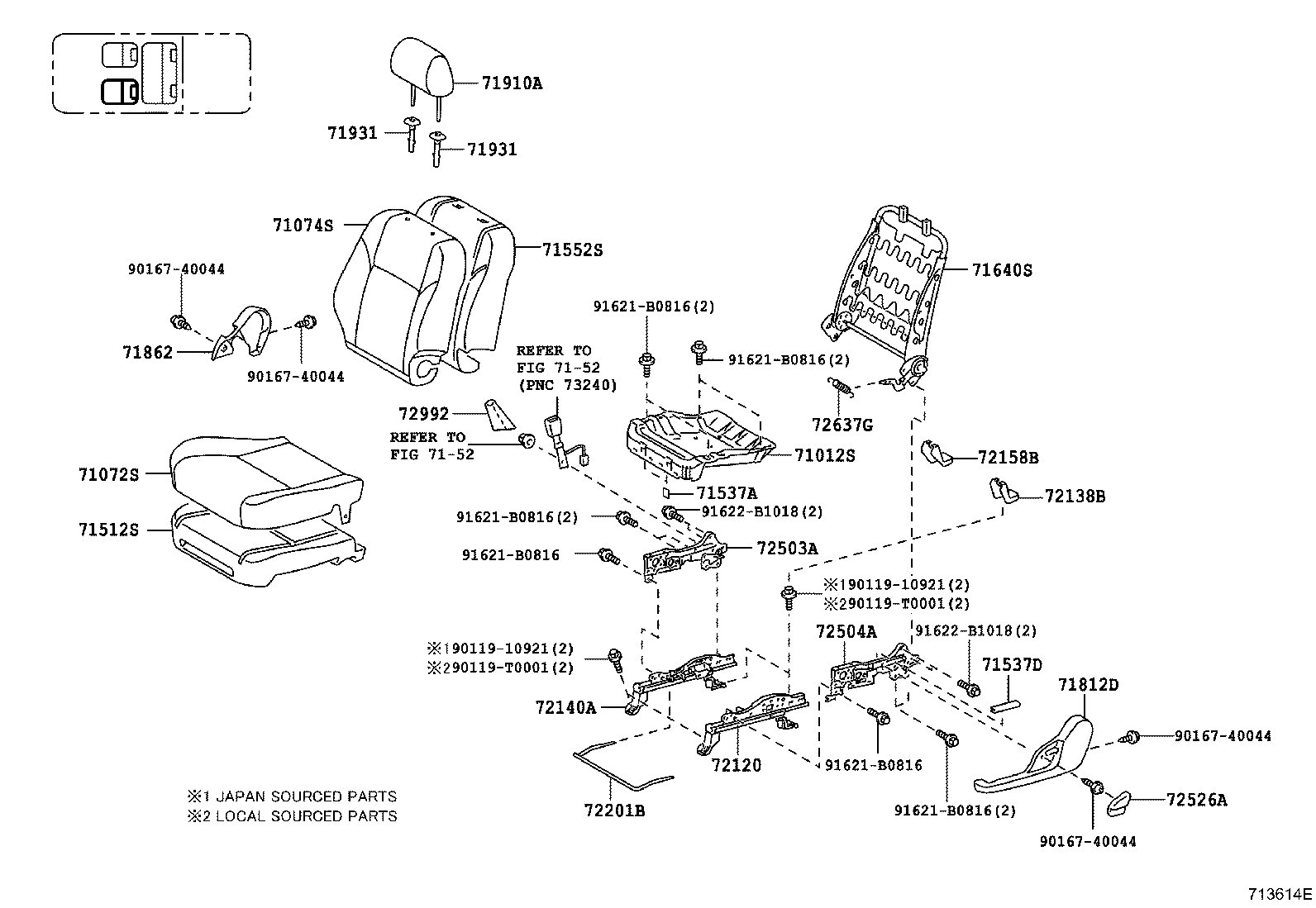

DRIVER SEAT W(VERTICAL ADJUSTER)

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030	TGN16..LHD..DCB;KUN15,25..DCB..(GCC,MA,PHL,SA,TH);KUN15,25,LAN25..LHD..DCB..(GEN,SA);GGN15,25,KUN16,26,36,LAN15,TGN15,26,36..DCB..(ARL,GCC,GEN,PHL,SA,TH)	08/2004 - 08/2007	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0K150B0	GGN25..DLX..CBU;GGN25..5FC..IV3;TGN16..XTR..GEN;GGN15,KUN26..(4FC,5FC)..DLX;GGN15,KUN15,16,26..(DCB,XTR)..5F..DLX..(ARL,PHL) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0K070B0	GGN25..5FC..IV3;GGN15,KUN26..(4FC,5FC)..DLX;KUN25,TGN16,26..(THDCB,XTR)..DLX;KUN15,25,TGN15,16,26..DLX..(GCC,PHL);GGN15,KUN26..(DCB,THDCB,XTR)..5F..DLX..(ARL,GEN);GGN25,KUN10,16,35,TGN10,11..DLX..(ARL,GCC,GEN)..CBU MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0K050	KUN35..SCB,THDCB;TGN16..LHD..5F..DLX;TGN26..DCB..DLX..LA;KUN35..LHD..DCB..DLX;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16..(DCB,XTR)..(GCC,PHL,SA,TH);KUN15,TGN36..LHD..DLX..(ANCOM,GEN,LA);GGN25,KUN10,25,LAN15,25,TGN10,11,15..LHD;KUN26,36..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);KUN25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,TH)	08/2004 - 12/2008	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)	08/2004 - 12/2008	4
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-0K010	KUN1#,2#..DCB	08/2004 - 11/2004	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K020	GGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH)	08/2004 - 12/2008	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020B0	GGN15..5FC;KUN25..SR..MA;KUN25..SCB..LA;KUN15..XTR..DLX;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN26..(DCB,XTR)..ARL;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN36..(5F,5FC)..(ARL,SA)..CBU;TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,TGN36..DCB..(4FC,5F)..(ANCOM,ARL,SA);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K040B1	KUN15..XTR..DLX;TGN16..(DCB,XTR)..DLX..(GCC,GEN);GGN15,25,KUN15,16,2#,35,TGN15,26..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL) GRAY,TRIM1#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K010	KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA)	08/2004 - 12/2008	1
72138B - COVER, SEAT TRACK, LH
72137-0K010B0	KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K010	KUN25..DCB..SR;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;GGN15..(DCB,SCB)..5FC;TGN36..DCB..(ANCOM,SA);KUN36..RHD..(DCB,SCB)..5F;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN15..RHD..DCB..(HDCR,HTWC);TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,26,TGN26..DCB..(4FC,5F)..(ARL,TH);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB)..DLX..(GEN,PHL,SA)	08/2004 - 12/2008	1
72158B - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K010B0	KUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030	GGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)	08/2004 - 12/2008	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040B0	GGN15..5FC;KUN25..SR..MA;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;TGN36..DCB..(ANCOM,SA);TGN26..ANCOM,GCC,GEN,SA;KUN15..LHD..SCB..(GCC,SA);GGN25,KUN26..(4FC,5FC)..IV3;KUN10,25,LAN15,25,TGN1#..LHD..5F;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA);GGN15,KUN16,35..DCB..5F..(ANCOM,ARL,LA);GGN25,KUN36..(5F,5FC)..(ANCOM,ARL,LA,SA)..CBU;KUN15,TGN36..(DCB,XTR)..DLX..(GCC,LA,PHL,SA,TH) GRAY,TRIM1#	08/2004 - 12/2008	1
72637G - SPRING, SEAT BACK, LH
72637-0K010	GGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)	08/2004 - 12/2008	1
Common parts
44344-0K010
72702-0K100
79169-0K080
90119-10921
90119-T0001
90167-40044
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 2 OF 3(0411- )LHD..DCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

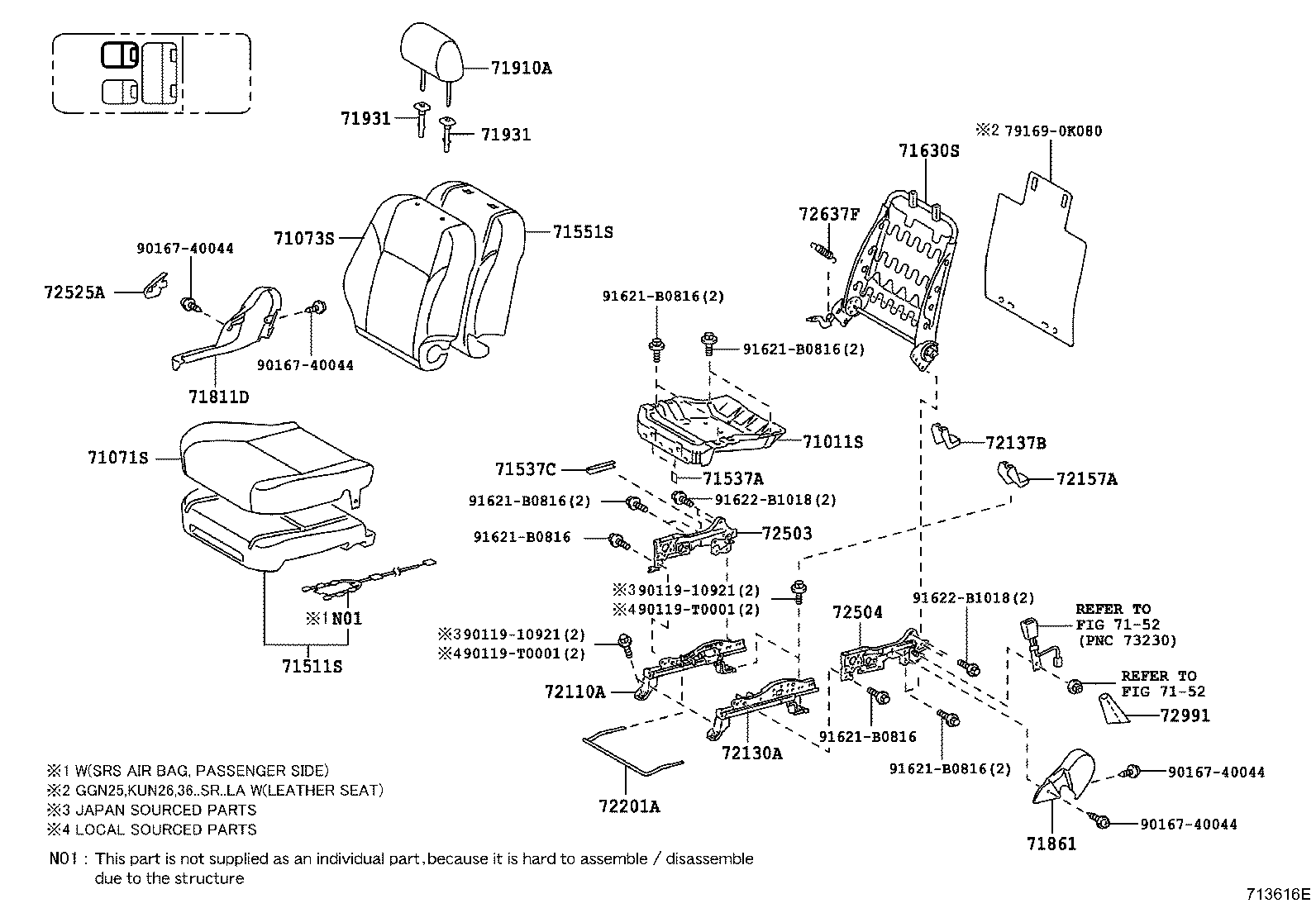

PASSENGER SEAT(FOR ONE PERSON TYPE)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030	KUN15,TGN36..DCB..(PHL,SA);KUN26..DCB..(ARL,PHL,SA,TH);GGN15,25,KUN15,16,25,36,LAN25,35,TGN16,26..RHD..DCB	08/2004 - 08/2007	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K070B0	KUN15..DLX..PHL;TGN26..4FC..GCC;KUN25,TGN16,26..(THDCB,XTR)..DLX;GGN15,25,KUN16,26,35..DLX..(ARL,GEN) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K070B0	KUN15..DLX..PHL;TGN26..4FC..GCC;KUN25,TGN16,26..(THDCB,XTR)..DLX;GGN15,25,KUN16,26,35..DLX..(ARL,GEN) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA)	08/2004 - 02/2012	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020	TGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)	08/2004 - 12/2008	4
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-0K010	KUN1#,2#	08/2004 - 11/2004	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU	08/2004 - 02/2012	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B0	KUN26..DLX;KUN25..THDCB;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B0	KUN26..DLX;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,TGN16..(THDCB,XTR)..GEN;GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K040B1	KUN15..XTR..DLX;TGN16..(DCB,XTR)..DLX..(GCC,GEN);GGN15,25,KUN15,16,2#,35,TGN15,26..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL) GRAY,TRIM1#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-0K010	KUN26..DLX;KUN25..THDCB;KUN26..LHD..4FC;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);TGN26..(SCB,THDCB)..(GEN,SA);TGN26,36..SR..(ANCOM,PHL,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..DCB..5F..SR..(LA,PHL,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN15,25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA)	08/2004 - 02/2012	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-0K010	KUN26..DLX;KUN25..THDCB;KUN26..LHD..4FC;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);TGN26..(SCB,THDCB)..(GEN,SA);TGN26,36..SR..(ANCOM,PHL,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..DCB..5F..SR..(LA,PHL,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN15,25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA)	08/2004 - 02/2012	1
72137B - COVER, SEAT TRACK, RH
72137-0K010B0	TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0K010B0	TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K030	KUN26..DLX;KUN25..SCB..MA;TGN16..5F..ARL;KUN26..LHD..4FC;KUN35..DLX..(GEN,SA);KUN26..THDCB..5F..SR;TGN26,36..4FC..(ANCOM,GCC);TGN26..(SCB,THDCB)..(GEN,SA);TGN26,36..SR..(ANCOM,PHL,SA);KUN25,TGN16..(THDCB,XTR)..GEN;KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..DCB..5F..SR..(LA,PHL,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN15,25,35,TGN15..RHD..(DCB,SCB,XTR)..(DLX,STD)	08/2004 - 02/2012	1
72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K040	KUN26..DLX;KUN25..SCB..MA;TGN16..5F..ARL;KUN26..LHD..4FC;KUN35..DLX..(GEN,SA);KUN26..THDCB..5F..SR;TGN26,36..4FC..(ANCOM,GCC);TGN26..(SCB,THDCB)..(GEN,SA);TGN26,36..SR..(ANCOM,PHL,SA);KUN25,TGN16..(THDCB,XTR)..GEN;KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..DCB..5F..SR..(LA,PHL,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN15,25,35,TGN15..RHD..(DCB,SCB,XTR)..(DLX,STD)	08/2004 - 02/2012	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B0	KUN26..ARL,LA;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..4FC..(ANCOM,GCC);KUN25,TGN26..SR..(ANCOM,MA);TGN26..(SCB,THDCB)..(GEN,SA);KUN2#,TGN16..(THDCB,XTR)..GEN;KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA);KUN15,LAN25,TGN16,36..RHD..(DCB,SCB)..5F..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
72637F - SPRING, SEAT BACK, RH
72637-0K010	TGN26..RHD;KUN25..SCB..MA;KUN2#,TGN26..THDCB;KUN35..DLX..(GEN,SA);KUN36..(DCB,SCB)..5F;KUN25..RHD..(GEN,SA);TGN26,36..4FC..(ANCOM,GCC);KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN16,LAN15,25..RHD..(DCB,SCB);KUN15,TGN16..RHD..5F..DLX..(ARL,SA);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA)	08/2004 - 02/2012	1
Common parts
79169-0K080
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 3(0502- )LHD..DCB,SCB,THDCB,THSCB

Click highlighted areas on diagram

PASSENGER SEAT(FOR TWO PEOPLE TYPE)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0K030	KUN15,TGN36..DCB..(PHL,SA);KUN26..DCB..(ARL,PHL,SA,TH);GGN15,25,KUN15,16,25,36,LAN25,35,TGN16,26..RHD..DCB	08/2004 - 08/2007	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0K070B0	KUN15..DLX..PHL;TGN26..4FC..GCC;KUN25,TGN16,26..(THDCB,XTR)..DLX;GGN15,25,KUN16,26,35..DLX..(ARL,GEN) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0K070B0	KUN15..DLX..PHL;TGN26..4FC..GCC;KUN25,TGN16,26..(THDCB,XTR)..DLX;GGN15,25,KUN16,26,35..DLX..(ARL,GEN) MID.GRAY,TRIM1#	11/2004 - 08/2008	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K050	TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA)	08/2004 - 02/2012	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K020	TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU	08/2004 - 02/2012	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K020B0	KUN26..DLX;KUN25..THDCB;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K020B0	KUN26..DLX;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,TGN16..(THDCB,XTR)..GEN;GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K040B1	KUN15..XTR..DLX;TGN16..(DCB,XTR)..DLX..(GCC,GEN);GGN15,25,KUN15,16,2#,35,TGN15,26..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL) GRAY,TRIM1#	08/2004 - 08/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02030B3	KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
71930-02050B3	KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1#	08/2004 - 02/2012	2
72137B - COVER, SEAT TRACK, RH
72137-0K010B0	TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1#	08/2004 - 12/2008	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K040B0	KUN26..ARL,LA;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..4FC..(ANCOM,GCC);KUN25,TGN26..SR..(ANCOM,MA);TGN26..(SCB,THDCB)..(GEN,SA);KUN2#,TGN16..(THDCB,XTR)..GEN;KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,LAN35,TGN10,15..(DLX,SR)..(ANCOM,ARL,IDN,SA);KUN15,LAN25,TGN16,36..RHD..(DCB,SCB)..5F..(ARL,GEN,PKN,SA) GRAY,TRIM1#	08/2004 - 02/2012	1
Common parts
90119-10921
90119-T0001
90167-40044
91515-81025
93240-56025
