KUN15L-PRMDYM (2004)

Toyota Hilux

Production Nov 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

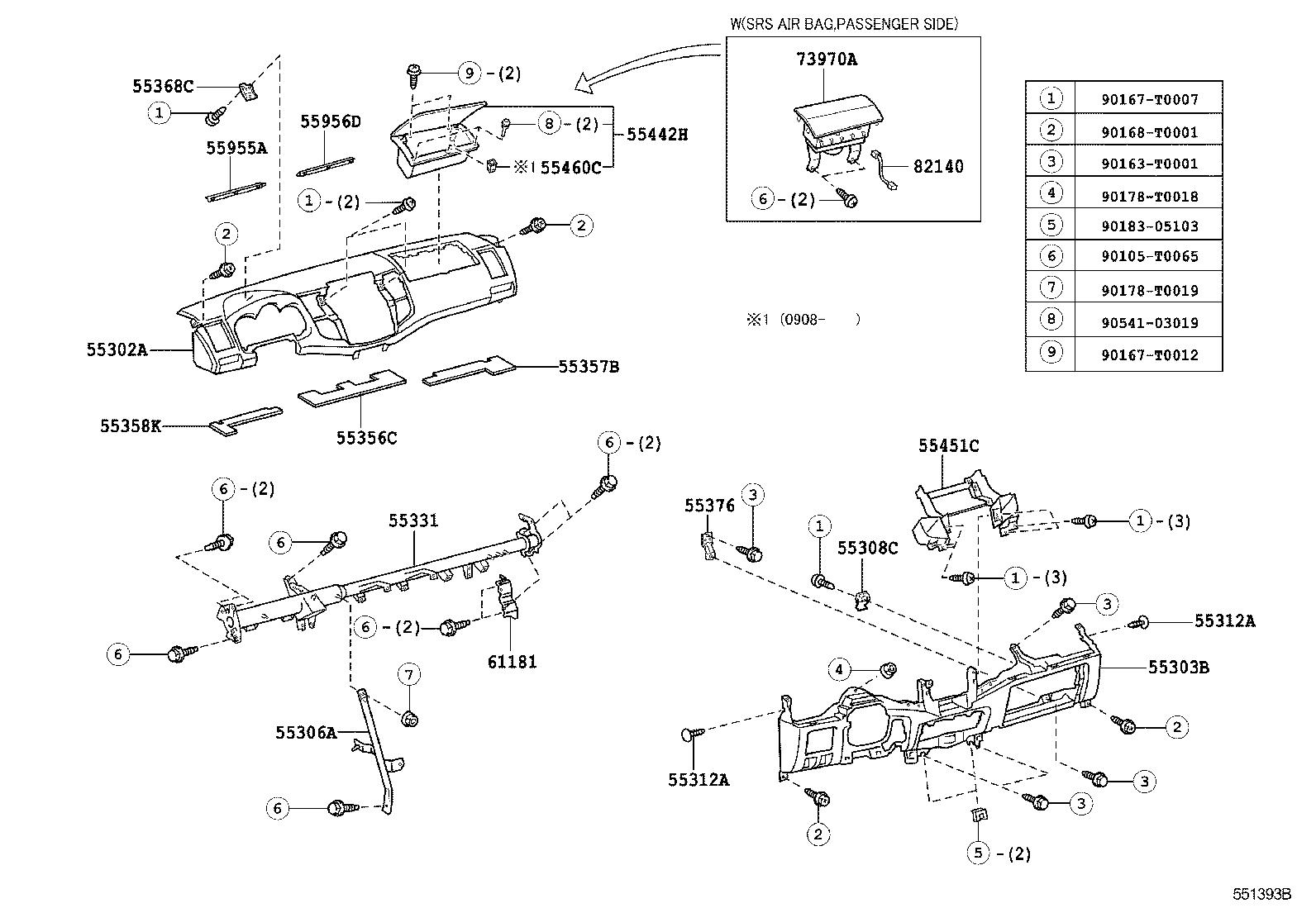

ILLUST NO. 1 OF 2(0411- )LHD

Click highlighted areas on diagram

diagram 55302A 55303B 55306A 55308C 55312A 55312A 55331 55356C 55357B 55358K 55368C 55376 55442H 55451C 55460C 55955A 55956D 61181 73970A 82140 90105T0065 90163T0001 90167T0007 90167T0012 90168T0001 90178T0018 90178T0019 9018305103 9054103019
Part # Description Qty Price
55312A - CLIP, INSTRUMENT PANEL
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 2
55312A - CLIP, INSTRUMENT PANEL
90467-T0002B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 2
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-0K010

GGN15,25,KUN1#,2#,TGN1#,26,36..DCB..(ARL,GCC,GEN,PHL,TH)

 1
55356-0K030

TGN16..SCB..SR;KUN15..SCB..GCC;TGN16..GCC..IV3;KUN15,TGN10..RHD..(SCB,XTR)..(HDCR,HTWC);GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB,THSCB)..(ARL,GCC,GEN,PHL,TH)

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55358-0K020

GGN15,25,KUN1#,2#,TGN1#,26,36..DCB..(ARL,GCC,GEN,PHL,TH)

 1
55358-0K040

TGN16..SCB..SR;KUN15..SCB..GCC;TGN16..GCC..IV3;KUN15,TGN10..RHD..(SCB,XTR)..(HDCR,HTWC);GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB,THSCB)..(ARL,GCC,GEN,PHL,TH)

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-0K010

GGN15,25,KUN1#,2#,TGN1#,26,36..DCB..(ARL,GCC,GEN,PHL,TH)

 1
55358-0K030

TGN16..SCB..SR;KUN15..SCB..GCC;TGN16..GCC..IV3;KUN15,TGN10..RHD..(SCB,XTR)..(HDCR,HTWC);GGN15,25,KUN15,16,2#,3#,TGN15,16,26,36..(DCB,THDCB,THSCB)..(ARL,GCC,GEN,PHL,TH)

 1
55368C - BRACKET, METER MOUNTING
55368-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55451C - BOX, INSTRUMENT PANEL, NO.1
55451-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1
55955-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,TH);KUN16,2#,TGN10,15,16,26,36..(DCB,SCB,XTR)..(GEN,IDN,PHL,TH)

DK.GRAY,TRIM1#

 1
55956D - PLATE, DEFROSTER NOZZLE OPENING, NO.2
55956-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,TH);KUN16,2#,TGN10,15,16,26,36..(DCB,SCB,XTR)..(GEN,IDN,PHL,TH)

DK.GRAY,TRIM1#

 1
Common parts
90105-T0065
90163-T0001
90167-T0007
90167-T0012
90168-T0001
90178-T0018
90178-T0019
90183-05103
90541-03019

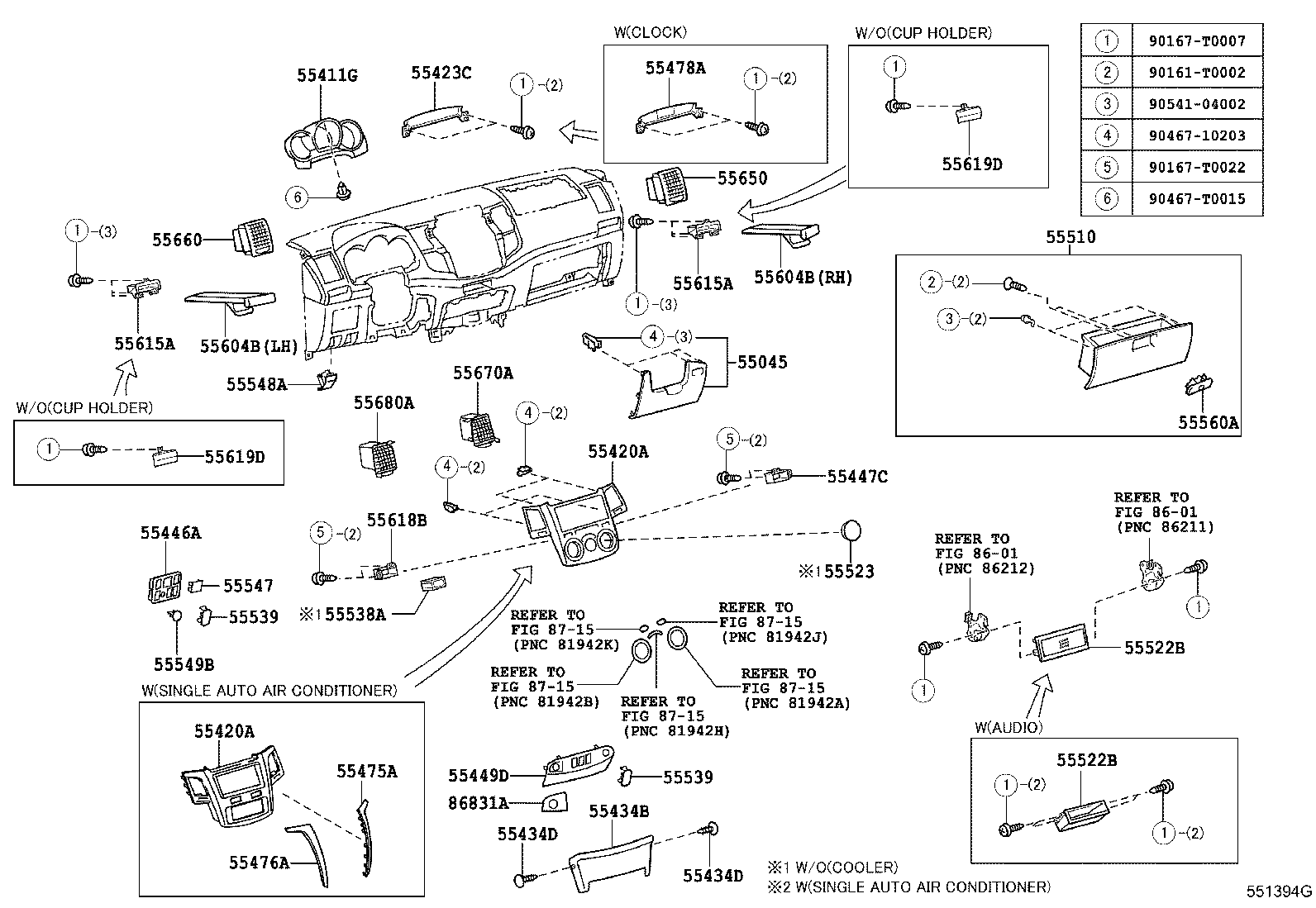

ILLUST NO. 2 OF 2(0411- )LHD

Click highlighted areas on diagram

diagram 55045 55411G 55420A 55420A 55423C 55434B 55434D 55434D 55446A 55447C 55449D 55475A 55476A 55478A 55510 55522B 55522B 55523 55538A 55539 55539 55547 55548A 55549B 55560A 55604B 55604B 55615A 55615A 55618B 55619D 55619D 55650 55660 55670A 55680A 8601 8601 86831A 8715 8715 8715 8715 8715 90161T0002 90167T0007 90167T0022 9046710203 90467T0015 9054104002
Part # Description Qty Price
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN15..SR..DCR..(PHL,TH);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN26,36..DCB..5F..DLX..(LA,PHL);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55412-0K010B1

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26..DCB..(GEN,SA,TH);TGN36..4FC..(ANCOM,PHL);KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN15,26..(DCB,XTR)..SR..DCR..(PHL,TH);TGN16,36..5F..DLX..(ANCOM,ARL,GEN,LA,SA);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,KUN2#,3#,LAN15,25,35,TGN10,15..DLX..(ANCOM,ARL,GEN,IDN,LA,SA)

DK.GRAY,TRIM1#

 1
55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55412-0K010B1

KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26..DCB..(GEN,SA,TH);TGN36..4FC..(ANCOM,PHL);KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN15,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN15,26..(DCB,XTR)..SR..DCR..(PHL,TH);TGN16,36..5F..DLX..(ANCOM,ARL,GEN,LA,SA);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,KUN2#,3#,LAN15,25,35,TGN10,15..DLX..(ANCOM,ARL,GEN,IDN,LA,SA)

DK.GRAY,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-0K010B0

KUN25..LHD..SA;KUN35..DCB..DLX..SA;KUN25,35..ANCOM,GEN,LA;TGN16..5F..(ARL,GEN,SA);KUN26..(SCB,THDCB)..5F..DLX;TGN26..LHD..DLX..(ANCOM,GEN,SA);KUN15,36,TGN26..DCB..DLX..(LA,PHL);GGN15,25,KUN16,25,TGN10..SCB..5F..DLX..(ARL,IDN,MA,TH);KUN15,26,LAN15,25,35,TGN15,36..(DCB,SCB,XTR)..5F..(DLX,STD)..(ANCOM,GEN,LA,PKN,SA,TH)

GRAY,TRIM1#

 1
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90467-T0002B0

KUN25..LHD..SA;KUN35..DCB..DLX..SA;KUN25,35..ANCOM,GEN,LA;TGN16..5F..(ARL,GEN,SA);KUN26..(SCB,THDCB)..5F..DLX;TGN26..LHD..DLX..(ANCOM,GEN,SA);KUN15,36,TGN26..DCB..DLX..(LA,PHL);GGN15,25,KUN16,25,TGN10..SCB..5F..DLX..(ARL,IDN,MA,TH);KUN15,26,LAN15,25,35,TGN15,36..(DCB,SCB,XTR)..5F..(DLX,STD)..(ANCOM,GEN,LA,PKN,SA,TH)

GRAY,TRIM1#

 2
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90467-T0002B0

KUN25..LHD..SA;KUN35..DCB..DLX..SA;KUN25,35..ANCOM,GEN,LA;TGN16..5F..(ARL,GEN,SA);KUN26..(SCB,THDCB)..5F..DLX;TGN26..LHD..DLX..(ANCOM,GEN,SA);KUN15,36,TGN26..DCB..DLX..(LA,PHL);GGN15,25,KUN16,25,TGN10..SCB..5F..DLX..(ARL,IDN,MA,TH);KUN15,26,LAN15,25,35,TGN15,36..(DCB,SCB,XTR)..5F..(DLX,STD)..(ANCOM,GEN,LA,PKN,SA,TH)

GRAY,TRIM1#

 2
55447C - BASE, SWITCH HOLE, NO.2
55447-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55449D - BASE, SWITCH
55449-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55478A - BEZEL, AUTO CLOCK HOLE
55478-0K020B0

KUN15..DCB..SR;KUN15..DLX..PHL;KUN2#,TGN16,26..TH;KUN2#,TGN26..(THDCB,THSCB)..DLX;KUN16,35..(DCB,THDCB,XTR)..(GEN,TH)

DK.GRAY,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-0K010B0

GGN15,25,KUN1#,2#,TGN1#,26,36..DCB..(ARL,GEN,PHL,TH)

GRAY,TRIM1#

 1
55550-0K070B0

KUN26,TGN10..GEN,IDN;KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN25,35,TGN15,16,26..(DCB,THDCB,THSCB)..(ARL,GEN)

GRAY,TRIM1#

 1
55538A - COVER, COOLER SWITCH HOLE
55538-0K010B0

KUN15..XTR..DLX;KUN25..LHD..SCB..SA;KUN35..DCB..DLX..SA;TGN26..ANCOM,GEN,TH;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GEN,SA);KUN15..SR..DCR..(PHL,TH);TGN26..DCB..DLX..(LA,SA);KUN15,36..DCB..DLX..(LA,PHL);KUN35,TGN36..5F..DLX..(ANCOM,GEN,LA);KUN25,TGN10..SCB..DLX..(GEN,IDN,LA,MA);KUN2#..(DCB,THDCB,THSCB)..DLX..(ANCOM,GEN,LA,SA);GGN15,25,KUN26,TGN36..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,16,LAN15,25,35,TGN15..(DCB,SCB)..(ARL,GEN,PKN,SA,TH)

DK.GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-0K010B0

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..DCB..5F..SA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,16..(DCB,SCB)..(ARL,GEN,PKN,SA,TH);GGN15,25,LAN15,25,35,TGN15,16..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-0K010B0

KUN25..SCB..MA;TGN36..4FC..ANCOM;TGN26..DCB..DLX..LA;TGN26..DLX..(ANCOM,GEN,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN25,35,TGN16..5F..DLX..(ANCOM,ARL,GEN,LA,SA);KUN15,16,26,36,LAN15,25,35,TGN15,36..(DCB,SCB,THDCB,XTR)..5F..(DLX,STD)..(ANCOM,GEN,LA,PKN,SA,TH)

GRAY,TRIM1#

 1
55549B - COVER, INSTRUMENT PANEL HOLE, NO.2
55549-0K010B0

TGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..XTR..DLX;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;KUN26..4FC..(LA,PHL,TH);KUN15..SR..DCR..(PHL,TH);TGN26,36..DCB..5F..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN36..(DCB,SCB)..5F..(LA,SA);KUN26..DCB..5F..(LA,PHL,SA,TH);KUN16,26,TGN16..(THDCB,XTR)..SR..(GEN,TH);GGN25,KUN15..(DCB,SCB)..(ANCOM,GEN,PKN,SA,TH);KUN25,35,TGN16..5F..DLX..(ANCOM,ARL,GEN,LA,SA);GGN15,25,KUN26,LAN15,25,35,TGN15..(DLX,STD)..(ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55506-33030B5

TGN36..SCB;KUN26..THDCB;KUN25..SR..MA;KUN26..ARL,LA;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN36..DCB..(ANCOM,SA);TGN26,36..DCB..5F..DLX..LA;KUN36..(DCB,SCB)..5F..(LA,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10..DLX..(IDN,PHL,SA);KUN15..(DCB,SCB,XTR)..DCR..(GEN,PKN,TH);KUN16,25..(DCB,SCB,THDCB,THSCB)..DLX..(ANCOM,ARL,GEN,LA,SA,TH);GGN15,25,LAN15,25,35,TGN15,16,26..(5F,5FC)..(ANCOM,ARL,GEN,PKN,SA)

GRAY,TRIM1#

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-0K010B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..THDCB..SR;KUN16,TGN16..XTR..TH;KUN26,36..DCB..5F..SA;KUN15..SR..DCR..(PHL,TH);TGN26..DCB..(GCC,GEN,SA,TH);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN15,36,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,SA,TH);TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,SA,TH);KUN2#,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#,RH

 1
55604-0K020B0

KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..(DCB,XTR)..SR;TGN16..(SCB,XTR)..SR;TGN16..LHD..SCB..DLX;TGN36..4FC..(ANCOM,PHL);KUN15..SR..DCR..(PHL,TH);TGN26..ANCOM,GCC,GEN,SA,TH;KUN26..(DCB,XTR)..(LA,PHL,TH);KUN15,TGN26..DCB..DLX..(LA,PHL);KUN36,TGN16..LHD..(DCB,XTR)..5F;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15,LAN15,25,35,TGN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);GGN25,KUN10,16,TGN10,11..(DCB,SCB,XTR)..(ANCOM,GCC,IDN,TH)..CBU

DK.GRAY,TRIM1#,LH

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-0K010B0

KUN25..SCB..MA;KUN15..XTR..DLX;KUN26..THDCB..SR;KUN16,TGN16..XTR..TH;KUN26,36..DCB..5F..SA;KUN15..SR..DCR..(PHL,TH);TGN26..DCB..(GCC,GEN,SA,TH);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);KUN15,36,TGN26..DCB..DLX..(ANCOM,LA,PHL);KUN25,TGN36..(DCB,XTR)..SR..(MA,PHL,SA,TH);TGN26..(SCB,THDCB,XTR)..(ANCOM,GCC,GEN,SA,TH);KUN2#,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA)

DK.GRAY,TRIM1#,RH

 1
55604-0K020B0

KUN26..THDCB;KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..(DCB,XTR)..SR;TGN16..(SCB,XTR)..SR;TGN16..LHD..SCB..DLX;TGN36..4FC..(ANCOM,PHL);KUN15..SR..DCR..(PHL,TH);TGN26..ANCOM,GCC,GEN,SA,TH;KUN26..(DCB,XTR)..(LA,PHL,TH);KUN15,TGN26..DCB..DLX..(LA,PHL);KUN36,TGN16..LHD..(DCB,XTR)..5F;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15,LAN15,25,35,TGN15..(DCB,SCB)..(GCC,GEN,PKN,SA,TH);GGN25,KUN10,16,TGN10,11..(DCB,SCB,XTR)..(ANCOM,GCC,IDN,TH)..CBU

DK.GRAY,TRIM1#,LH

 1
55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER
55615-0K010B0

KUN25..SCB..MA;TGN16..LHD..5F;KUN26..THDCB..SR;KUN25,TGN26..SR..(GEN,MA);KUN15,36,TGN26..DCB..DLX..(LA,PHL);KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15,TGN15,26..(DCB,SCB,THDCB,XTR)..(DLX,STD)..(ANCOM,GCC,GEN,PKN,SA,TH);KUN10,16,26,LAN15,25,35,TGN10,11..(DLX,STD)..(GCC,GEN,IDN,LA,PKN,SA,TH)..CBU

DK.GRAY,TRIM1#

 2
55615A - CASE, INSTRUMENT PANEL CUP HOLDER, OUTER
55615-0K010B0

KUN25..SCB..MA;TGN16..LHD..5F;KUN26..THDCB..SR;KUN25,TGN26..SR..(GEN,MA);KUN15,36,TGN26..DCB..DLX..(LA,PHL);KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15,TGN15,26..(DCB,SCB,THDCB,XTR)..(DLX,STD)..(ANCOM,GCC,GEN,PKN,SA,TH);KUN10,16,26,LAN15,25,35,TGN10,11..(DLX,STD)..(GCC,GEN,IDN,LA,PKN,SA,TH)..CBU

DK.GRAY,TRIM1#

 2
55618B - BASE, SWITCH HOLE, NO.3
55618-0K010

TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0K010B0

KUN36..LA,SA;GGN15,25,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,GEN,LA,MA,PHL,SA,TH

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0K010B0

KUN36..LA,SA;GGN15,25,KUN15,16,2#,35,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,GEN,LA,MA,PHL,SA,TH

DK.GRAY,TRIM1#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,SA,TH);GGN15,25,KUN16,26,TGN36..ARL,PHL,TH;KUN25,35,LAN15,25,35,TGN15,16,26..ARL,GEN,MA,SA,TH

DK.GRAY,TRIM1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-0K010B0

KUN15..XTR..DLX;KUN15..(DCB,SCB)..(GEN,PHL,SA,TH);GGN15,25,KUN16,26,TGN36..ARL,PHL,TH;KUN25,35,LAN15,25,35,TGN15,16,26..ARL,GEN,MA,SA,TH

DK.GRAY,TRIM1#

 1
86831A - COVER, ACCESSORY SOCKET
86831-0K010B0

TGN36..SCB..DLX;TGN36..4FC..ANCOM;TGN26..DCB..DLX..LA;KUN25,35..SCB..(LA,MA);TGN26..DLX..(ANCOM,GEN,SA);KUN15,TGN10..DLX..(IDN,PHL);KUN16,25..(DCB,SCB,THSCB)..DLX..(ANCOM,ARL,GEN,SA,TH);KUN35,TGN16..(DCB,SCB,XTR)..5F..DLX..(ANCOM,ARL,GEN,SA);GGN15,25,KUN15,26,LAN15,25,35,TGN15..(DCB,SCB,XTR)..(DLX,STD)..(ARL,GEN,PKN,SA,TH)

GRAY,TRIM1#

 1
Common parts
90161-T0002
90167-T0007
90167-T0022
90467-10203
90467-T0015
90541-04002
Linked diagrams
8601
8715
