KUN15L-PRMDYM (2004)

Toyota Hilux

Production Nov 2004 - Aug 2008
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0808)KUN15,16,2#,3#..RHD ; (0808- )KUN26..RHD..5F ; (0808- )KUN15,16,25

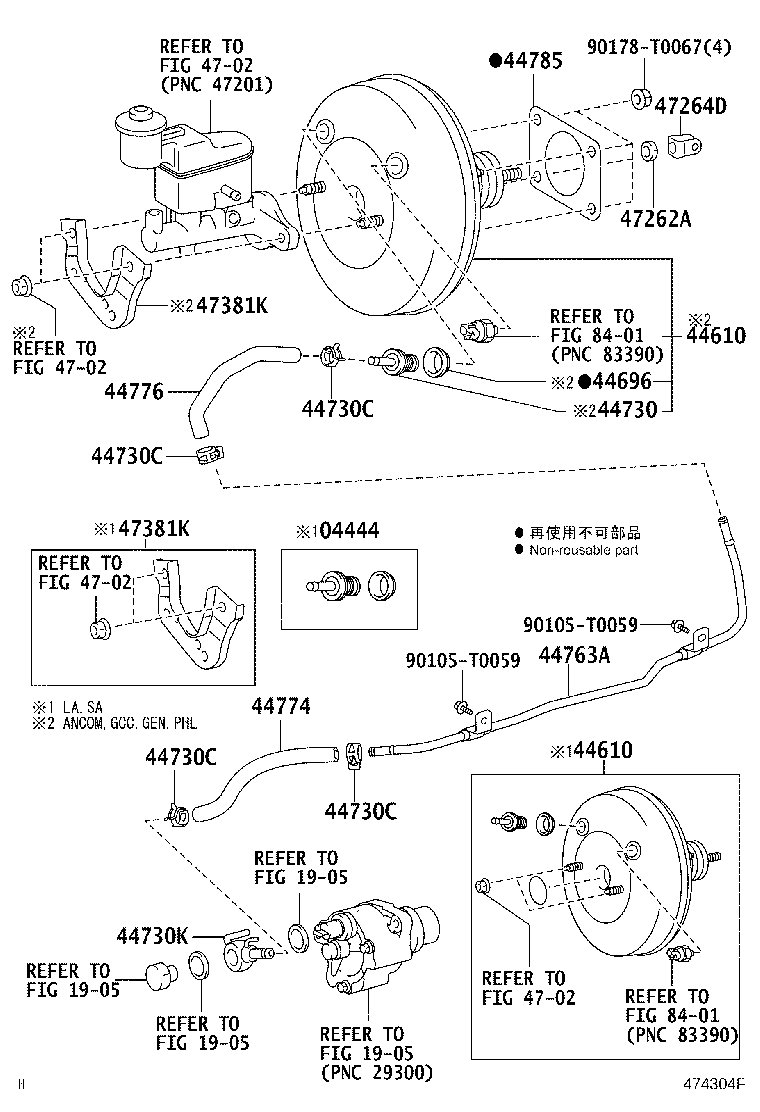

Click highlighted areas on diagram

diagram 04444 1905 1905 1905 1905 44610 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 8401 8401 90105T0059 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
44696 - GROMMET, CHECK VALVE
90080-48050

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..SCB..(GEN,LA,MA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB)..(ANCOM,GCC,GEN,LA,SA)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..SCB..(GEN,LA);KUN36..(DCB,SCB)..5F;KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH)

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..SCB..(GEN,LA,MA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB)..(ANCOM,GCC,GEN,LA,SA)

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401

(0411- )KUN10,15,2#,3#..LHD

Click highlighted areas on diagram

diagram 04444 1905 1905 1905 1905 44610 44610 44696 44730 44730C 44730C 44730C 44730C 44730K 44763A 44774 44776 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 8401 8401 90105T0059 90105T0059 90178T0067
Part # Description Qty Price
44696 - GROMMET, CHECK VALVE
90080-48050

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..SCB..(GEN,LA,MA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB)..(ANCOM,GCC,GEN,LA,SA)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..SCB..(GEN,LA);KUN36..(DCB,SCB)..5F;KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(ANCOM,GCC,GEN,LA,SA,TH)

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020

KUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..SCB..(GEN,LA,MA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB)..(ANCOM,GCC,GEN,LA,SA)

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)

 1
Common parts
90105-T0059
90178-T0067
Linked diagrams
1905
4702
8401
