KUN15L-CRMDH (2012)

Toyota Hilux

Production Aug 2012 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )XTR

Click highlighted areas on diagram

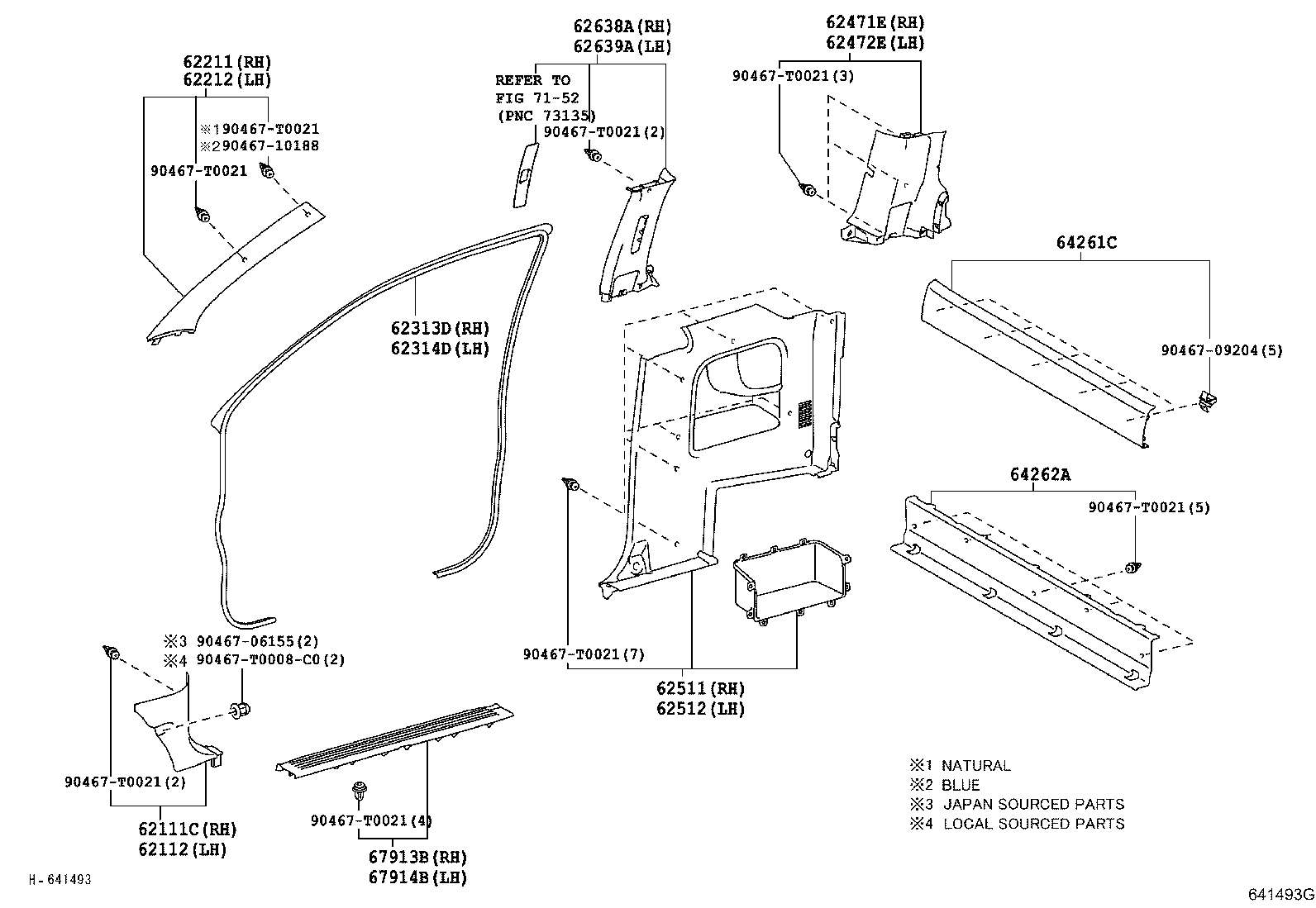

diagram 62111C 62112 62211 62212 62313D 62314D 62471E 62472E 62511 62512 62638A 62639A 64261C 64262A 67913B 67914B 7152 9046706155 9046709204 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021
Part # Description Qty Price
Common parts
90467-06155
90467-09204
90467-10188
90467-T0008C0
90467-T0021
Linked diagrams
7152

(1107- )XTR

Click highlighted areas on diagram

diagram 62111C 62112 62155C 62156B 62170A 62170B 62170B 62180A 62211 62212 62313D 62314D 62471E 62472E 62511 62512 62638A 62638B 62639A 64261C 64262A 67913B 67914B 7152 7455 9046706155 9046709204 9046710161 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0K010B1

KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN

MD.GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0K010B1

KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH);KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL);KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN10,26,36..ARL,GEN,IDN,MA,PKN

MD.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0K010B0

KUN15..DLX..PHL;TGN16..SCB..GEN;GGN15..(DCB,XTR)..5FC;KUN15..(DCB,SCB)..GEN;KUN16,35..RHD..(ARL,GEN)..CBU;KUN15,TGN16..(DCB,SMT,XTR)..(CNG,HDCR,HTWC)..(ARL,GEN,TH)

LT.GRAY,TRIM1#,2#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-0K010B0

KUN15..DLX..PHL;TGN16..SCB..GEN;GGN15..(DCB,XTR)..5FC;KUN15..(DCB,SCB)..GEN;KUN16,35..RHD..(ARL,GEN)..CBU;KUN15,TGN16..(DCB,SMT,XTR)..(CNG,HDCR,HTWC)..(ARL,GEN,TH)

LT.GRAY,TRIM1#,2#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-0K070

GGN15,KUN15,16,2#,3#,TGN16..XTR

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62312-0K070

GGN15,KUN15,16,2#,3#,TGN16..XTR

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-0K010B2

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,MD.GRAY,TRIM1#

 1
62471-0K080B2

GGN15,KUN15,16,25,TGN16..XTR..(ARL,GEN)

MD.GRAY,TRIM1#

 1
62471-0K080C0

GGN15,KUN15,16,25,TGN16..XTR..DLX

BLACK,TRIM2#

 1
62471-0K010C0

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,BLACK,TRIM2#

 1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-0K080B2

GGN15,KUN15,16,25,TGN16..XTR..(ARL,GEN)

MD.GRAY,TRIM1#

 1
62472-0K010B2

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,MD.GRAY,TRIM1#

 1
62472-0K010C0

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,BLACK,TRIM2#

 1
62472-0K080C0

GGN15,KUN15,16,25,TGN16..XTR..DLX

BLACK,TRIM2#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K010B1

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

MD.GRAY,TRIM1#

 1
62510-0K010C0

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

BLACK,TRIM2#

 1
62510-0K090B1

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,MD.GRAY,TRIM1#

 1
62510-0K090C0

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,BLACK,TRIM2#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K080B1

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,MD.GRAY,TRIM1#

 1
62520-0K010B1

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

MD.GRAY,TRIM1#

 1
62520-0K010C0

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

BLACK,TRIM2#

 1
62520-0K080C0

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,BLACK,TRIM2#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-0K080C0

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

BLACK,TRIM2#

 1
62638-0K080B0

GGN15,KUN15,16,2#,3#,TGN16..XTR

MD.GRAY,TRIM1#

 1
62638B - CLIP
90467-T0021

GGN15,KUN15,16,2#,3#,TGN16..XTR

NATURAL

 2
90467-10188

GGN15,KUN15,16,2#,3#,TGN16..XTR

BLUE

 2
62639A - GARNISH, QUARTER PILLAR, LH
62639-0K110B0

GGN15,KUN15,16,2#,3#,TGN16..XTR

MD.GRAY,TRIM1#

 1
62639-0K110C0

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

BLACK,TRIM2#

 1
64261C - GARNISH, BACK PANEL, UPPER
64261-0K040C0

GGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..(ARL,GEN,TH)

BLACK,TRIM2#

 1
64261-0K040B1

KUN15..SMT..DLX;KUN35..SMT..5FC;KUN15,2#,3#..XTR;GGN15,KUN16,TGN16..SMT,XTR

MD.GRAY,TRIM1#

 1
64262A - GARNISH, BACK PANEL, LOWER
64262-0K020B1

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,MD.GRAY,TRIM1#

 1
64262-0K010B1

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

MD.GRAY,TRIM1#

 1
64262-0K010C0

GGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)

BLACK,TRIM2#

 1
64262-0K020C0

KUN15,25,TGN16..XTR..GEN

REAR SEAT-WITHOUT,BLACK,TRIM2#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-0K040C0

KUN26..XTR..ARL;KUN2#,35,TGN16..(SCB,THSCB,XTR)..(GEN,LA);GGN15,KUN15,16,TGN26,36..(SCB,XTR)..(ARL,GEN,LA)..CBU

BLACK,TRIM2#

 1
67913-0K040B1

GGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PKN,TH)

MD.GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-0K040C0

KUN26..XTR..ARL;KUN2#,35,TGN16..(SCB,THSCB,XTR)..(GEN,LA);GGN15,KUN15,16,TGN26,36..(SCB,XTR)..(ARL,GEN,LA)..CBU

BLACK,TRIM2#

 1
67914-0K040B1

GGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PKN,TH)

MD.GRAY,TRIM1#

 1
Common parts
90467-06155
90467-09204
90467-10161
90467-10188
90467-T0008C0
90467-T0021
Linked diagrams
7152
7455
