KUN15L-CRMDH (2012)
Toyota Hilux
(9708- )KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,VZN167,172,YN140

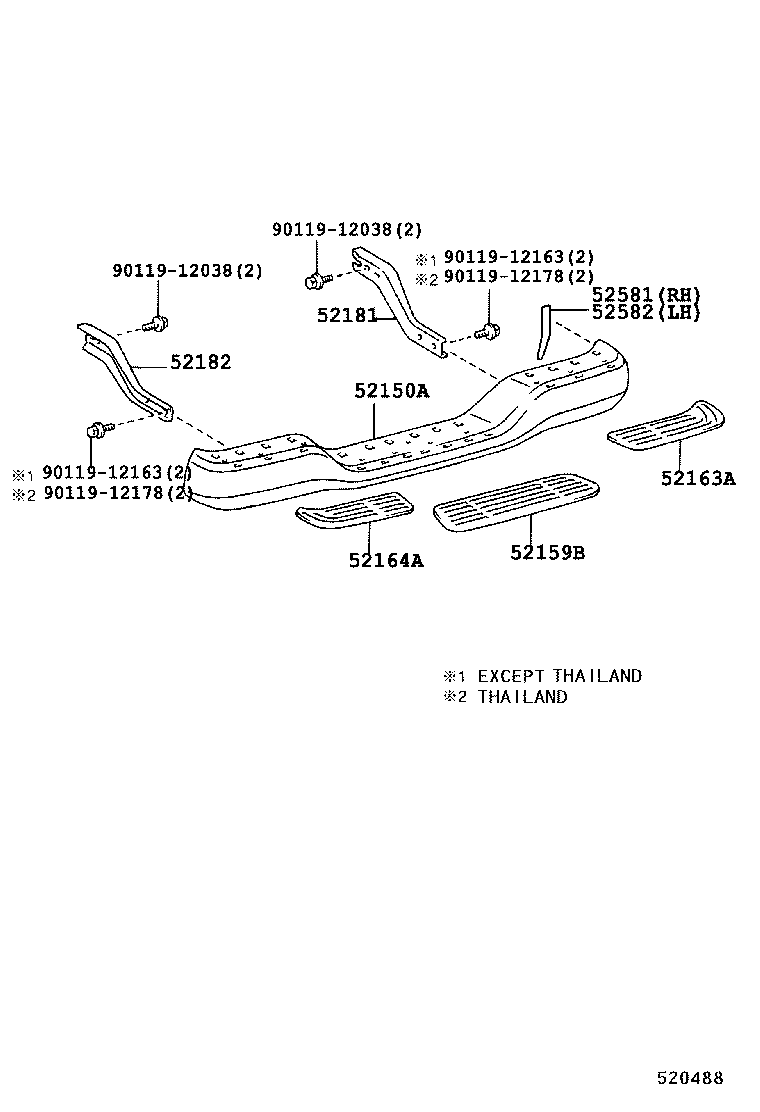

STEP BUMPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-12038 | ||||
| 90119-12163 | ||||
| 90119-12178 | ||||
(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0124 | ||||
| Linked diagrams | ||||
| 8113 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151E - BAR, REAR BUMPER | ||||
| 52105-0K010 |
TGN16..XTR;KUN25..SCB..PKN;KUN15..DLX..GEN;KUN25..(DCB,SCB)..GEN;TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN35,TGN16..(DCB,SCB)..DLX..(PHL,SA) NO PAINT REQ. |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-0K010 |
TGN16..XTR;KUN25..SCB..PKN;KUN15..DLX..GEN;KUN25..(DCB,SCB)..GEN;TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN35,TGN16..(DCB,SCB)..DLX..(PHL,SA) NO PAINT REQ. |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52159-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52159B - PLATE, REAR BUMPER | ||||
| 52159-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52159-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52163-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52163-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52164-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52164-04010 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52179B - PLATE, REAR BUMPER BAR | ||||
| 52179-0K010 |
TGN16..SA;KUN15..GEN;TGN16..XTR;KUN35..PHL,SA,TH;KUN25..SCB..(GEN,PKN);KUN15,25..SR..(IDN,PHL,SA);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;GGN25,35,KUN16,26,36,TGN36..SR..(GEN,MA,PHL,SA,TH) |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-0K020 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52181-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-0K020 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52181-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52182-0K020 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-0K010 |
TGN16..SA;TGN16..XTR;KUN35..PHL,SA,TH;KUN26..DCB..DLX..IART;KUN25..SCB..(GEN,PKN);KUN25..(DCB,SMT)..(GEN,MA,TH);KUN35,TGN26..LHD..DCB..(GEN,SA);KUN15,25,LAN15,25..LHD..DCB..DLX..SA;KUN15,TGN26..5F..(DCR,HDCR,HTWCF)..(GEN,LA);KUN15,25,TGN26..SR..(DCR,HDCR,HTWC)..(IDN,LA,PHL,SA);GGN25,35,KUN16,26,36,TGN36..SR..(DCR,HTWC,IART)..(CO,GEN,LA,MA,PHL,SA,TH) |
1 | ||
| 52182-0K020 |
GGN25..5F..SR;TGN26..4FC..GEN;KUN26..XTR..SR..ARL;KUN15,25,TGN26..GCC..CBU;GGN15,KUN26..5FC..SR..ARL;TGN16..(DCB,SCB)..(GCC,GEN)..CBU;KUN25,TGN26..LHD..(SCB,THDCB,THSCB,XTR)..GEN;KUN10,26,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-T0124 | ||||
| Linked diagrams | ||||
| 8113 | ||||
