KUN15L-CRMDH (2012)
Toyota Hilux
(1107- )KUN10,15..DCR
G50

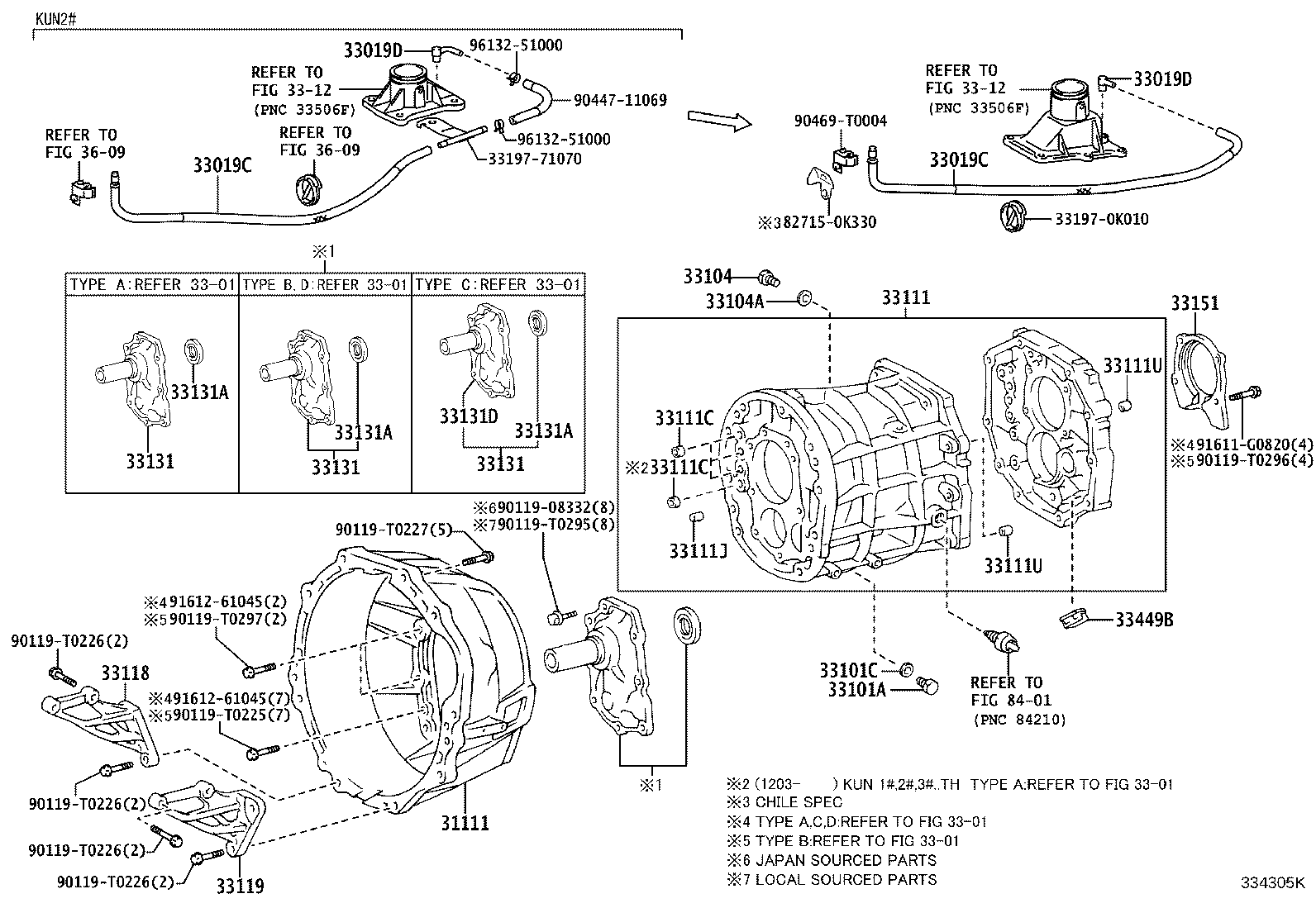

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31111-35102 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-26032 |
TGN10,15 TYPE A:REFER 33-01 |
1 | ||
| 31111-0W070 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 31111-0K090 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31111-0K061 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-25050 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71040 |
TGN10,15 |
1 | ||
| 33019-71110 |
KUN16,36..5F;KUN15,35..5F..HDCR |
1 | ||
| 33019-71070 |
KUN10,15..DCR |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 33191-71010 |
KUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33191-71010 |
KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F |
1 | ||
| 36149-60070 |
TGN36..5F..HTWC;GGN25,KUN10,TGN11,16,26..5F;KUN15..DCR..(GCC,GEN,PHL,TH) TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN16..(DCB,SCB)..GEN;TGN26..SCB..(ANCOM,GEN);KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35051 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) OD=14,TYPE A:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) OD=14,TYPE D:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=16,OD=12,TYPE B:SEE 33-01,(L) |
2 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=16,OD=12,TYPE B:SEE 33-01,(L) |
2 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN1#,2#,3#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN1#,2#,3#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K040 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33131-26020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131-0K030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33018-0K070 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90311-T0027 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-30014 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-0K040 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-35030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90149-80002 | ||||
| 90949-T1024 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
(1107- )5F..HDCR ; (1107- )KUN16,26,36..5F
R151,R156,R151F,R156F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31111-35102 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-26032 |
TGN10,15 TYPE A:REFER 33-01 |
1 | ||
| 31111-0W070 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 31111-0K090 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31111-0K061 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-25050 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71040 |
TGN10,15 |
1 | ||
| 33019-71110 |
KUN16,36..5F;KUN15,35..5F..HDCR |
1 | ||
| 33019-71070 |
KUN10,15..DCR |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71040 |
TGN10,15 |
1 | ||
| 33019-71110 |
KUN16,36..5F;KUN15,35..5F..HDCR |
1 | ||
| 33019-71070 |
KUN10,15..DCR |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 33191-71010 |
KUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33191-71010 |
KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F |
1 | ||
| 36149-60070 |
TGN36..5F..HTWC;GGN25,KUN10,TGN11,16,26..5F;KUN15..DCR..(GCC,GEN,PHL,TH) TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN16..(DCB,SCB)..GEN;TGN26..SCB..(ANCOM,GEN);KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 33191-71010 |
KUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33191-71010 |
KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F |
1 | ||
| 36149-60070 |
TGN36..5F..HTWC;GGN25,KUN10,TGN11,16,26..5F;KUN15..DCR..(GCC,GEN,PHL,TH) TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN16..(DCB,SCB)..GEN;TGN26..SCB..(ANCOM,GEN);KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35051 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) OD=14,TYPE A:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) OD=14,TYPE D:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) OD=14,TYPE A:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) OD=14,TYPE D:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=16,OD=12,TYPE B:SEE 33-01,(L) |
2 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN1#,2#,3#..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN1#,2#,3#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K040 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33131-26020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131-0K030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33018-0K070 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K040 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33131-26020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131-0K030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33018-0K070 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K040 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33131-26020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131-0K030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33018-0K070 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90311-T0027 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-30014 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90311-T0027 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-30014 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90311-T0027 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-30014 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33131-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-0K040 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-35030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| Common parts | ||||
| 33197-0K010 | ||||
| 33197-71070 | ||||
| 82715-0K330 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90447-11069 | ||||
| 90469-T0004 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )TGN10,15
G55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31111-35102 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 31111-26032 |
TGN10,15 TYPE A:REFER 33-01 |
1 | ||
| 31111-0W070 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 31111-0K090 |
KUN16,26,36..5F;KUN15,25,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 31111-0K061 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:SEE 33-01,(L) |
1 | ||
| 31111-25050 |
KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-26020 |
TGN10,15 T/P A:SEE 33-01,NO.2 |
1 | ||
| 31121-35020 |
TGN10,15 T/P A:SEE 33-01,NO.1 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-26020 |
TGN10,15 T/P A:SEE 33-01,NO.2 |
1 | ||
| 31121-35020 |
TGN10,15 T/P A:SEE 33-01,NO.1 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71040 |
TGN10,15 |
1 | ||
| 33019-71110 |
KUN16,36..5F;KUN15,35..5F..HDCR |
1 | ||
| 33019-71070 |
KUN10,15..DCR |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 33191-71010 |
KUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33191-71010 |
KUN16,36..5F;KUN15,35..5F..HDCR TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F |
1 | ||
| 36149-60070 |
TGN36..5F..HTWC;GGN25,KUN10,TGN11,16,26..5F;KUN15..DCR..(GCC,GEN,PHL,TH) TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN16..(DCB,SCB)..GEN;TGN26..SCB..(ANCOM,GEN);KUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18057 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90341-18006 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-T0021 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..XTR..TH;KUN15..LHD..DCR;KUN2#,3#..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15..RHD..(DCB,SCB,SMT)..(DLX,SR);KUN10,16,TGN10,15..5F..(GCC,IDN,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN15..HDCR..SA;TGN36..5F..HTWC;KUN15,TGN15..GCC,GEN,PHL,TH;GGN15,25,KUN10,16,2#,3#,TGN10,11,16,26..5F TYPE D:REFER 33-01 |
1 | ||
| 90430-18008 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35051 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33101-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33101-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) OD=14,TYPE A:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) OD=18,TYPE B:REFER 33-01 |
3 | ||
| 96411-41800 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 90331-14004 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) OD=14,TYPE D:REFER 33-01 |
4 | ||
| 96411-41800 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=16,OD=12,TYPE B:SEE 33-01,(L) |
2 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-T0020 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=16,OD=12,TYPE B:SEE 33-01,(L) |
2 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=16,OD=12,TYPE A:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
4 | ||
| 90250-12002 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) L=14,OD=15,TYPE A:REFER 33-01 |
2 | ||
| 90253-15001 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 90253-15001 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
2 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K040 |
KUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33131-26020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33131-0K030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33018-0K070 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF) TYPE D:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0021 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 90311-T0027 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-30014 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151-0K020 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-0K040 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-35030 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33151-0K030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) TYPE B:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449-26010 |
KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
1 | ||
| 33449-35030 |
KUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| Common parts | ||||
| 33197-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90119-T0225 | ||||
| 90119-T0295 | ||||
| 90149-80002 | ||||
| 90949-T1024 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
