KUN15L-CRMDH (2012)
Toyota Hilux

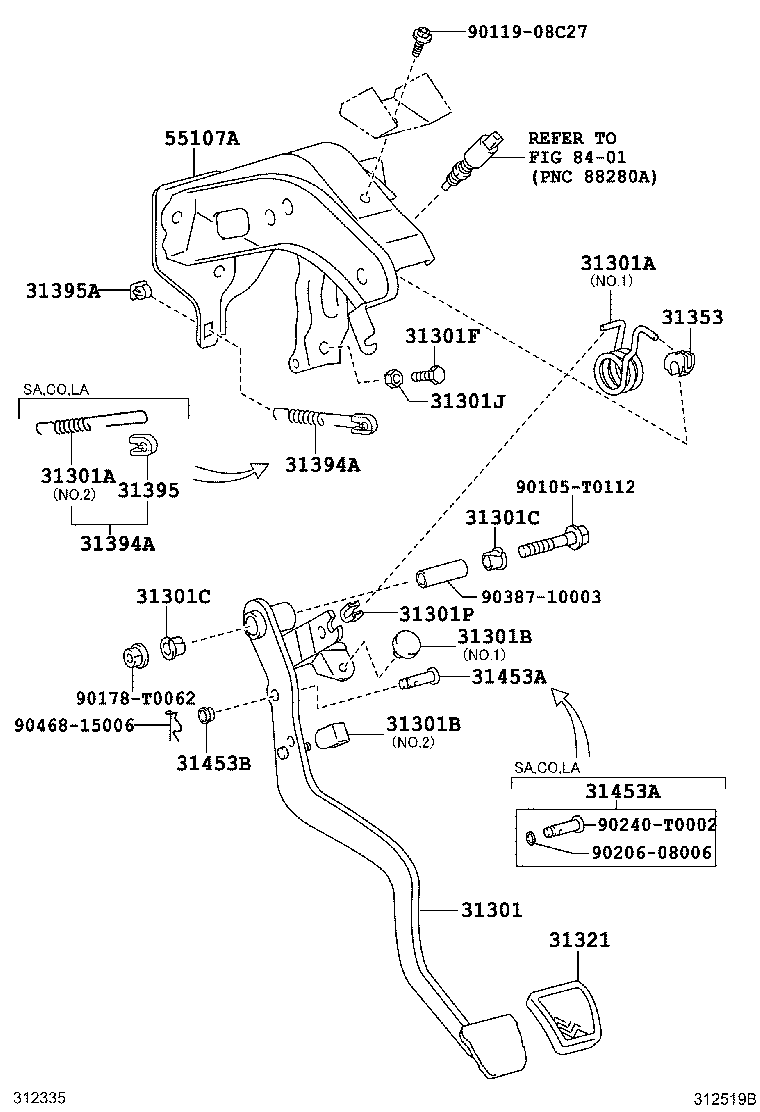

ILLUST NO. 1 OF 2(1107- )KUN10,15..LHD..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K180 |
KUN26..LHD..(DCB,THDCB)..5F..(GEN,PHL);KUN15,25,35..LHD..5F..HDCR..(GCC,GEN,PHL) |
1 | ||
| 31301-0K170 |
KUN10,15..LHD..DCR..(GCC,GEN,PHL) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-T3001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90507-T0001 |
KUN10,15,LAN15,25,35,TGN1#,26,36..5F..(CNG,DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN15,25,KUN1#,2#,3#..5F NO.1 |
1 | ||
| 90541-T0005 |
KUN10,15,2#,3#..LHD..5F NO.2 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN15,25,KUN1#,2#,3#..5F NO.1 |
1 | ||
| 90541-T0005 |
KUN10,15,2#,3#..LHD..5F NO.2 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15..LHD..DCR..GEN;KUN15..DCR..(GCC,PHL,SA);KUN15,25,TGN10..5F..(HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,KUN10,16,26,3#,LAN15,25,35,TGN11,15,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15..LHD..DCR..GEN;KUN15..DCR..(GCC,PHL,SA);KUN15,25,TGN10..5F..(HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,KUN10,16,26,3#,LAN15,25,35,TGN11,15,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
TGN15,36..5F;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN10,11,16,26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=29.4 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K050 |
KUN10,15..DCR |
1 | ||
| 55107-0K060 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90206-08006 | ||||
| 90240-T0002 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1107- )KUN15..HDCR..GEN ; (1107- )KUN2#,3#..LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K180 |
KUN26..LHD..(DCB,THDCB)..5F..(GEN,PHL);KUN15,25,35..LHD..5F..HDCR..(GCC,GEN,PHL) |
1 | ||
| 31301-0K170 |
KUN10,15..LHD..DCR..(GCC,GEN,PHL) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-T3001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90507-T0001 |
KUN10,15,LAN15,25,35,TGN1#,26,36..5F..(CNG,DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-T3001 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 90507-T0001 |
KUN10,15,LAN15,25,35,TGN1#,26,36..5F..(CNG,DCR,DEFI,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN15,25,KUN1#,2#,3#..5F NO.1 |
1 | ||
| 90541-T0005 |
KUN10,15,2#,3#..LHD..5F NO.2 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN15,25,KUN1#,2#,3#..5F NO.1 |
1 | ||
| 90541-T0005 |
KUN10,15,2#,3#..LHD..5F NO.2 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15..LHD..DCR..GEN;KUN15..DCR..(GCC,PHL,SA);KUN15,25,TGN10..5F..(HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,KUN10,16,26,3#,LAN15,25,35,TGN11,15,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN15..LHD..DCR..GEN;KUN15..DCR..(GCC,PHL,SA);KUN15,25,TGN10..5F..(HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,KUN10,16,26,3#,LAN15,25,35,TGN11,15,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
TGN15,36..5F;LAN15,25,35..RHD;GGN15,25,KUN1#,2#,3#,TGN10,11,16,26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
KUN16,26,36..5F;GGN15,25,KUN15,25,35..5F..(HDCR,HTWC) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN16,26,36..5F;GGN15,25,KUN15,25,35..5F..(HDCR,HTWC) |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
KUN16,26,36..5F;GGN15,25,KUN15,25,35..5F..(HDCR,HTWC) |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
KUN16,26,36..5F;GGN15,25,KUN15,25,35..5F..(HDCR,HTWC) |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
KUN16,26,36..5F;GGN15,25,KUN15,25,35..5F..(HDCR,HTWC) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=29.4 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K050 |
KUN10,15..DCR |
1 | ||
| 55107-0K060 |
KUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90206-08006 | ||||
| 90240-T0002 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1107- )KUN10,15,2#,3#..LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-0K040 |
KUN15..LHD..SCB..DCR;KUN15..LHD..(DCB,XTR);KUN10,25,35,LAN15,25..LHD..5F..(GCC,GEN,SA) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-T2008 |
KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0K010 |
TGN10,15 |
1 | ||
| 31482-0K040 |
KUN1#,2#,3#..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-0K010 |
KUN1#,2#,3#,LAN15,25,35..5F |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-0K020 |
KUN1#,2#,3#..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-0K010 |
KUN15..DCR;KUN35..LHD..GEN;KUN15..XTR..HDCR;KUN35..DLX..(CO,LA,SA);KUN10,26,36..5F..(CO,GCC,IDN,LA);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA);KUN16,LAN15,25,35..RHD..5F..(SA,TH) |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90468-T0004 | ||||
| 90949-T1012 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
